  shallowal said   what about back to back FET's. ie tie sources together and Gates together then drain of one connects to the panels and drain of the other connects to the battery.


Valid, but the issue with that topology is that a separate supply with a floating ground is needed. SolarMike and Warp put me wise on that in the thread MinimuMPPT.

I guess the way to go along the KISS philosophy for this machine, Schottky diodes maybe the best solution. Nick has already tested it. However it shall require reworking the board which can be minimized if these diodes are off-board and just have two thick wires going to their paralleled anodes and cathodes. High voltages may require an additional pair in series, but that aspect requires further examination.

Solution if you want to use reverse protection mosfet - just duplicate the TLP circuit already being used here and use it to bias the reverse protection mosfet. The ACS/LEM will tell the nano when to shut it down or switch it ON.

azhaque
Edited 2020-05-08 19:36 by azhaque

wiseguy

Guru

Joined: 21/06/2018
Location: Australia
Posts: 1156
Posted: 09:51am 08 May 2020
Copy link to clipboard
Print this post

Can someone enlighten me what sort of current do panels draw from backfeed ?

Assume a single line of panels say 250 or 300W.
If at first you dont succeed, I suggest you avoid sky diving....
Cheers Mike

Solar Mike
Guru

Joined: 08/02/2015
Location: New Zealand
Posts: 1138
Posted: 11:35am 08 May 2020
Copy link to clipboard
Print this post

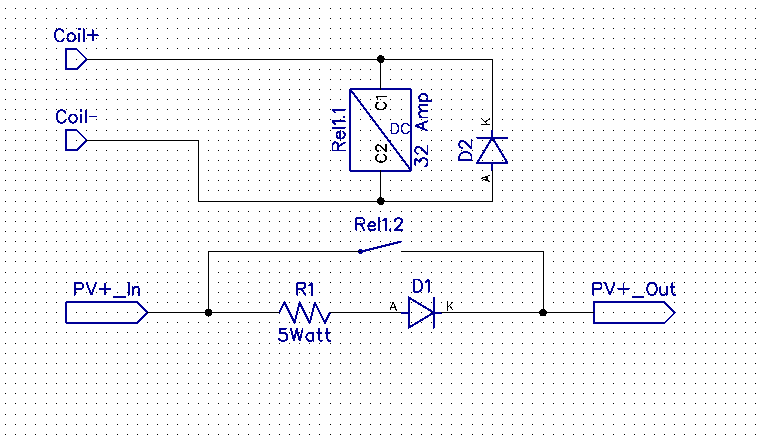

An external relay module would be the most reliable, something like this:



The contact rating being the determining factor, I have used these relays before and they seem reliable 80 amp , 60 amp .I would be a bit wary about the ratings of some relays on Aliexpress, but that manufacture seems to make quality stuff.

The resistor allows pre-charging of the electros to prevent the contacts burning up. CPU should turn off PWM so, so no current load prior to opening at night.


Mike your question about back feed current, not much... a 60 junction panel (24v) and 50v battery has say 3 series panels for mppt = approx 100v and 180 reverse PN junctions applied across the 50v battery, so their will be some 10's ma leakage, probably wont be noticeable on a large bank.


Cheers
Mike

nickskethisniks
Guru

Joined: 17/10/2017
Location: Belgium
Posts: 458
Posted: 08:29pm 08 May 2020
Copy link to clipboard
Print this post

It's dark over here at this moment, so I went measuring.
I have 20 panels connected  (each 280W), they are with 2 in series and 10 groups in parallel, let's say 2p10s. They are consuming just not exactly 100mA @ 53V, I've measured with a clamp meter on the 2A setting.

For the design files I just checked and I can convert the files to Altium format if you want Mike.

At this moment I would recommend for backshed members to make an account on Easyeda and sent me a private message with your account name. That way I can add you to the project, I can give you acces to copy the project and do whatever you want with it.

That way we have time to write proper description before exposing it to the world if we want to.
Edited 2020-05-09 06:33 by nickskethisniks

wiseguy

Guru

Joined: 21/06/2018
Location: Australia
Posts: 1156
Posted: 10:38pm 08 May 2020
Copy link to clipboard
Print this post

Thanks Nicks and Mike, if I divide Nicks 100mA by the 10 parallel strings, I guess that's of the order of ~10+mA that Mike suggested.

This is a whole lot less than I was expecting, it appears that for an average say 3 strings in parallel ~ 1A is lost in ~3 days or ~ 50Wh for a 48V system.  It almost sounds like a non event to me. For a 1kWh storage 5% for 10kWh 0.5%. To put into perspective 0.5% is 1 hours use in 200 hours.

Nicks I have almost finished creating all the symbols required for Altium and just have the current sensors to go and the schematic will be finished. Can I assume you can also convert from Altium to easy eda? That would make it a whole lot easier for me.
If at first you dont succeed, I suggest you avoid sky diving....
Cheers Mike

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 10:57pm 08 May 2020
Copy link to clipboard
Print this post

Almost every panel in existence would have blocking diodes on the back already wouldn't they?
Cheers Caveman Mark
Off grid eastern Melb

wiseguy

Guru

Joined: 21/06/2018
Location: Australia
Posts: 1156
Posted: 12:11am 09 May 2020
Copy link to clipboard
Print this post

  renewableMark said  Almost every panel in existence would have blocking diodes on the back already wouldn't they?


Fair comment (I wouldnt have a clue - google seems to suggest they do) but it seems like Nicks and solar Mikes don't or maybe the blocking diodes have this much leakage?

There seems to be two takes on this, some suggest they are in the panels so external blocking is not necessary, the other says that the charge controllers perform this function so blocking diodes are not needed.  I dont know which one is right....yet.
If at first you dont succeed, I suggest you avoid sky diving....
Cheers Mike

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 02:32am 09 May 2020
Copy link to clipboard
Print this post

Open up the black box on the back of the panel and you'll see them there, they have been in every one I inspected.
Be careful opening them though the little tabs break easily.
Cheers Caveman Mark
Off grid eastern Melb

Warpspeed
Guru

Joined: 09/08/2007
Location: Australia
Posts: 4406
Posted: 03:00am 09 May 2020
Copy link to clipboard
Print this post

All my panels have blocking diodes already there.
Cheers,  Tony.

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1026
Posted: 03:10am 09 May 2020
Copy link to clipboard
Print this post

Most of mine have Bypass Diodes only.
Cheers Aaron
Off The Grid

Solar Mike
Guru

Joined: 08/02/2015
Location: New Zealand
Posts: 1138
Posted: 03:44am 09 May 2020
Copy link to clipboard
Print this post

Mine have bypass diodes, not blocking ones; generally if blocking diodes are used it is one diode per string of series panels.

Mike

shallowal
Regular Member

Joined: 26/07/2018
Location: Australia
Posts: 58
Posted: 04:09am 09 May 2020
Copy link to clipboard
Print this post

I thought the diodes were normally for bypass rather than blocking.
Allan

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1420
Posted: 04:10am 09 May 2020
Copy link to clipboard
Print this post

  nickskethisniks said  Peter, don't worry from my side, I spent more than a day to solder and mount 3 power pcb's (first generation) in one housing. I'm not gonna swap them out. I will use those boards, but I'm happy to work on an improved version, but it must stay compatible with the first one like you and I are using.

I will put version 1 online, if you agree I put version 2 online as well. And make a list to work on version 3. I need to check if I can concert to altium format. Everything is drawed in easyeda.


Feel free to put it all up here on the forum.
wronger than a phone book full of wrong phone numbers

azhaque
Senior Member

Joined: 21/02/2017
Location: Pakistan
Posts: 117
Posted: 04:31am 09 May 2020
Copy link to clipboard
Print this post

  poida said

Feel free to put it all up here on the forum.


I can try and export it to Kicad if there are people interested. Haven't actually done it but remember something to this effect in Easyeda.

azhaque

azhaque
Senior Member

Joined: 21/02/2017
Location: Pakistan
Posts: 117
Posted: 05:02am 09 May 2020
Copy link to clipboard
Print this post

  wiseguy said   Can I assume you can also convert from Altium to easy eda? That would make it a whole lot easier for me.


Wiseguy,

Here is the file exported from EasyEDA (Thanks Nick for forking it over) to Altium.(I assume that is what you meant   )

Pls try it out and tell us.

Regards

BuckConv.zip
Edited 2020-05-09 15:22 by azhaque

wiseguy

Guru

Joined: 21/06/2018
Location: Australia
Posts: 1156
Posted: 05:22am 09 May 2020
Copy link to clipboard
Print this post

I just finished creating the schematic in Altium - here it is.

MPPT SCH.pdf

Please critique away.

I just added bits for 2 snubbers and RC filters for 3 analogs before sending to the nano via the ribbon cable.
Edited 2020-05-09 15:37 by wiseguy
If at first you dont succeed, I suggest you avoid sky diving....
Cheers Mike

azhaque
Senior Member

Joined: 21/02/2017
Location: Pakistan
Posts: 117
Posted: 05:34am 09 May 2020
Copy link to clipboard
Print this post

  wiseguy said
Please critique away.



Thanks Wiseguy.

Consider putting the input side capacitor bank, upstream of the ACS758.

Also pls consider a 2nd connector for the power lines instead of the ribbon cable.

azhaque
Edited 2020-05-09 15:40 by azhaque

wiseguy

Guru

Joined: 21/06/2018
Location: Australia
Posts: 1156
Posted: 05:40am 09 May 2020
Copy link to clipboard
Print this post

  azhaque said
Thanks Wiseguy.

Consider putting the input side capacitor bank, upstream of the ACS758.

azhaque


Considered and discarded - unless you really want to see all the switching noise superimposed on the low level current signal ?

Am happy to try for a 10 way inline connector if it fits - I reckon the 48V to 12V converter feels like it belongs on this PCB too.
Edited 2020-05-09 15:43 by wiseguy
If at first you dont succeed, I suggest you avoid sky diving....
Cheers Mike

azhaque
Senior Member

Joined: 21/02/2017
Location: Pakistan
Posts: 117
Posted: 05:43am 09 May 2020
Copy link to clipboard
Print this post

  wiseguy said

Considered and discarded - unless you really want to see all the switching noise superimposed on the low level current signal ?


But then it is just the thick wire inside the ACS. Wouldnt the noise leak thru anyway?

wiseguy

Guru

Joined: 21/06/2018
Location: Australia
Posts: 1156
Posted: 05:45am 09 May 2020
Copy link to clipboard
Print this post

  azhaque said
  wiseguy said

Considered and discarded - unless you really want to see all the switching noise superimposed on the low level current signal ?


But then it is just the thick wire inside the ACS. Wouldnt the noise leak thru anyway?


If we did it your way on the LHS input of the current sensor we have smooth DC on the other side of the current sensors we hav a node jumping from Vin to Vout with current spikes from 0 to 60A ? why would we not see this ?  Iin is the current from the solar Panels not the P-P current of the high side switch.
Edited 2020-05-09 15:51 by wiseguy
If at first you dont succeed, I suggest you avoid sky diving....
Cheers Mike
