Forum Index : Electronics : nanoverter build

     Page 9 of 15
Author Message
johnmc
Senior Member

Joined: 21/01/2011
Location: Australia
Posts: 282
Posted: 12:04pm 08 May 2019
Copy link to clipboard
Print this post


I will take another board also too, that is a total of 3
cheers john
johnmc

Mulver
Senior Member

Joined: 27/02/2017
Location: Australia
Posts: 160
Posted: 12:21pm 08 May 2019
Copy link to clipboard
Print this post

I will take 2 if they are still available

nickskethisniks
Guru

Joined: 17/10/2017
Location: Belgium
Posts: 458
Posted: 04:38pm 08 May 2019
Copy link to clipboard
Print this post

I want 2 as well, I don't know how that works for EU transport.

tinyt
Guru

Joined: 12/11/2017
Location: United States
Posts: 438
Posted: 06:21pm 08 May 2019
Copy link to clipboard
Print this post

  poida said   Tinyt, how are things gong with the pcb files?
No hurry, I want to check with you before I take the latest files you have posted here
and engage the pcb manufacturer.


I re-checked today the rev D gerber files I posted here and I as far as I know I did not find any issue.

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 11:25pm 08 May 2019
Copy link to clipboard
Print this post

  tinyt said
I re-checked today the rev D gerber files I posted here and I as far as I know I did not find any issue.


Thanks for confirming that all is good for the pcb fab.

I am ordering 25 boards, 2oz copper, 1.66kg, DHL freight to AUS.
Cost is AUD $4.24/board from JCLPCB. (edit: I got a discount for some reason!)

Recall I said $10/each including postage.
I think that's fair, some postage will be more expensive than others
and I want it all to even out to no profit for me and no huge cost to me.
I want to be transparent with the costings.

Mark x3
Johnmc x3
Mulver x2
nicks x2 (post to Euroland..)
Ben&Amber x2 (post to USA)
Noneya x 2
Someone else x4
all adds up to 18, I want one spare and figure it handy
to have 6 left over for other people.Edited by poida 2019-05-10
wronger than a phone book full of wrong phone numbers

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 12:07am 09 May 2019
Copy link to clipboard
Print this post

  nickskethisniks said   I want 2 as well, I don't know how that works for EU transport.


The boards are about 70g each. Australia Post quote about $12 AUD for
up to 260 x 360 x 20mm and less than 250g and approx. 8 business days.
It should be no problems.
wronger than a phone book full of wrong phone numbers

noneyabussiness
Guru

Joined: 31/07/2017
Location: Australia
Posts: 512
Posted: 02:31am 09 May 2019
Copy link to clipboard
Print this post

Let me know when ya need the dosh poida... and obviously info on that..

Thank you for your help and effort with this, i think i speak for all when i say its greatly appreciated
I think it works !!

tinyt
Guru

Joined: 12/11/2017
Location: United States
Posts: 438
Posted: 04:23am 09 May 2019
Copy link to clipboard
Print this post

Hi poida,

Since you are posting to the USA, can you put me down for two?

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 04:33am 09 May 2019
Copy link to clipboard
Print this post

  tinyt said   Hi poida,

Since you are posting to the USA, can you put me down for two?


Of course.
wronger than a phone book full of wrong phone numbers

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 05:01am 09 May 2019
Copy link to clipboard
Print this post

Poida the great you live up to your name and far Beyond

Thank you so much for thinking about us
be warned i am good parrot but Dumber than a box of rocks

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 05:05am 09 May 2019
Copy link to clipboard
Print this post

  poida said
  tinyt said
I re-checked today the rev D gerber files I posted here and I as far as I know I did not find any issue.


Thanks for confirming that all is good for the pcb fab.

I am ordering 25 boards, 2oz copper, 1.66kg, DHL freight to AUS.
Cost is AUD $4.24/board from JCLPCB. (edit: I got a discount for some reason!)

Recall I said $10/each including postage.
I think that's fair, some postage will be more expensive than others
and I want it all to even out to no profit for me and no huge cost to me.
I want to be transparent with the costings.

Mark x3
Johnmc x3
Mulver x2
nicks x2 (post to Euroland..)
Ben&Amber x2 (post to USA)
Noneya x 2
Someone else x4
all adds up to 18, I want one spare and figure it handy
to have 6 left over for other people.


You sure those numbers are right?
Betta double check it, last time I ordered the shipping wasn't clear and it worked out to slightly under $10 each. I only got 10 though.
Edited by renewableMark 2019-05-10
Cheers Caveman Mark
Off grid eastern Melb

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 05:26am 09 May 2019
Copy link to clipboard
Print this post

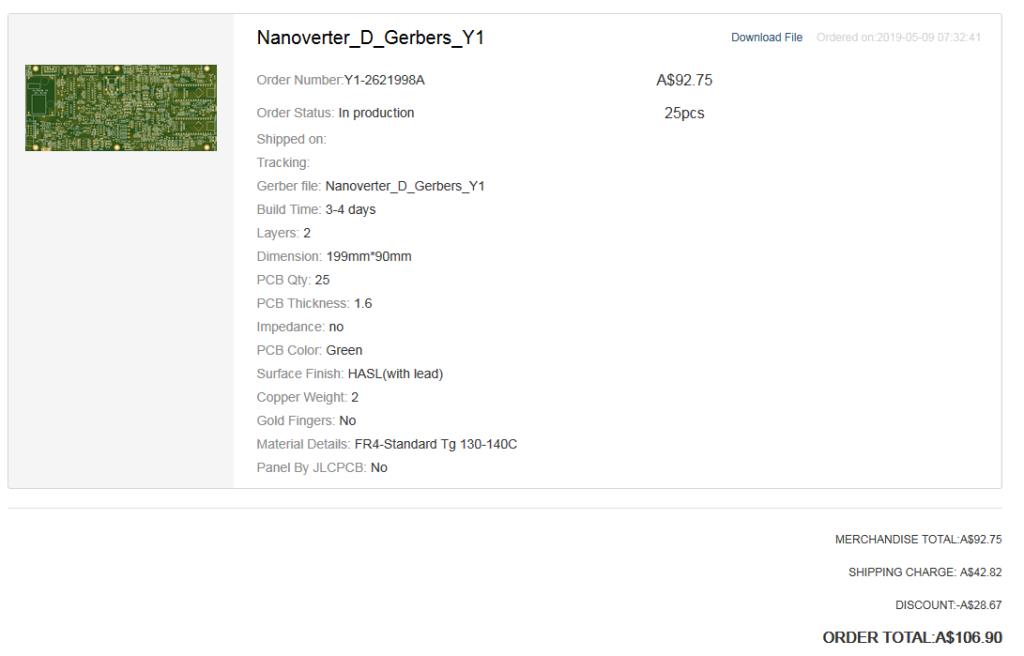

They seem right. And the invoice has the same $106.90 total.
DHL shipping.


wronger than a phone book full of wrong phone numbers

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 05:33am 09 May 2019
Copy link to clipboard
Print this post

Pricks didn't give me a discount
Cheers Caveman Mark
Off grid eastern Melb

yahoo2

Guru

Joined: 05/04/2011
Location: Australia
Posts: 1166
Posted: 07:42am 09 May 2019
Copy link to clipboard
Print this post

I will take 2 if you have some spare poida.
I'm confused, no wait... maybe I'm not...

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 07:57am 09 May 2019
Copy link to clipboard
Print this post

  yahoo2 said   I will take 2 if you have some spare poida.

Ok, it seems I might have only 4 left of the 25 now.
wronger than a phone book full of wrong phone numbers

kentfielddude
Regular Member

Joined: 09/05/2019
Location: United States
Posts: 89
Posted: 01:51pm 09 May 2019
Copy link to clipboard
Print this post

Put me down for one please.

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 01:43am 10 May 2019
Copy link to clipboard
Print this post

  kentfielddude said   Put me down for one please.


OK, now 3 left.
wronger than a phone book full of wrong phone numbers

kentfielddude
Regular Member

Joined: 09/05/2019
Location: United States
Posts: 89
Posted: 03:14am 10 May 2019
Copy link to clipboard
Print this post

I really like the esp32 so I was thinking about designing a esp32 based nanoinverter so you could run everything off of one micro and have wifi monitoring. It is dual core so you could have the wifi running separately from the inverter control. Also was thinking about making a smaller board with smd components. For now I'm just going to get a madness board and nano control board to get started. I also want to look into the warp inverter.
Currently I have small 2kwh 18650 battery with 400 watts of solar. I am slowly replacing everything with diy versions. Working on building my mppt charge controller then the pure sine inverter. Already have a diy bms system.Edited by kentfielddude 2019-05-11

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 07:50am 10 May 2019
Copy link to clipboard
Print this post

  kentfielddude said   I really like the esp32 so I was thinking about designing a esp32 based nanoinverter so you could run everything off of one micro and have wifi monitoring. It is dual core so you could have the wifi running separately from the inverter control. Also was thinking about making a smaller board with smd components. For now I'm just going to get a madness board and nano control board to get started. I also want to look into the warp inverter.
Currently I have small 2kwh 18650 battery with 400 watts of solar. I am slowly replacing everything with diy versions. Working on building my mppt charge controller then the pure sine inverter. Already have a diy bms system.


It all sounds good to me. I have a ESP32 WROOM which I programmed via the Arduino IDE.
How will you program the ESP32?
wronger than a phone book full of wrong phone numbers

LadyN

Guru

Joined: 26/01/2019
Location: United States
Posts: 408
Posted: 05:56pm 10 May 2019
Copy link to clipboard
Print this post

  kentfielddude said   I really like the esp32 so I was thinking about designing a esp32 based nanoinverter so you could run everything off of one micro and have wifi monitoring. It is dual core so you could have the wifi running separately from the inverter control. Also was thinking about making a smaller board with smd components. For now I'm just going to get a madness board and nano control board to get started


Nice!

Kent, are you familar with the RMT on the ESP32?

  kentfielddude said
I also want to look into the warp inverter.


Excellent!

I am also excited about building the warpverter but the availability of toroid cores is holding me back.

If you're interested, those of us in the U.S. can do a group buy of LTO batteries and toroid cores to go ahead with the project?
