Hi CircuitGizmo,
The ColorMax arrived 2 hours after the previous message!!! Thanks for the quick reply

Kind Regards
John Leate

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 09:57pm 03 Dec 2012
Copy link to clipboard
Print this post

  CircuitGizmos said
  CircuitGizmos said   There is a resistor in the circuit that may have been stuffed by the pick/place machines wrong. I got an email from the board manufacturer. I'll know more when it is Monday here.


I've been told that R6 is supposed to be a 120k resistor and it is incorrectly a 1k resistor.

If anyone with a CCCOLORMAX1 with low 5V readings and access to a 120k resistor (and SMT soldering skills) would like to try a fix on their boards I would appreciate getting feedback on this.


Hi CG,

That's done the trick!

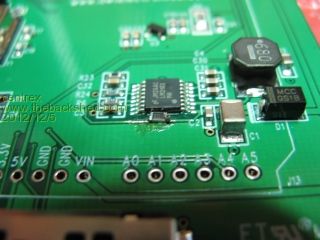

I removed R6 and replaced it with a 1/4 watt through-hole 120K - didn't have an 0603. R6 was a 1K as you said.
Both 9v & 12v IN give 5.0v & 3.3v where they should and USB IN is fine still, 4.8v (from my notebook) and 3.3v. All inputs now fire up the RTC on power-up.

I cut the leads of the through-hole back to about 5mm each end and bent them to connect from the R6 switching chip side (going to pin12 "enable"), back to the Vin side of the "big" capacitor rather than try to go to the other R6 pad. Tricky, but not too bad with the help of my trusty stereo microscope, de-solder braid and some flux gel!

Many thanks for the solution.

GregEdited by paceman 2012-12-05

centrex

Guru

Joined: 13/11/2011
Location: Australia
Posts: 320
Posted: 10:43pm 03 Dec 2012
Copy link to clipboard
Print this post

Hi all especially CG
My Colour Maximite turned up today.
Fired it up with 9volts no joy withe RTC and it had the shimmers.
Loaded 4.1 the shimmers have gone but still no RTC.
Tried again with supply from the USB all ok then tried with 12 volts all ok incl the RTC.

Now to find the pesky resistor and try to steady the shakes to do some fine soldering or just leave it on 12V.

Regards Centrex

Cliff

centrex

Guru

Joined: 13/11/2011
Location: Australia
Posts: 320
Posted: 11:01pm 03 Dec 2012
Copy link to clipboard
Print this post

I have just had a look at r6 on my board it appears to be labelled the same as r24 which is above r6 with my simple magnifying glass it appears to have 018 embossed on it.
Can one just cut the track leading away from r6 and insert a 120k resistor in series leaving r6 in place.

I would have more hope of doing this than trying to change r6.


Cliff
Cliff

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 02:00am 04 Dec 2012
Copy link to clipboard
Print this post

  centrex said   I have just had a look at r6 on my board it appears to be labelled the same as r24 which is above r6 with my simple magnifying glass it appears to have 018 embossed on it.
Can one just cut the track leading away from r6 and insert a 120k resistor in series leaving r6 in place.
I would have more hope of doing this than trying to change r6.


Cliff,

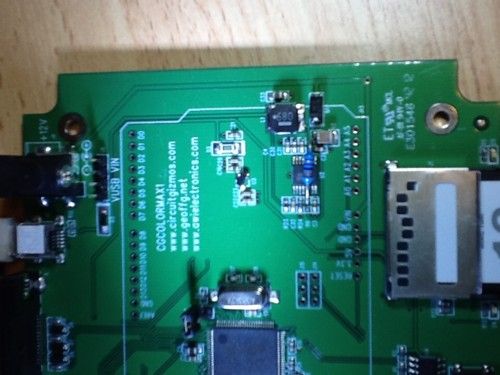

Here's a (bad) photo of the through hole R6 resistor I put in after removing the SMD. I think you'd find this method easier than trying to cut that tiny track and solder one there. One end of my mod is terminated at C1 (the other end of that same track) rather than on the SMD pad and the other end of course goes to the SMD pad connected to pin 12 of the switching chip.

If you don't have a good magnifier and lighting it'll be pretty difficult so I think it'd be better to wait for CG's comments before tackling it. You can still run it all properly from USB or a 12v supply.



GregEdited by paceman 2012-12-05

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 05:27am 04 Dec 2012
Copy link to clipboard
Print this post

Greg's approach is an excellent solution. It is certainly easier to solder to other locations on the same net/track - a larger place to solder to.

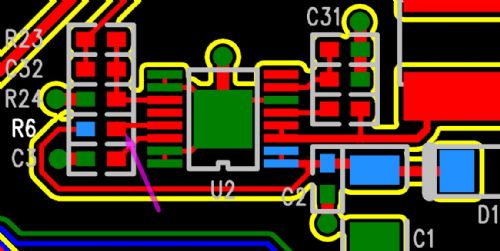

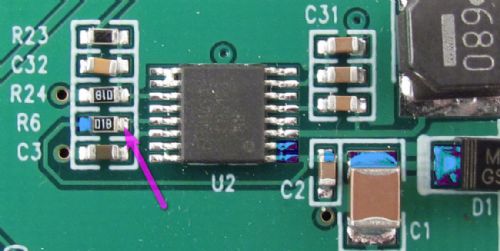

Here are a couple of pics that will help:








Carefully remove R6.

One side of the replacement resistor (120 kohm) must connect to the pad that the purple/violet arrows is pointing to on both pictures. The other side of the replacement resistor should connect to one of the pads highlighted in blue.
Micromites and Maximites! - Beginning Maximite

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 08:05am 04 Dec 2012
Copy link to clipboard
Print this post

  CircuitGizmos said
Carefully remove R6.

One side of the replacement resistor (120 kohm) must connect to the pad that the purple/violet arrows is pointing to on both pictures. The other side of the replacement resistor should connect to one of the pads highlighted in blue.


Even I can understand that Rob.
Nicely drawn and explained. With the Red track that cuts through the text U2, the tracking is easily seen to these 6 potential Blue points.

Don...
https://www.dontronics.com

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914
Posted: 12:02pm 04 Dec 2012
Copy link to clipboard
Print this post

  centrex said   r6 on my board it appears to ...... have 018 embossed on it.


Cliff, All,

The above intrigued me as that marking didnt seem to fit my understanding of SMD resistor markings.

So I looked it up and I think it would actually be 01B which is a new way of marking 1% SMD Resistors.

01=100 B=x10

Value =100x10 =1000 =1k which is what Rob said they used instead of 120k

By the above code it should have a 120k device marked as 08D (118k) or 09D (121k)

See the following link for further information

SMD Resistor Markings

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 12:12pm 04 Dec 2012
Copy link to clipboard
Print this post

It is a B and that is a nice page that you linked to!
Micromites and Maximites! - Beginning Maximite

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914
Posted: 12:22pm 04 Dec 2012
Copy link to clipboard
Print this post

  CircuitGizmos said   It is a B and that is a nice page that you linked to!


Thanks Rob,

I really like his one line comment right at the end

"Personally, I'd check with an ohm-meter!"

Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 03:34pm 04 Dec 2012
Copy link to clipboard
Print this post

  CircuitGizmos said   Greg's approach is an excellent solution. It is certainly easier to solder to other locations on the same net/track - a larger place to solder to.
Carefully remove R6.
One side of the replacement resistor (120 kohm) must connect to the pad that the purple/violet arrows is pointing to on both pictures. The other side of the replacement resistor should connect to one of the pads highlighted in blue.


Here's some points that might help if you're going to tackle this.

Removing R6 is probably the trickiest part. I had some 0.025 inch solder wick available and that's about the right size - cut off square any old, used stuff. If you have to use wider wick be very careful you don't de-solder the adjoining resistors or IC pin - you might be able to cut it at an angle to help. My soldering iron tip is a wedge shaped one a bit more than 1 mm wide and that works OK but finer would probably be better. Keep the iron on the wick as you pull the wick away - you don't want the wick soldered to the pad! Make sure the iron's tip is properly silvered and wipe it well (folded up kitchen paper works well) immediately before you do it. I also put a tiny dab of flux gel on the pads (literally from the point of a pin) first and it all came off well - how much the flux helped I'm not sure. I was watching the solder "wicking" up through the stereo microscope which certainly helps. Give the resistor a little push with the iron back on the pad after you've done the wicking to free it - don't lose it!

If you're using a through-hole 120K replacement, cut the leads to about 6mm from both ends of the resistor and take some time to bend them to exactly fit the length between the R6 pad IC pin12 side and the other termination at the C1 resistor - I think that's by far the easiest place to solder the other end. Pre-tin each end of the resistor wire. Solder the C1 end first then you can easily re-position the other end against the tiny R6 solder pad before you solder it. Again clean the iron's tip immediately before soldering each end and also this time melt a tiny bit of resin-cored solder onto the clean tip before soldering. Another tiny dab of flux on each pad end before soldering it is a major help.

Good luck,
Greg


hitsware
Guru

Joined: 23/11/2012
Location: United States
Posts: 535
Posted: 03:50pm 04 Dec 2012
Copy link to clipboard
Print this post

  paceman said
  CircuitGizmos said   Greg's approach is an excellent solution. It is certainly easier to solder to other locations on the same net/track - a larger place to solder to.
Carefully remove R6.
One side of the replacement resistor (120 kohm) must connect to the pad that the purple/violet arrows is pointing to on both pictures. The other side of the replacement resistor should connect to one of the pads highlighted in blue.


Here's some points that might help if you're going to tackle this.

Removing R6 is probably the trickiest part. I had some 0.025 inch solder wick available and that's about the right size - cut off square any old, used stuff. If you have to use wider wick be very careful you don't de-solder the adjoining resistors or IC pin - you might be able to cut it at an angle to help. My soldering iron tip is a wedge shaped one a bit more than 1 mm wide and that works OK but finer would probably be better. Keep the iron on the wick as you pull the wick away - you don't want the wick soldered to the pad! Make sure the iron's tip is properly silvered and wipe it well (folded up kitchen paper works well) immediately before you do it. I also put a tiny dab of flux gel on the pads (literally from the point of a pin) first and it all came off well - how much the flux helped I'm not sure. I was watching the solder "wicking" up through the stereo microscope which certainly helps. Give the resistor a little push with the iron back on the pad after you've done the wicking to free it - don't lose it!

If you're using a through-hole 120K replacement, cut the leads to about 6mm from both ends of the resistor and take some time to bend them to exactly fit the length between the R6 pad IC pin12 side and the other termination at the C1 resistor - I think that's by far the easiest place to solder the other end. Pre-tin each end of the resistor wire. Solder the C1 end first then you can easily re-position the other end against the tiny R6 solder pad before you solder it. Again clean the iron's tip immediately before soldering each end and also this time melt a tiny bit of resin-cored solder onto the clean tip before soldering. Another tiny dab of flux on each pad end before soldering it is a major help.

Good luck,
Greg


Gulp ! :)
I think I'll stick with a 12V wallwart .....

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914
Posted: 06:47pm 04 Dec 2012
Copy link to clipboard
Print this post

  hitsware said
Gulp ! :)
I think I'll stick with a 12V wallwart .....


Dont fear about removing the SMD resistor.. just add more solder to both sides (excess solder so it blobs) then using your iron melt both sides, turn the tip so it rests on the top of the SMD it will melt both sides at the same time, then quickly push the SMD and it will move away... Then clean with solder wick and you are ready to fit an new one..

The Blobs will keep the joint from cooling too quickly.

I am sure there will be people locally who can and will do it for you... I am happy to assist if anyone wants me too.

Regards,

Mick
Edited by bigmik 2012-12-06
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 07:41pm 04 Dec 2012
Copy link to clipboard
Print this post

  bigmik said
Dont fear about removing the SMD resistor.. just add more solder to both sides (excess solder so it blobs) then using your iron melt both sides, turn the tip so it rests on the top of the SMD it will melt both sides at the same time, then quickly push the SMD and it will move away... Then clean with solder wick and you are ready to fit an new one..


That sounds a lot easier than my method Mick - an old hand versus an amateur!
Greg

centrex

Guru

Joined: 13/11/2011
Location: Australia
Posts: 320
Posted: 08:45pm 04 Dec 2012
Copy link to clipboard
Print this post

All good info.
I have a 100k and a 150k smd resistors if the thing works with a 1K resistor it cannot be to critical.
I dont have anything less than a 1/2w thru hole resistor, I will give it some more thought.
Cliff
Cliff

centrex

Guru

Joined: 13/11/2011
Location: Australia
Posts: 320
Posted: 09:47pm 04 Dec 2012
Copy link to clipboard
Print this post





Decided to bight the bullet and cut the track and soldered in the 100K resistor not the neatest job but it all now works on 9 volt input.
The hands shake a bit after 75 years.
Anyway I am happy, now to put the colormite to a good use.
Thank you all.

Cliff


Cliff

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 11:26pm 04 Dec 2012
Copy link to clipboard
Print this post

  centrex said
Decided to bight the bullet and cut the track and soldered in the 100K resistor not the neatest job but it all now works on 9 volt input.


Nice going Cliff - that's two options now. What size SMD is that, an 0805 or 1206?

Greg
Edited by paceman 2012-12-06

hitsware
Guru

Joined: 23/11/2012
Location: United States
Posts: 535
Posted: 01:24am 05 Dec 2012
Copy link to clipboard
Print this post

  bigmik said
  hitsware said
Gulp ! :)
I think I'll stick with a 12V wallwart .....


Dont fear about removing the SMD resistor.. just add more solder to both sides (excess solder so it blobs) then using your iron melt both sides, turn the tip so it rests on the top of the SMD it will melt both sides at the same time, then quickly push the SMD and it will move away... Then clean with solder wick and you are ready to fit an new one..

The Blobs will keep the joint from cooling too quickly.

I am sure there will be people locally who can and will do it for you... I am happy to assist if anyone wants me too.

Regards,

Mick

Thanks, but mine is working fine for my purposes.
I wouldn't have known of the problem had it not
been mentioned here ......

Lopezjm2001

Regular Member

Joined: 08/07/2012
Location: Australia
Posts: 42
Posted: 02:48am 05 Dec 2012
Copy link to clipboard
Print this post

I received my Colourmax today in the post. Now to read previous post so find out why someone would want to modify their PCB.
Thanks Gizmos.
Lopez

Lopezjm2001

Regular Member

Joined: 08/07/2012
Location: Australia
Posts: 42
Posted: 09:12pm 05 Dec 2012
Copy link to clipboard
Print this post

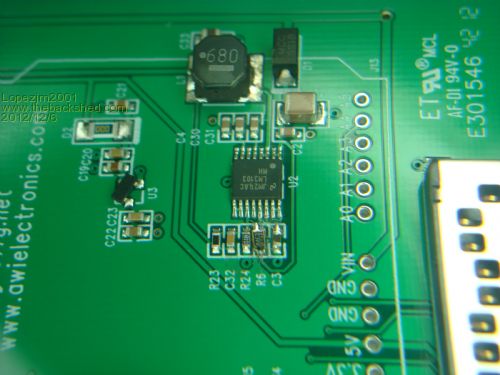

I managed to salvage a 115K SMD replacement resistor from a faulty Enginer BMS16D. 115K was the nearest value I could find. Note the great workmanship displayed in the photo, oh yes, this is definitely the Gizmo flag ship. I did the job with a fine tip temperature adjustable (300degC.) soldering iron and a magnifying lamp.
(I was referring to the workmaship of the photo itself).
EDITED: Now it will only boot up on occasions on my computer monitor at work using a 12 Vdc supply. The VGA monitor would not work at all when the Coulourmax was powered by the USB plug. I think I should have left it unmodified. But on the plus side the RTC works OK. I think it was booting up OK just the VGA monitor sometimes works and sometimes does not only when using a 12Vdc supply.
Just got home and it boots up every single time using my laptop and a 7" VGA screen using a USB plug. I also set the jumper setting when going to and from USB and 12Vdc supply every time. It also works perfectly using a 12Vdc power supply. It seems the Colourmax has an issue with my VGA monitor at work.Edited by Lopezjm2001 2012-12-07
Lopez
