remember etch a sketch? https://www.ebay.co.uk/itm/286063259141
I had one as a kid, it was crap

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6772

Posted: 09:11pm 10 Oct 2024

Copy link to clipboard

Print this post

They are more fun when you attach stepper motors to the knobs. :)

Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 04:52am 11 Oct 2024

Copy link to clipboard

Print this post

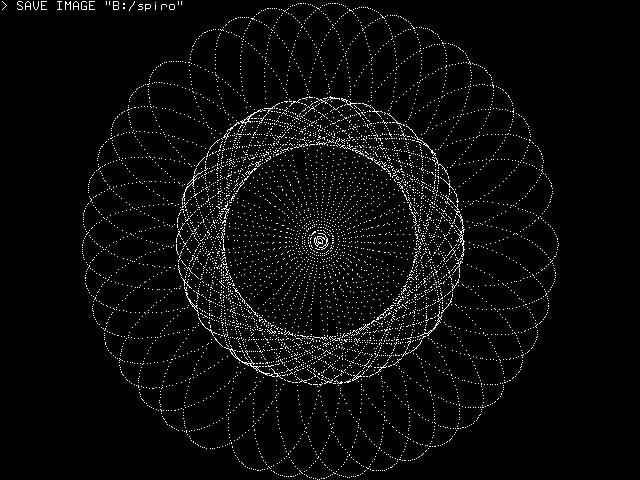

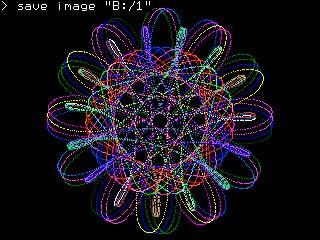

Spirograph in monochrome & colour mode (1,2)
under .MOD music for your meditations :))

SPIROGRAPH.zip

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1113

Posted: 07:53am 11 Oct 2024

Copy link to clipboard

Print this post

La Linea

CLS
Restore lalinea
n=1
Read x1,y1
Do
Read x2,y2:Inc n:If x2=0 Then Exit
If y2=255 Then Read x1,y1,x2,y2:Inc n,2
Line x1,y1,x2,y2:Line x1+1,y1,x2+1,y2:Line x1,y1+1,x2,y2+1
x1=x2:y1=y2
Loop
'Print n
LaLinea:
Data 1,149,46,149,1,255,90,149,112,149,112,136,111,119,110,105,106,89
Data 73,104,72,113,70,119,68,125,67,126,65,123,63,122,64,119,61,118
Data 62,113,65,106,60,106,58,102,65,102,104,78,100,73,99,70,99,65,101,61
Data 104,55,113,48,119,44,125,41,130,40,131,43,131,47,129,50,124,54,118,57
Data 125,57,122,63,121,67,121,76,124,80,127,79,130,74,131,71,132,71,134,76
Data 139,77,149,82,151,84,151,88,147,100,144,104,146,107,148,104,150,108
Data 149,110,150,108,153,109,152,112,149,115,153,121,152,124,150,123,144,117
Data 143,135,142,144,140,149,223,149

Data 0,0

'no comment

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 12:48pm 11 Oct 2024

Copy link to clipboard

Print this post

Martin H. said La Linea

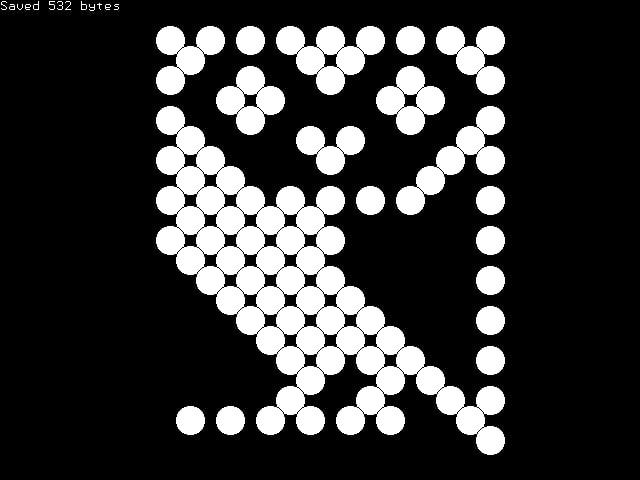

La BuBla Owl

NX=18:NY=21
CSIZE=MM.VRes\(NY+2)
SX=(MM.HRes-CSIZE*NX)\2
SX=MM.HRes-SX-CSIZE\2
SY=(MM.VRes-CSIZE*NY)\2
SY=SY+CSIZE\2
R=CSIZE/1.3

Restore OWL
For IY=0 To NY-1
Read D%
For IX=0 To NX-1
X=SX-IX*CSIZE
Y=SY+IY*CSIZE
If D% And 2^IX Then B=1 Else B=0
If B Then Circle X,Y,R,,,0,1
Next
Next
OWL:
Data &H15555,&H08282,&H11111,&H02828
Data &H11011,&H08282,&H14105,&H0A008
Data &H15551,&H0AA00,&H15501,&H0AA00
Data &H05501,&H02A80,&H01541,&H00AA0
Data &H00551,&H00228,&H00445,&H0AAA2
Data &H00001

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 9101

Posted: 02:18pm 13 Oct 2024

Copy link to clipboard

Print this post

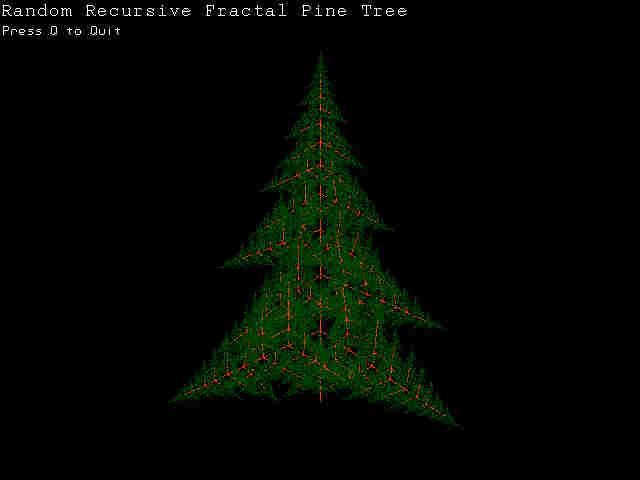

Here is one modified from the CMM2 Welcome tape originally written by Sasquatch.
Will run as-is on RP2350 VGA or HDMI or change to mode 0 for RP2040 VGA (black and white)
The code should give you most (all?) of the tools needed to implement the other CMM2 turtle demos https://github.com/thwill1000/cmm2-welcome/tree/master/turtle

Option explicit
Option default none
Dim integer TurtlePenup=1,TurtlePenColour=MM.Info(fcolour)
Dim float TurtleDirection=0.0
Dim float TurtleX,TurtleY
MODE 3
Option angle degrees
Option console none
'
Text 0, 0, "Random Recursive Fractal Pine Tree", "", 2
Text 2, 25, "Press Q to Quit", "", 1
turtle.penup
turtle.move MM.HRes\2,400
turtle.pendown
PineTree 70,19
Do :Loop Until Inkey$="Q"
Save image "b:/pine"
'
Sub pinetree(l!,d!)
If d!<0 Then Exit Sub
Local a!=110+20*Rnd
If l!>5 Then
Turtle.pen.colour(139,69,19)
Else
turtle.pen.colour(0,100,0)
EndIf
turtle.forward l!
pinetree l!*0.8, d!-1
turtle.turn.right a!
PineTree l! * 0.5, d! - 3
turtle.turn.right 120
PineTree l! * 0.5, d! - 3
turtle.turn.right 240-a!
turtle.penup
turtle.backward l!
turtle.pendown
End Sub
'
Sub turtle.move(x!, y!)
If Not TurtlePenup Then Line TurtleX,TurtleY,x!,y!,1,TurtlePenColour
TurtleX=x!
TurtleY=y!
End Sub
'
Sub turtle.penup
TurtlePenup=1
End Sub
'
Sub turtle.pendown
TurtlePenup=0
End Sub
'
Sub turtle.turn.right(a!)
Inc TurtleDirection,a!
If TurtleDirection!>360.0 Then Inc TurtleDirection!,-360.0
End Sub
'
Sub turtle.turn.left(a!)
Inc TurtleDirection,-a!
If TurtleDirection!<0.0 Then Inc TurtleDirection!,360.0
End Sub
'
Sub turtle.backward(l!)
Local x!=TurtleX-Sin(TurtleDirection!)*l!
Local y!=TurtleY+Cos(TurtleDirection!)*l!
If Not TurtlePenup Then Line TurtleX,TurtleY,x!,y!,1,TurtlePenColour
TurtleX=x!
TurtleY=y!
End Sub
'
Sub turtle.forward(l!)
Local x!=TurtleX+Sin(TurtleDirection!)*l!
Local y!=TurtleY-Cos(TurtleDirection!)*l!
If Not TurtlePenup Then Line TurtleX,TurtleY,x!,y!,1,TurtlePenColour
TurtleX=x!
TurtleY=y!
End Sub
'
Sub turtle.pen.colour(r%,g%,b%)
TurtlePenColour=(r%<<16) + (g%<<8) + b%
End Sub

Edited 2024-10-14 00:43 by matherp

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 05:15pm 20 Oct 2024

Copy link to clipboard

Print this post

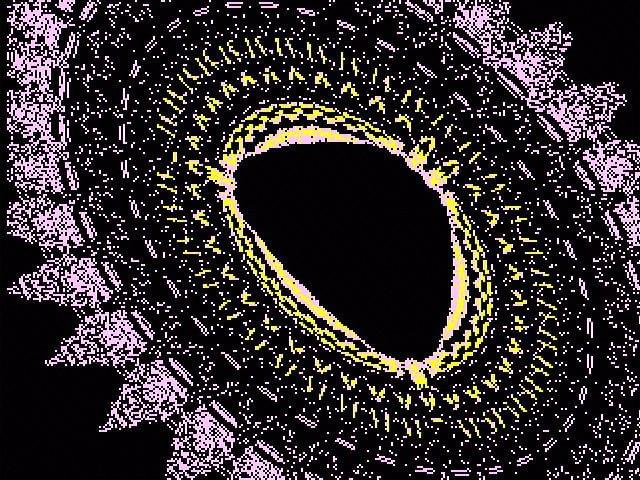

The Black Hole Mystery

MODE 2: CLS
x0=MM.HRes/2: y0=MM.VRes/2
z =2

Do
n=(Int(Rnd*7)+1)*7000+1000
a=(Int(Rnd*18)+3)+10
b=Int(Rnd*19)/10+0.1
c=-(Int(Rnd*4)+1)*10
For i=1 To 3
Clr=Int(Rnd*&hFFFF00)+&hFF
Tracery
Next i
Clr=0
Tracery
Loop While Inkey$=""

Sub Tracery
x=x0: y=y0
For j=1 To n
Pixel x+63, y+42, Clr
u=y-Sgn(x-x0)*(Abs(b*(x-x0)-c))^1/z
w=a-x+x0: x=u: y=w
Next j
End Sub

Edited 2024-10-21 03:16 by javavi

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 09:42am 26 Oct 2024

Copy link to clipboard

Print this post

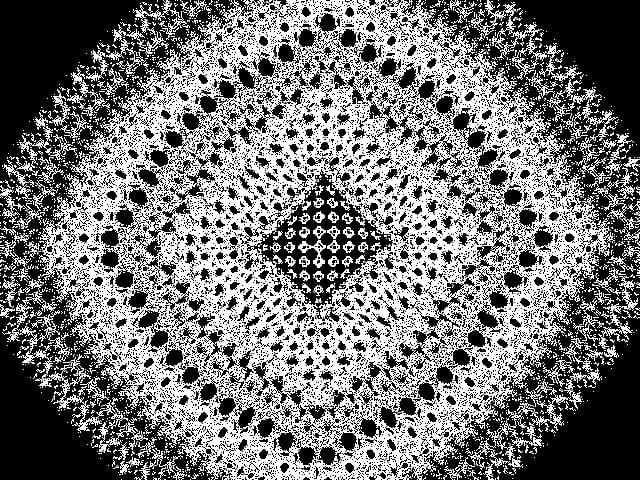

Fractal Lace

CLS
A=1:B=-1:C=-13:K1=1.5:K2=1.5:X=0:Y=0
Do
Pixel 320+Int(K1*X*4),240+Int(K2*Y*4)
S=(X<0)-(X>=0)
TMP=Y
Y=A-X
X=TMP-S*Log(Sqr(Abs(B*X-C)))
Loop Until Inkey$<>""

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2112

Posted: 10:17pm 01 Nov 2024

Copy link to clipboard

Print this post

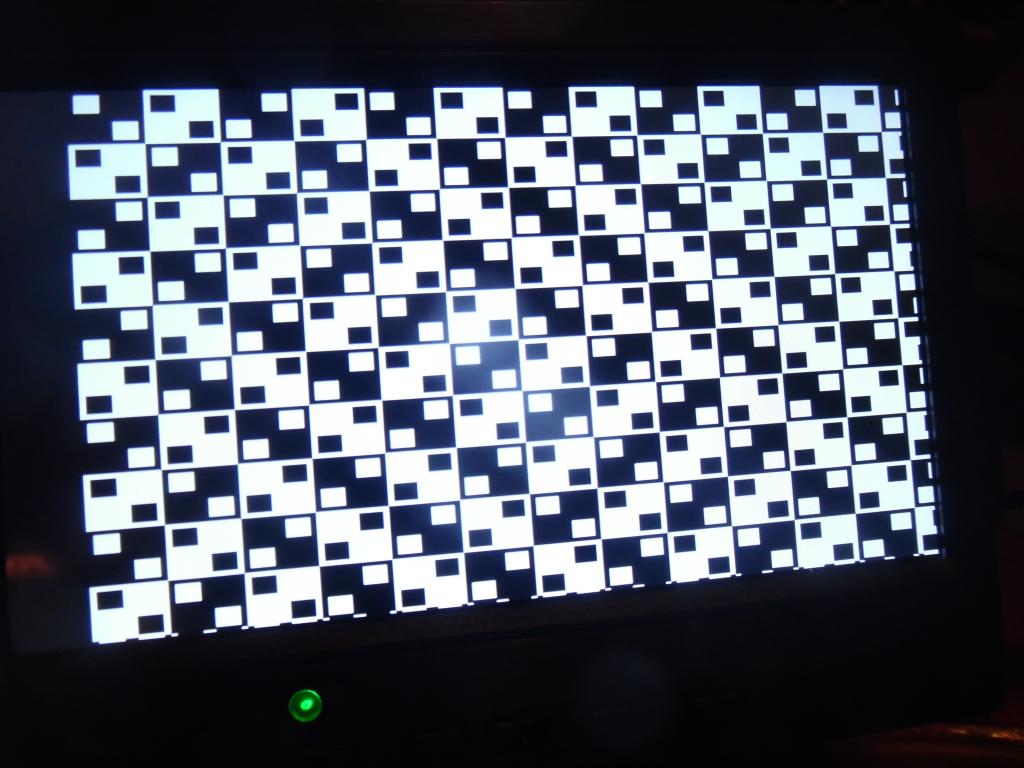

no lines but if there were they would not look curved
try it, better than picture

mode 2
cls
'1
x=0:y=0
b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b2:inc x,24:b1:inc x,24:b2
inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b2
'2
inc y,24:x=0
b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b4
inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b4
'3
inc y,24:x=0
b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3
inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3
'4
inc y,24:x=0
b3:inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4
inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4
'5
inc y,24:x=0
b4:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3
inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3
'6
inc y,24:x=0
b2:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1
inc x,24:b2:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1
'7
inc y,24:x=0
b1:inc x,24:b2:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2
inc x,24:b1:inc x,24:b2:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2
'8
inc y,24:x=0
b2:inc x,24:b1:inc x,24:b2:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1
inc x,24:b2:inc x,24:b1:inc x,24:b2:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b1
'9
inc y,24:x=0
b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b2
inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b4:inc x,24:b2
'10
inc y,24:x=0
b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b4
inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3:inc x,24:b4
'11
inc y,24:x=0
b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3
inc x,24:b4:inc x,24:b3:inc x,24:b1:inc x,24:b2:inc x,24:b1:inc x,24:b3:inc x,24:b4:inc x,24:b3

do:loop

sub b1:
box x,y,24,24,0,rgb(white),rgb(white)
box x+2,y+2,8,8,0,rgb(black),rgb(black)
box x+14,y+14,8,8,0,rgb(black),rgb(black)
end sub

sub b2:
box x,y,24,24,0,rgb(black),rgb(black)
box x+2,y+2,8,8,0,rgb(white),rgb(white)
box x+14,y+14,8,8,0,rgb(white),rgb(white)
end sub

sub b3:
box x,y,24,24,0,rgb(black),rgb(black)
box x+2,y+14,8,8,0,rgb(white),rgb(white)
box x+14,y+2,8,8,0,rgb(white),rgb(white)
end sub

sub b4:
box x,y,24,24,0,rgb(white),rgb(white)
box x+2,y+14,8,8,0,rgb(black),rgb(black)
box x+14,y+2,8,8,0,rgb(black),rgb(black)
end sub

Edited 2024-11-02 08:58 by stanleyella

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 06:59pm 07 Nov 2024

Copy link to clipboard

Print this post

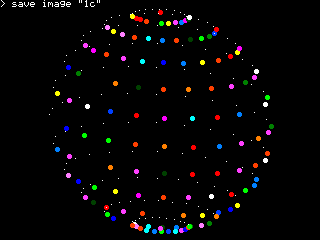

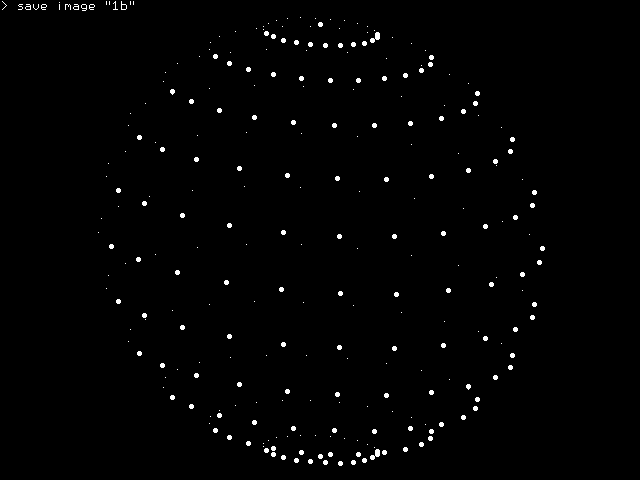

DISCO BALL

MODE 2
Option ANGLE DEGREES
FRAMEBUFFER CREATE
FRAMEBUFFER WRITE F
RX=MM.HRes: RY=MM.VRes: CX=RX/2: CY=RY/2
Umin=-180: Umax=180: Ustep=15
Vmin= -90: Vmax= 90: Vstep=15
SCALE=CY-CY/10

Do
For S=0 To 12 Step 3
CLS
For V= Vmin To Vmax Step Vstep
For U= Umin To Umax Step Ustep
U=U+S
X=Cos(U)*Cos(V)
Y=Sin(U)*Cos(V)
Z=Sin(V)
U=U-S
C=Rnd*&hFFFFFF
Plot_XY
If Inkey$ <> "" Then End
Next U: Next V
FRAMEBUFFER COPY F,N,B
Next S
Loop While Inkey$=""

Sub Plot_XY
X=SCALE*X: Y=SCALE*Y: Z=SCALE*Z
Y=Y/4
X1=X-Y+CX: Y1=Z-Y+CY
If y<0 Then
Circle X1,Y1,2,,,C,C
Else
Pixel X1,Y1
EndIf
End Sub

Edited 2024-11-08 05:00 by javavi

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2112

Posted: 07:31pm 07 Nov 2024

Copy link to clipboard

Print this post

neat! hdmi 2350

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 01:37am 17 Nov 2024

Copy link to clipboard

Print this post

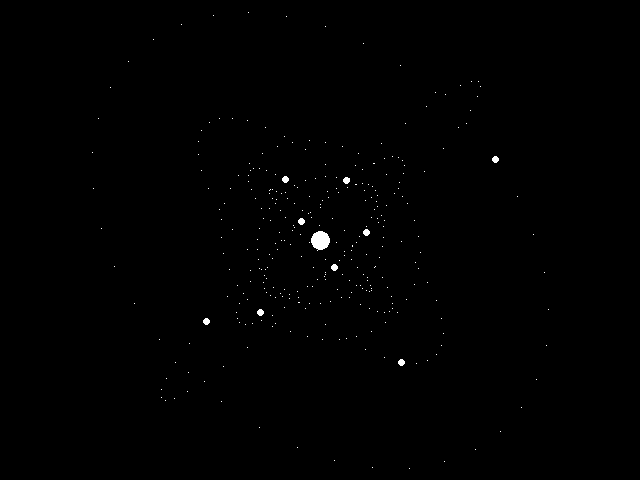

The Mystery of the 9th Planet

FRAMEBUFFER CREATE
FRAMEBUFFER WRITE F
CX=MM.HRes\2: CY=MM.VRes\2
A=CX*5:C=&hFFFFFF
Do
CLS
For i=7 To 31 Step 3
For j=0 To 324 Step 9
x=CX+A*Sin(j+i+t*i/200)\i
y=CY+A*Cos(j+i*0.3+t/2)\i
If j=0 Then Circle x,y,3,,,,C
Pixel x,y
Next
Next
t=t+.05
Circle CX,CY,9,,,,C

FRAMEBUFFER COPY F,N,B
Loop Until Inkey$ <> ""

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 08:07pm 17 Nov 2024

Copy link to clipboard

Print this post

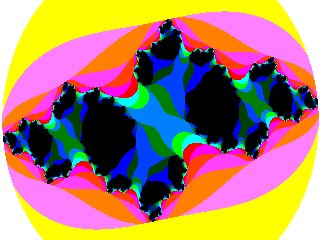

Morph

MODE 2
Dim CM(15)=(0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15)
Colour Map CM(),CM()

W=MM.HRes:H=MM.VRes
C=-0.77:D=0.27015
For X%=0 To W Step 1
For Y%=0 To H Step 1
U=3*(X%-W/2)/W
V=2*(Y%-H/2)/H
I%=16
Do
I%=I%-1
A=U*U:B=V*V
T=A-B+C
V=2*U*V+D
U=T
Loop Until A+B>2.2 Or I%<1
Colour CM(I%)
Pixel X%,Y%
Pixel W-X%,H-Y%
Next
Next

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2112

Posted: 08:51pm 17 Nov 2024

Copy link to clipboard

Print this post

liked 9th planet

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 06:11pm 18 Nov 2024

Copy link to clipboard

Print this post

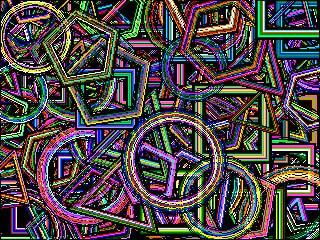

Geometric abstractionism

MODE 2
Do :CLS
For K=1 To 200
Q=Int(Rnd*5+3):If Q=7 Then Q=30
A=Rad(360/Q):S=Sin(A):C=Cos(A)
X=Rnd*320-2:Y=Rnd*240-2
R=Rnd*(Sqr(Y+X)/20)*20+16
For L=-R/5 To R/5
N=(Abs(L)<R/8)*Int(Rnd*16)
U=R+L:V=U
X1=X+U:Y1=Y+V
For I=1 To Q
T=V*C-U*S:U=V*S+U*C:V=T
X2=X+U:Y2=Y+V
Line X1,Y1,X2,Y2,,Map(N)
X1=X2:Y1=Y2
Next I: Next L: Next K
Pause 2000
Loop

lizby
Guru

Joined: 17/05/2016
Location: United States
Posts: 3150

Posted: 08:13pm 18 Nov 2024

Copy link to clipboard

Print this post

Such complexity with so few lines of code. Astonishing.

PicoMite, Armmite F4, SensorKits, MMBasic Hardware, Games, etc. on fruitoftheshed

Pluto
Guru

Joined: 09/06/2017
Location: Finland
Posts: 357

Posted: 08:55pm 18 Nov 2024

Copy link to clipboard

Print this post

Superb art!

Wonder if you can imagine the picture while writing the code

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2112

Posted: 10:12pm 18 Nov 2024

Copy link to clipboard

Print this post

RUN
[7] R=Rnd*(Sqr(Y+X)/20)*20+16
Error : Negative argument
>

javavi

Senior Member

Joined: 01/10/2023
Location: Ukraine
Posts: 203

Posted: 12:33am 19 Nov 2024

Copy link to clipboard

Print this post

stanleyella said Error : Negative argument

Thanks, fixed it!
Now this art will be with us forever! ∞

MODE 2
Do :CLS
For K=1 To 200
Q=Int(Rnd*5+3): If Q=7 Then Q=30
A=Rad(360/Q): S=Sin(A): C=Cos(A)
X=Rnd*MM.HRes: Y=Rnd*MM.VRes
R=Rnd*(Sqr(Y+X)/20)*20+16
For L=-R/5 To R/5
N=(Abs(L)<R/8)*Int(Rnd*16)
U=R+L: V=U
X1=X+U: Y1=Y+V
For I=1 To Q
T=V*C-U*S: U=V*S+U*C: V=T
X2=X+U: Y2=Y+V
Line X1,Y1,X2,Y2,,Map(N)
X1=X2: Y1=Y2
Next I
Next
Next
Pause 1000
Loop

Edited 2024-11-19 10:57 by javavi

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1113

Posted: 07:49am 19 Nov 2024

Copy link to clipboard

Print this post

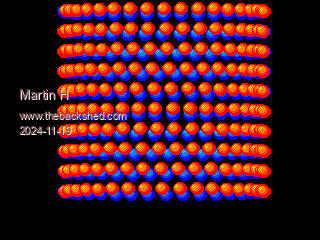

a litle animation inspired by the planet 9 demo

Mode 2
a=100:b=3:xc=160:yc=120
For n=0 To 9:For i=n To 180 Step 10
t=(i+90)*Pi/180:x=a*Cos(t):y=b*Sin(t):cl=(y<0):ball xc+x,n*20+yc+y-112,cl
Next: For i=170+n To n Step -10
t=(i-90)*Pi/180:x=a*Cos(t):y=b*Sin(t):cl=(y<0):ball xc+x,n*20+yc+y-112,cl
Next:Next
Do
Blit 0,0,0,200,320,20:Blit 0,20,0,0,320,220:FRAMEBUFFER wait
Loop
Sub ball bx,by,cl
For d=6 To 1Step -1
If cl Then :Color RGB(255,255-d*42,0):Else :Color RGB(0,255-d*42,255):EndIf
Circle bx+d/2,by+d/2,d,d
Next
End Sub

Edited 2024-11-19 22:03 by Martin H.

'no comment
