Sean at gentry had put different sticker on top of this inverter

it was the only one he had at the time and it was for a power tank 5000w.

He told me when he got some 8,000 Watt stickers he would send me one

I now have the new sticker to put over this so This is actually in his opinion better labeled as a 8000 watt unit

And when you watch his videos you will see exactly what these units can do and not do

for a continuous wattage my personal opinion would be somewhere around 4 to 5,000 watts

I have never used this unit besides just testing to make sure it works

With a lot of help from poida the great and a lot of others on this form

I got my homemade inverter working before I had to use this unit

In my personal opinion I would not trust a power jack inverter as far as I can throw it

that is without modifications from some of the greats on here

The Transformer that is in this unit is a little over 10 lb heavier then the other 8000 Watt power jack inverter I have

It also has eight more mosfets then the other 8000 watt power jack inverter

As you can see from the original sticker this unit came from the factory as a 15000 watt unit

Sean has integrity and would not tell you that this unit is a 15000 watt unit he would tell you to watch his videos on the subject

And that is the same with me
I would tell someone to watch his videos and then they would have to come try this unit out for themselves

then I will consider selling it to them that is why I have not put it on eBay

a few hundred dollars it's not worth more to me than my integrity

I would never want anyone to think that I ripped them off

that's probably what this inverter would be good for
if someone didn't come and try it out for themselves take the lid off of it and look at the components inside for themselves

This inverter will most likely get a nano control board and Hy 4008 mosfets

Thanks to Kent we all have the Gerber file for a new style mosfet board

that will take the h y 4008 and don't have to pay a crazy amount to power jack for replacements

If anyone does want the regular Factory replacements Sean sells them a lot cheaper than Power Jack and you get them a lot quicker also

He has literally been over backwards to make sure that I am happy with anything that he has sold me and you just don't see that very often anymore so I support him 100%Edited by BenandAmber 2019-07-17

be warned i am good parrot but Dumber than a box of rocks

LadyN

Guru

Joined: 26/01/2019
Location: United States
Posts: 408

Posted: 12:55am 16 Jul 2019

Copy link to clipboard

Print this post

Ben was it you who sent him the return inverter so nicely packed with 2x4? Looked like a work of art that you would do and have the ethics and drive to turn in for.

It was very nice.

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 02:52am 16 Jul 2019

Copy link to clipboard

Print this post

No it wasn't me but I seen that that was pretty neat

be warned i am good parrot but Dumber than a box of rocks

GenetrySolar
Newbie

Joined: 19/07/2019
Location: United States
Posts: 3

Posted: 10:32pm 18 Jul 2019

Copy link to clipboard

Print this post

So what is an inverter?

:)

LadyN

Guru

Joined: 26/01/2019
Location: United States
Posts: 408

Posted: 10:34pm 18 Jul 2019

Copy link to clipboard

Print this post

Hey WELCOME Sean!

GenetrySolar
Newbie

Joined: 19/07/2019
Location: United States
Posts: 3

Posted: 11:05pm 18 Jul 2019

Copy link to clipboard

Print this post

LadyN said Hey WELCOME Sean!

Thank you very much

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 11:21pm 18 Jul 2019

Copy link to clipboard

Print this post

It's about time welcome Sean welcome welcome welcome

be warned i am good parrot but Dumber than a box of rocks

Ironmaiden
Regular Member

Joined: 09/07/2019
Location: United States
Posts: 53

Posted: 04:54pm 19 Jul 2019

Copy link to clipboard

Print this post

Welcome Sean. There is a lot of interesting inverter projects both here at the backshed and on Field Lines. Sometimes it can be hard to keep up with all the new build projects under way.

Robert

mason

Regular Member

Joined: 07/11/2015
Location: Canada
Posts: 86

Posted: 08:00pm 19 Jul 2019

Copy link to clipboard

Print this post

HI BenandAmber,
could you take a close up (photo) of your step down converter, I just want to compare
mine with yours.. if its not too much trouble..

Thanks,

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 06:57pm 25 Jul 2019

Copy link to clipboard

Print this post

The little PCB should be in next week sometime which is awesome

Really appreciate Kentfielddude for Designing them

It will be great not to have to depend on power jack for replacement mosfet boards

The price will also be greatly reduced

be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 04:27am 01 Aug 2019

Copy link to clipboard

Print this post

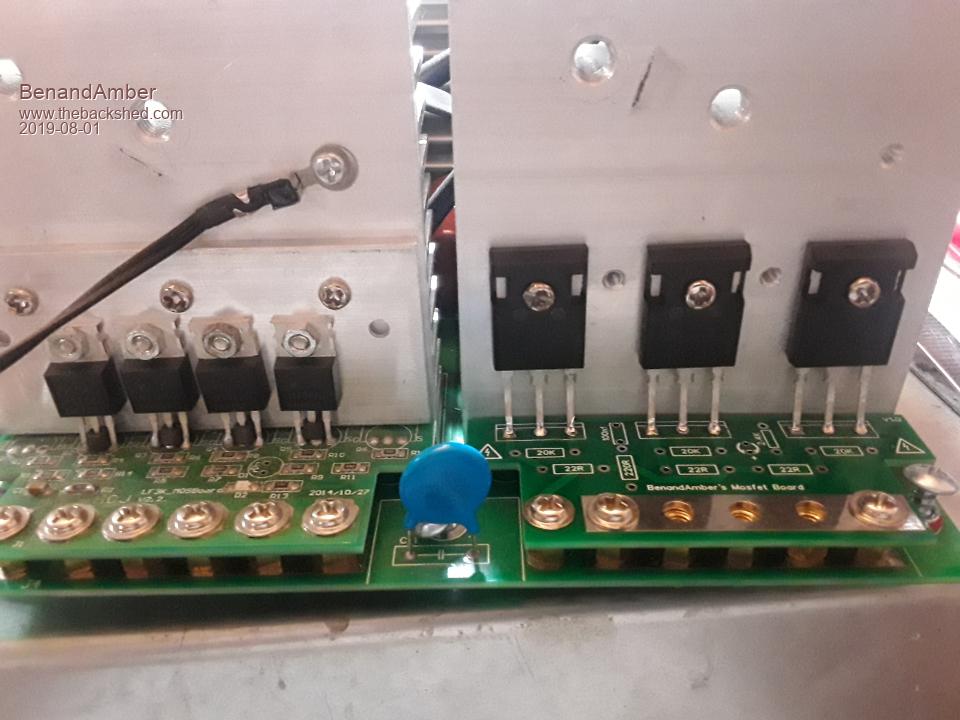

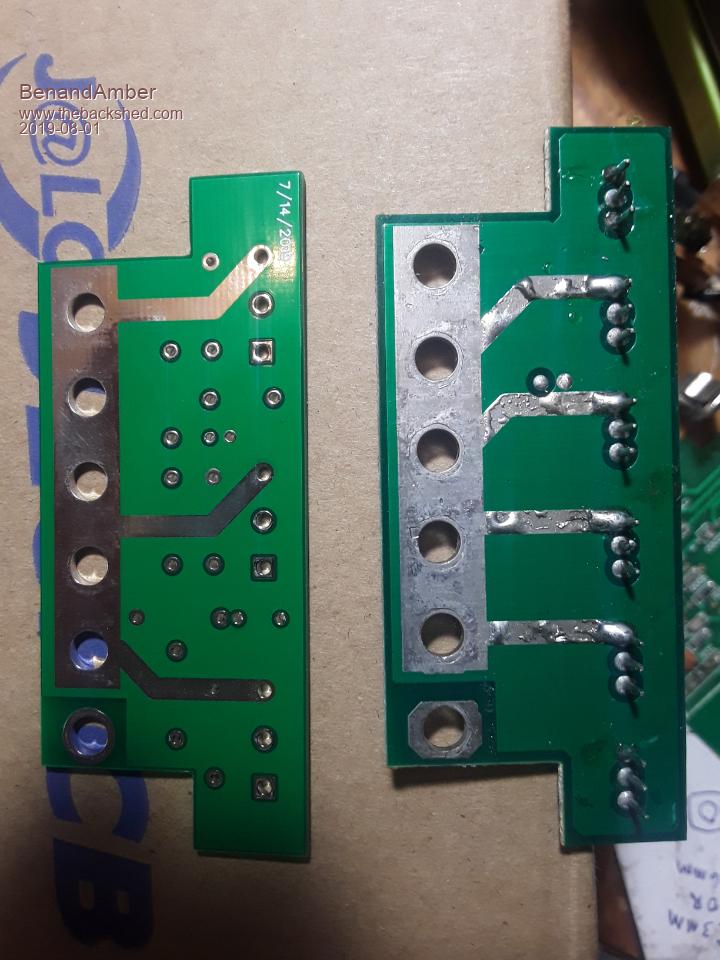

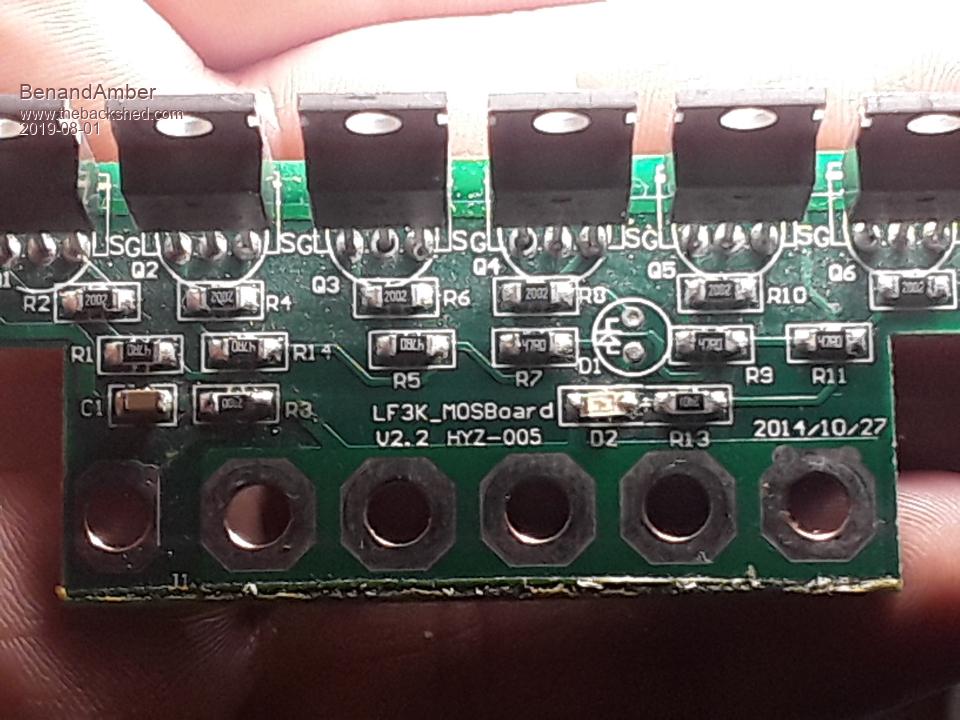

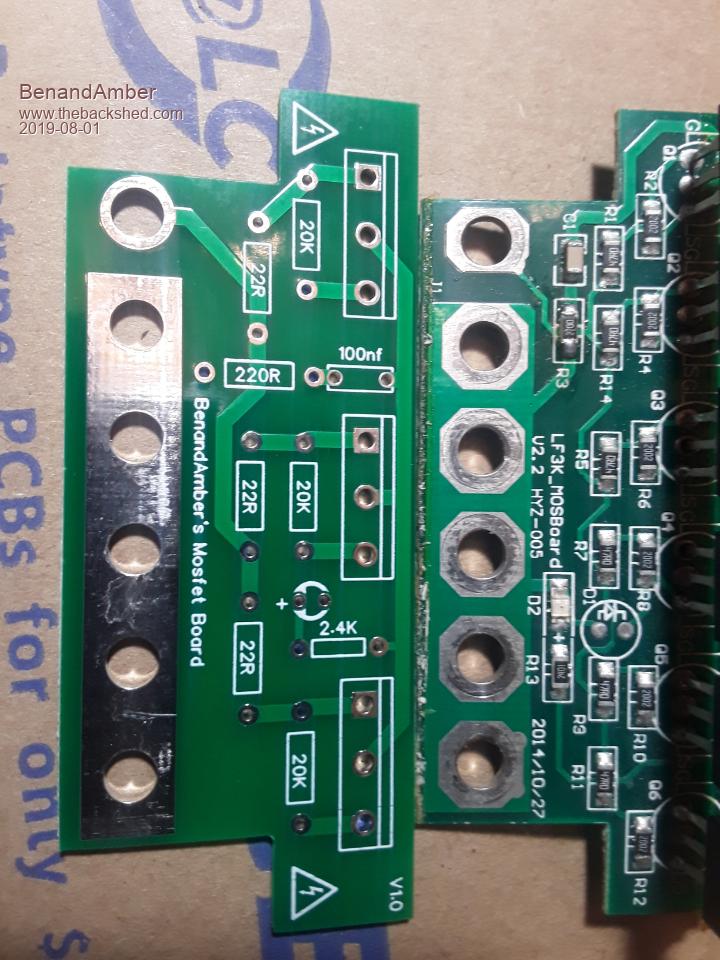

My little mosfet boards came in

Kentfield dude design them for me

Does everything look good as far as the component values to you guys

The mosfets will be Hy 4008

I think Kent done a awesome job

Thank you Kentfielddude

be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 06:38am 01 Aug 2019

Copy link to clipboard

Print this post

The existing holes in heat sinks can be used or if you want your legs to be shorter you can drill new holes

be warned i am good parrot but Dumber than a box of rocks

Ironmaiden
Regular Member

Joined: 09/07/2019
Location: United States
Posts: 53

Posted: 03:45pm 07 Aug 2019

Copy link to clipboard

Print this post

Hi Ben, How are the new boards working in the inverter?

Robert

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 09:48pm 07 Aug 2019

Copy link to clipboard

Print this post

I sent some off to
POIDA the Great

to be tested he has all of the equipment and actually knows what he's doing

he will be 100% straight up and honest he won't sugarcoat it he'll just say how it is

I sent them the other day it will take a few days to get there

After they get there I'm not sure when he will have the time to try them out

he is a very busy person and he's doing this just out of the goodness of his heart

But I'm very excited to see how it goes also cross your fingers hopefully all goes well

be warned i am good parrot but Dumber than a box of rocks

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418

Posted: 10:58am 08 Sep 2019

Copy link to clipboard

Print this post

Today I was a bit careless when I tested the Powerjack inverter.
I have added a remote on/off control cable and I had a bit of a whoopsie.
The remote cable plug was able to touch one of the primary winding connectors
while running.

And so, it comes time to replace the 4 MOS boards with those Ben&Amber sent me.
I will show here how it all goes....
But first I need to buy a few metal film resistors tomorrow.

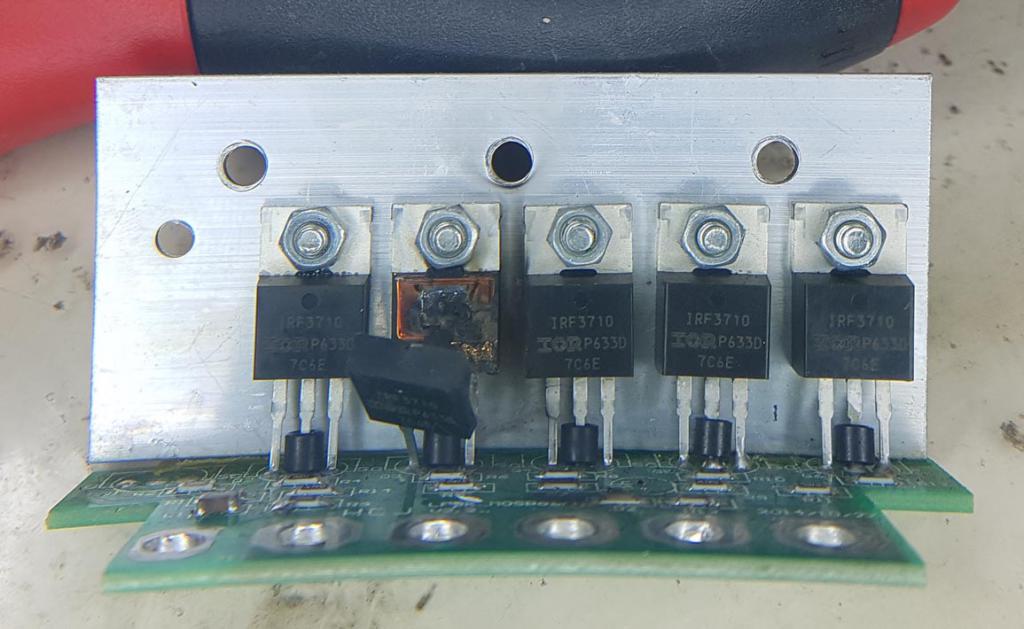

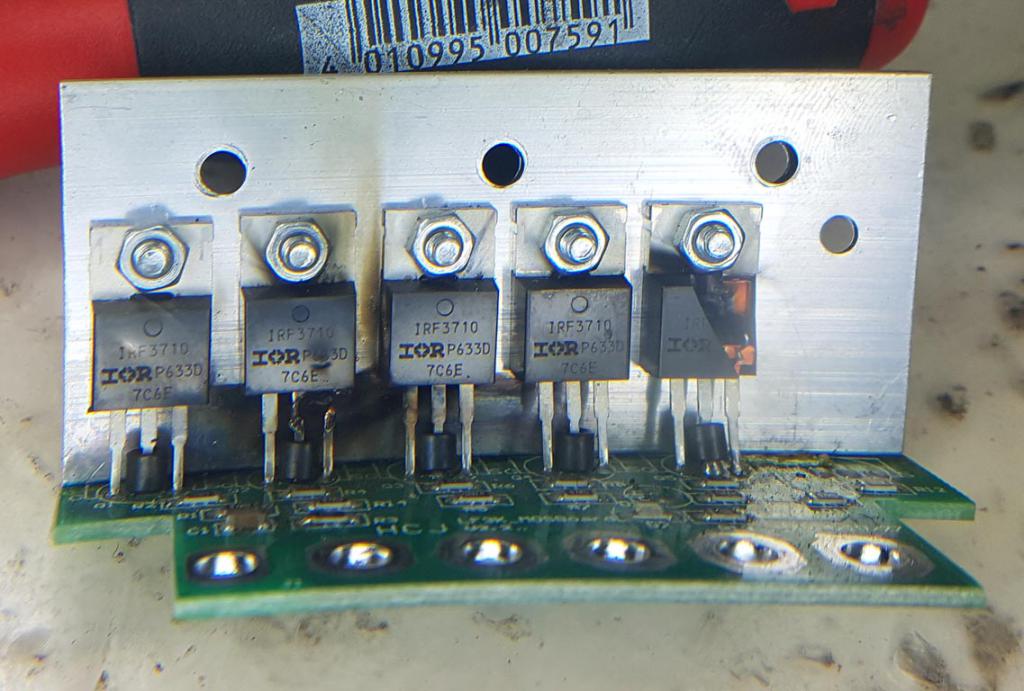

the damage:

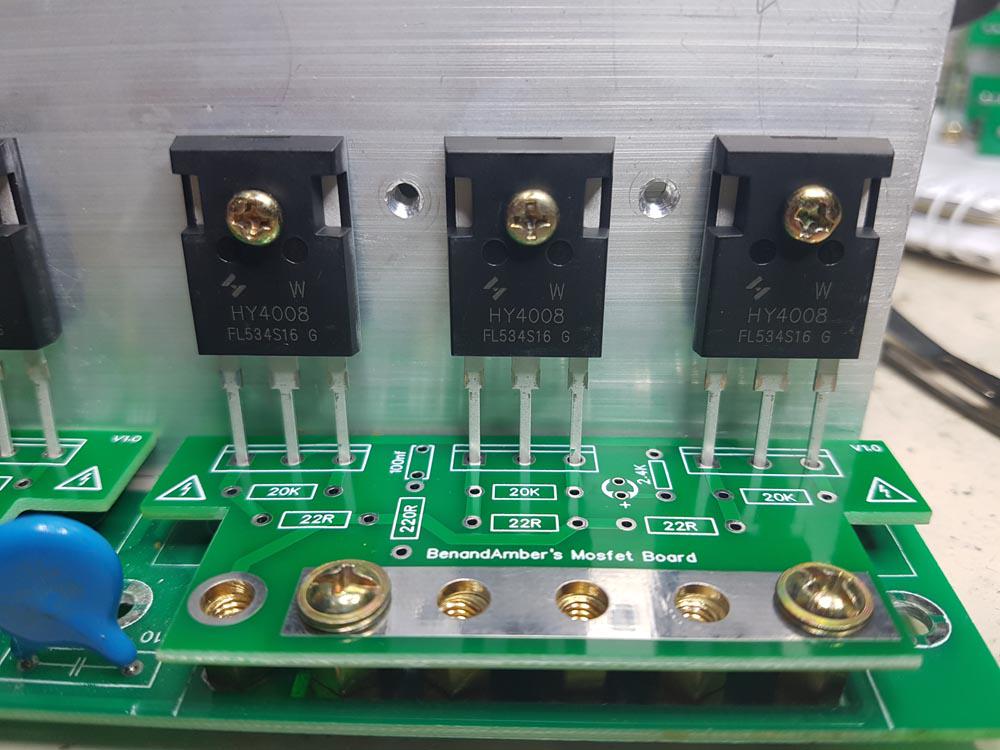

how the HY4008 TO-247 package fits with Kent's PCBs
using the existing tapped M3 holes - perfectly.

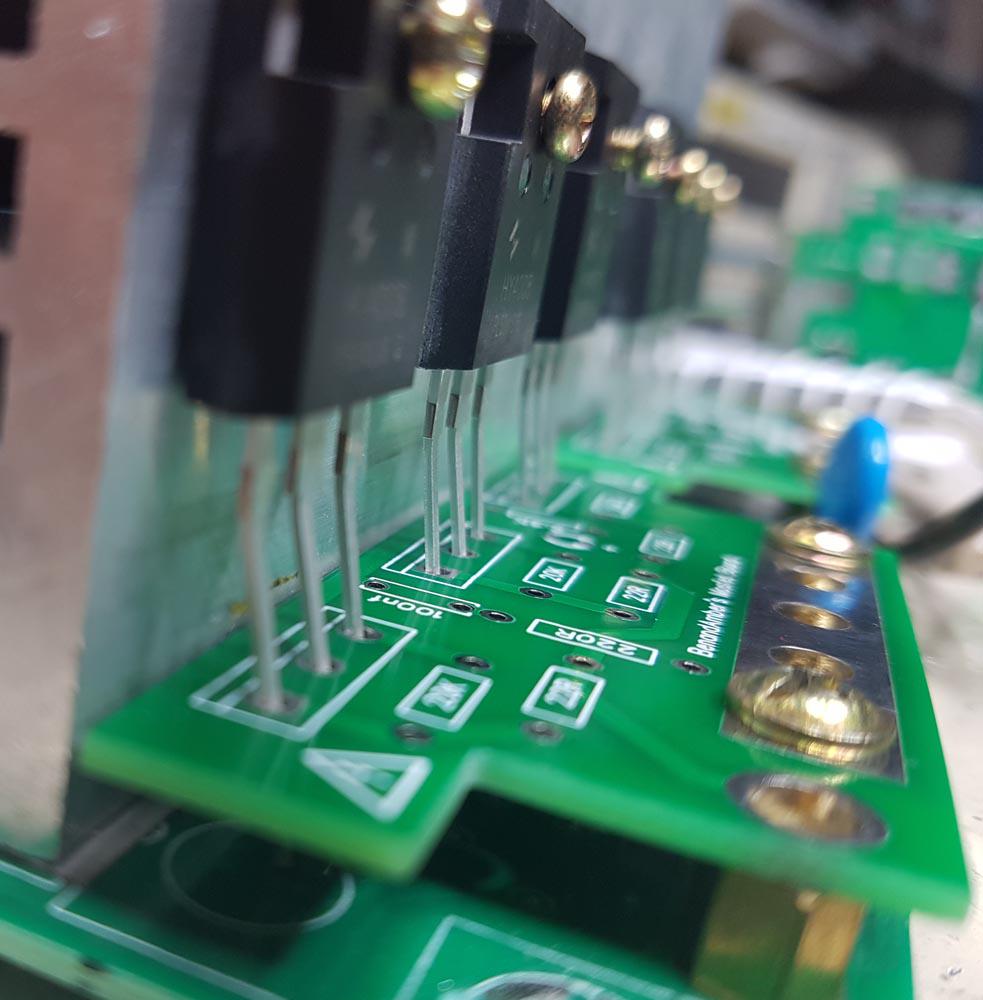

and the leads need a little bend:

wronger than a phone book full of wrong phone numbers

kentfielddude
Regular Member

Joined: 09/05/2019
Location: United States
Posts: 89

Posted: 04:25pm 08 Sep 2019

Copy link to clipboard

Print this post

How many millimeters do you think the mosfets need to be moved back?

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418

Posted: 08:39am 11 Sep 2019

Copy link to clipboard

Print this post

I have built all 4 boards and placed one HY4008 in each.
No need to blow 4 or 8 at a time.
I powered the power board alone using the nanoverter since the 10 pin connector is
compatible.
It ran OK but with a high idle current. This is normal.
See here where I looked at the powerjack power board driven by the nanoverter before this blowup

Once I installed the powerjack control board on top of the power board and then
inside the inverter, it all seemed OK.
It did not run. The LF-driver board LED is not lit up so probably some issue there.
I tested the MY and NY SOT devices and one seems to be shorted.

Ebay has one of these for sale, about $45 plus $88 postage. This is a ripoff.

I ask people here:
what devices are the MY and NY marked SOT smd devices?
My first search hinted at "triode" FETs. What kind of beasts are they?

Oztules, have you repaired these things and if so what did you use when the totem pole drive transistors need replacing?

wronger than a phone book full of wrong phone numbers

noneyabussiness
Guru

Joined: 31/07/2017
Location: Australia
Posts: 513

Posted: 12:20pm 11 Sep 2019

Copy link to clipboard

Print this post

2sc2873, complementary pnp 2sa1213 .. and i have used them to replace damaged original and worked fine...

I think it works !!

noneyabussiness
Guru

Joined: 31/07/2017
Location: Australia
Posts: 513

Posted: 12:21pm 11 Sep 2019

Copy link to clipboard

Print this post

2sc2873, complementary pnp 2sa1213 .. and i have used them to replace damaged original and worked fine...

I think it works !!

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418

Posted: 09:17am 18 Sep 2019

Copy link to clipboard

Print this post

I replaced the 4 transistors with similar speed 50V 2A devices.

No LED on the driver board and no pwm signal coming out to the MOSFET gates.
The lf-controller board beeps after a little while.

I think I will write this one off for now.

I need to spend the time on things that I have the schematic and can replace
the parts - home brew inverters.

wronger than a phone book full of wrong phone numbers
