Forum Index : Microcontroller and PC projects : Adding CAN to CGCOLORMAX

     Page 3 of 5
Author Message
bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914
Posted: 10:04pm 09 Dec 2012
Copy link to clipboard
Print this post

  Geoffg said

Because MMBasic buffers serial transmit data and sends it in the background it is difficult for a BASIC program to know when to raise and lower this signal. This is why it must be implemented in firmware.

  bigmik said  All very interesting and exciting..

Whatever turns you on!

Geoff


That explains it perfectly, i understand it now..

I'm excited, but not as much as Big Kev

Regards,

MickEdited by bigmik 2012-12-11
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

Lopezjm2001

Regular Member

Joined: 08/07/2012
Location: Australia
Posts: 42
Posted: 11:45pm 10 Dec 2012
Copy link to clipboard
Print this post

BACK TO TOPIC

  bigmik said   Hi Lopez, All,
Secondly, taking note of the section of my schematic, (the one with the pale yellow background), please note the pin Numbering of the IC is not the same as the PHYSICAL pin numbering so dont wire up as if the position of the pins are as shown, use the pinout as shown in the "package types" above., (i.e. The NUMBERS are correct, the physical location of the pins is not.)Mick



Thanks for pointing it out again Mick.

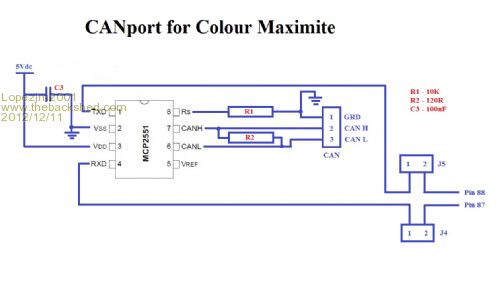

Here is a diagram where pin numbering matches actual pin configuration.




R2 is a termination resistor and may not be needed.

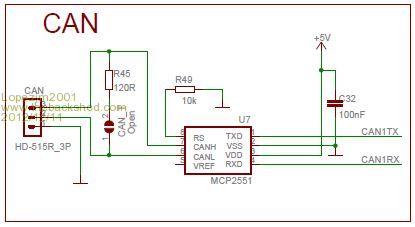

Note how the CAN plug pin numbers do not match the Duinomite Mega. I am using the same plug for my CGcolourmax1 CANport as that is used by Duinomite Mega. I need to swap pin numbers 2 and 3 so the CANport plug pins are compatible between my CGColourMax1 and my Duinomite Mega.




Edited by Lopezjm2001 2012-12-12
Lopez

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914
Posted: 07:26pm 11 Dec 2012
Copy link to clipboard
Print this post

Hi Lopez,

  Lopezjm2001 said
Here is a diagram where pin numbering matches actual pin configuration.
......
R2 is a termination resistor and may not be needed.


Thanks for the new diagram, The R2 is mentioned (with an *) in the Parts list and also in the manual that it is a termination resistor and `may' not be needed.

  Lopezjm2001 said
Note how the CAN plug pin numbers do not match the Duinomite Mega. I need to swap pin numbers 2 and 3 so the CANport plug pins are compatible between my CGColourMax1 and my Duinomite Mega.


Yes that was an error on my part that I didn't discover till the boards went for production, however as the pins appeared on a `non-standard' 3 pin header and meant that anyone using it would need to make their own cable I figured it was a moot point and wasnt worth a mention. I admit, I didn't foresee someone swapping a cable from a DM to the UBW32-CMM and vice versa.

The bottom line is, I rushed the design out as it was coming in to the busiest time of my working year and if I delayed any longer it probably would have been another 2 months before it appeared. In all, I am glad that there weren't any more serious issues with the UBW32-CMM. If I had the time there would have been a few things I would have done differently and maybe tried to squeeze RS232 or RS485 in but maybe they wouldn't fit anyway and I probably would have used the 4 wire RS485, as I am used to, and that would have upset everyone..

Regards,

Mick
Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

Lopezjm2001

Regular Member

Joined: 08/07/2012
Location: Australia
Posts: 42
Posted: 10:36pm 19 Dec 2012
Copy link to clipboard
Print this post

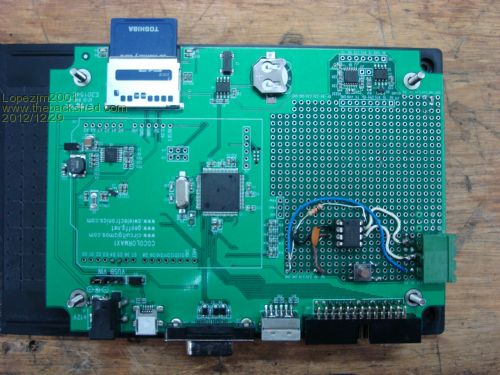

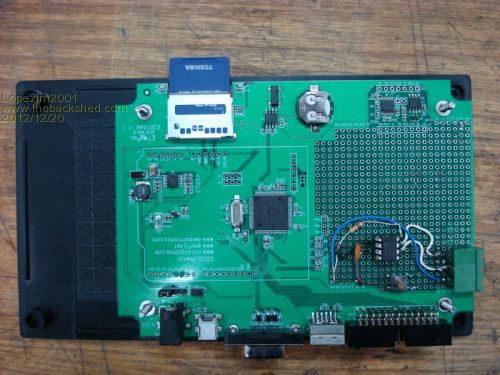

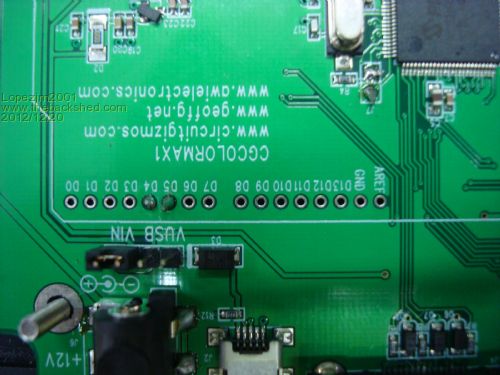

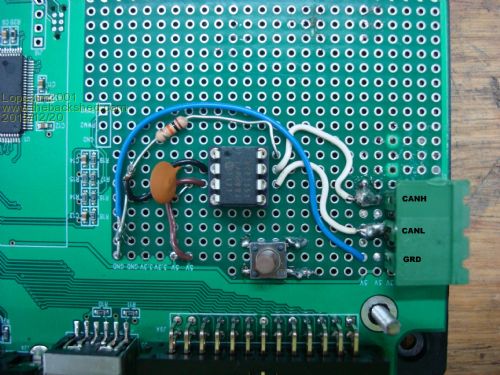

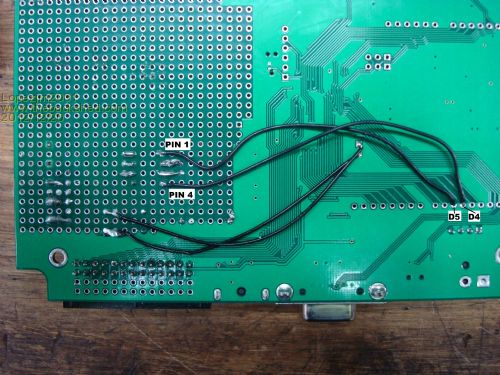

UPDATE: I have added my CANbus port circuit as shown in the photos below. Geoff has provided me with a beta version of MMbasic with John Harding's CAN commands which I have downloaded for the purposes of testing Geoff's MMbasic.

Unfortunately at the moment when I run the MMbasic program I get the error "Failed to Enable CAN module". What to do next. I tried adding a 120 ohm terminating resistor - same.

I have tried using three MCP2551I/P. One I bought from China(hong Kong) on Ebay and the other two I bought locally from Element 14 which came from the USA. They all give me the same result i.e. "Failed to Enable CAN module".

Any help from you guys would be appreciated.

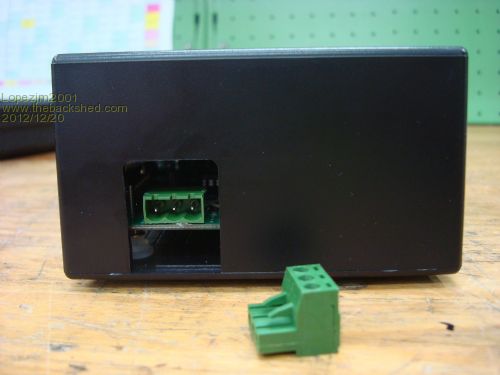

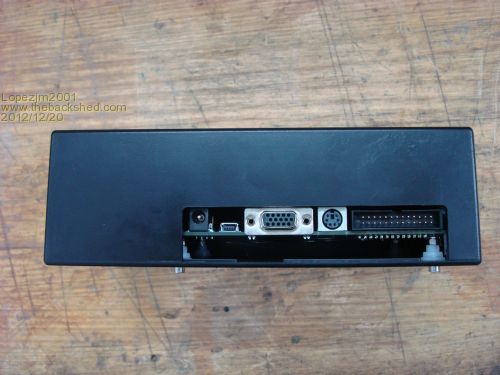

PS - I bought a box from Jaycar which I milled it at work and fitted OK.




























Edited by Lopezjm2001 2012-12-21
Lopez

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802
Posted: 01:01am 20 Dec 2012
Copy link to clipboard
Print this post

I don't see it as the MCP2551 as it's just a transceiver.

Sounds like a software bug.

JohnEdited by JohnS 2012-12-21

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209
Posted: 04:25am 20 Dec 2012
Copy link to clipboard
Print this post

How much did those MCP2551I/P cost, and shipping? (i am curious because i might open shop to sell those and other electronics of course and wonder if it is worth the effort.)

They are only drivers and are not able to be 'enabled'.
The PIC32 has however CAN peripherals that have to be enabled before they can be used.
Enabling will give the specific CAN functionality to certain pins.
I guess the error comes from MMBasic trying to enable the CAN peripheral in the PIC32.

Microblocks. Build with logic.

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3194
Posted: 04:31am 20 Dec 2012
Copy link to clipboard
Print this post

Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).

Geoff
Geoff Graham - http://geoffg.net

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 08:20am 20 Dec 2012
Copy link to clipboard
Print this post

  Geoffg said   Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).

Geoff


More than likely I would say Geoff.

I know that the DuinoMite series that I have, use the 695 for both the standard and mini boards, and the 795 for the mega and e-mega, so only the mega family are capable of CAN. The mega family also has connectors for CAN use.

I can't see any mention of CAN in Rob's documentation, so I'm sure he will clear that up shortly providing the world didn't end today.

Don...
https://www.dontronics.com

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 02:33pm 20 Dec 2012
Copy link to clipboard
Print this post

  Geoffg said   Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).
Geoff


The chip on my COLORMAX1 is: PIC32MX795F512L-801PF.

Greg

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 02:38pm 20 Dec 2012
Copy link to clipboard
Print this post

  paceman said
  Geoffg said   Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).
Geoff


The chip on my COLORMAX1 is: PIC32MX795F512L-801PF.

Greg


Interesting. Then I guess it could be a matter of what micro John (Lopezjm2001) has on his board.

Don...
https://www.dontronics.com

Lopezjm2001

Regular Member

Joined: 08/07/2012
Location: Australia
Posts: 42
Posted: 07:39pm 20 Dec 2012
Copy link to clipboard
Print this post

  TZAdvantage said   How much did those MCP2551I/P cost, and shipping? (i am curious because i might open shop to sell those and other electronics of course and wonder if it is worth the effort.)

They are only drivers and are not able to be 'enabled'.
The PIC32 has however CAN peripherals that have to be enabled before they can be used.
Enabling will give the specific CAN functionality to certain pins.
I guess the error comes from MMBasic trying to enable the CAN peripheral in the PIC32.


I bought three of them from Element 14 and I work near their address at 72 Ferndell St Chester Hill so I miss out on paying for delivery. I just paid AU$1.49 ea.

This is my Ebay link for the other MCP2551 http://www.ebay.com/itm/1-PCS-MCP2551-I-P-MCP2551-DIP-Transc eiver-New-/260957831243?


Lopez

Lopezjm2001

Regular Member

Joined: 08/07/2012
Location: Australia
Posts: 42
Posted: 07:48pm 20 Dec 2012
Copy link to clipboard
Print this post

  donmck said
  paceman said
  Geoffg said   Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).
Geoff


The chip on my COLORMAX1 is: PIC32MX795F512L-801PF.

Greg


Interesting. Then I guess it could be a matter of what micro John (Lopezjm2001) has on his board.

Don...


It is PIC32MX695F512L-801/PF. Mistery solved. Now I may as well just throw the f...... thing into the rubbish bin.

Edited by Lopezjm2001 2012-12-22
Lopez

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 07:53pm 20 Dec 2012
Copy link to clipboard
Print this post

  Lopezjm2001 said
  donmck said
  paceman said
  Geoffg said   Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).
Geoff


The chip on my COLORMAX1 is: PIC32MX795F512L-801PF.

Greg


Interesting. Then I guess it could be a matter of what micro John (Lopezjm2001) has on his board.

Don...


It is PIC32MX695F512L-801/PF.



OUCH! Geoff picked it in one.

It has no CAN. That is the problem.

Mind you, Rob never offered CAN support on his COLORMAX1.
I don't know if later versions use the 795.
Rob?

Don...
https://www.dontronics.com

Lopezjm2001

Regular Member

Joined: 08/07/2012
Location: Australia
Posts: 42
Posted: 08:15pm 20 Dec 2012
Copy link to clipboard
Print this post

  donmck said
  Lopezjm2001 said
  donmck said
  paceman said
  Geoffg said   Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).
Geoff


The chip on my COLORMAX1 is: PIC32MX795F512L-801PF.

Greg


Interesting. Then I guess it could be a matter of what micro John (Lopezjm2001) has on his board.

Don...


It is PIC32MX695F512L-801/PF.



OUCH! Geoff picked it in one.

It has no CAN. That is the problem.

Mind you, Rob never offered CAN support on his COLORMAX1.
I don't know if later versions use the 795.
Rob?

Don...


So he must have saved 20 cents by not buying the same chip you guys have. Edited by Lopezjm2001 2012-12-22
Lopez

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 08:21pm 20 Dec 2012
Copy link to clipboard
Print this post

  Lopezjm2001 said
So he must have saved 20 cents by not buying the same chip you guys have.


What we did on the DuinoMites was use 695s on boards that didn't support CAN, and 795s on boards that did support it, as we had CAN connectors on the boards, and advertised them as such.

Mind you, the 795 was hard to source when we made the first units around this time last year.

Don...
https://www.dontronics.com

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209
Posted: 11:57pm 20 Dec 2012
Copy link to clipboard
Print this post

  Lopezjm2001 said
  TZAdvantage said   How much did those MCP2551I/P cost, and shipping? (i am curious because i might open shop to sell those and other electronics of course and wonder if it is worth the effort.)

I bought three of them from Element 14 and I work near their address at 72 Ferndell St Chester Hill so I miss out on paying for delivery. I just paid AU$1.49 ea.

This is my Ebay link for the other MCP2551 http://www.ebay.com/itm/1-PCS-MCP2551-I-P-MCP2551-DIP-Transc eiver-New-/260957831243?

Thanks for the info!
My price would be US$1.40 for up to 5 pieces. I am still working out shipping costs, it is really the most difficult part of making a online shop.
The ebay price seemed high at first but including shipping it is actually a good deal (if shipping time is within limits), i hope i can match or beat that.
I am not far away from the microchip factory, so i will save at least that part of shipping cost, packing and shipping to customers is the big variable and calculating margins that at the end give a reasonable profit is definitely not easy.
Having a good mix of products that will allow customers to order what they need to save shipping costs is another important part.
I get more respect for successfull online shops every day.

Microblocks. Build with logic.

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209
Posted: 12:06am 21 Dec 2012
Copy link to clipboard
Print this post

  Lopezjm2001 said
  donmck said
  paceman said
  Geoffg said   Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).
Geoff


The chip on my COLORMAX1 is: PIC32MX795F512L-801PF.

Greg


Interesting. Then I guess it could be a matter of what micro John (Lopezjm2001) has on his board.

Don...


It is PIC32MX695F512L-801/PF. Mistery solved. Now I may as well just throw the f...... thing into the rubbish bin.


Would it be possible to replace it with a 795 version. The pinout is the same only extra can bus functionality on some pins. If the colormax1 versions are made with both chips it would not seem a problem. Instead of throwing it away it can be a good way to practice smd soldering. :)
If you have never done it it seems very difficult but with some practice it is doable.

Microblocks. Build with logic.

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 04:40am 21 Dec 2012
Copy link to clipboard
Print this post

  paceman said
  Geoffg said   Is the chip on your CGCOLORMAX1 a PIC32MX795F512L. I believe that the earlier CGCOLORMAX1s were only fitted with the PIC32MX695F512L (which does not have CAN).
Geoff

The chip on my COLORMAX1 is: PIC32MX795F512L-801PF.
Greg


Err - sorry there gents, mine is a 695 too, not 795 as I reported earlier. I checked it but wrote the opposite down - duh!

Greg

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 07:24am 21 Dec 2012
Copy link to clipboard
Print this post

  Lopezjm2001 said   Now I may as well just throw the f...... thing into the rubbish bin.

So he must have saved 20 cents by not buying the same chip you guys have.


Ouch. I don't think it was a price difference that drove it to happen. I think it was simply that the Colour Maximite schematic said " '695 or '795 " on it.

A single '795 costs me $15 or so. Next version of the ColorMax they will be purchased in bulk for less.

Can I send you a ColorMax populated with a '795? I have not tested CAN (I've tested RS485) but if you are testing CAN it would be reasonable to send you a ColorMax board deliberately (manually) populated with a '795 for you to test.

Send me an email and I will get this to happen. Edited by CircuitGizmos 2012-12-22
Micromites and Maximites! - Beginning Maximite

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 08:28am 21 Dec 2012
Copy link to clipboard
Print this post

  CircuitGizmos said
Can I send you a ColorMax populated with a '795? I have not tested CAN (I've tested RS485) but if you are testing CAN it would be reasonable to send you a ColorMax board deliberately (manually) populated with a '795 for you to test.



WOW!
Sounds like an offer too good to refuse.

Has the world ended in your neck of the woods Rob? All seems OK here.
I must have slept through it.

Don...
https://www.dontronics.com
