I have been giving this whole design concept a bit more thought. A software driven system might create a significant obstacle for some people, whereas a completely hardware solution may be a lot easier for others to duplicate from just the schematic. Another difficulty will be the switching inductor. Powdered iron toroids can be difficult to source, and difficult to wind. I will see if I can adapt an already available commercial part that can be purchased ready wound. If this is going to be a success it needs to use very easy to source parts. Cheers, Tony. |
||||
Gizmo Admin Group  Joined: 05/06/2004 Location: AustraliaPosts: 5078 |
I started a new thread here. . Hope you guys like the title.
Glenn The best time to plant a tree was twenty years ago, the second best time is right now. JAQ |
||||
brett Newbie  Joined: 08/02/2006 Location: AustraliaPosts: 39 |
Glen This question was asked and I have waited for a reply since. |
||||
| Gizmo Admin Group Joined: 05/06/2004 Location: AustraliaPosts: 5078 |

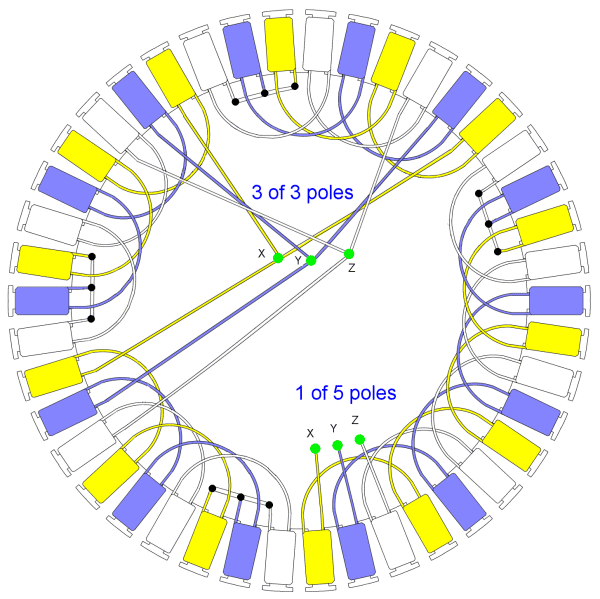

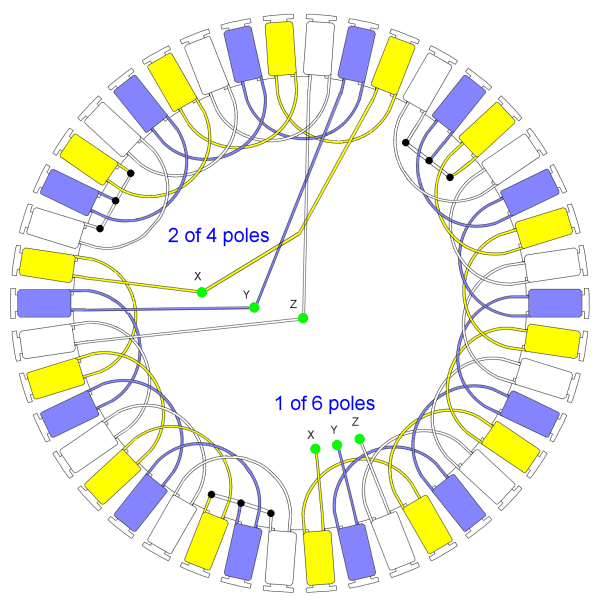

Hi Brett Ok, here are the drawings. This is exactly how I re-configureed the stators, ends up with 4 new 3 phase circuits, each with a different start voltage and current capability.
Hope that gets you started. You could use just one of these on a single stator windmill, top one would be better. The 5 pole would give power in light winds, then the 3 poles once the wind gets going. Glenn The best time to plant a tree was twenty years ago, the second best time is right now. JAQ |
||||
vasi Guru Joined: 23/03/2007 Location: RomaniaPosts: 1697 |
Thank you Glenn, the top one I will use for the 80 series. Maybe with your blades. I think together is a complete solution for low winds, and deserve a separate page on your site. I think, the second one is good for 100 series? Hobbit name: Togo Toadfoot of Frogmorton Elvish name: Mablung Miriel Beyound Arduino Lang |
||||
Gill Senior Member  Joined: 11/11/2006 Location: AustraliaPosts: 669 |
Here is an even spaced stator for the 6 + 4 x 2 Sorry the graphics are not up to Glenn's quality.
was working fine... til the smoke got out. Cheers Gill _Cairns, FNQ |
||||
| Gizmo Admin Group Joined: 05/06/2004 Location: AustraliaPosts: 5078 |
Yeah Vasi I do plan to add a page dedicated to the staggered stator in the next few weeks. Mine is working great, this afternoon when I got home there was a light breeze, not even enough to drive the southern cross windmill, but the F&P windmill was running and the thing was still making just over 1 amp! Hopefully there is some strong winds this weekend so I can see what sort of peaks I get. Glenn The best time to plant a tree was twenty years ago, the second best time is right now. JAQ |
||||
dazler Newbie Joined: 21/10/2007 Location: AustraliaPosts: 37 |
nice 3 phase design. daz |
||||
| dazler Newbie Joined: 21/10/2007 Location: AustraliaPosts: 37 |
hi all has any one tried the new 3phase? also what kind of power from them? thanks daz |
||||
| brucedownunder2 Guru Joined: 14/09/2005 Location: AustraliaPosts: 1548 |
Hi Glenn ,, been following your "staggered" concept with interest. Have you got any results from light ,moderate and strong winds ,,so far? I am wondering what wire size would suit best overall? Bruce Bushboy |
||||
| domwild Guru Joined: 16/12/2005 Location: AustraliaPosts: 873 |
Great idea Warpspeed and Gizmo! As warp has said, with an Amp measuring thingy and a Picaxe with PWM, the MPPT problem should be laid to rest once and for all times! Have Picaxe, have Allegro Hall effect Amp chip and should be able to supply the software. This up-down hunting algorithm has been suggested many times before, where the Amp measurements drive the PWM output. All it needs is a separate subroutine to Glenn's PICLOG. Let's resurrect the MPPT discussion based on the Warpspeed/Gizmo comments. But, PLEASE, no muddying of the waters by suggesting larger props, capacitors, variable pitch and other goodies. Taxation as a means of achieving prosperity is like a man standing inside a bucket trying to lift himself up. Winston Churchill |
||||
| brucedownunder2 Guru Joined: 14/09/2005 Location: AustraliaPosts: 1548 |
Plus --let Glenn answer my questions,,please Bruce Bushboy |
||||
| domwild Guru Joined: 16/12/2005 Location: AustraliaPosts: 873 |
Sorry Bruce for butting in! Warp brought up MPPT again and I immediately had to say something! Taxation as a means of achieving prosperity is like a man standing inside a bucket trying to lift himself up. Winston Churchill |
||||
| brucedownunder2 Guru Joined: 14/09/2005 Location: AustraliaPosts: 1548 |
That's ok Dom.. Was a bit hasty,sorry.. I'll call Glenn.. but if anyone else has results from staggered windings ,I'd like to know.. I'm sort of ,,,questioning myself about my 48v gennie..Thinking 24v may be the best???. Bruce Bushboy |
||||
GWatPE Senior Member Joined: 01/09/2006 Location: AustraliaPosts: 2127 |
Hi Bruce, I think Dom should check when Tony posted[last October]. I think F&PwithPVC has been working on the 80 series rewires. I am not sure of the new stators though. Gordon. become more energy aware |
||||
| Gizmo Admin Group Joined: 05/06/2004 Location: AustraliaPosts: 5078 |
Hey Bruce Sorry didn't reply, been away for the last few days. Up to the Cairns district, man thats a beautifull part of Australia! I dont have any figures on the best staggered stator combination to use yet, but for 48 volts I would try somthing like 8/6 for each phase, so one string of 8 poles and another of 6 poles, each with their own bridge rectifier of course. It will cut in a lower RPM on the 8 poles, then if the wind increases the 6 poles will cut in to increase the amps. On a 24 volts system, try a 6/4/4. Its still early days for this sort of reconfiguration, but it holds promise. Does anyone know the RPM/Volts per coil for the 60, 80 and 100 series? If we know the voltage per coil per RPM we can work out a combination of staggered connections to suit a RPM range. Glenn The best time to plant a tree was twenty years ago, the second best time is right now. JAQ |
||||
| dazler Newbie Joined: 21/10/2007 Location: AustraliaPosts: 37 |
hi guys, i just tried the 5/3/3 for a 12v system, this did better than the old 3phase 7poles (3/7). cut in was low about 60 to 80 rpm and the mill sat on 12.55volts and up to 1 to 1.5 amps. but rpm does not higher than 150 , maybe needs decogging. the 3/7 would spin up to 270 and up to 6amps. maybe ill get more power for it in low winds, from the 2 stators. daz |
||||
AMACK Senior Member Joined: 31/05/2009 Location: AustraliaPosts: 184 |
Has anyone done any more work on this topic or has it gone the way of the dodo. I like the Idear of staggered windings but it seams to have gone quite.
Andy. *Note to self 1. Make it thick 2.Make it heavy. 3.Make it stronger than it should be. 4. Don't rush the first job as the second job will cost more and take mor |
||||
catchnthe-)))) Newbie Joined: 03/01/2009 Location: United StatesPosts: 24 |
Hello All,  In wiring the new stators (36 pole) staggered.
what wiring possibility would seem best suited for 12 v system. Thanks. Chuck Freedom allows us a lot "Please don't abuse." |
||||
| talachan Newbie Joined: 26/03/2019 Location: United StatesPosts: 1 |
For new 36 pole wire options please |
||||
