  Bryan1 said   Hi CC,
The simmstick 30 pin buss was a great idea and it was great to see your cgmstick included that concept. Now with your new board by putting a 30 pin header on the end of the board would allow users to put a header on say some veroboard and gain access to the not only the Arduino buss but also other pins that are left available. That way users that want to use the Arduino buss can make their own boards easily by using a 30 pin header and not have to pay $$$ for shields etc.


Bryan:

I'm not sure if I am interpreting your suggestion correctly or not. I had considered sending all of the I/O pins (from the MMBasic perspective) to a single row of pins along the edge of the see of holes. That ended up making for a messy layout.

The 'original' MM I/O pins are available at the duplicated 2x13 connector at the top. The 'extra/Arduino' pins are located in the shield pattern. You would need to use jumper wires to run these signals into the sea of holes, but you could duplicate something much like the Simmstick layout there.
Micromites and Maximites! - Beginning Maximite

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 07:19am 03 Oct 2012
Copy link to clipboard
Print this post

I'll be selling a 12V "wall wart" power supply for the CGCOLORMAX (ColorMax). If I pick a supply that has a "barrel" connector on the end is that preferable over picking one that has just two bare wires?

Barrel connector:



The input for the ColorMax power supply will accept 8V - 18V DC. A 9V wall wart will work, if you have your own. I'll have a 12V one for sale. Not sure what the rating will be for current, yet.

The power supply will provide up to 75 mA for the 3.3V power line and more than 200 mA on the 5V line for the circuits that you add to the board.
Edited by CircuitGizmos 2012-10-04
Micromites and Maximites! - Beginning Maximite

BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935
Posted: 07:50am 03 Oct 2012
Copy link to clipboard
Print this post

For me I would prefer the barrel connector if that is what the power input socket on the CGCOLORMAX requires. Of more concern is the input voltage and pin configuration for the wall socket. I know Australia is different from the USA in both of those respects and other markets probably have other variations.

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 08:12am 03 Oct 2012
Copy link to clipboard
Print this post

  BobD said   For me I would prefer the barrel connector if that is what the power input socket on the CGCOLORMAX requires. Of more concern is the input voltage and pin configuration for the wall socket. I know Australia is different from the USA in both of those respects and other markets probably have other variations.


Hmmm. Excellent point Bob. I have designed devices for 220V/50Hz and have specified adapters with various prongs on them for 'mains' voltage. I'm certainly familiar with that. I would like to be able to supply a modular wall wort that works in several countries.

I'll see what I can find. The first one out the chute might be US-centric with a universal one to follow.

Thank you for expressing this concern - it helps.
Micromites and Maximites! - Beginning Maximite

BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935
Posted: 08:24am 03 Oct 2012
Copy link to clipboard
Print this post

The nearest thing I have seen to a universal wall wart was on my Western Digital TV Live media player. It came with a replaceable, clip on set of pins to suit the Australian wall socket. Not sure whether the input voltage was universal (100-240 VAC 50-60Hz). I can't easily get a look at it as it is "buried" at the back of the stand for the very heavy (80Kg) plasma TV.

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 08:34am 03 Oct 2012
Copy link to clipboard
Print this post

That is exactly what I hope to find with my supplier.

I have one that is a switcher and 5V/250mA out somewhere in my office. It would be something like that.Edited by CircuitGizmos 2012-10-05
Micromites and Maximites! - Beginning Maximite

James_From_Canb

Senior Member

Joined: 19/06/2011
Location: Australia
Posts: 265
Posted: 02:51pm 16 Oct 2012
Copy link to clipboard
Print this post

I will buy one, but I'd prefer to wait until the plastic case is also available so I can get them shipped at the same time.

Waiting with baited breath.... hey - what do you expect from someone with a fish as an avatar?

JamesEdited by James_From_Canb 2012-10-18
My mind is aglow with whirling, transient nodes of thought careening through a cosmic vapor of invention.

Hedley Lamarr, Blazing Saddles (1974)

elproducts

Senior Member

Joined: 19/06/2011
Location: United States
Posts: 282
Posted: 05:56pm 16 Oct 2012
Copy link to clipboard
Print this post

  CircuitGizmos said
  BobD said   For me I would prefer the barrel connector if that is what the power input socket on the CGCOLORMAX requires. Of more concern is the input voltage and pin configuration for the wall socket. I know Australia is different from the USA in both of those respects and other markets probably have other variations.


Hmmm. Excellent point Bob. I have designed devices for 220V/50Hz and have specified adapters with various prongs on them for 'mains' voltage. I'm certainly familiar with that. I would like to be able to supply a modular wall wort that works in several countries.

I'll see what I can find. The first one out the chute might be US-centric with a universal one to follow.

Thank you for expressing this concern - it helps.


MicrochipDirect.com offers this unit which can be modified with different adapters.



Part Number : AC002014 - 9V Wall Mount Power Supply
This product is a 9V, 800 mA, 110-220V universal power supply with adaptable plugs suitable for electrical outlets in most countries in North America, Europe, and Asia. The output jack is 5mm and center-positive.
www.elproducts.com

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 07:04pm 16 Oct 2012
Copy link to clipboard
Print this post


9V 2.2A Power Supply Adapter (5.5 x 2.1mm Connector)

http://dx.com/p/9v-2-2a-power-supply-adapter-5-5-x-2-1mm-con nector-125358?item=26



Hard to go wrong with these at $6.82AUD inc postage

Don...
https://www.dontronics.com

BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935
Posted: 07:24pm 16 Oct 2012
Copy link to clipboard
Print this post

Good find there Don. I found the one Chuck referred to and it was variously AU$20 to $30 + shipping. Side benefit also, this one supplies enough power for welding small jobs (slight exaggeration, lol).

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 07:29pm 16 Oct 2012
Copy link to clipboard
Print this post

  BobD said   Good find there Don. I found the one Chuck referred to and it was variously AU$20 to $30 + shipping. Side benefit also, this one supplies enough power for welding small jobs (slight exaggeration, lol).


Thanks Bob, these are also a HP surplus product, but there are many similar products, at similar prices.

Would cost you more than this normally for postage. Let the Chinese government pay for postage on power supplies I figure.

Don...
https://www.dontronics.com

BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935
Posted: 07:52pm 16 Oct 2012
Copy link to clipboard
Print this post

Don, what's the description for a power cord suitable for that power supply. Deals Ex may have them too. I tried searching but I don't know the right words.

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 08:03pm 16 Oct 2012
Copy link to clipboard
Print this post

  BobD said   Don, what's the description for a power cord suitable for that power supply. Deals Ex may have them too. I tried searching but I don't know the right words.


First hit I found:
http://tinyurl.com/97cpj58



Product Description

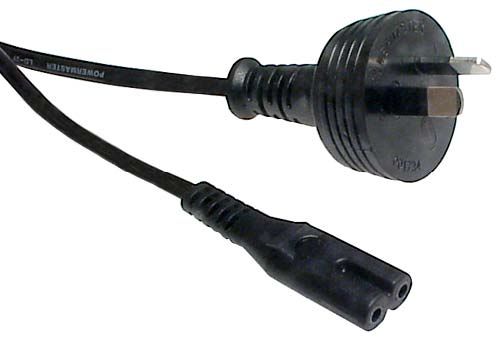

IEC-C7 Appliance Power Cord - 2m Length

2-core light duty power cord as used on some small appliances and laptop power supplies

Fitted with an IEC C7 / Figure 8 connector and Australian 2-pin mains plug with insulated pins compliant with AS/NZS3112.

==============================

You can get them in local areas with local AC standard plugs on the end. I'll have a bet that most users will have a box with a few in it.

see:
http://tinyurl.com/94ghhvn
I figure if you haven't got one, any cash converter store should, perhaps even you local hardware etc.

Don...
Edited by donmck 2012-10-18
https://www.dontronics.com

elproducts

Senior Member

Joined: 19/06/2011
Location: United States
Posts: 282
Posted: 01:58am 17 Oct 2012
Copy link to clipboard
Print this post

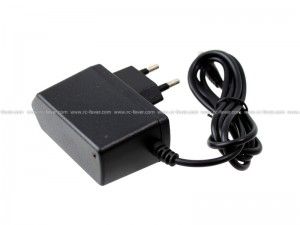

Here's another option.
You can pick the plug you need for your country from the drop down menu.
$4.95 + $7.25 shipping to Western Australia.




http://www.rc-fever.com/universal-power-adapter-9v-546mm-plu g.html
www.elproducts.com

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 07:04am 17 Oct 2012
Copy link to clipboard
Print this post

Those are some excellent places to pick up country-specific wall-wart power supplies.
Micromites and Maximites! - Beginning Maximite

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 09:38am 17 Oct 2012
Copy link to clipboard
Print this post


Check out out the plug diameter tester:



Don...
https://www.dontronics.com

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 09:47am 17 Oct 2012
Copy link to clipboard
Print this post

  donmck said
Check out out the plug diameter tester:



Don...


COMPLETELY different from 5.5mm. Beware!!

(Sarcasm, just in case anyone wonders.)

I wonder why they can't just say 5.5? Do they not know?

I'll bet they don't know that the center post is 2.1 or 2.5.

The label:




I doubt it is CE and/or UL.
Edited by CircuitGizmos 2012-10-18
Micromites and Maximites! - Beginning Maximite

donmck

Guru

Joined: 09/06/2011
Location: Australia
Posts: 1313
Posted: 10:53am 17 Oct 2012
Copy link to clipboard
Print this post

  CircuitGizmos said
COMPLETELY different from 5.5mm. Beware!!

(Sarcasm, just in case anyone wonders.)

I wonder why they can't just say 5.5? Do they not know?

I'll bet they don't know that the center post is 2.1 or 2.5.

The label:




I doubt it is CE and/or UL.


Or try this:
http://tinyurl.com/ct5p6au



.01mm larger.

This Adartor be fitting good for use home, I think maybe sure make "+" is on middle and not on not middle cenection.

Don...
https://www.dontronics.com

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 10:56am 17 Oct 2012
Copy link to clipboard
Print this post

Don't get the two mixed up. Global. Thermonuclear. Destruction.

Micromites and Maximites! - Beginning Maximite

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 11:00am 17 Oct 2012
Copy link to clipboard
Print this post

And that's how they keep anyone from plugging 12V into something that wants only 9V.

The 9V is 5.46mm, the 12V is 5.47mm.

There is NO POSSIBLE WAY that the 5.47mm 12V plug can be used in a 5.46mm jack. That 0.01 is the safety.

*snort*
Micromites and Maximites! - Beginning Maximite
