ksdesigns Senior Member  Joined: 25/06/2011 Location: United StatesPosts: 143 |
No i don't think i ever sent him a ntsc one . i will get a TV out of my garage and fix it . ken |
||||
donmck Guru  Joined: 09/06/2011 Location: AustraliaPosts: 1313 |
OH, OK thanks Ken, it may have been PAL he was chasing. Europe, yes. That should have worked. Cheers Don... https://www.dontronics.com |
||||
sparkey Senior Member Joined: 15/06/2011 Location: AustraliaPosts: 819 |
if you run into any probs with fixing a crt set let me know i will have an answer to yor problem ...regards sparkey 35 years of fixing crt sets ...///.../// technicians do it with least resistance |
||||
CircuitGizmos Guru Joined: 08/09/2011 Location: United StatesPosts: 1425 |
If you scope out the signal, look to see if the levels are good. Perhaps my problem is signal levels here. Not sure how Geoff would implement this. Without knowing much, I thought: OPTION PAL OPTION NTSC Would be a reasonable language approach. Still might be the way to do it if the constants in the firmware are changed to variables. Issuing OPTION PAL/NTSC would reset the video and either leave gunk on the screen, or the firmware would do a clear screen. Again - it is convenient to say that any feature is easy, until you are the one doing the code. Assuming that the right constants can be found (or that the signal level isn't an issue) having a language command is great. But even a hex file to load is reasonable. Micromites and Maximites! - Beginning Maximite |
||||
| sparkey Senior Member Joined: 15/06/2011 Location: AustraliaPosts: 819 |
what looks like you have a vertial retrace problem...regards sparkey technicians do it with least resistance |
||||
| donmck Guru Joined: 09/06/2011 Location: AustraliaPosts: 1313 |
either way, you would normally only set it once in any program, so it shouldn't matter once it has been set up, I wouldn't think. Be nice to see this working OK
Cheers Don... https://www.dontronics.com |
||||
| CircuitGizmos Guru Joined: 08/09/2011 Location: United StatesPosts: 1425 |
Right, but the whole video getup is initialized before any BASIC code is run. It has to be PAL to begin with. Then set to NTSC - and reinitialized. Just saying that like anything, it will be more firmware effort than you might expect. Or "easier said than done". Micromites and Maximites! - Beginning Maximite |
||||
Geoffg Guru Joined: 06/06/2011 Location: AustraliaPosts: 3194 |
If anyone can come up with the right timing numbers (see the start of Video.c in the source) I would be happy to fold them into the code. Every TV and monitor that I have automatically switches between PAL and NTSC (and I suspect anything in between) so I cannot test NTSC with any confidence. I believe that the selection of PAL/NTSC should happen at power up depending on a jumper. This is because it would be difficult to correctly type in a command line to switch to NTSC if you could not see the video output in the first place. This would therefore require a jumper of some sort that could be detected at power up, perhaps connecting the VGA/Composite select pin to the video out or something like that. Geoff Geoff Graham - http://geoffg.net |
||||
| donmck Guru Joined: 09/06/2011 Location: AustraliaPosts: 1313 |
Could it be done with commands in an autorun.bas file Geoff? Cheers Don... https://www.dontronics.com |
||||
| Geoffg Guru Joined: 06/06/2011 Location: AustraliaPosts: 3194 |
Yes, and that would be the easiest. Something like OPTION NTSC It is just that good design says that similar options should be in the same place. So, if you use a jumper to select VGA/PAL, you should also use a jumper to select PAL/NTSC. But, I guess that you cannot have everything perfect !! The big trick is to find the right timing parameters for NTSC. Geoff Geoff Graham - http://geoffg.net |
||||
| Keith W. Senior Member Joined: 09/10/2011 Location: AustraliaPosts: 118 |
Hi Geoff, I will have a try at the timing for NTSC. The major difference is that there are only 525 lines for NTSC vs 625 lines for Pal. On our non interlaced composite display that makes C_LINE_N = 262, (525 / 2). Presently it is 312 for PAL. The required line time is 63.55 uSec. vs PAL’s 64 uSec. Therefore C_LINE_T should be 5084 for NTSC with an 80 MHz clock, 5120 now for PAL. Although NTSC has less lines available I think that 18 lines of text should still fit. 262 – 216 still leaves 46 lines for sync and some blank lines although maybe the active area should be shifted down a little, I suspect at present the active area is given equal blanking top and bottom. Usually a picture would start at about line # 23 and with PAL extend to line 260, similar for NTSC; however these figures would normally give us a few lines of over-scan and would not show top and bottom of the display. C_HSYNC_T is still correct at 374 = 4.675 uSecs., nominally both standards requires 4.7 uSecs. NTSC’s video signal is a little different than PAL in that black level is a little above blanking but not important here; we only have black and white. There are other small timing differences but I think the figures above are worth trying. Frame rate is a little off, for both PAL and NTSC. Most monitors are very forgiving and will lock on something close. Perhaps someone in the States can try a test version. Keith W. |
||||
| Geoffg Guru Joined: 06/06/2011 Location: AustraliaPosts: 3194 |
OK, is there someone in the States who is prepared to test it if I generate a test version? It may take a few tries before we get it right. Geoff Geoff Graham - http://geoffg.net |
||||
| aargee Senior Member Joined: 21/08/2008 Location: AustraliaPosts: 255 |
Geoff, I have a monitor here that I can force into NTSC, I'll give the code a run if you put it up. - Rob. p.s. Happened to be visiting Perth this week for work. Popped into Altronics for the first time ever - they still don't have any Maximites on the shelf. Back in Queensland now... Perth is a quite a nice city, loved the free CBD transit system but it looks like the CHOGM chaos is going to be a pain for the locals. For crying out loud, all I wanted to do was flash this blasted LED. |
||||
| CircuitGizmos Guru Joined: 08/09/2011 Location: United StatesPosts: 1425 |
The time difference and schedules sometimes makes for delays in emails, but I'm the squeakiest wheel about NTSC at the moment, so I'm obligated to test here in the U.S. If the timing can be adjusted to get the picky little TV pictured above to work, I imagine that it would be spot on. Edited to add: I don't need to have a HEX file made for testing the parameters. I can generate the HEX. All I would need is the constants from video.c to change. That would test the NTSC timing. As far as language changes - That can be sent to me as source or hex. Micromites and Maximites! - Beginning Maximite |
||||
| donmck Guru Joined: 09/06/2011 Location: AustraliaPosts: 1313 |
Geoff, as an alternative, what if you had an additional options file for this (and possible future changes) as to how the system powers up? Example: autoset.cfg OPTION NTSC
Just before the power up routine is about to see if there is an autorun.bas file, it checks for the presence of the config file. If there is one, it acts upon it and re-enters the power up code at the appropriate point, with the change(s). When it gets back to the point of checking for the config file again, it doesn't, as it knows it has already done this step. Then it continues on to check for an autorun.bas file. This way, system settings, and any basic program you wish to auto run, are very different animals. It would also need future proofing for your V2.7 Hope this makes sense. Cheers Don... https://www.dontronics.com |
||||
| CircuitGizmos Guru Joined: 08/09/2011 Location: United StatesPosts: 1425 |
Would there be an OPTION PAL too? I would imagine that the boards sold in the US could come with NTSC as default. The jumper wouldn't select VGA versus PAL, but VGA versus composite (either PAL or NTSC as per the config file. Micromites and Maximites! - Beginning Maximite |
||||
| donmck Guru Joined: 09/06/2011 Location: AustraliaPosts: 1313 |
In reality, I would imagine it would be very awkward to set NTSC for U.S. use. It means different firmware for country destinations, and I don't see Altronics, or Olimex, or any manufacturer sorting through that mess. I feel it would need a simple fix by the end user, same as you do system settings for time and location on a PC's O/S. Cheers Don... https://www.dontronics.com |
||||
| donmck Guru Joined: 09/06/2011 Location: AustraliaPosts: 1313 |
Thinking further, the autoset.cfg file could be used to set VGA or Composite Video also, releasing one pin.
And it places all the same eggs in the one basket. autoset.cfg OPTION NTSC
OPTION COMPOSITE Cheers Don... https://www.dontronics.com |
||||
| ksdesigns Senior Member Joined: 25/06/2011 Location: United StatesPosts: 143 |

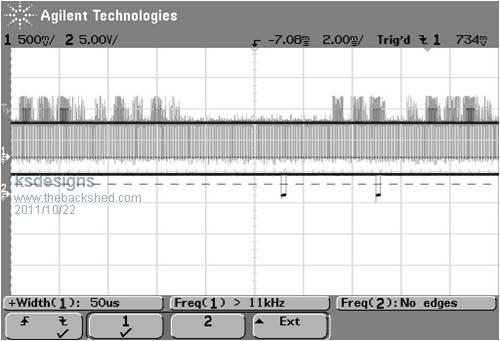

Those are about the same numbers i came up with still does not sync quick scope capture top trace video out bottom is vsync even tho not used for composite it is still toggled it seems to be glitching
ken |
||||
| donmck Guru Joined: 09/06/2011 Location: AustraliaPosts: 1313 |
I was possibly trying to explain this more in layman's terms so most users could understand where I was heading, but in reality, it is much simpler than the way I tried to explain it. A few hours sleep helps too.
On power up, the system looks for the autoset.cfg file on the SD card. If it doesn't find it, PAL and VGA are selected as the defaults. If it does find it, then the new parameters are set. Sort of like BIOS settings on a PC. And that's that! Cheers Don... https://www.dontronics.com |
||||
