poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 01:04am 11 Jun 2019
Copy link to clipboard
Print this post

B & A

The TLP523 comes in 1 and 2 inputs/outputs.
The TLP523-1 only has 4 pins and this can be placed in the 8 pin socket
intended for the TLP523-2, using the top 1,2 and 7,8 pins.
But you don't want mains sync anyway...

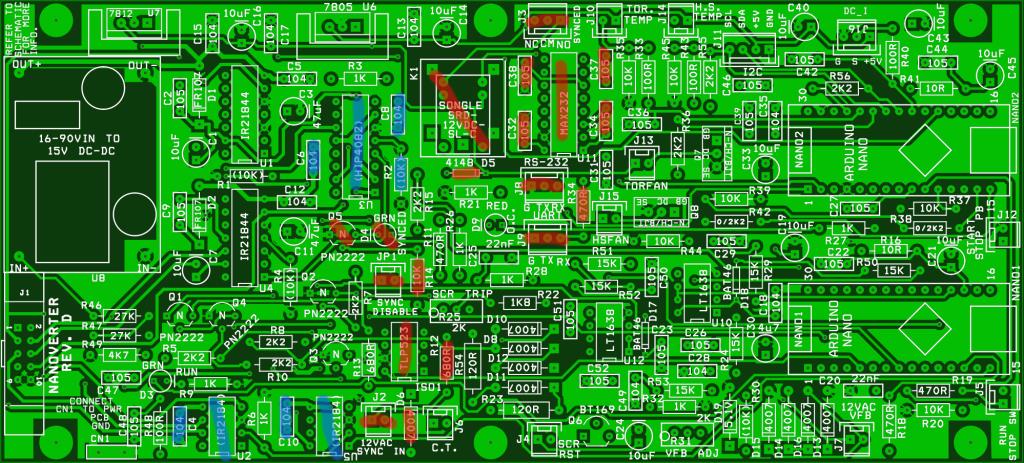

here is the top board with a few things marked that I think you don't need.
It scrubs out the RS-232 (red) and the mains sync (blue).

It retains the SCR current limit shutdown function. For this to work you will need a current transformer of some specification (about 15V - 20V at the AC current trip limit)


Edited by poida 2019-06-12
wronger than a phone book full of wrong phone numbers

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 03:06am 11 Jun 2019
Copy link to clipboard
Print this post

If I'm understanding what you're saying correctly

everything in red and blue I do not need

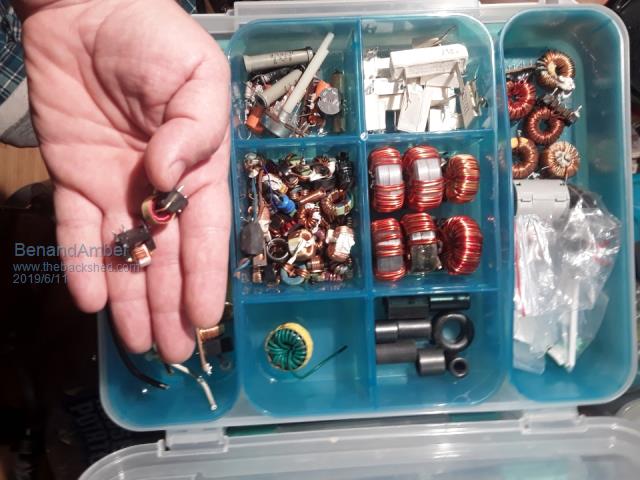

I have crap loads of small Transformers

I already have a small Step Down Transformer 120 to 12 volts

would you happen to have a picture of the current Transformer that you could share

Or a picture of the completed board

Thanks again and I'm sorry for being a pain in your ass

I know you're very busy

be warned i am good parrot but Dumber than a box of rocks

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498
Posted: 03:13am 11 Jun 2019
Copy link to clipboard
Print this post

Step Down Transformer does not = Current Transformer.

Can I offer a suggestion, Google "Current Transformer" it is better to learn how to fish than to just ask for fish.
There are only 10 types of people in the world: those who understand binary, and those who don't.

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 05:22am 11 Jun 2019
Copy link to clipboard
Print this post

I know what a current Transformer is

I have several of them here but there is different kinds

I'm sure Poida is thinking the same thing you wrote




He said it needs to be between 15 and 20 volts

I've been Googling but I just keep getting more confused

Could you point me to one that I can buy so I can read about it and understand it a little better

I don't want to fish I just want to know what kind of fish were fishing for


I'm just confused I do believe if I had a little bit more information I could figure it out though

Thanks for answering my post Madness I appreciate it

I just need a little bit more information so I can figure this outEdited by BenandAmber 2019-06-12
be warned i am good parrot but Dumber than a box of rocks

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498
Posted: 06:10am 11 Jun 2019
Copy link to clipboard
Print this post

If you read this you will have a good understanding Wikipedia

These are the type we have been using previously.

Current transformer Edited by Madness 2019-06-12
There are only 10 types of people in the world: those who understand binary, and those who don't.

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 06:28am 11 Jun 2019
Copy link to clipboard
Print this post

Thank you Madness I truly appreciate it

So this will be going around one leg of the output of the inverter

and feed the smaller 15 to 20 volts back into the Nano control board

And it will need to be able to handle a little over

the maximum amount of amperage that's the inverter will ever put out??

Edited by BenandAmber 2019-06-12
be warned i am good parrot but Dumber than a box of rocks

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498
Posted: 06:58am 11 Jun 2019
Copy link to clipboard
Print this post

The Active wire of the Inverter output passes through the Current Transformer as shown here.




There are only 10 types of people in the world: those who understand binary, and those who don't.

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 07:23am 11 Jun 2019
Copy link to clipboard
Print this post

There is a CT socket and a 12vac vfb socket.

The CT uses the one like Mad posted a link to this type

The 12vac VFB you'll need something like this
Cheers Caveman Mark
Off grid eastern Melb

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 04:47pm 11 Jun 2019
Copy link to clipboard
Print this post

Staregazer stop by here and he is teaching me how to fish

How to use the search engine on the top of the page on the mobile version

I had no way to find out that Mark has already posted his build

has basically answered almost every one of my questions on his post

Thank God he sent me a link to it has already helped me so much

It seems like he always comes through exactly when I need him

I thought I knew exactly how a current Transformer work and I was very wrong

They are so much more complicated than what I originally thought

I have a lot of learning to do

I don't think I will ever in my lifetime get even close to most of you guys on hear

don't think it's even possible

But I do want to have a general understanding so I can fix mine stuff and help myself

Thank you Madness for pushing me in that direction

I think I know just enough to have too much confidence and get myself in trouble
be warned i am good parrot but Dumber than a box of rocks

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 09:54pm 11 Jun 2019
Copy link to clipboard
Print this post

The little converter boards are very fiddly, and honestly I would reccommend to use plug in chips even if they cost a lot more.
Adding another complexity to the build just makes the overall job harder and open to potential issues.

But if you want to then these are the bits you'll need
DIP8 TO SOP 8
SOP14 TO DIP14
LONG HEADER PINS GET THE 19MM
LT1638 CHIPS
21844 SURFACE CHIPS
SIL HEADER SOCKETS

When you solder the pins to the adaptor boards make sure you have them up the correct way, they have the layout on each side for different size chips.

I had a few of those chips not work, possibly as I overheated them when soldering?? They are fiddly and it's probably not a huge amount more to get the plug in ones by the time you buy the long pins and adaptor boards.Edited by renewableMark 2019-06-13
Cheers Caveman Mark
Off grid eastern Melb

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 02:35am 12 Jun 2019
Copy link to clipboard
Print this post

I will definitely get the plug-in ones if you think that's the best thing to do

I highly value your opinion and others on here also

Sometimes I think I know something and then find out I don't know anything

So your opinion is very valuable to me

I will be buying them off AliExpress digikey doesn't have them

I've had very good luck buying stuff off of AliExpress

But I've always bought something that was recommended by someone else

Or had a lot of good reviews

Thanks mark
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 03:30pm 14 Jun 2019
Copy link to clipboard
Print this post

Got my order in 2 AliExpress for the Nano parts

Boy don't you just hate to wait

I bought resistor kits and capacitor kits

So I will likely have a lot of leftovers

I did not order any connector plugs

Already had all of them

Already had all the electrolytic capacitors

And the name brand Texas instrument voltage regulators

Now just waiting on the slow boat and hope nothing gets messed up
be warned i am good parrot but Dumber than a box of rocks

azhaque
Senior Member

Joined: 21/02/2017
Location: Pakistan
Posts: 117
Posted: 01:18am 15 Jun 2019
Copy link to clipboard
Print this post

  BenandAmber said

I think I know just enough to have too much confidence and get myself in trouble



Ben,

This is a beautiful philosophical statement.

Tell us, with such a bent of mind how come you were doing the Evel Knevel thing?

azhaque

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 01:41am 15 Jun 2019
Copy link to clipboard
Print this post

Just the village idiot and didn't realize it
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 09:21pm 17 Jun 2019
Copy link to clipboard
Print this post

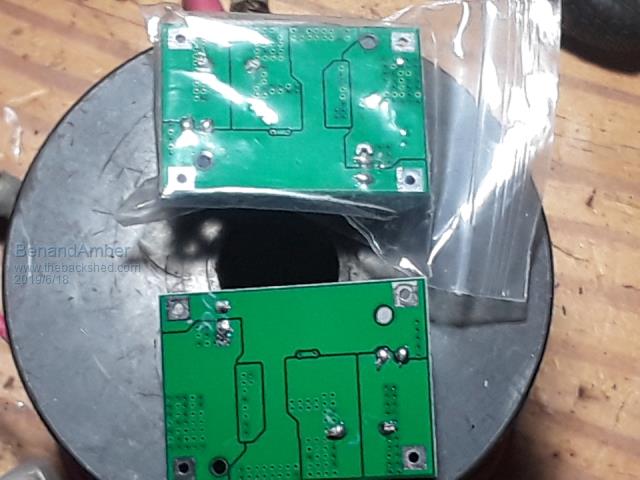

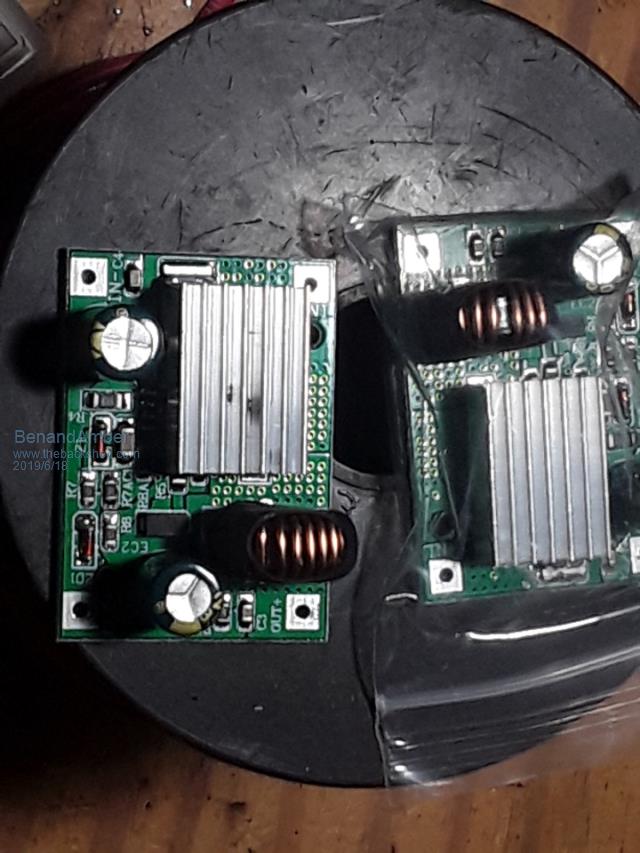

woohoo the dc-to-dc converters came in

Wasn't expecting them this soon

hopefully the rest of the parts come in early also
be warned i am good parrot but Dumber than a box of rocks

kentfielddude
Regular Member

Joined: 09/05/2019
Location: United States
Posts: 89
Posted: 06:26am 18 Jun 2019
Copy link to clipboard
Print this post

I ordered the 12v version because it was cheaper. Going to adjust it to 15v

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 01:05am 22 Jun 2019
Copy link to clipboard
Print this post

They didn't charge me anything to change it to 15 volt put it in the notes on the order

Checked it once it came in 15.46 volts
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 05:10am 22 Jun 2019
Copy link to clipboard
Print this post







A few parts came in the mail just enough to be a tease

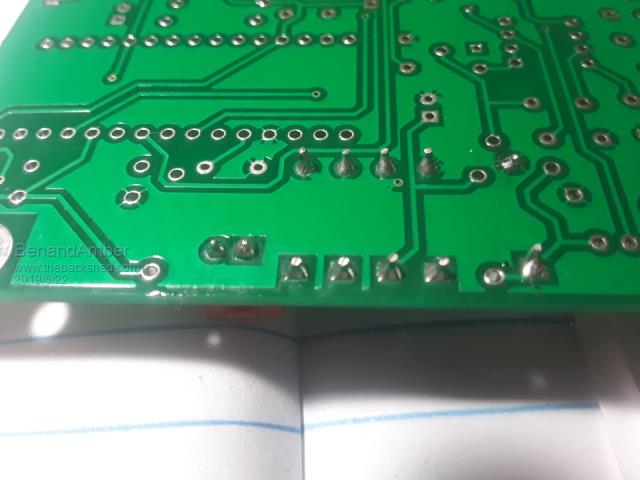

I used gold-plated pens from old computer parts to raise the dc-to-dc converter

the heatsinks i have for lm7812
would hit DC DC converter without using pens and tilting it a little toward 10 pin plug

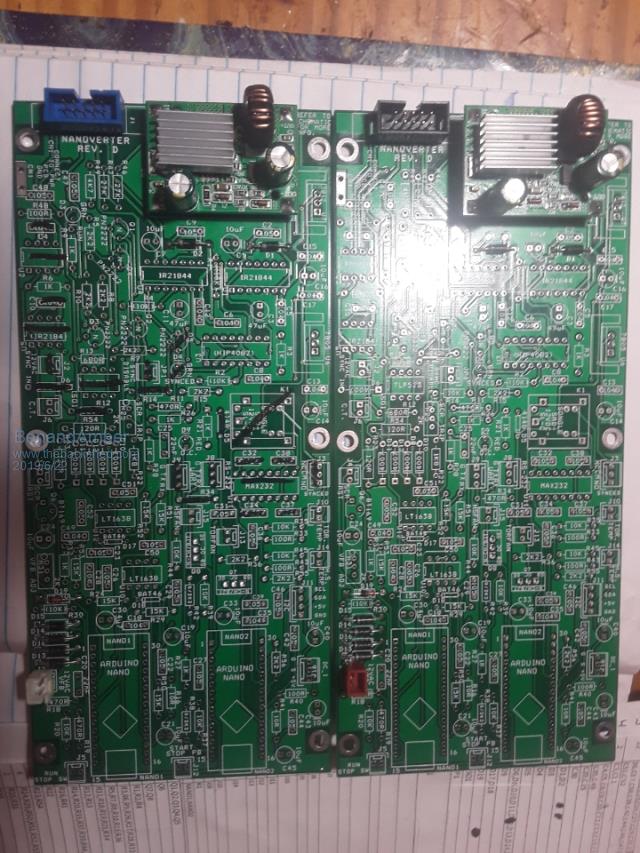

If you look on the board in the pic you may noticed I didn't put the 4007 diodes in over by the mains sink part of the board

I was wondering if anybody knows if these are necessary since I won't be using the main sync function

By following poida the Greats Tips on how to solder this board

And my absolutely awesome homemade clear no headache great smelling high temperature cheap as peanuts liquid solder flux

I think I'm going to be okay

Notice I said Think!!!

I've wanted to build a control board every since about two years ago when I read about the oz control board

Thank you poida the great

Special thanks to Mark and Tinyt alsoEdited by BenandAmber 2019-06-23
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 03:22am 23 Jun 2019
Copy link to clipboard
Print this post

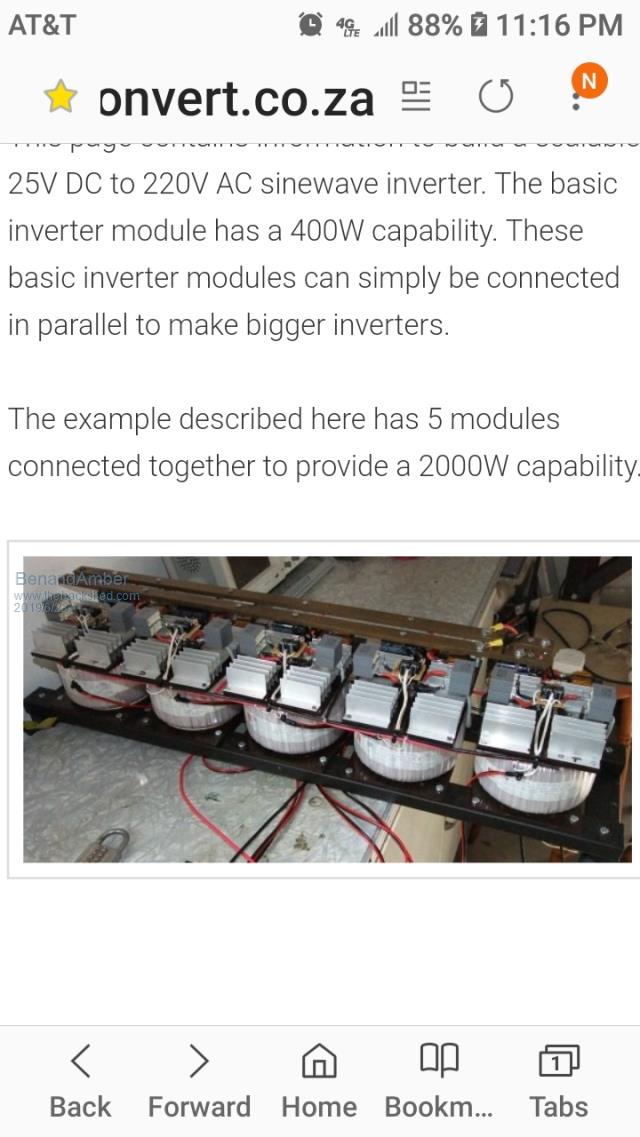

multi Transformer inverter http://evconvert.co.za/solar-panel-charging-station/inverter/






I ran across this very interesting inverter

thought I would share and see what you guys thought about itEdited by BenandAmber 2019-06-25
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 05:19pm 23 Jun 2019
Copy link to clipboard
Print this post

Hey solar Mike I done it

look above at the previous post it has a link

thank you for showing me how to do it
be warned i am good parrot but Dumber than a box of rocks
