tinyt said

Madness said ...This system could also send commands to turn on a HWS and other loads like water pumps as excess power is available.

From an ignorant newbie far away - what is an HWS?

OMG I can actually give an answer!!

He means Hot Water System.
Assuming it's electric.

Cheers Caveman Mark
Off grid eastern Melb

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 09:07pm 30 Apr 2018

Copy link to clipboard

Print this post

I was going to say House Wife Stuff

There are only 10 types of people in the world: those who understand binary, and those who don't.

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 05:46am 01 May 2018

Copy link to clipboard

Print this post

Anyone else wanting to get some PCB's before I end the order?

There are only 10 types of people in the world: those who understand binary, and those who don't.

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 06:00am 01 May 2018

Copy link to clipboard

Print this post

If anybody is interested I found a source of Toroid cores here in Australia the biggest is 7500 VA 180/300/80.

Price is just under $400AUD delivered. This is just a bare core, also getting prices with windings completed.

There are only 10 types of people in the world: those who understand binary, and those who don't.

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 06:50am 01 May 2018

Copy link to clipboard

Print this post

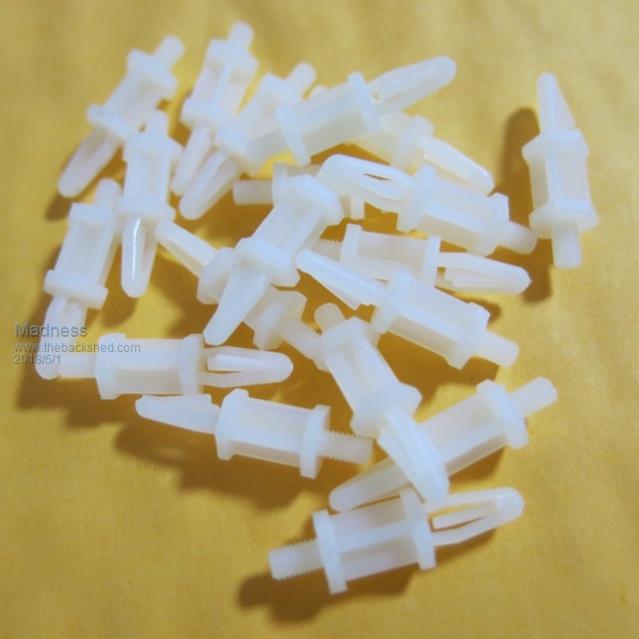

For mounting the control or fan boards I have 4MM holes with the 6.3mm long version of these in mind for mounting.

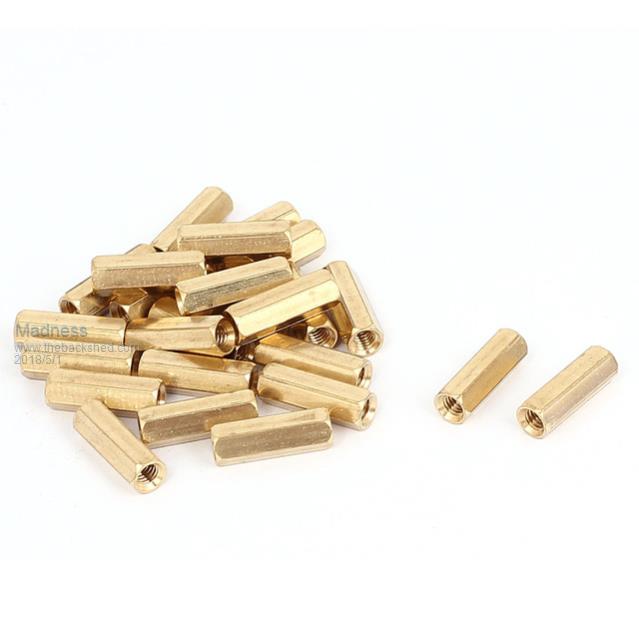

For the Power Board I use 18 MM M4 Brass stand offs.

They allow space for the negative power cable soldered to the back of the PCB. Easy way to do it is use the PCB as a template and drill the 8 4mm holes in the case then screw in the standoffs, then when fitting the power board just screw 10MM M4 screws through the board into the standoffs..

Edited by Madness 2018-05-02

There are only 10 types of people in the world: those who understand binary, and those who don't.

Ralph2k6

Senior Member

Joined: 24/09/2017
Location: Australia
Posts: 129

Posted: 12:16am 02 May 2018

Copy link to clipboard

Print this post

Wow Gary. If you can organise toroids (even bare) you truly will be underway for a kitset. I'm following this with great interest.

Ralph

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 01:10am 02 May 2018

Copy link to clipboard

Print this post

Aerosharps seem to be getting scarce, also I am looking at a global solution. You can buy cores and completed Toroids from China but freight is a killer and most manufacturers there only want to work with large numbers. The contact I have found is here in Australia and the cores are made here also.

There are only 10 types of people in the world: those who understand binary, and those who don't.

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 07:52am 02 May 2018

Copy link to clipboard

Print this post

Pcb order has been sent, I have ordered extras if anyone wants some.

There are only 10 types of people in the world: those who understand binary, and those who don't.

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 06:15am 05 May 2018

Copy link to clipboard

Print this post

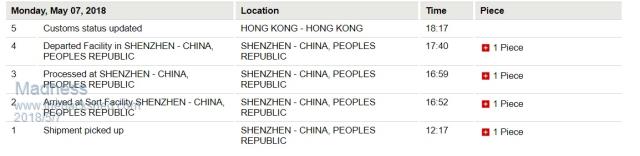

PCBs have been manufactured and now waiting to be collected by DHL, should be here mid next week.

There are only 10 types of people in the world: those who understand binary, and those who don't.

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 10:43am 07 May 2018

Copy link to clipboard

Print this post

PCBs are on the way.

There are only 10 types of people in the world: those who understand binary, and those who don't.

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678

Posted: 05:39am 08 May 2018

Copy link to clipboard

Print this post

Bloody ripper!
More bits came today, should have enough to build it now, just waiting on screen.

Cheers Caveman Mark
Off grid eastern Melb

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 09:59pm 09 May 2018

Copy link to clipboard

Print this post

They have arrived, I will get them in the post today for those who have paid.

There are only 10 types of people in the world: those who understand binary, and those who don't.

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678

Posted: 10:53pm 09 May 2018

Copy link to clipboard

Print this post

Good work mate, can't wait to get my paws on them.

Cheers Caveman Mark
Off grid eastern Melb

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 11:31pm 09 May 2018

Copy link to clipboard

Print this post

Just been to the post office to get the Express Satchels, all going well you will have them tomorrow.

There are only 10 types of people in the world: those who understand binary, and those who don't.

gpalterpower

Senior Member

Joined: 19/07/2009
Location: Australia
Posts: 175

Posted: 04:25am 10 May 2018

Copy link to clipboard

Print this post

Hi Madness,
How would you like to be paid. Is paypal ok?
Marcus

if it aint broke dont fix it!!

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 05:48am 10 May 2018

Copy link to clipboard

Print this post

Hi Marcus, Paypal is the easiest, I will PM you.

There are only 10 types of people in the world: those who understand binary, and those who don't.

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 07:25am 10 May 2018

Copy link to clipboard

Print this post

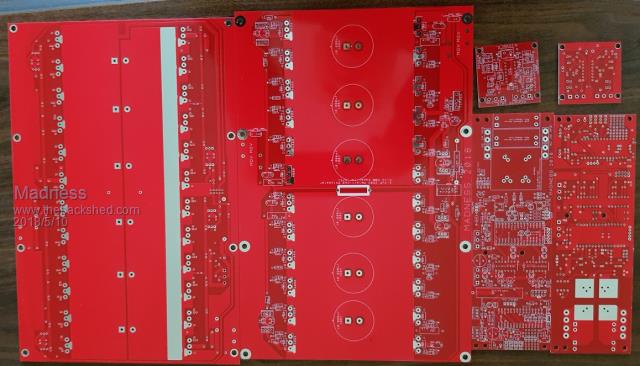

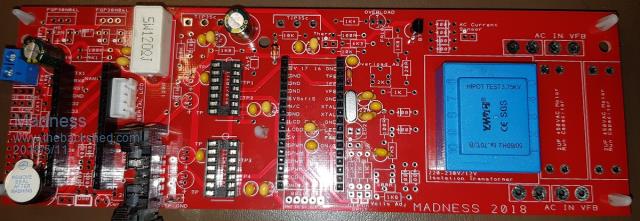

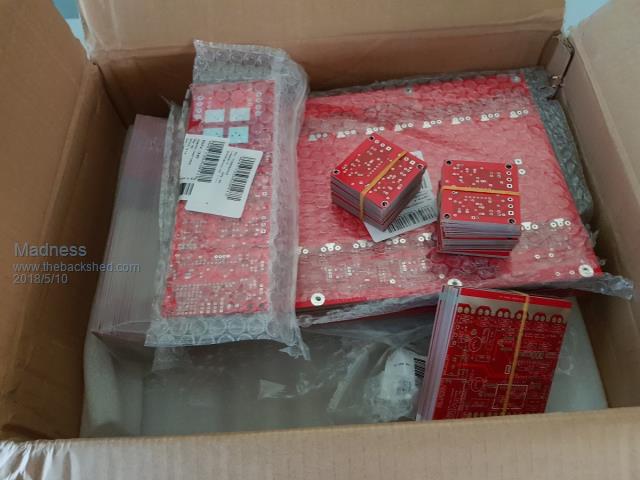

PCBs have been sent via Express Post to everyone except one person who I am waiting to give me their address.

One thing I need to mention is the 7k5 Resistor on the control board needs to be changed to a 3K9 if you are using a 12V transformer. 7K5 is from Oztules original version where he was using a 14V transformer.

There are only 10 types of people in the world: those who understand binary, and those who don't.

Mulver
Senior Member

Joined: 27/02/2017
Location: Australia
Posts: 160

Posted: 10:15am 10 May 2018

Copy link to clipboard

Print this post

Awesome work Madness! Greatly appreciated!

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 10:03pm 10 May 2018

Copy link to clipboard

Print this post

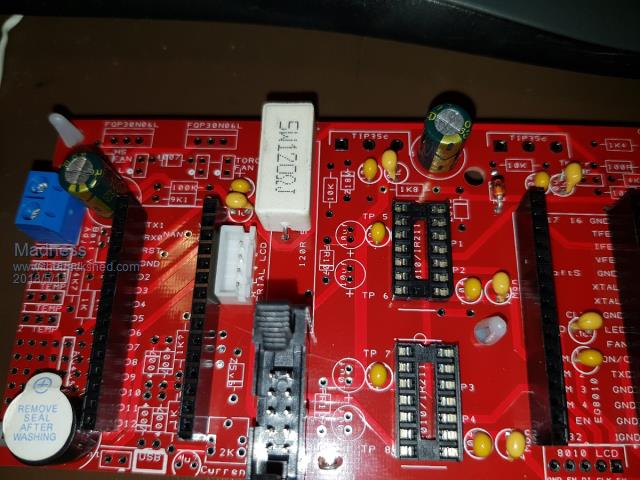

One little issue has come up but no big deal, I had allowed for a larger drop down resistor but the 10 pin connector gets in the way. A 5W 120R fits easily as per below.

There are only 10 types of people in the world: those who understand binary, and those who don't.

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678

Posted: 07:49am 11 May 2018

Copy link to clipboard

Print this post

Bugger, didn't get mine today.
Bloody aus post useless mongrels.

Cheers Caveman Mark
Off grid eastern Melb
