Forum Index : For Sale : 50V 50A Transformer

Author Message
tonigau
Newbie

Joined: 15/10/2007
Location: Australia
Posts: 4
Posted: 11:46pm 10 Nov 2012
Copy link to clipboard
Print this post

4sale

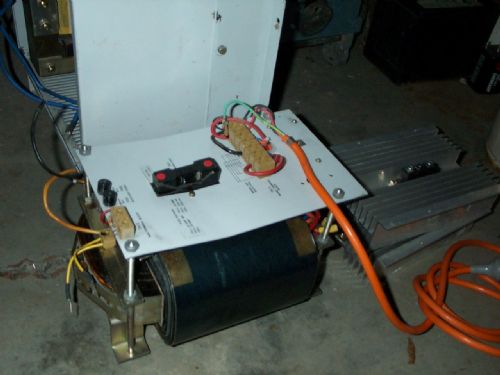

I have an Ericsson battery charger, had plans of using the transformer but things changed. 240V input

It is mostly complete charger with TXF, SCR's, Diodes, Smoothing inductors, capacitors ...
control card needs work & volt meter broke.
Wouldn't be too hard to make your own control board for SCR output bridge rectimfier.
or feed into existing charge controller

Would be ideal for recharging on those rainy days.
Whole thing weighs about 120kG, TXF 35kG.
There are numerous primary tappings, secondary is dual winding so could be parallel'd for 24V. (24V @100A with appropriate rectifier)

I don't want to scrap it but if no interest...
(there's kG's of CU & al heatsinks)

postcode ~ 4000

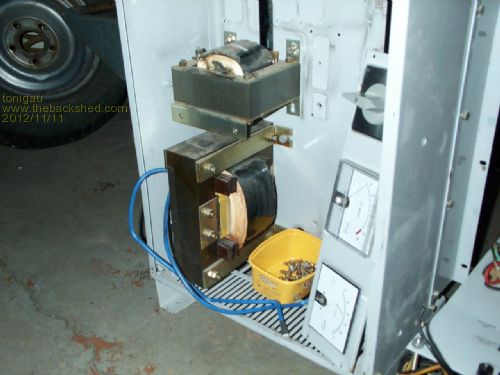

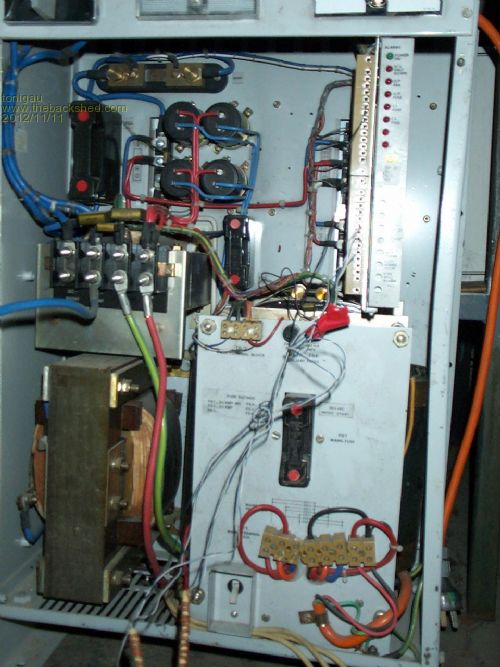

2 photos are another unit I plundered.
