Forum Index : Electronics : Vero board sources.

Author Message
Phil23
Guru

Joined: 27/03/2016
Location: Australia
Posts: 1664
Posted: 12:10pm 17 Apr 2016
Copy link to clipboard
Print this post

Hi all,

Google, ebay & Aliexpress not being helpful this morning.

What I'm looking for is some Vero board that has the same track patterns as a solderless prototyping breadboard.

Surely there must be dozens of sources out there.
So far only found 1 Jaycar offering, & probably not the size I'm after.

Jaycar Strip/Link board.

Can anyone suggest some sources?
Either local or with shipping to Aus.

Thanks

Phil.

Edit:-

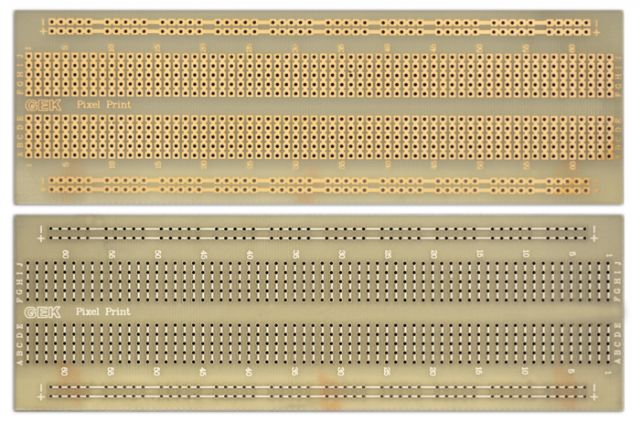

This sort of thing, but looking for more size options.



Edited by Phil23 2016-04-18

Pete Locke
Senior Member

Joined: 26/06/2013
Location: New Zealand
Posts: 181
Posted: 12:13am 18 Apr 2016
Copy link to clipboard
Print this post

RS Compnents has quite a few examples.

Phil23
Guru

Joined: 27/03/2016
Location: Australia
Posts: 1664
Posted: 01:13am 18 Apr 2016
Copy link to clipboard
Print this post

  Pete Locke said   RS Compnents has quite a few examples.


Wow,

Didn't see a lot there that was quite what I'm looking for; something that mimics a solder free bread board.

Afraid I some of their prices scared me off.
Like a 200 x 300mm board topping out near $200 bucks.

Just a 6 x 4" board would probably serve my purpose. Should be about for a few bucks or more, but getting search engines to find them is the problem.

Thanks

Phil

Phil23
Guru

Joined: 27/03/2016
Location: Australia
Posts: 1664
Posted: 01:27am 18 Apr 2016
Copy link to clipboard
Print this post

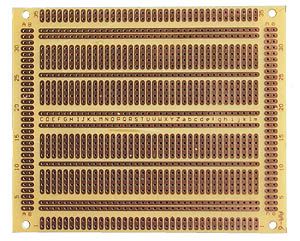

This is more or less exactly what I'm looking for:-





Unfortunately, the description from the associated post reads:-

  Quote
Ik heb het idee dat de interesse in dit topic langzaam wegzakt naarmate het project vordert :P

Ik heb wat onderdelen besteld bij futurlec. Ik heb niet veel IC's hoeven bestellen omdat ik net een paar oude apparaten met de verfbrander heb ontdaan van de componenten. In de commodore 64 zaten veel bruikbare dingen.............

sparksandsmoke

Newbie

Joined: 14/05/2015
Location: Ireland
Posts: 12
Posted: 09:04pm 19 Apr 2016
Copy link to clipboard
Print this post

https://www.robotics.org.za/index.php?route=product/product&product_id=963



R35 seems to be worth AUD3.15 at the moment. May be worth emailing them and asking if they'd ship two or three by airmail?

Pete Locke
Senior Member

Joined: 26/06/2013
Location: New Zealand
Posts: 181
Posted: 12:10am 20 Apr 2016
Copy link to clipboard
Print this post

  Phil23 said
  Pete Locke said   RS Compnents has quite a few examples.


Wow,

Didn't see a lot there that was quite what I'm looking for; something that mimics a solder free bread board.

Afraid I some of their prices scared me off.
Like a 200 x 300mm board topping out near $200 bucks.

Just a 6 x 4" board would probably serve my purpose. Should be about for a few bucks or more, but getting search engines to find them is the problem.

Thanks

Phil

Sorry, it was a quick look during the smoko break at the RS site. Didn't even look at costs, just threw in a link to look at.
Cheers
Pete.

austfox
Newbie

Joined: 05/03/2016
Location: Australia
Posts: 18
Posted: 10:47pm 10 May 2016
Copy link to clipboard
Print this post


I use Protostack boards and can fully recommend them:

http://www.protostack.com/boards/prototyping

Australian web store, 3 different sizes, fibreglass, thru-plated holes, immersion tin pads, solder-masked, and the top side is screen printed with the power routings and connection points.

Makes it so quick to move your project from breadboard to PCB!

Edited by austfox 2016-05-12
