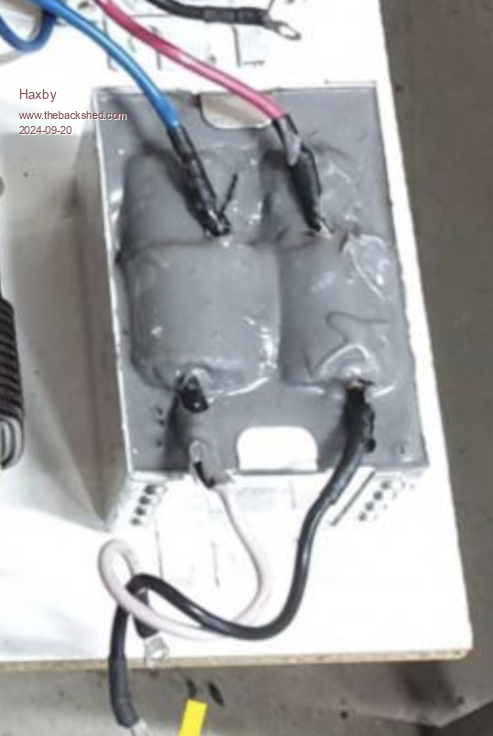

This is Roger's photo of a 4mH inductor from a 3kw aerosharp.

If I'm after a 2mH inductor, with double the current rating, would it be ok to connect the 4 wires in parallel?

And if so, I imagine I would connect white and red together and blue and black together.

Is that right?

KeepIS

Guru

Joined: 13/10/2014
Location: Australia
Posts: 1679
Posted: 09:11pm 20 Sep 2024
Copy link to clipboard
Print this post

I don't know what's in that choke or how it's wound.

But in general yes, given two inductors of the same value, paralleling the inductors will halve the inductance and give you a higher current capability.
It's all too hard.
Mike.

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1020
Posted: 10:15pm 20 Sep 2024
Copy link to clipboard
Print this post

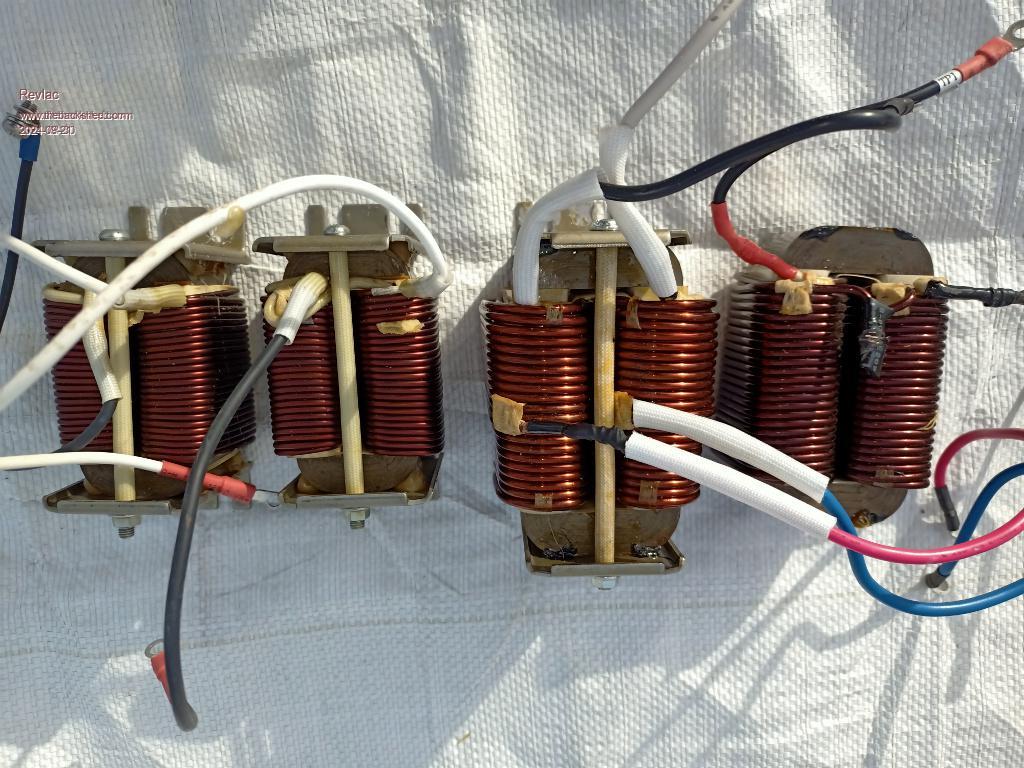

Looks the same as the 3rd one. The wire on that Big choke is 3 mm diameter.
Picture to see how its wound.

Cheers Aaron
Off The Grid

Haxby

Guru

Joined: 07/07/2008
Location: Australia
Posts: 423
Posted: 06:06am 21 Sep 2024
Copy link to clipboard
Print this post

Ok I think I have to connect red and blue together and white and black together as the two coils are wound in different directions around the core.

Haxby

Guru

Joined: 07/07/2008
Location: Australia
Posts: 423
Posted: 07:15am 21 Sep 2024
Copy link to clipboard
Print this post

Nope I think I was right the first time. So confusing
