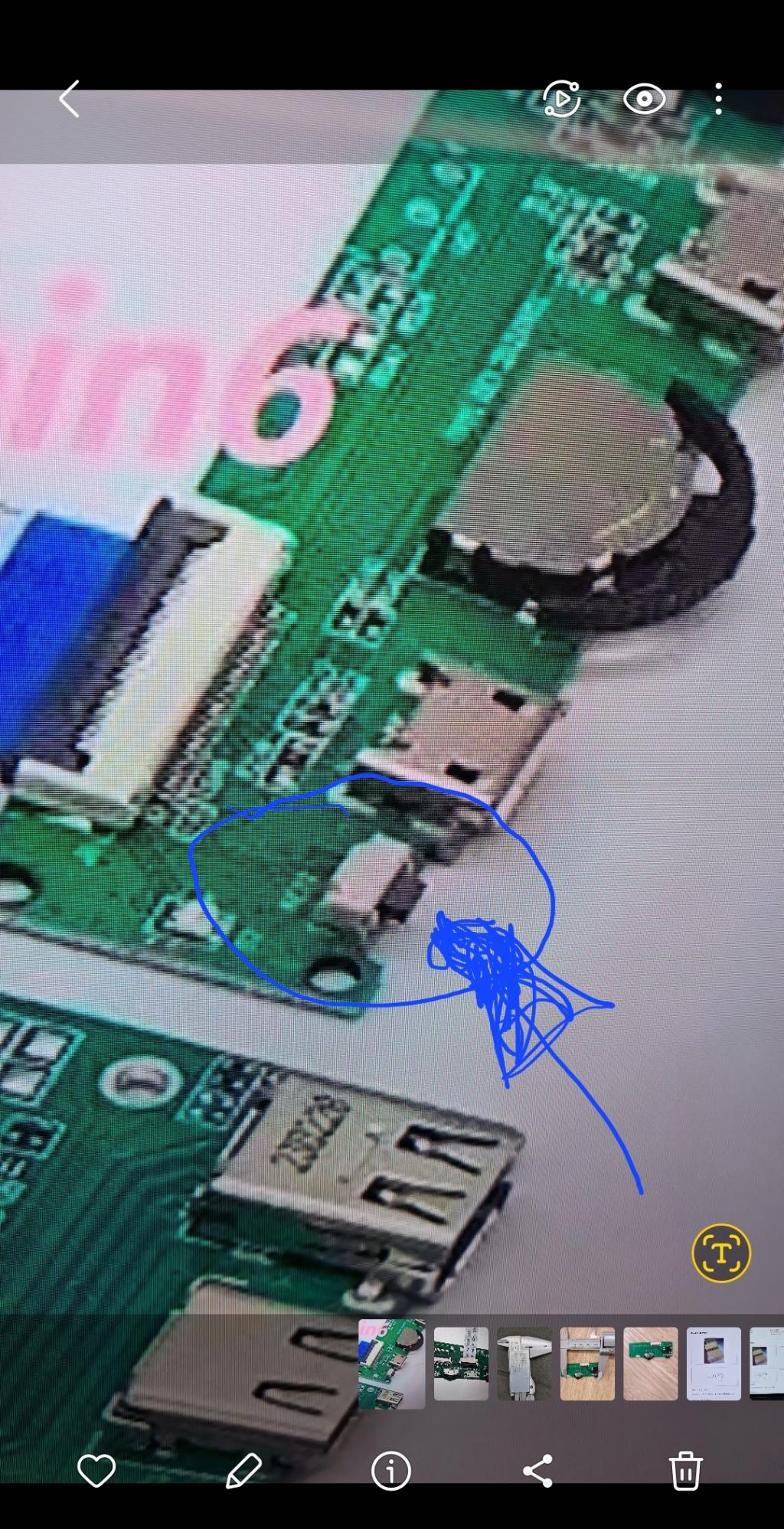

Does anyone know the name of this micro tactile switch or where I can buy or aquire one other than buying new Type-C lcd display board with for around GB £50?
I'm happy to desolder one if anyone even knows where to get any 2nd hand or broken board with this type switch but ideally I'd like to buy a similar one new
the dimensions of the white plastic bit are appx 4.5mm X 1.9mm

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1020
Posted: 09:31pm 16 Sep 2024
Copy link to clipboard
Print this post

At first glance I thought there was heaps of them, then find nothing with those dimensions.
There might be something close to that size, the side buttons on Mobile phones? haven't taken one apart to be sure.
Cheers Aaron
Off The Grid

Marcel27

Regular Member

Joined: 13/08/2024
Location: Netherlands
Posts: 53
Posted: 01:57pm 17 Sep 2024
Copy link to clipboard
Print this post

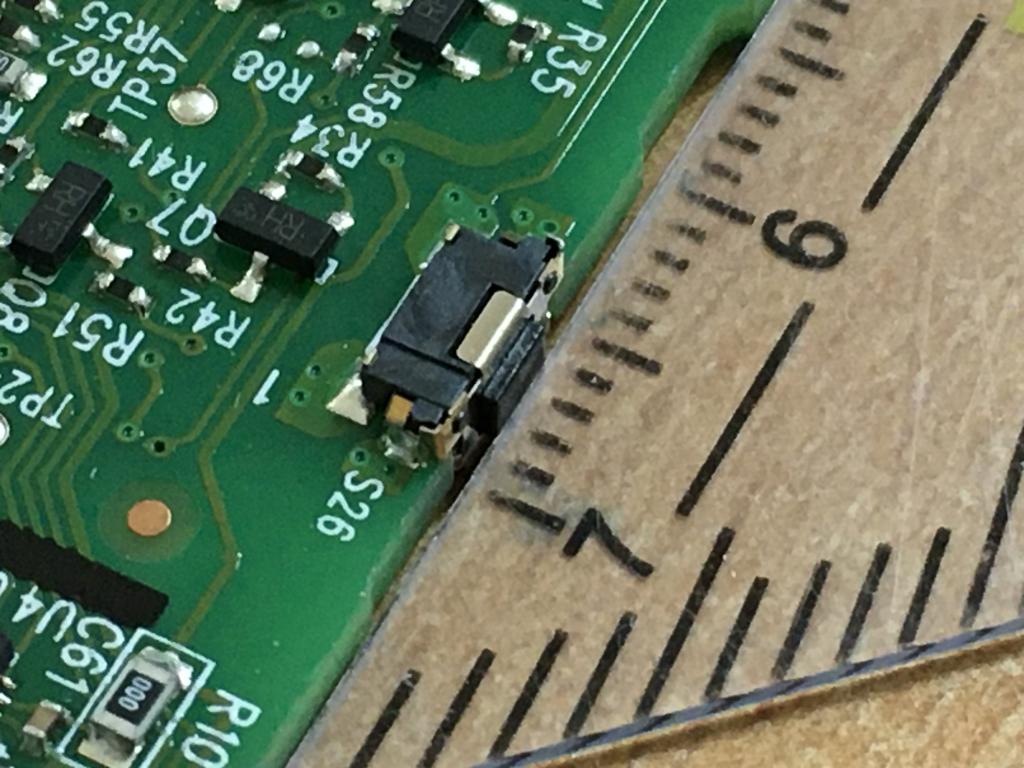

I found this one on the side of an pcb from a Samsung/Horizon remote.

3.15 mm x 6.2 mm with solder contacts, the switch body is 4.25 mm.



Edited 2024-09-18 00:19 by Marcel27
If you use AI, you lose your mind.

lew247

Guru

Joined: 23/12/2015
Location: United Kingdom
Posts: 1702
Posted: 07:37pm 17 Sep 2024
Copy link to clipboard
Print this post

  Marcel27 said  I found this one on the side of an pcb from a Samsung/Horizon remote.

3.15 mm x 6.2 mm with solder contacts, the switch body is 4.25 mm.


Brilliant

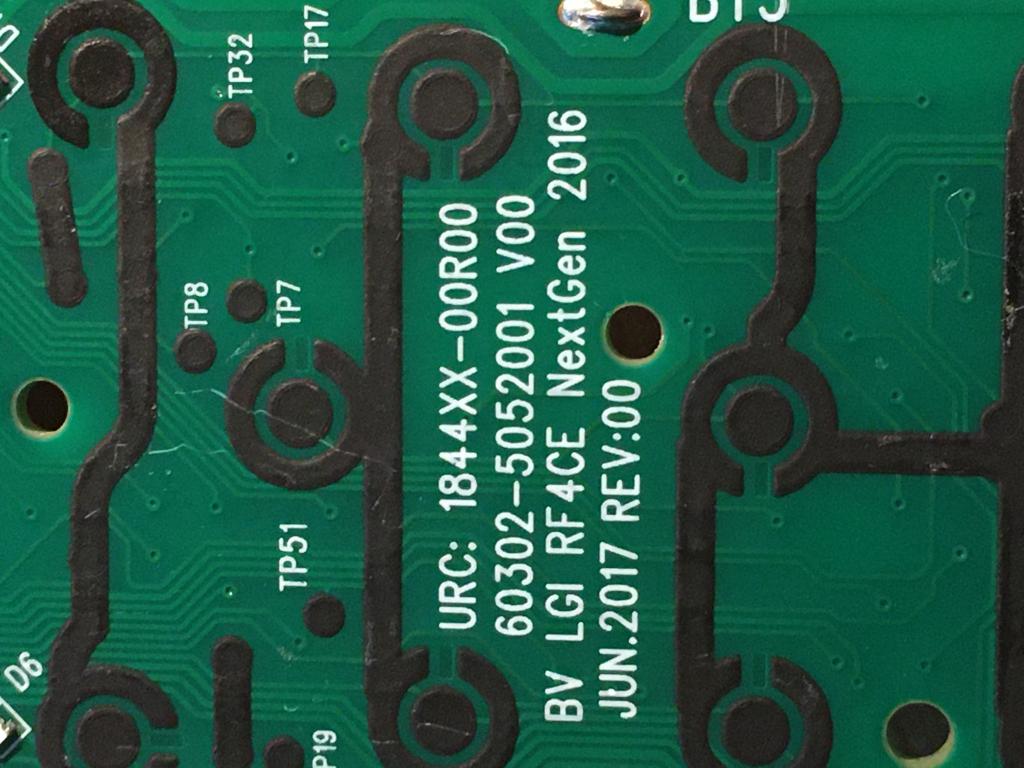

Do you happen to have a pcb reference number so I can try and locate one to "pinch" that switch from?

Marcel27

Regular Member

Joined: 13/08/2024
Location: Netherlands
Posts: 53
Posted: 09:33pm 17 Sep 2024
Copy link to clipboard
Print this post

I think it is easier that I send the part with the switch by normal mail. Cost me only €1.80 to the UK. Se me a PM with your address.
If you use AI, you lose your mind.

Marcel27

Regular Member

Joined: 13/08/2024
Location: Netherlands
Posts: 53
Posted: 04:35am 18 Sep 2024
Copy link to clipboard
Print this post




If you use AI, you lose your mind.

Marcel27

Regular Member

Joined: 13/08/2024
Location: Netherlands
Posts: 53
Posted: 08:25am 06 Oct 2024
Copy link to clipboard
Print this post

Lew,

Could you salvage the switch from the board I sent to you?

Marcel
If you use AI, you lose your mind.
