BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 11:47pm 07 Jun 2021

Copy link to clipboard

Print this post

I am betting it is very heavy

I hate to say my guess

I will say i don't think he is making much on shipping

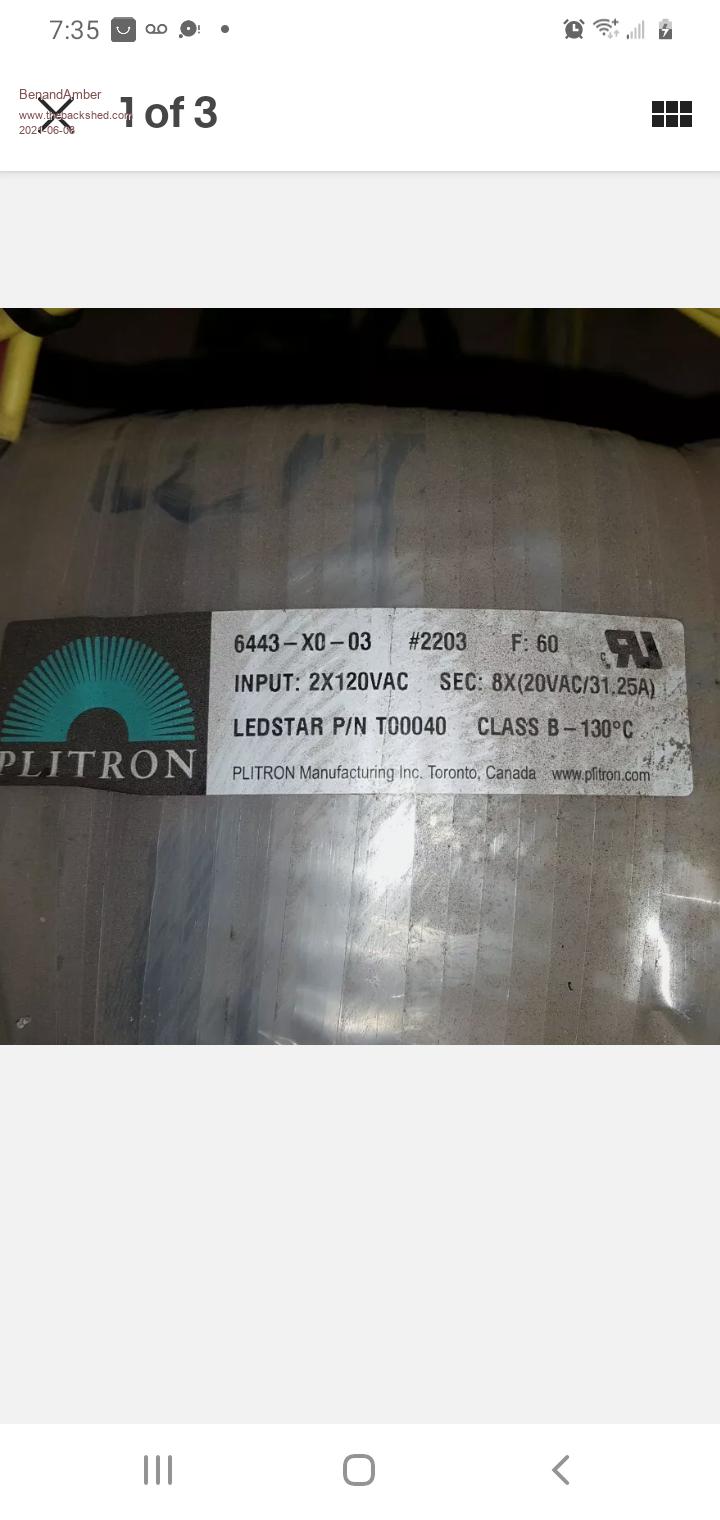

I the says but I think it has 2 120 volt
Windings or legs and 8 20 volt windings

That is very lucky in used trannys that have under a 200 dollar price tag including shipping

It would likely still be a good deal with the extra shipping to the land down under

Since I was very dreamed of kangaroos and lightning and thunder

My day dream was added to few years back

Kangaroos lightning thunder porch swing cold beer and few awesome people to shoot the sh__ with

Do your own research i don't know nothing about the seller but vague memories

Ok maybe I will give a ballpark of what my GUESS!!!! is

I think I talked to this guy maybe a year or longer ago

He had said he have several big trannys so I asked him put them up for sell

He though it was a waste of time because how much the shipping would be

So my guess is 80 to 100 pounds

If you need a tranny it is worth cheaking out

If only to come back and give me a hard time if I am wrong

Keep mind the swiss cheese brain that is trying to remember!!!

I think this guy knows has added some copper to one of these

If same guy he doubled the way under rated 24/7 rating

I can run my a little over 60 pound tranny at close to 10k

I don't know how long until it heats up

I know by testing at 8k big load would cycle off before my 60 some pound tranny gets hot

My point is 8k maybe 12k or more will be possible if you can fit the copper through hole

I have a over 20 pound new spool 12 gauge enameled wire lots more I already had a 70 pound core

Or I would buy one or two of them

REMEMBER CHECK FOR YOURSELF I COULD BE VERY WRONG

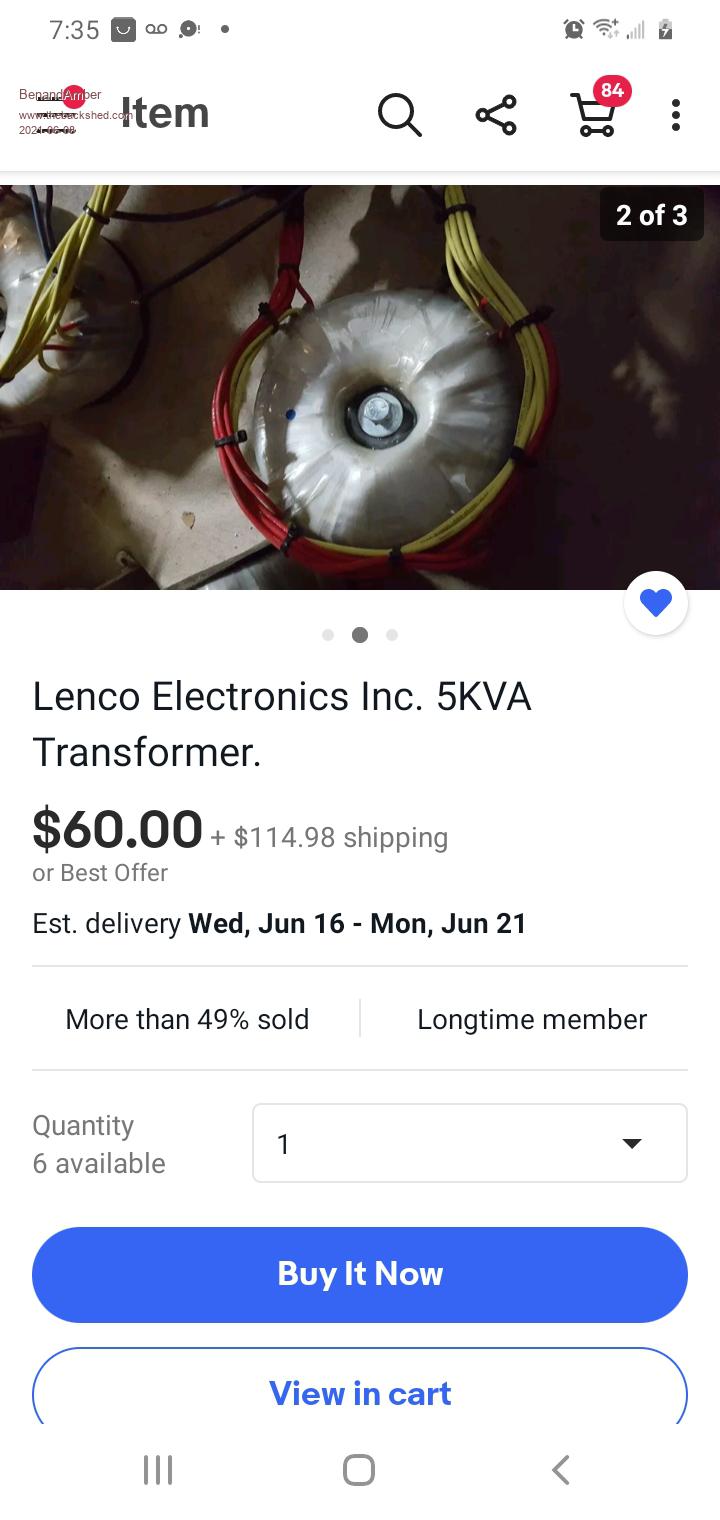

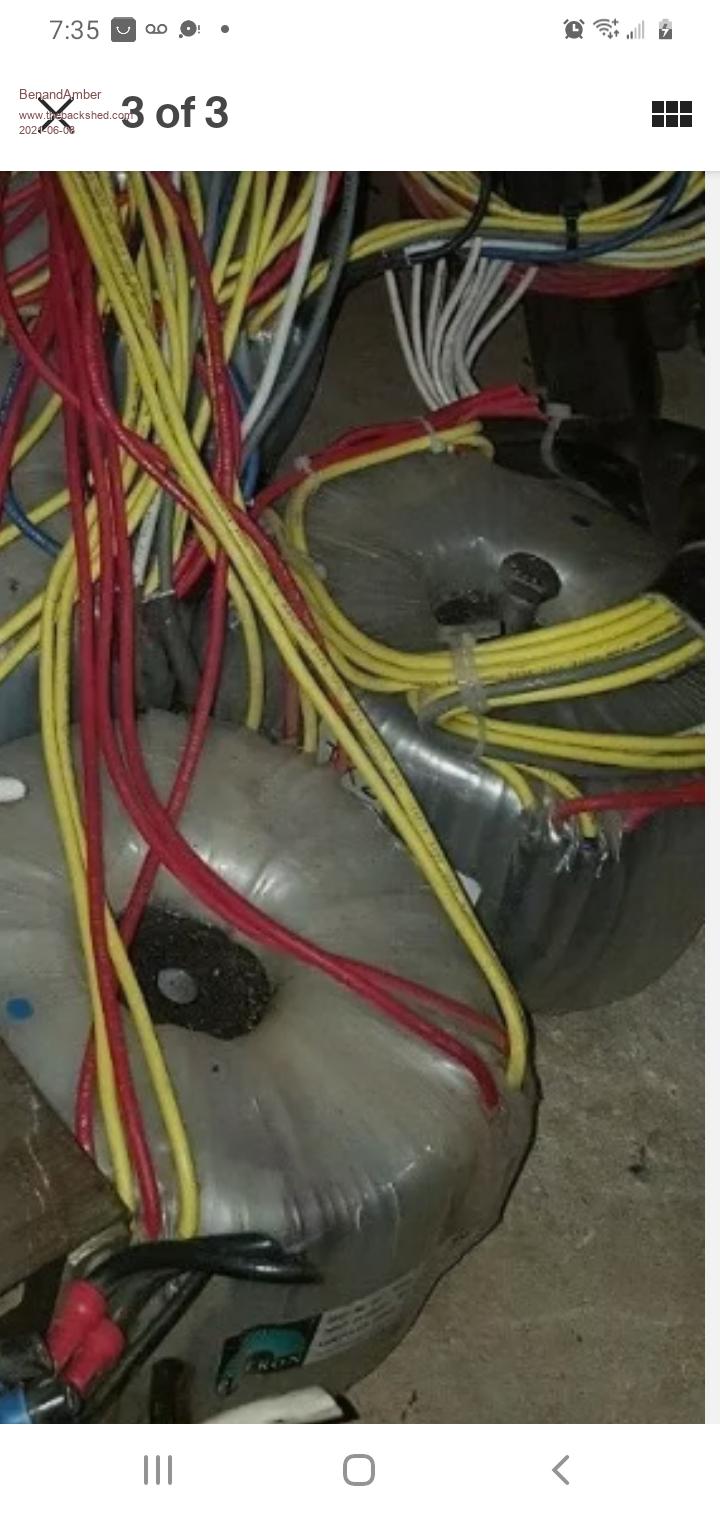

The link for big tranny is below

https://www.ebay.com/itm/163601824136
Edited 2021-06-09 07:50 by BenandAmber

be warned i am good parrot but Dumber than a box of rocks

oreo
Regular Member

Joined: 11/12/2020
Location: Canada
Posts: 49

Posted: 03:00pm 11 Jun 2021

Copy link to clipboard

Print this post

Thanks for the heads up on this Ben.

For some reason, this transformer and wires look small to me in the pictures. (I know it is rated at 5kw and it's from a reputable vendor so it should be fine, but...)

On Wednesday, I asked the vendor for the approx weight. Nothing back yet.

Greg

Haxby

Guru

Joined: 07/07/2008
Location: Australia
Posts: 423

Posted: 07:29pm 11 Jun 2021

Copy link to clipboard

Print this post

It's 18.5 kg, or 41lb.

Data sheet link is at the very bottom of page here

Follow the discussion for tricks to use it for 24v or 48v systems.

The fact it has many separate 20v windings makes it very versatile for various inverter battery voltages.

No idea what idle consumption it may have. If it was in Australia I'd buy 2 for that price.

oreo
Regular Member

Joined: 11/12/2020
Location: Canada
Posts: 49

Posted: 08:39pm 11 Jun 2021

Copy link to clipboard

Print this post

Thanks for the link and info.

So those wires are 10awg...

Greg

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 03:11am 12 Jun 2021

Copy link to clipboard

Print this post

A friend also told me it's not as big as I thought it may be

Maybe I was hoping to hard

I don't need any more trannys myself

It would be nice to see someone else get a really good deal

It is still alot cheaper than building one

Sorry if I got anyone's Hope's up to high

Hopefully someone can benefit from it any way
Edited 2021-06-12 13:18 by BenandAmber

be warned i am good parrot but Dumber than a box of rocks

oreo
Regular Member

Joined: 11/12/2020
Location: Canada
Posts: 49

Posted: 02:32am 14 Jun 2021

Copy link to clipboard

Print this post

FYI, the vendor reports these weigh about 42lbs.

oh, and now I see that Haxby already said this.

Edited 2021-06-14 12:33 by oreo

Greg

flyingfishfinger
Senior Member

Joined: 12/09/2020
Location: United States
Posts: 110

Posted: 06:17am 14 Jun 2021

Copy link to clipboard

Print this post

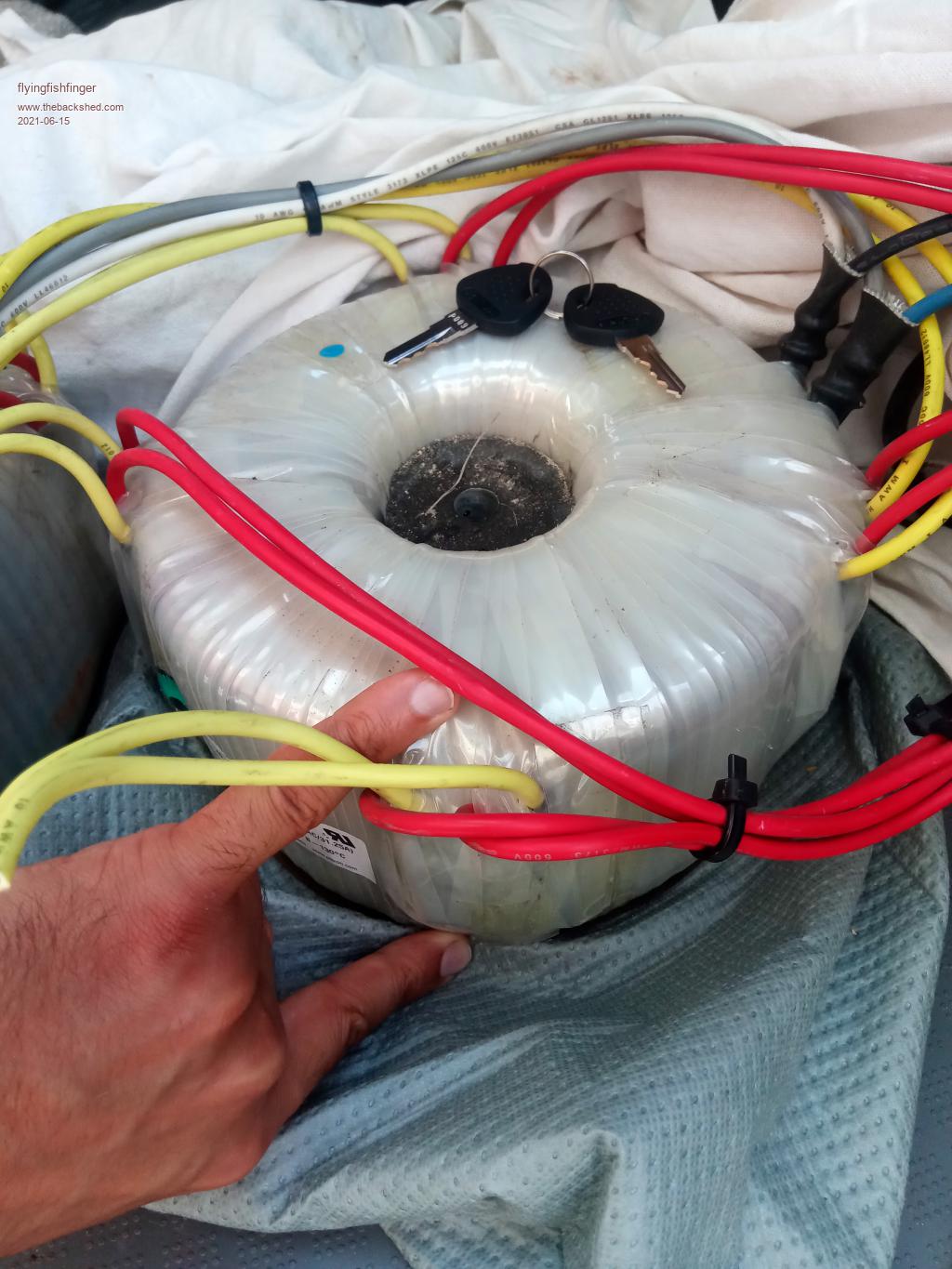

I bought two of these. The seller is within driving distance of San Francisco where I live, so I went and grabbed them. Keys for size:

R
Edited 2021-06-15 07:49 by flyingfishfinger

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 06:14am 16 Jun 2021

Copy link to clipboard

Print this post

Wow look nice hope you build you a big inverter with them

be warned i am good parrot but Dumber than a box of rocks

Haxby

Guru

Joined: 07/07/2008
Location: Australia
Posts: 423

Posted: 03:05am 30 Jun 2021

Copy link to clipboard

Print this post

BenandAmber:
I sent you a PM. Did you get it?

oreo
Regular Member

Joined: 11/12/2020
Location: Canada
Posts: 49

Posted: 12:41pm 24 Jul 2021

Copy link to clipboard

Print this post

BTW, the vendor has removed the shipping fees for this listing.

So you can get it for $60us, shipping included in the continental USA.

As of this note, he has 3 transformers left.

Transformer

Greg

tinyt
Guru

Joined: 12/11/2017
Location: United States
Posts: 438

Posted: 04:52pm 26 Jul 2021

Copy link to clipboard

Print this post

oreo said BTW, the vendor has removed the shipping fees for this listing.

So you can get it for $60us, shipping included in the continental USA.

As of this note, he has 3 transformers left.

Transformer

I ordered two, after a day, they emailed me and said that the free shipping was for a buyer that sent them shipping label. Now, they are asking for the shipping label or pay for the calculated shipping. So, I asked for a refund. I will find out what will happen.

oreo
Regular Member

Joined: 11/12/2020
Location: Canada
Posts: 49

Posted: 01:59am 27 Jul 2021

Copy link to clipboard

Print this post

Yah, unfortunately I experienced the same thing. I guess I spoke too soon.

Greg
