Forum Index : Electronics : Nano control board came in today

     Page 1 of 5
Author Message
BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 12:30am 30 May 2019
Copy link to clipboard
Print this post

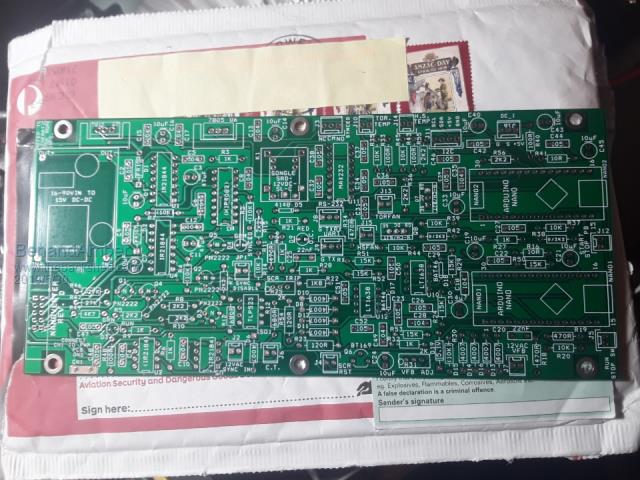

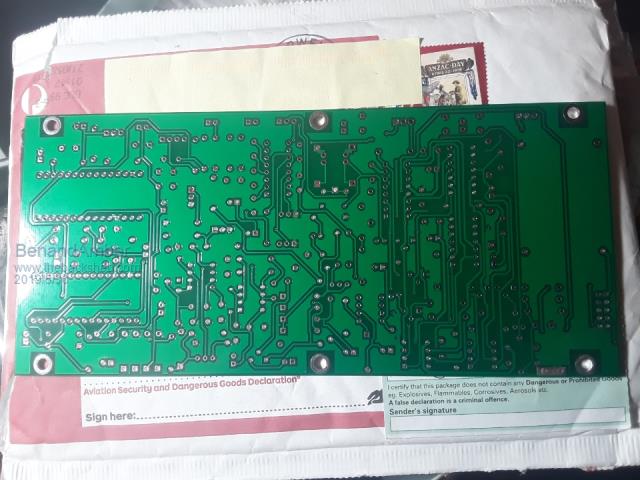

Got my Nano control boards in today

thank you much poida the great

They look absolutely perfect in every way

As you can see every last bit of the board was used

It looks like all the component values are on the board

That should make it a lot easier for someone like me to put it together

I'm so excited and overwhelmed at the same time

I've never done anything like this before

I do have a few questions

Is there a list of all the components somewhere that I can copy to make sure that I don't forget anything

And I've heard that there are a few different versions of the Nano is there a certain one I need to buy

And will I need to buy something to program the Nanos

I sure hope I'm not in over my head

I got a lot of determination and I want this really bad

Happy happy joy joy so excited
be warned i am good parrot but Dumber than a box of rocks

tinyt
Guru

Joined: 12/11/2017
Location: United States
Posts: 438
Posted: 02:35am 30 May 2019
Copy link to clipboard
Print this post

The zip file posted here has a Bill of Materials.

Make sure you read all the notes in the schematic. I think those who have running units are using the IR21844 driver chips. They might also help you pick the version of the nano module.

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 03:08am 30 May 2019
Copy link to clipboard
Print this post

Thanks tiny T I really appreciate it
be warned i am good parrot but Dumber than a box of rocks

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 06:40am 30 May 2019
Copy link to clipboard
Print this post

Ben you load the sketches/programme onto the nano via a USB cable from your computer.
The arduino software is a free download here

The sketches are in the nano thread.

BTW you don't need all the bits on the board if you don't plan to sync with another source etc.Edited by renewableMark 2019-05-31
Cheers Caveman Mark
Off grid eastern Melb

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 07:15am 30 May 2019
Copy link to clipboard
Print this post

Thanks renewable mark

I will never be syncing it to another source so how do I know the bits that don't need

I didn't see a charging function but I won't ever be using that if it does have one either

I want to order parts as soon as possible pretty excited about this
Edited by BenandAmber 2019-05-31
be warned i am good parrot but Dumber than a box of rocks

poida

Guru

Joined: 02/02/2017
Location: Australia
Posts: 1418
Posted: 09:12am 30 May 2019
Copy link to clipboard
Print this post

B & A, a couple of things.

Sockets for both nanos, and both IR21844 driver ICs.

Buy good quality 7805 and 7812 regulators. RenewableMark has had problems with the regulators on his board. I would use the USA suppliers such as Fry's or Digikey or whatever for these parts.

No need for the RS-232 support, nor mains sync. We can help with which parts need to be present for the board to work.

putting the firmware into the nanos is not too hard. Sometimes there is a trick, just ask me here.

Just about all you see on the board are resistors, capacitors and about 8 transistors.

And the board was of a type that Mark and I agreed on how easy it was to solder.
A fine tip on the soldering iron, some 0.5 or 0.7mm flux core 64/40 and you will be fine.Edited by poida 2019-05-31
wronger than a phone book full of wrong phone numbers

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 04:59am 31 May 2019
Copy link to clipboard
Print this post

Thanks for the tips Poida the Great

I'll probably be ordering everything from digi-key

Already have an account with them

I had a few things laying around and I am so excited to just get started haven't soldered anything on yet

Does this board take a small transformer for the voltage feedback





be warned i am good parrot but Dumber than a box of rocks

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 05:52am 31 May 2019
Copy link to clipboard
Print this post

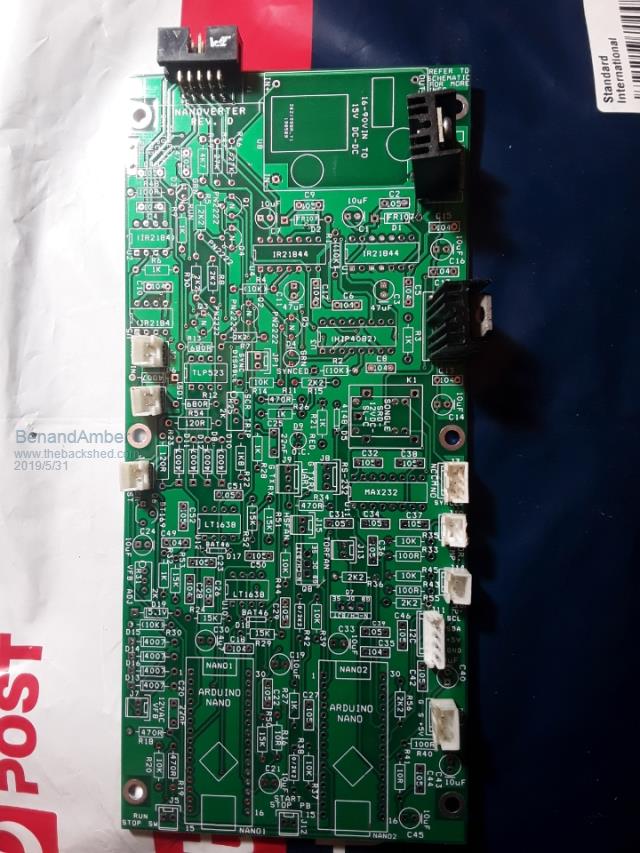

You'll need an isolated transformer from your secondary output which will plug into the 2 pin socket VFB.

Don't forget to fit and solder all the small parts first like resistors and diodes.
It's a pretty tight layout so that makes it easier for access when assembling/soldering.Edited by renewableMark 2019-06-01
Cheers Caveman Mark
Off grid eastern Melb

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 07:00am 31 May 2019
Copy link to clipboard
Print this post

Thanks renewablemark I see it now

I hope I don't drive you guys nuts

I'm going to order all the parts for both boards as soon as I can get the funds up

I got my hands on a couple of nice size heat sinks a little bit bigger than what comes with a factory Power Jack

Thinking of maybe trying to put together a mosfet board also

I already have the mosfets also Hy 4008

I have lots and lots of scrap electronic boards that I might be able to get some of the parts off of

Edited by BenandAmber 2019-06-01
be warned i am good parrot but Dumber than a box of rocks

LadyN

Guru

Joined: 26/01/2019
Location: United States
Posts: 408
Posted: 02:39am 01 Jun 2019
Copy link to clipboard
Print this post

If you can buy the $10 component tester, that could help you a lot going through all the components involved.

Programming the nanos is not too hard, you're way more skilled and have already done more complicated projects! It's just one new thing to get used to.

Best of luck and keep posting pictures!

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 06:37am 01 Jun 2019
Copy link to clipboard
Print this post

Thanks for the kind words ladyN

I haven't forgot about the video upload yet

When I can get my son down to the bus with me I'll have him video record and upload it

so I can show it off a little bit
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 04:18am 02 Jun 2019
Copy link to clipboard
Print this post

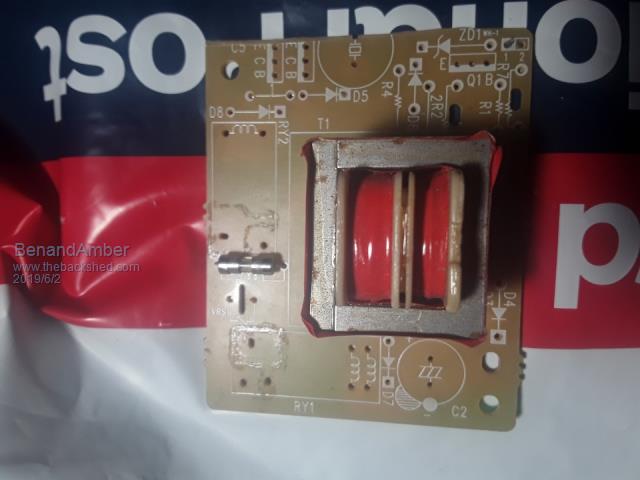

This is part of a air conditioner control board the little Transformer puts out 12 volts

I was thinking about using it four voltage feedback I put a little 1 amp fuse in there just in case
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 04:23am 02 Jun 2019
Copy link to clipboard
Print this post

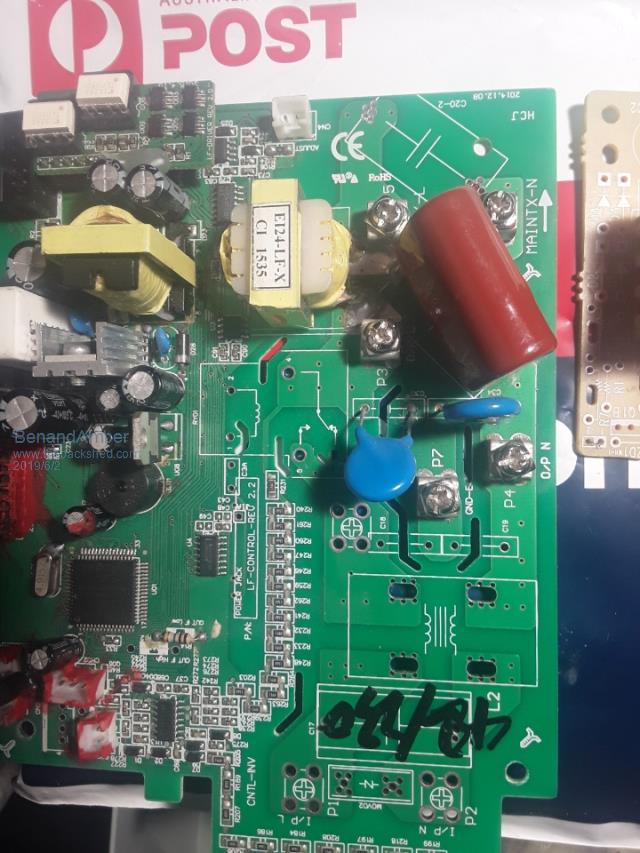

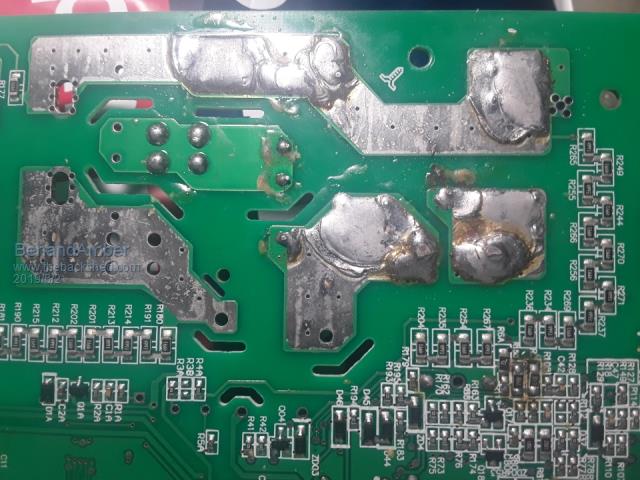

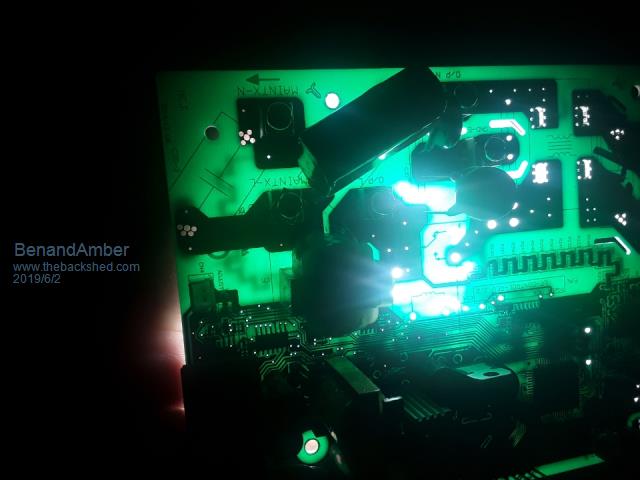

This is the control board out of the Power Jack 8000 watt inverter

I'm building this control board for

It looks to me like one side of the AC output goes through that little Transformer

If I'm not wrong about this then this is just nuts





The only reason I was looking at it again was to maybe Rob the little heatsink off of it

There's nothing wrong with this control board besides it being 230-volt and it being a power jack poor designEdited by BenandAmber 2019-06-03
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 12:10am 03 Jun 2019
Copy link to clipboard
Print this post

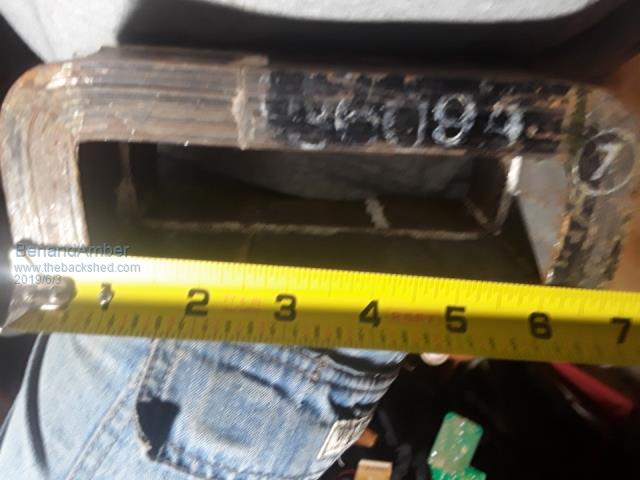

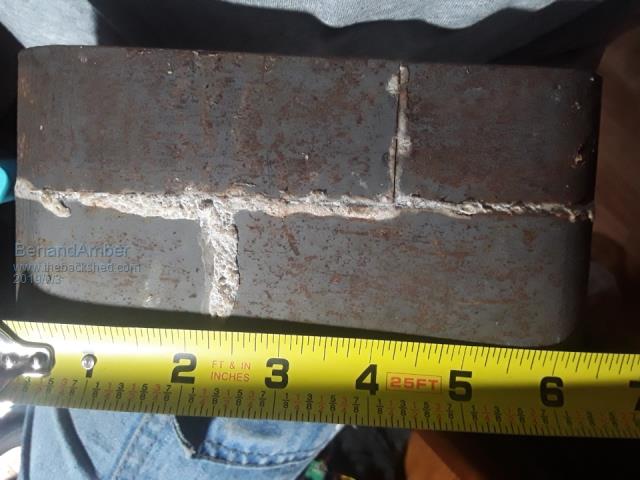

Does anybody have a idea on what to use this Transformer core four

It is super glued with baking soda together

I can get it back apart without damaging it

the baking soda makes

the super glue dry instantly

It was originally two cores side by side with the windings going around the two Center legs

It was in a container full of oil

Several years ago I was thinking I was going to wind it like a toroid

To experiment with but never got around to winding itEdited by BenandAmber 2019-06-04
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 01:06am 05 Jun 2019
Copy link to clipboard
Print this post

I ordered the little dc-to-dc converter module

I asked the guy to make it 16 volt output like poida the great suggested

I'm trying 2 get all the parts put in my shopping cart at digi-key

the 105 ceramic capacitor monolithic 6.3 mm lead spacing

Does it have to be 6.3 mm spacing

Are all 105 ceramic capacitors 50 volt amd 1 UF

RenewableMark told me what chips to get and dummy me didn't write it down right away and I can't find it again now

Sorry renewablemark

And is it all right to buy the cheapest parts ( except for the LM 7812 and the LM 7805)

I will never be switching from Mains power is there a list of parts if you don't plan on ever uses that function


I already have a lot of these parts but I'm afraid to use them because I've pulled them off other circuit boards

I don't think the connectors would matter though
be warned i am good parrot but Dumber than a box of rocks

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 07:07am 05 Jun 2019
Copy link to clipboard
Print this post

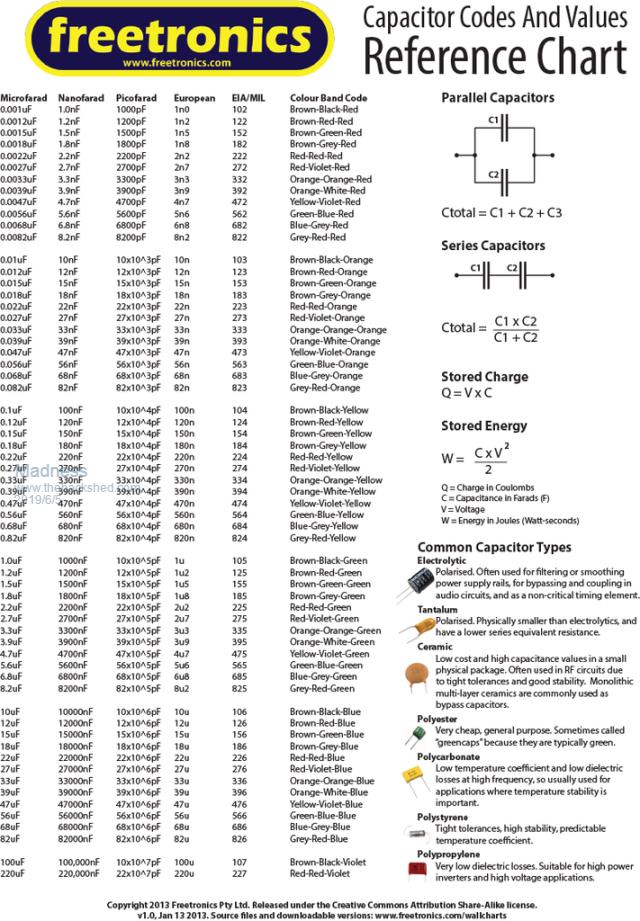

105 is the caps value (1uf) so yeal all 105 caps are 1uf.
I don't know if they are all 50v, I would assume not though, just type in what you need and it should pop up.

Monolithic and ceramic are different types BTW.

Lead spacing probably doesn't matter much as long as it's not ridiculously different.

With the nano you can use different driver chips.
Either 2x 21844
OR 2x 2184
OR 1x HIP4002

Poida and myself are using the 2x 21844 chips, may as well go with the flow.

Almost all my parts came from Ali and ebay, only thing that needs to be quality is the 7812,7805.

BTW just call me Mark, must be a pain writing renewablemark all the time.

Cheers Caveman Mark
Off grid eastern Melb

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678
Posted: 07:18am 05 Jun 2019
Copy link to clipboard
Print this post

Bare essential parts to get it to run an inverter and that alone, hmm dunno.

Maybe Poida or Tinyt could do a list and maybe highlight the parts needed on the schematic??
Cheers Caveman Mark
Off grid eastern Melb

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498
Posted: 10:54am 05 Jun 2019
Copy link to clipboard
Print this post



There are only 10 types of people in the world: those who understand binary, and those who don't.

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 09:29pm 06 Jun 2019
Copy link to clipboard
Print this post

Awesome Madness thanks

a big Thanks goes out to you to mark

I appreciate you always being there for me
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 12:19am 11 Jun 2019
Copy link to clipboard
Print this post

On the Nano board parts list part 16

TLP 523 - 1 plus dip 8 socket

the ones I look up online are four pens not 8 pin

The TLP 523 - 2 is 8 pen but I don't know if that's the right part

And does anyone have a parts list for someone that's never going to sink with the power grid off-grid onlyEdited by BenandAmber 2019-06-12
be warned i am good parrot but Dumber than a box of rocks
