Forum Index : Electronics : Nanoverter and Backfeeding with a GTI

     Page 7 of 7
Author Message
Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498
Posted: 11:30am 18 Jun 2023
Copy link to clipboard
Print this post

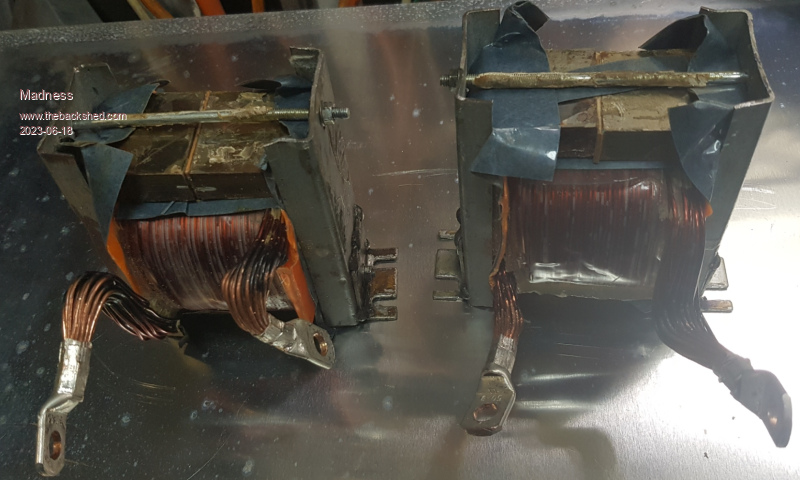

If anyone is actually interested the 2 chokes shown here

 work backwards/forwards with any version of the nano1 code. Just had to increase the gaps to 4MM, so each choke is 2 large Aerosharp inductors with 6 turns on each. One of these chokes work also but get very hot, with 2 (each connected between the heatsink and toriod primary) they run much cooler.
There are only 10 types of people in the world: those who understand binary, and those who don't.

johnmc
Senior Member

Joined: 21/01/2011
Location: Australia
Posts: 282
Posted: 12:31pm 18 Jun 2023
Copy link to clipboard
Print this post

Good Day Madness

Yes, I am interested and thanks for the post, are now you now able to backfeed the full output from the GTI ?


Are the chokes connected in series or parallel any Idea of the total inductance?

Cheers john
johnmc

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498
Posted: 08:57am 23 Jun 2023
Copy link to clipboard
Print this post

Hi John,

I have one choke connected between the toroid primary and the heatsink, then the other choke on the other end of the primary and heatsink. So in series, also choose spacers that are able to stand some heat, I used perspex originally and it melted. Adding fans on the chokes helps. Now I have 3 layers of blank PCB which gives a 4.5MM gap.

I am unable to give an accurate inductance measurement but if it is any help I get the same value as the original Oztules Ferrite choke. With no filter there is less than 1v ripple in the 230VAC sinewave.

Also, I have found phase correct modulation gives even better results but I am still fine tuning the code.
There are only 10 types of people in the world: those who understand binary, and those who don't.
