Forum Index : Electronics : MPPT Charge Controller built

     Page 2 of 2
Author Message
Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1020
Posted: 10:23am 22 Oct 2024
Copy link to clipboard
Print this post

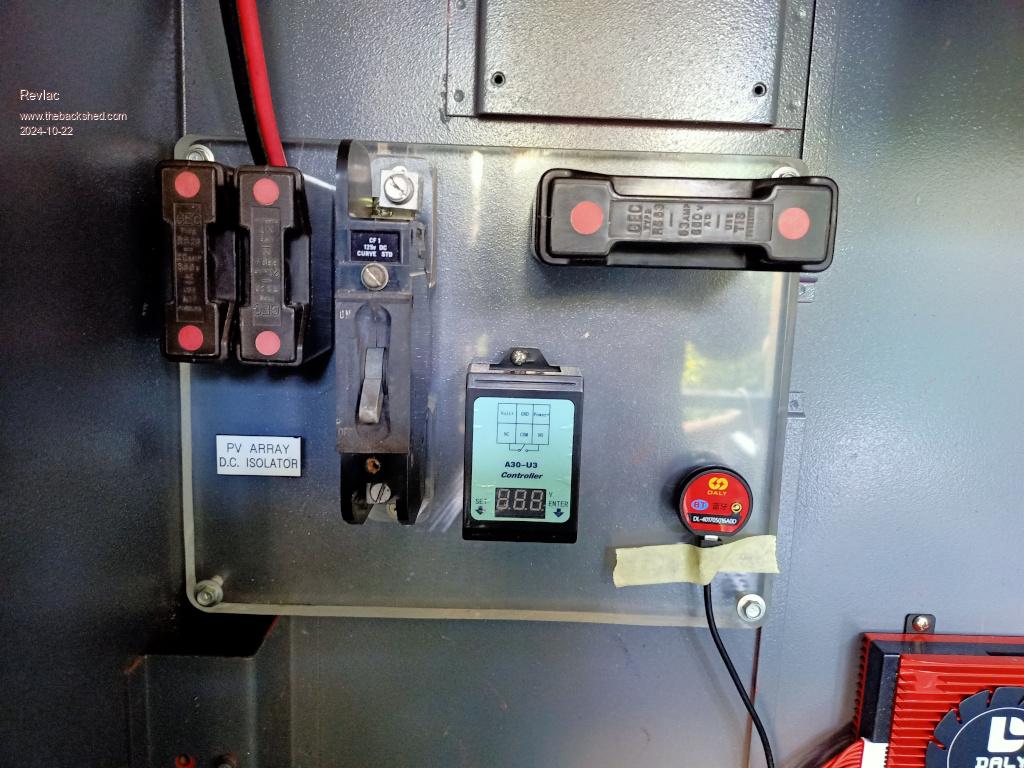

This is the fuse holder setup for the charge controller, 2 fuses for the solar input and through the trip breaker (work in progress) ,then out of the charger with the positive through a 50A fuse, or bigger if required.
I have 2 others setup similar to this and its worked well for years, I like the look of the older style fuse holders.

Cheers Aaron
Off The Grid

Revlac

Guru

Joined: 31/12/2016
Location: Australia
Posts: 1020
Posted: 08:41am 07 Nov 2024
Copy link to clipboard
Print this post

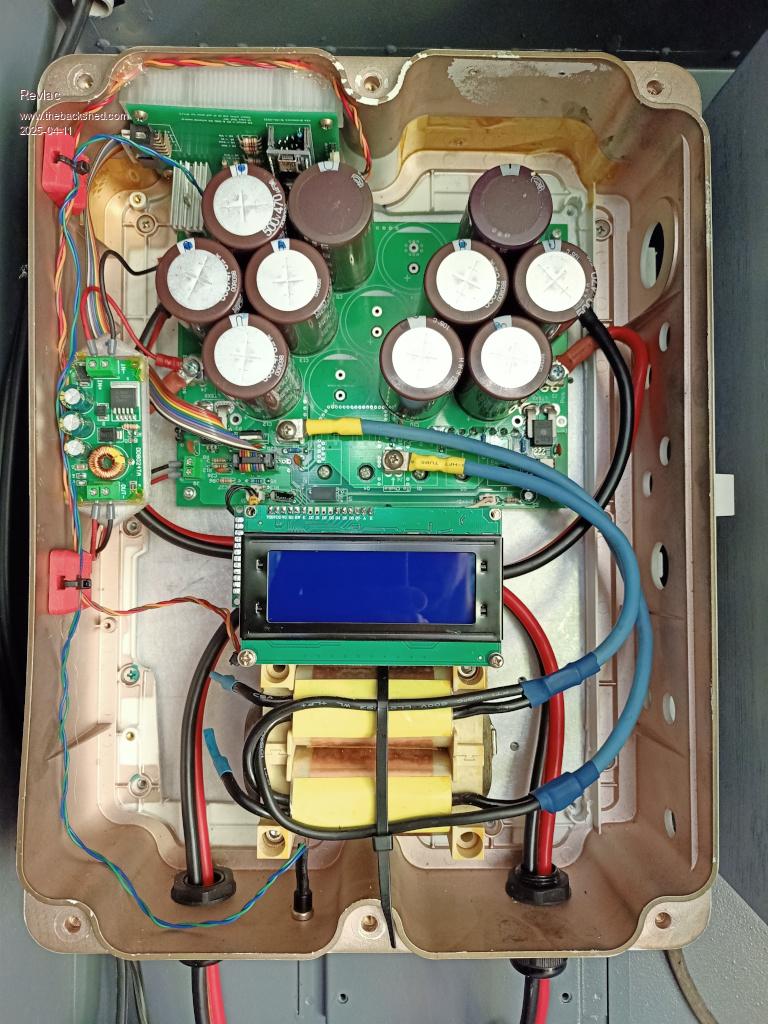

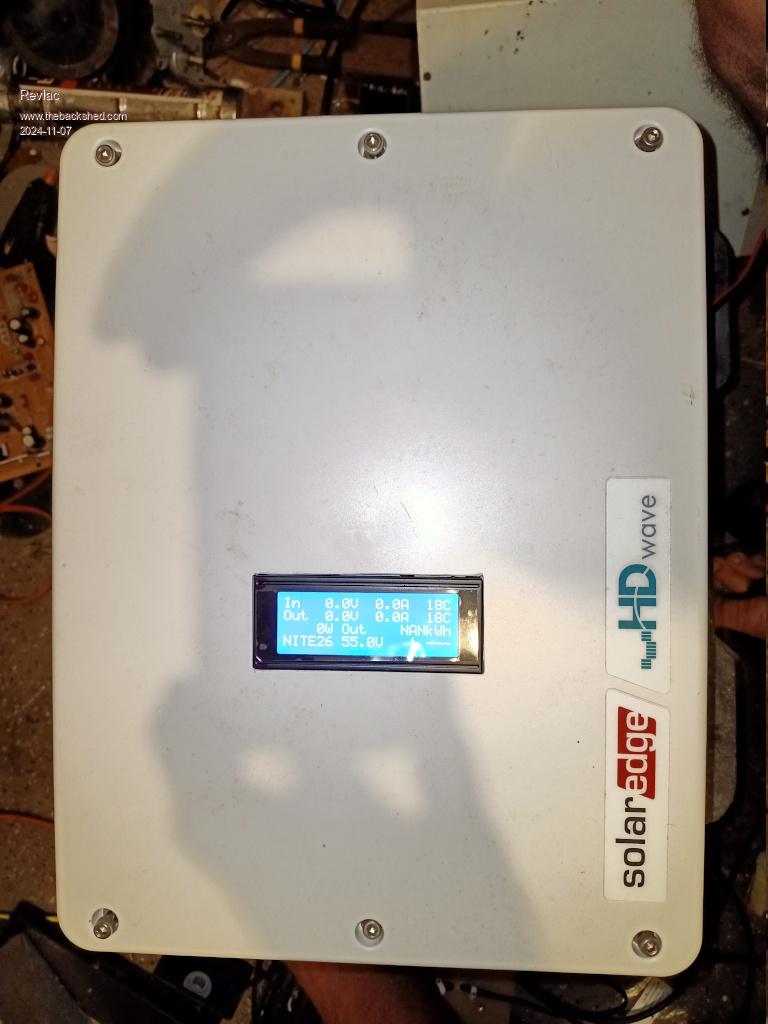

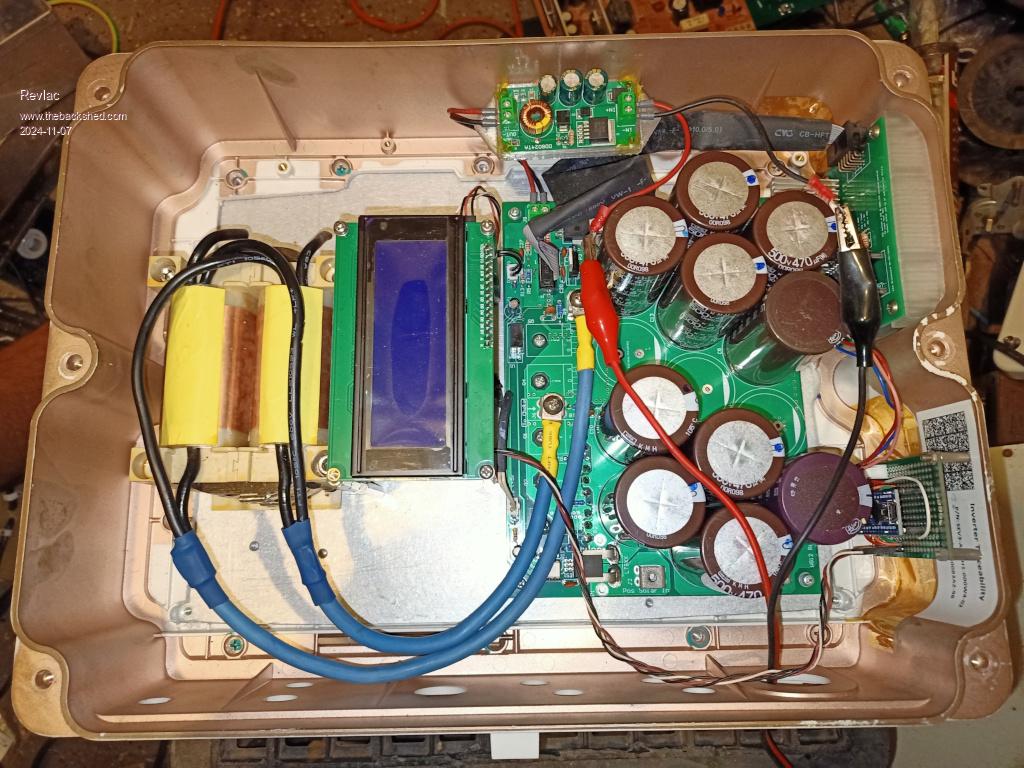

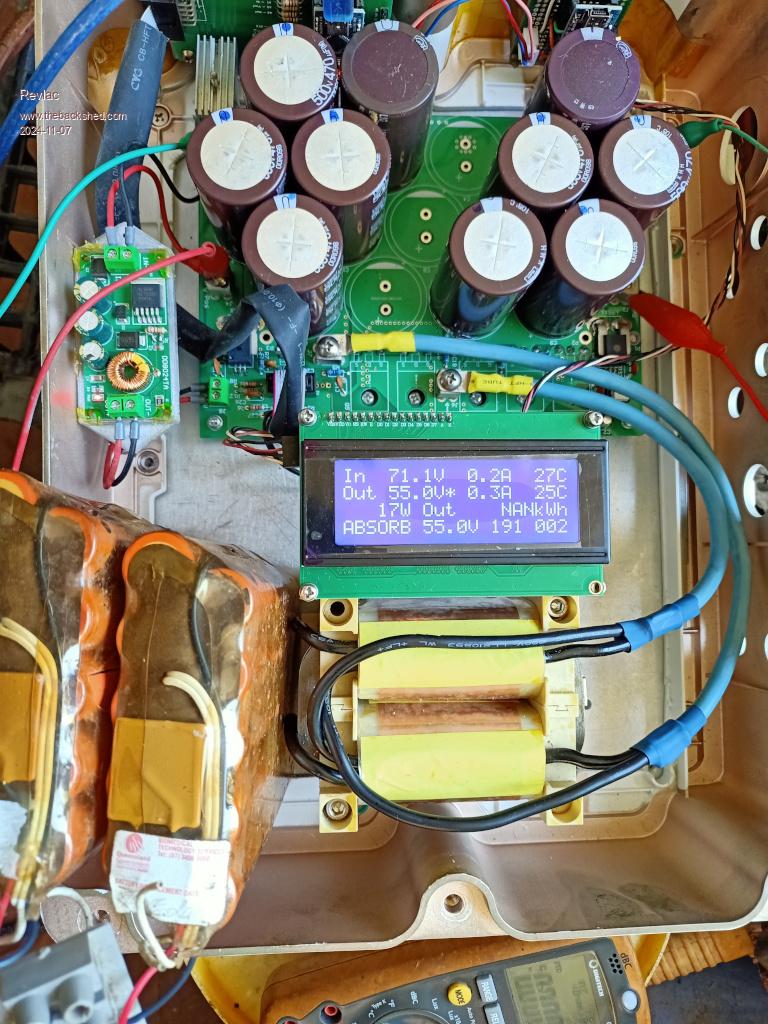

Some progress, just done a bit more wiring, still calibrating a few things but so far it seems to be almost ready to go I connected a small 48v battery and a 80v solar panel for some testing and its looking good.






Still have to put it in the cabinet and wire in the battery cables and solar cables in through the bottom and a bit of a tidy up, hopefully have it connected tomorrow ready for some decent power.
Cheers Aaron
Off The Grid
