Forum Index : Electronics : EG8010 driving IGBTs frequency questions

     Page 2 of 2
Author Message
Haxby

Guru

Joined: 07/07/2008
Location: Australia
Posts: 423
Posted: 12:42am 22 Jul 2020
Copy link to clipboard
Print this post

I'm in Mentone VIC.

Warpspeed
Guru

Joined: 09/08/2007
Location: Australia
Posts: 4406
Posted: 02:08am 22 Jul 2020
Copy link to clipboard
Print this post

  Haxby said

I guess I should try to get 3 x 3kw toroids, and maybe a 1.5kw with the reasoning:

2x toroids for the large transformer
1x toroid for the medium transformer
1x 1.5kw toroid for the small transformer
1x something else cobbled together for the tiny transformer

sound like a plan?


Both Klaus and Mark have done exactly that, and it worked out very well both times.

I have contacted my mate Paul V. and see if I can get a quotation for winding transformers similar to my own. But I fear that is going to be a very expensive option.
Cheers,  Tony.

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 05:23pm 22 Jul 2020
Copy link to clipboard
Print this post

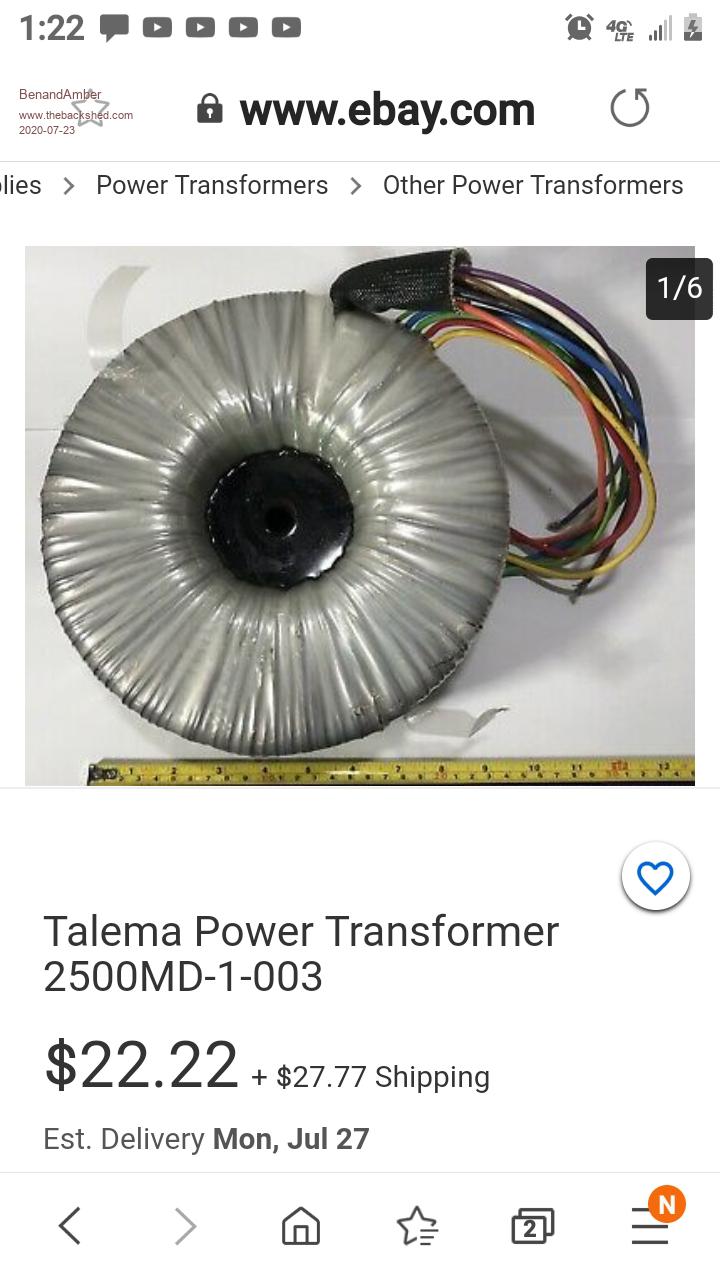

There are a few very cheap toroids on usa ebay don't know is shipping would be to crazy to make it a option
be warned i am good parrot but Dumber than a box of rocks

Haxby

Guru

Joined: 07/07/2008
Location: Australia
Posts: 423
Posted: 02:12am 23 Jul 2020
Copy link to clipboard
Print this post

Thanks for the heads up! I bought it. It's not quite the power I will need ultimately but it's a great start.

I bet it won't come because it's too cheap to be true. $22 and $100 shipping to Australia is just too cheap to be true. I'll get my money back via PayPal if/when it doesn't show.

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 05:27am 23 Jul 2020
Copy link to clipboard
Print this post

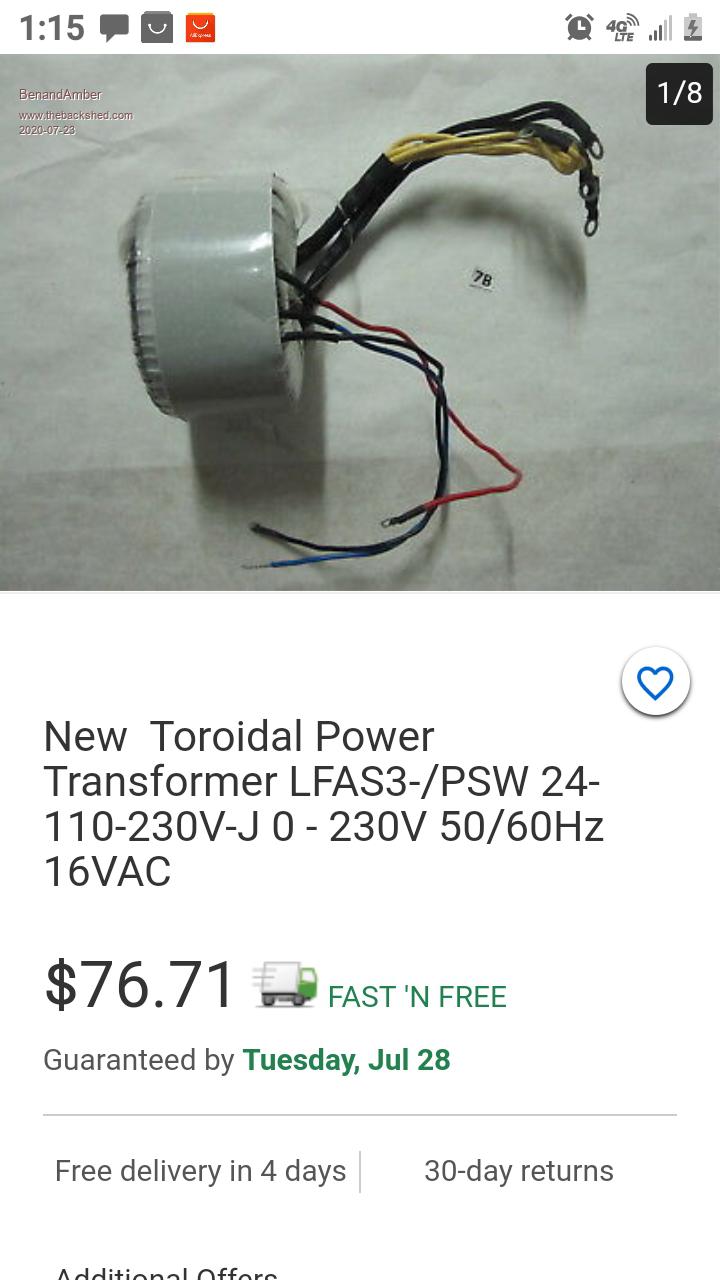

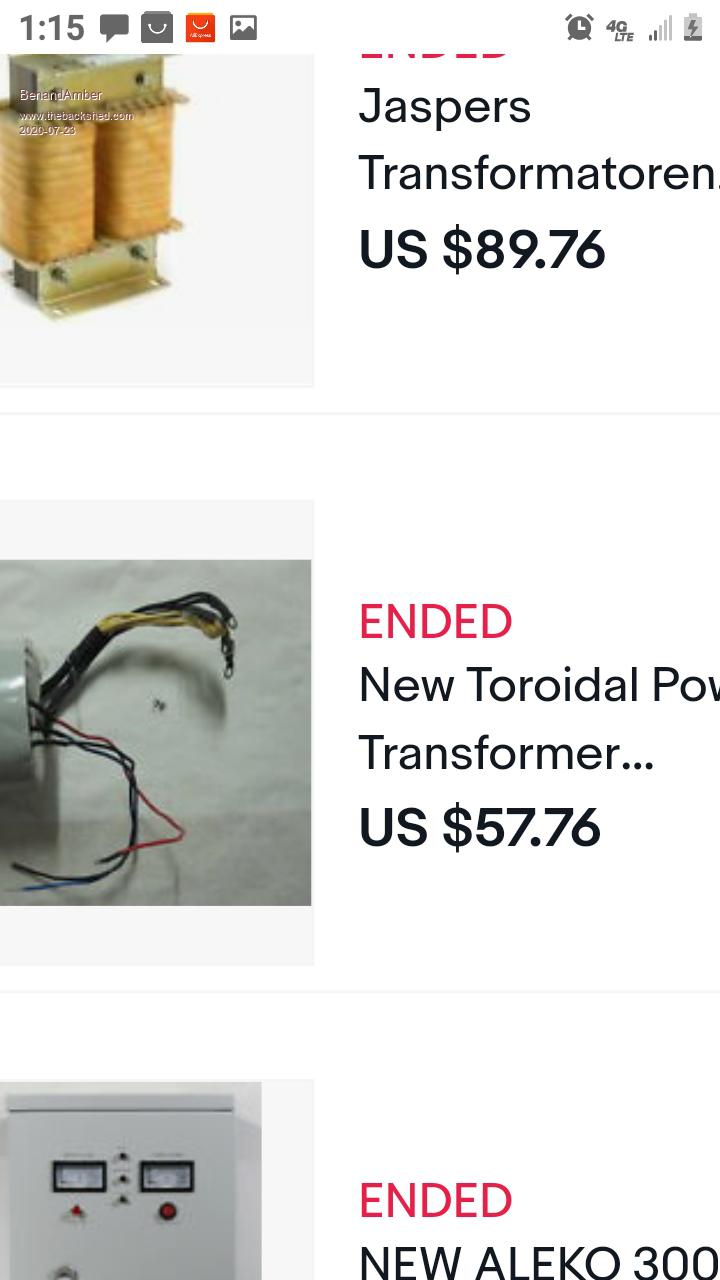

The two pics are the same Transformer

It has been listed at least 3 times

The price gets lower and lower until it ends

That price includes shipping in usa

It is out of a powerjack

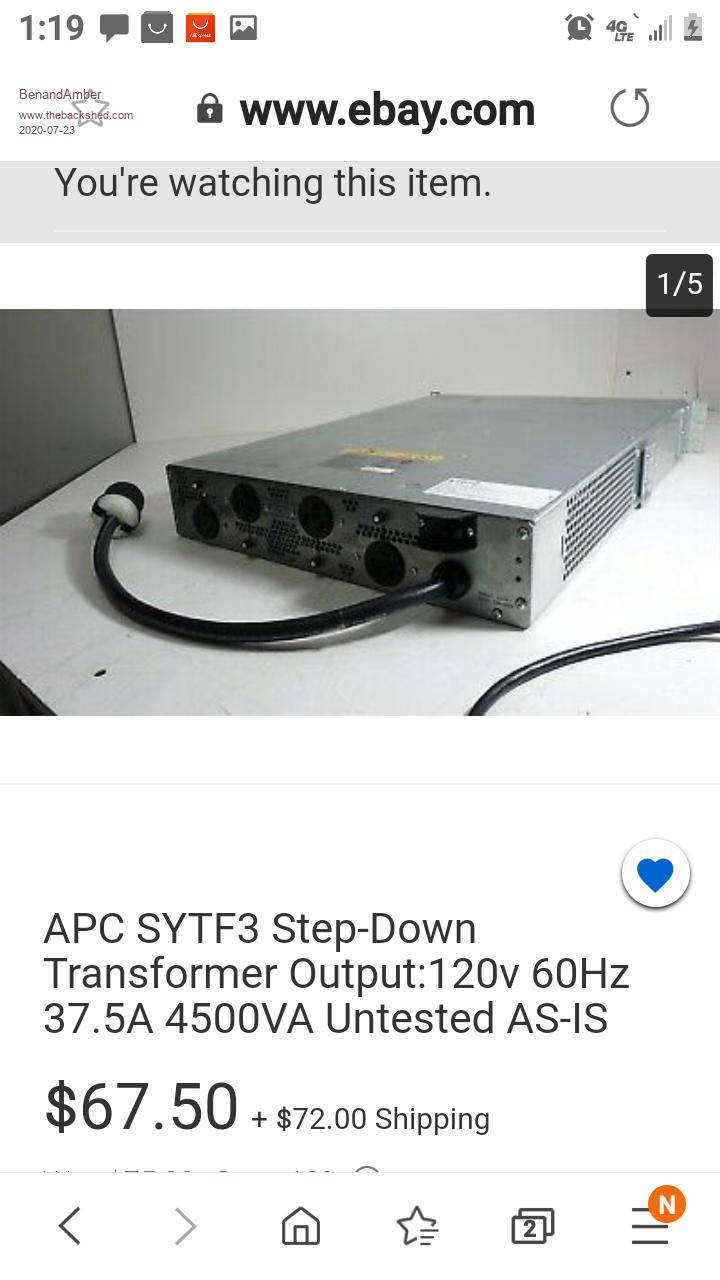

Do your own research but I think this last pic has a toroid in it also
be warned i am good parrot but Dumber than a box of rocks

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961
Posted: 05:45am 23 Jul 2020
Copy link to clipboard
Print this post

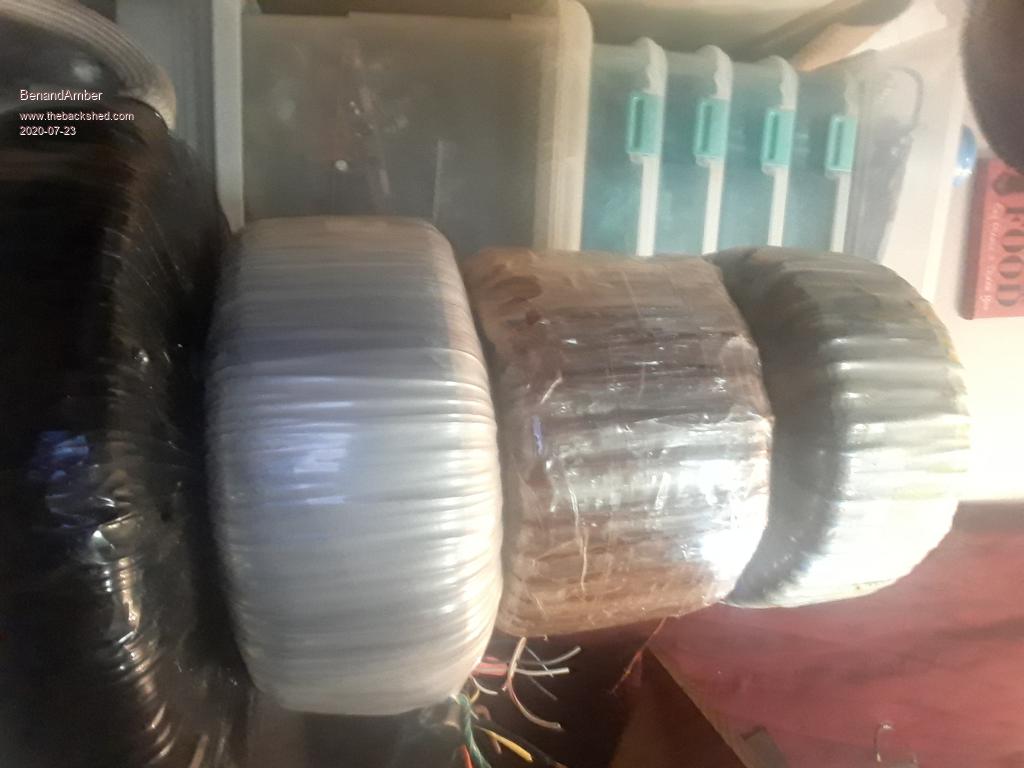

I am prity sure the Transformer you already bought is the exact same one as the one on top in this pic

The one in pic has first winding off already

If you can't find another one to stack with the one you bought if that is your plan let me know
be warned i am good parrot but Dumber than a box of rocks
