Forum Index : Electronics : MCP1703 Vout

Author Message
OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 926
Posted: 07:36am 15 May 2018
Copy link to clipboard
Print this post

I have some PCB's that are using MCP1703/500 regulators that are supplying 5.0 volts and I would like to know if it is possible to raise the regulated output with either external resistors or a diode in the ground connection?
OA47

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9308
Posted: 09:46am 15 May 2018
Copy link to clipboard
Print this post

Datasheet for MCP1703 does not mention anything like this. My guess is that you PROBABLY can, but if I were you, I would be sending an email to Microchip asking the same question. Their technical gurus would know for sure.
Smoke makes things work. When the smoke gets out, it stops!

noneyabussiness
Guru

Joined: 31/07/2017
Location: Australia
Posts: 513
Posted: 05:46pm 15 May 2018
Copy link to clipboard
Print this post

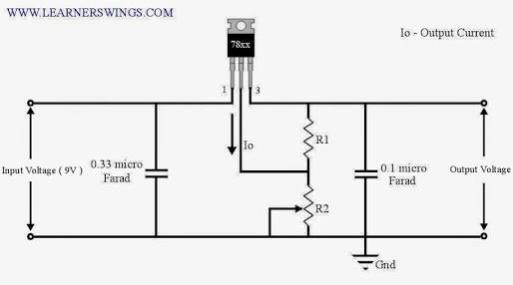

Same concept would be for the humble 7805... i guess... the values of the resistors may need tweeking... and it can ONLY adjust to a higher voltage.. the centre pin is the ground connection, so you would do the same with the MCP1703.


Edited by noneyabussiness 2018-05-17
I think it works !!

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9308
Posted: 11:34pm 15 May 2018
Copy link to clipboard
Print this post

Yes, I agree - PROBABLY. The reason for my saying 'probably' is that we don't have an internal schematic for the 1703 regulator, but it is most likely just a variation of the old analogue ones with lower quiescent current and drop-out voltage etc. I would still recommend that you ask Microchip in an email, then you could be sure.

Raising the 1703's ground-reference point might work fine, then again, it might make the regulator unstable. We KNOW we can do this with the 78xx/79xx regulators, as they describe how to do it in the datasheet.
Smoke makes things work. When the smoke gets out, it stops!

noneyabussiness
Guru

Joined: 31/07/2017
Location: Australia
Posts: 513
Posted: 12:52am 16 May 2018
Copy link to clipboard
Print this post

True... why i said " i guess " .. looking at the block diagram i can't see why not.. but i agree asking the manufacturer is always best practice
I think it works !!
