ryanm
Senior Member

Joined: 25/09/2015
Location: Australia
Posts: 202

Posted: 11:48pm 12 Jun 2019

Copy link to clipboard

Print this post

It amazes me what you can find on Aliexpress. I recon that would cost $2-300 domestically. I'll have to get my thoughts together and make another thread instead of derailing this one.

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 11:56pm 12 Jun 2019

Copy link to clipboard

Print this post

I just changed the link, you will need more than 48V to charge a 48V battery bank also some sort of regulator. Should be able to do it for well under $50.

There are only 10 types of people in the world: those who understand binary, and those who don't.

Boppa
Guru

Joined: 08/11/2016
Location: Australia
Posts: 814

Posted: 12:15am 13 Jun 2019

Copy link to clipboard

Print this post

ryanm said I was thinking about making a second inverter to go in the back of my ute for work / camping. Ideally I'd like to be able to run a 10A MIG welder off it for short periods of time. I've already written off 12V, do you recon I could get away with a 24V inverter with enough omph?

Why write off 12v- OK the currents are higher, but I got a $300 (at the time) 8kw continuous 12v Chinese inverter that's run a 15a welder no issues (apart from chewing battery power at a horrible rate LOL) and it means you cant just fit a dual battery isolator system for charging, or use it for all the other 12v functions as well

Mine mostly gets used for the microwave, battery charging the lappy etc, but have been known to use it with a 3000w portable HWS for hot showers while camping...
(and fixing camping trailers with broken drawbars LOL)- 4 4x4's hooked together with jumperleads, with a total of 11 batteries in parallel- but it worked a charm...

ryanm said My other thought was has it configured as four 12V in parallel for charging and everyday use, then swap the cell orientation around to series if I have to run the inverter. Pretty new idea so I haven't had a chance to look into it too much, but I'm a bit afraid for how much the cell switching setup would cost given the currents involved.

Not exactly new- trucks were doing the 12V charging/24v starting with a 'changeover' contactor back in the 70's... swapped 2 12v batteries from parallel to series when crankingEdited by Boppa 2019-06-14

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 04:32am 13 Jun 2019

Copy link to clipboard

Print this post

All you need to weld is 2 12 volt batteries in series and some leads, welding rods and a mask. Although I have seen people in Thailand welding by squinting, I loaned the guy my LCD mask and tried it a couple of times and went back to squinting! I am not suggesting anyone try that, I have had flash burns once, something you don't want.

There are only 10 types of people in the world: those who understand binary, and those who don't.

Boppa
Guru

Joined: 08/11/2016
Location: Australia
Posts: 814

Posted: 05:09am 13 Jun 2019

Copy link to clipboard

Print this post

I had years ago a battery powered 'welder'- was living offgrid, I found 36v worked better, and to make it much easier, get a choke out of an old DC welder and put it in series (or wind one out of an old microwave transformer)- the difference in performance is astounding
You can weld with just batteries (been there, done that LOL), but adding that choke makes it as easy as using a 'proper' welder

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 05:31am 13 Jun 2019

Copy link to clipboard

Print this post

Yes that is the fancy version, I was talking about 4X4 bush repairs.

You can improve the battery welding also with a strip of stainless steel about 25mm wide and 2m long. Wrap around a 150 X 25 lenght of hardwood in a spiral, connect end to one of your battery terminals and use a clamp to connect where you get the right resistance. Then you have current control as well.

There are only 10 types of people in the world: those who understand binary, and those who don't.

BenandAmber
Guru

Joined: 16/02/2019
Location: United States
Posts: 961

Posted: 07:22pm 13 Jun 2019

Copy link to clipboard

Print this post

When tshtf be nice to have a few of u guys around reminds me of MacGyver

be warned i am good parrot but Dumber than a box of rocks

mason

Regular Member

Joined: 07/11/2015
Location: Canada
Posts: 86

Posted: 12:23am 19 Jun 2019

Copy link to clipboard

Print this post

Mad, built one of your regulators and not seeing anything on the screen just wondering
if I'm missing something, I programed the nano with your program and all I see are square blocks on the screen..

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 12:33am 19 Jun 2019

Copy link to clipboard

Print this post

Try adjusting the contrast on the back of the screen, that should fix that. Usually a blue trim pot with a white screw.

If the screen is blank go to this line in the code

"LiquidCrystal_I2C lcd(0x27, 21, 4); // Set the LCD I2C address 0x3F or 0x27"

and change it to this

""LiquidCrystal_I2C lcd(0x3F, 21, 4); // Set the LCD I2C address 0x3F or 0x27"

Or vice versa as depending on the supplier of the I2C LCD converter they use different addresses.

Edited by Madness 2019-06-20

There are only 10 types of people in the world: those who understand binary, and those who don't.

mason

Regular Member

Joined: 07/11/2015
Location: Canada
Posts: 86

Posted: 01:28am 19 Jun 2019

Copy link to clipboard

Print this post

I changed the code and still nothing, maybe I have the wrong screen type.. I'll upload a photo
of later this week.

Thanks Mad

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 04:15am 19 Jun 2019

Copy link to clipboard

Print this post

Did you adjust the contrast? You said you are getting square blocks on the screen not nothing.

There are only 10 types of people in the world: those who understand binary, and those who don't.

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678

Posted: 06:09am 19 Jun 2019

Copy link to clipboard

Print this post

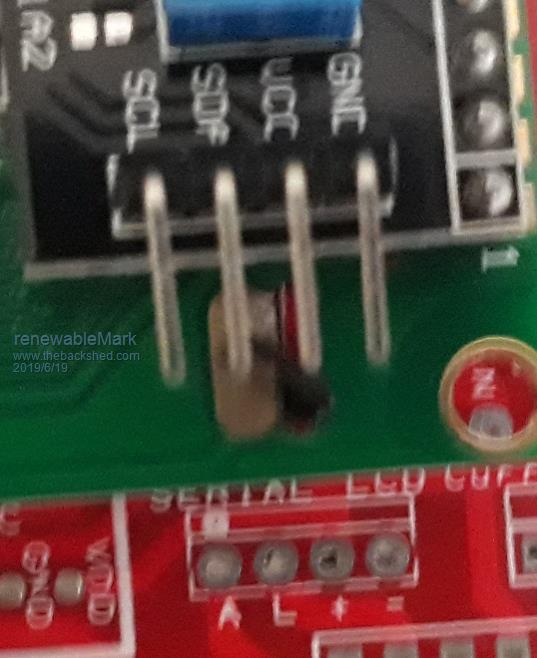

Connections are not pin for pin, SDA and SCL, are flipped around.

Edit, 6th post down on P41 of this thread shows it.Edited by renewableMark 2019-06-20

Cheers Caveman Mark
Off grid eastern Melb

mason

Regular Member

Joined: 07/11/2015
Location: Canada
Posts: 86

Posted: 12:44pm 19 Jun 2019

Copy link to clipboard

Print this post

Thanks, yeah finally figured that out lol,

thanks alot for the help Gary and Mark

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678

Posted: 08:04am 25 Jun 2019

Copy link to clipboard

Print this post

Hey Mad I was thinking about building one of the small power boards for the caravan.
Van is set up for 24v already.
Just a couple of small changes to your board to run for 24v yeah?

Cheers Caveman Mark
Off grid eastern Melb

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 08:13am 25 Jun 2019

Copy link to clipboard

Print this post

No changes required to the PCB, you would need to change the transformer primary. However as the current is double due to half the voltage you will need to derate it about 2KW.

There are only 10 types of people in the world: those who understand binary, and those who don't.

renewableMark

Guru

Joined: 09/12/2017
Location: Australia
Posts: 1678

Posted: 08:16am 25 Jun 2019

Copy link to clipboard

Print this post

Yeah, that's fine, just need a tv and occasional toaster and micro.

Cheers Caveman Mark
Off grid eastern Melb

johnmc
Senior Member

Joined: 21/01/2011
Location: Australia
Posts: 282

Posted: 09:48pm 25 Jun 2019

Copy link to clipboard

Print this post

For the 24v inverter I assumed the control PCB 5watt 120r will need to be replaced with
5watt 60r resistor, and also the same for the totem pole driver power PCB.

cheers john

johnmc

Madness

Guru

Joined: 08/10/2011
Location: Australia
Posts: 2498

Posted: 10:26pm 25 Jun 2019

Copy link to clipboard

Print this post

You may be right John, I don't have a 24V battery so have never tried it. Although as long as the correct voltages come out of the TIP35c's with a 120R in there I would leave it alone.

There are only 10 types of people in the world: those who understand binary, and those who don't.

bob.steel
Senior Member

Joined: 27/02/2020
Location: Australia
Posts: 188

Posted: 12:55am 18 Jun 2020

Copy link to clipboard

Print this post

Madness said I am not sure what you are asking.

Download the files, unzip and put the Arduino folder in your documents folder.

Follow this short video but select Nano instead of Uno when you get to that step. Then go to file open in the Arduino software and select REG_17-05-2018_PIDwwatchD_loaded100618.ino . Then you need to compile and upload the code to your Arduino as per the video.

Mason if you give me details of what your battery is I can setup the Arduino for you so all you need to do is plug it in.<edited><editID>Madness</editID><editDate>43272.3366319444</editDate></edited>

Coming up with some sort of error .

Quote Het gewenste bestand bestaat niet.

Controleer of de URL klopt en het bestand bestaat.

Is it possible to just upload the ".ino" files and save all the confusion trying to cut and paste and picking up stray bits etc?
Looking to have a look through the programming but can't get into Google Drive stuff like that and don't want to.They want to control you too much.
Edited 2020-06-18 10:58 by bob.steel
