Forum Index : Windmills : active pitch control

Author Message
brucedownunder2
Guru

Joined: 14/09/2005
Location: Australia
Posts: 1548
Posted: 11:31am 02 Sep 2014
Copy link to clipboard
Print this post

Just watch a short description on pitch control


https://www.youtube.com/watch?v=fI5-DxQx7x8&feature=youtu.be


I think the likes of Phill could do this ?

Seems to me it's getting a lot closer to us "windys" now that these "DRONES" are becoming everyday flying machines..

I bet there are working designs out there for us DIY'ers . I'm very interested and will certainly "Hav a GO "

Anyone want to chime in?

Bruce
Bushboy

electrondady1
Senior Member

Joined: 12/02/2009
Location: Canada
Posts: 208
Posted: 03:02am 03 Sep 2014
Copy link to clipboard
Print this post

midwoud has been quite generous this information on otherpower

Midwoud1
Newbie

Joined: 25/12/2012
Location: Netherlands
Posts: 23
Posted: 04:41am 03 Sep 2014
Copy link to clipboard
Print this post

https://www.youtube.com/watch?v=MRVGYVrgsdc Bruce.

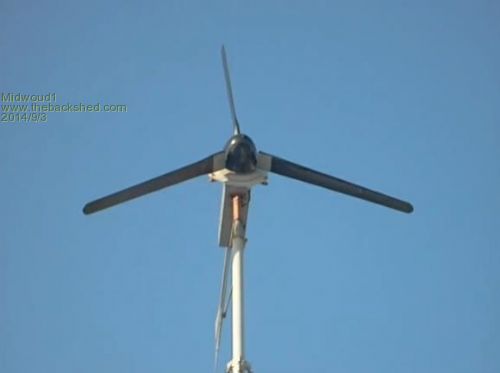

I have a succesful pitch contolled windgenerator design.
Working good 3 years.


https://www.youtube.com/watch?v=9jaz3soqXLo




Rgds. Midwoud1 .












Edited by Midwoud1 2014-09-04

brucedownunder2
Guru

Joined: 14/09/2005
Location: Australia
Posts: 1548
Posted: 10:23am 03 Sep 2014
Copy link to clipboard
Print this post



Thanks Midwould and electrondady.

I would have been following Midwould's posts for sure .


That one I posted (someone may be able to fix that posted link into a pic ,please)

Seems fairly simple up the front end .

Midwould, please see if you can send a link or attach a pic of your invention describing more detail .

I have one here of 3X shafts with cam attached ,which put pressure on a spring allowing the 3 blades to feather ,then return to normal during lulls in the wind .

I'll find the drawing and scan it ,so I can post it ,,very simple .


Thanks , guys

Bruce
Bushboy

Midwoud1
Newbie

Joined: 25/12/2012
Location: Netherlands
Posts: 23
Posted: 10:37pm 03 Sep 2014
Copy link to clipboard
Print this post

Hi Bruce.

Did you build a fly-weight governer?
The complete Active Pitchcontrol design is on Otherpower.
Unfortunatly I lost most of the YouTube videos by a mistake I made.
Will be recovered step by step. Click midwoud1 on YouTube search box.

http://www.fieldlines.com/index.php/topic,145925.0.html?PHPS ESSID=ed13e6d46600cbe9330f239de089f161

Rgds. Frans.Edited by Midwoud1 2014-09-05

domwild
Guru

Joined: 16/12/2005
Location: Australia
Posts: 873
Posted: 11:17pm 06 Sep 2014
Copy link to clipboard
Print this post

Hi,

When I started to build Glenn's mill (his laser cut build) I used the 1" exhaust tube and managed to snag another cheap SS pipe, which I then pushed into the tube for reinforcement, so I did not use an inner round. When I saw how Mr Jacobs built his mills in the US of A, I put his idea to the forum for active pitch control as a hollow pipe only needs a CNC milling machine to cut the curved line, which twists the pitch to coarse once the spring loaded props want to fly outwards due to centrifugal (centre-middle, fugere-Latin to flee, what a showoff! ) force.

His idea is simple and brilliant and this is why the Jacobs mills are still flying. It does not need any gears or Frans' clever trick with a windshield wiper motor for active control. Like furling, Jacobs uses passive control. Frans can force the prop to a full stop during a storm, I am not too sure if the Jacobs are storm-proof.

I faintly remember Glenn's objections, as it obviously needs a lot of tinkering with the force of the springs for the spring loading and getting that curve right for the correct pitch. A pin on the prop shaft would run in that "curve". Glenn's hub would hold an outer tube with the cut "curve" and the pin on the prop shaft would run in that "curve" and twist the prop pitch. Springs attached to the hub on one end and that same pin on the other should do the trick?

Easier said than done.
Taxation as a means of achieving prosperity is like a man standing inside a bucket trying to lift himself up.

Winston Churchill

Jarbar
Senior Member

Joined: 03/02/2008
Location: Australia
Posts: 224
Posted: 01:31am 07 Sep 2014
Copy link to clipboard
Print this post

Domwild,

Easier said than done,but well on the way to being done.

Jarbar
"Creativity is detirmined by the way you hold your tounge".My Father
"Your generation will have to correct the problems made by mine".My Grandfather.

brucedownunder2
Guru

Joined: 14/09/2005
Location: Australia
Posts: 1548
Posted: 10:46am 07 Sep 2014
Copy link to clipboard
Print this post




Yes, I understand your principal ,may have even seen it working years ago .

the pin that runs through and along the curved spiral slot ,could be a roller bearing pin , lessening the friction?

I'm varnishing the house at present ,with help, so wind / solar stuff is on hold .

I'm very interested in this ,bet you Phill is tuned in also.

Downwind,,now there's another can of worms to investigate,nobody has done that yet?

Bruce
Bushboy

Midwoud1
Newbie

Joined: 25/12/2012
Location: Netherlands
Posts: 23
Posted: 11:22am 07 Sep 2014
Copy link to clipboard
Print this post

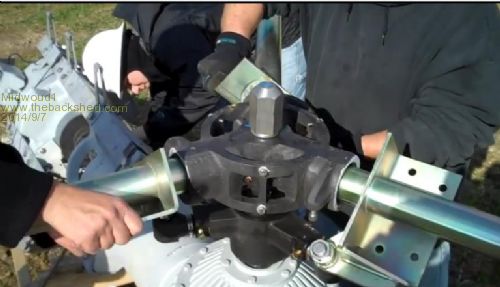

https://www.youtube.com/watch?v=B7gndP6mgTU

Jacobs hub
A good and solid system to sychronize the blades.
Still a passive pitch and not storm proof.




Edited by Midwoud1 2014-09-08

domwild
Guru

Joined: 16/12/2005
Location: Australia
Posts: 873
Posted: 12:48pm 07 Sep 2014
Copy link to clipboard
Print this post

Bruce,

I do not know if Jacobs uses a roller pin. Dr Google would show the patent.
Taxation as a means of achieving prosperity is like a man standing inside a bucket trying to lift himself up.

Winston Churchill

gpalterpower

Senior Member

Joined: 19/07/2009
Location: Australia
Posts: 175
Posted: 12:40am 10 Sep 2014
Copy link to clipboard
Print this post

Hi all,
As some of you probably know I am in the process of building a mill. At the moment I am up to the tail section which is a bit of a dark area for me. Ive been following midwoulds active pitch control for some time now(think it first popped up some years back ) and I gotta say Im fascinated by the idea. Watched your youtube fliks and would like to know more about the hub. What is the purpose of the 3 gears. dosent look like they are meshing with any others. Would it be possible to control a head like yours with some sort of spinning governor and return springs ect.? Im open for suggestions as I think there are more on the forum who are also interested. Bruce, do you have that drawing of the 3x cam operated head? Curious to see how it works.


Marcus
if it aint broke dont fix it!!

Midwoud1
Newbie

Joined: 25/12/2012
Location: Netherlands
Posts: 23
Posted: 02:14am 10 Sep 2014
Copy link to clipboard
Print this post

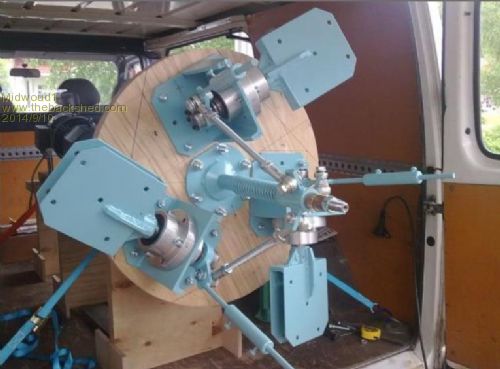

GP.

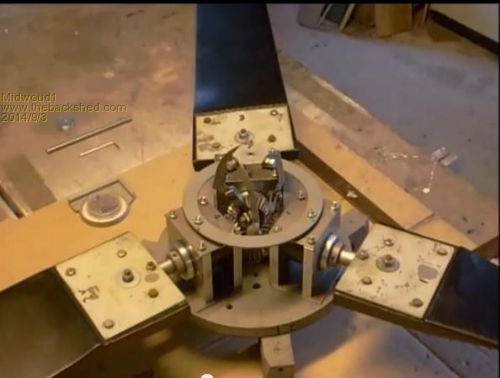

Actually there is a 4 gear . A sunwheel and 3 satellite wheels.
The sunwheel is free running on an extension nylon shaft in line with the mainshaft at the hubfront .
The satellite wheels connected to the blade root shafts hook into the sunwheel.
This is necessary the synchronize the blades.
A spider linkage makes the blades move feather and unfeather.
A push - pull rod from the spider through the hollow mainshaft to the actuator.
That makes it an active pitch system.

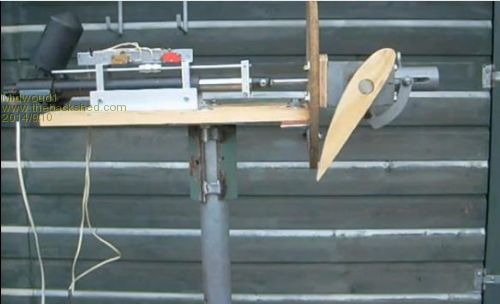

I have another system without gearwheels.
A PVC tube with key-holes and a moving plug with 3 studs through the key-holes.
The linkage connected to the blades.
Blades move by a push-pull rod and actuator.

Passive pitch-control.
A spin governer with flyweights and springload like Janne made (Fieldlines)

http://www.youtube.com/watch?v=rUcxmbLfu_U






Rgds Frans (midwoud1)
Edited by Midwoud1 2014-09-11

brucedownunder2
Guru

Joined: 14/09/2005
Location: Australia
Posts: 1548
Posted: 11:03am 11 Sep 2014
Copy link to clipboard
Print this post



I received these drawings from a friend maybe 20 years back - I thank him and hope he does not mind me posting them here.2014-09-11_210147_bruce1.pdf

2014-09-11_210212_bruce2.pdf


I hope someone can change these pdf files to a drawing , I can't , but maybe you can tell me how in a step by step proceedure,thanks


Bruce
Bushboy

panky

Guru

Joined: 02/10/2012
Location: Australia
Posts: 1101
Posted: 12:04am 12 Sep 2014
Copy link to clipboard
Print this post

Hi Bruce,

Sorry to say, the PDF's have been "rasterised" prior to or as part of the conversion to PDF. That is, all the elements, lines, text etc. have been converted to a raster image. While it may be possible to re-construct, it would involve taking the PDF into a program like Adobe Illustrator then "tracing" the lines, text etc. A big job!

Sorry I can't think of any way to assist.

Cheers,
Doug.

... almost all of the Maximites, the MicromMites, the MM Extremes, the ArmMites, the PicoMite and loving it!

brucedownunder2
Guru

Joined: 14/09/2005
Location: Australia
Posts: 1548
Posted: 10:21am 12 Sep 2014
Copy link to clipboard
Print this post



Thank You ,Doug .

My friend ,a drafting man, drew those drawings for me. Many years back .

The principal is that the 3 shafts turn in hard plastic sleeves,similar to axle pin bushes. There is a cam welded to each and the blades can turn somewhat ,causing the cams to lift the bobbin at the base ,against a strong spring,adjustable,.

When the wind becomes less forcefull, the spring action returns the blades to the original pitch..

Fairly straightforward to fabricate.


One day I'll have a go .


Bruce
Bushboy

gpalterpower

Senior Member

Joined: 19/07/2009
Location: Australia
Posts: 175
Posted: 02:59am 17 Sep 2014
Copy link to clipboard
Print this post

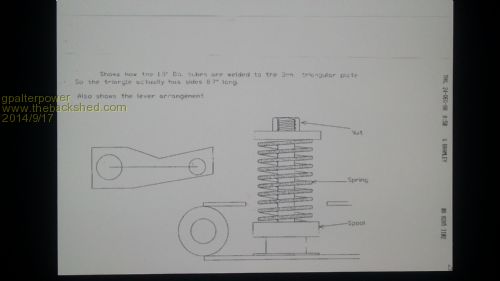

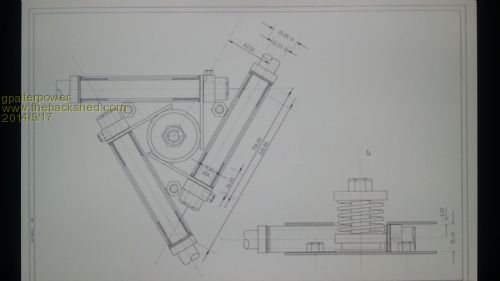

Hi Bruce ,

Hope this helps
Got to open files on my phone.

Regards GP






if it aint broke dont fix it!!

Tinker

Guru

Joined: 07/11/2007
Location: Australia
Posts: 1904
Posted: 10:23pm 19 Sep 2014
Copy link to clipboard
Print this post

Fascinating, to see the complexity of some of the active furling ideas shown here.
Unfortunately my idea for this is not yet up to demo stage so I won't publish anything of it at this stage.
There are only 4 additional parts in total required for a full 90 degree furling of each blade shaft.

I guess now I have to get cracking and machine these
Klaus

jorn
Newbie

Joined: 30/12/2012
Location: Netherlands
Posts: 22
Posted: 10:15am 20 Sep 2014
Copy link to clipboard
Print this post

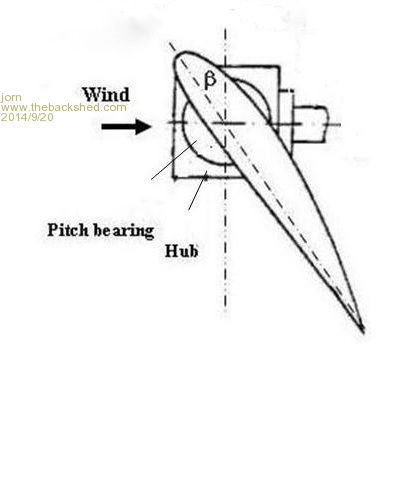

Every day homebuilders like Midwoud deliver us the evidence that also on small turbines active pitch control is the way to a safe well controlled machine.
What do you mean complex?






brucedownunder2
Guru

Joined: 14/09/2005
Location: Australia
Posts: 1548
Posted: 10:37am 20 Sep 2014
Copy link to clipboard
Print this post




First, thanks to Gpalterpower..(where do you guys get these names,lol.)

Complex, Gee Klaus, there are only 4 moving parts. The spring could be a tappet spring for example.


The rest of the fabrication is standard steel plate , 3X pieces of steel bar,3 common trailer axle bushes..

Me, I'm slowing down fast ,these days ,not the hypo active idiot I used to be.


But, I'll give it a shot ,when I recover.

Bruce
Bushboy
