Hi Peoples,

As a newbie to F&P alternators and wind generated electricity, I figured I could run a little "My Place" topic so you guys could follow my progress.

At the moment I have a series 80 F&P motor rewired as a S/P as per Gizmo's instructions - I have also just finished decogging it. I have chosen to build a VAWT design that resembles ED's design from WindStuffNow

I was originally going to set the F&P alternator in a box with the complete unit inside the box - bearing housing exposed to the topside and mount the VAWT to the shaft. The VAWT will be 60cm dia. X 100cm high.

After seeing that EcoInnovation are now building their 400 series windmills with the blades attached to the rotor end of the shaft - I decided to do the same with my VAWT - the whole unit braced by a steel frame.

I'm going to put all the electronics inside the box. I had some concerns about this - heat related, but now that I'm mounting the F&P alternator this way, I can attach a small fan to the lower shaft inside the box to provide cooling.

I've use 2x 35A bridge rectifiers to create my DC current, which I believe is good for 35A with a decent heat sink. BTW, I can crack out 15-20 volts by hand turn. I have a third rectifier there ready if I need - I believe this with give me 40-50A + capacity.

I have also purchased a K220 shunt regulator kit from Oatley Electronics - looking forward to putting that together.

I must admit that I'm kinda exited about all this because it's a LONG time since I was involved in a project that provided such enthusiasm.

Greg

Posted: 09:08pm 02 Nov 2005

Copy link to clipboard

Print this post

Hi Greg.

I'm also building one based on Ed's design. My "prop" will be 1100mm high and 1300mm diameter, givine me a frontal area of about 1.4m square. Hopefully this size will overcome the starting torque on a standard F&P stator ( not decoged ).

With any luck I will some something to photograph this weekend, and be up in the air by next weekend.

Glenn

Posted: 10:04pm 02 Nov 2005

Copy link to clipboard

Print this post

Wayne, if you really get stuck getting your hands on an F&P motor, I can probably scrounge one up from here (Australia). Very popular machine here. I have the scrap yard guy accross the road dumping F&P washing machines in my yard every now and then(for a small fee).

If you just want the basics ie stator, rotor, plates, bolts bearings and bearing housing unmodified, I'll definitely have one in the next couple of weeks - you would need to let me know if you want and 60 or 80 series - AU$45.00.

International postage is a bummer I know. I believe the weight at approx 8kg - translates to AU$108 to Canada via Economy Air. If that fits your budget, let me know. (8kg is just a guess - need to check. If it's less, shipping cost is less)

Posted: 10:00pm 03 Nov 2005

Copy link to clipboard

Print this post

Hi Wayne,

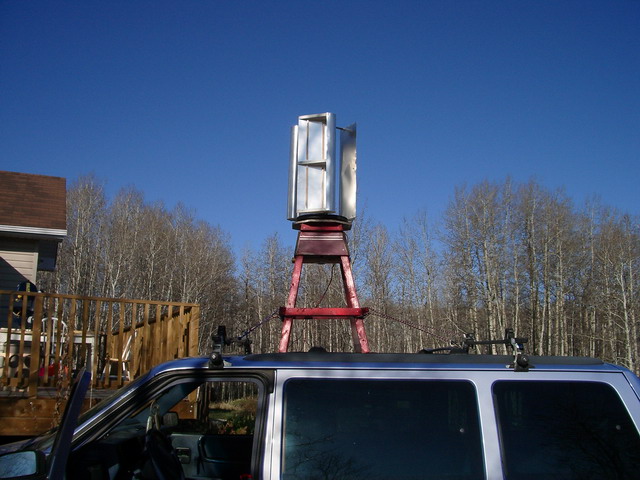

Neat looking vawt....just what I'm trying to do. Small and portable. It looks to be around 70cm(28") tall with a dia. of 30cm(14").

This is an uneducated guess, but based on what I've seen, your right. I think you need to get more torque capability in there, and as you said, a larger dia. will do it.

After I decogged the F&P, there was a noticable difference in the effort required to turn it. The Eco Innovation claim a reduction from 900-950 to 450-500 after decogging.

Greg

Posted: 01:24am 04 Nov 2005

Copy link to clipboard

Print this post

To decog, I actually used an angle grinder. Not as neat as you see in the EcoInnovation PDF's, but the required effect has been achieved.

I think the important thing is to keep the middle at it's original height/air gap. Tapering the edges reduces the total air gap at each finger, hence the reduction in cogging.

Greg

Posted: 10:05am 05 Nov 2005

Copy link to clipboard

Print this post

hi chris If need a rotor as l have spare one for sale

regard ian

Posted: 07:39am 07 Nov 2005

Copy link to clipboard

Print this post

Well my K220 Shunt Regulator Kit has finally arrived from Oatley Electronics. I gotta tell ya, I'm in shock. I was expecting a kit with a board around 3"x5", but as you can see by the image, it's tiny.

Not only am I a first timer with this stuff, but with my eyes...hmm, I think a challenge ahead of me.

....OK Greg....here we go.....

Posted: 12:57am 08 Nov 2005

Copy link to clipboard

Print this post

I'm having a problem calculating the "Wing Chord" size for my vawt. I'm using Ed's method(see image).

• Diameter = 60cm(600mm)
• Circumference by my calculation is = 189cm(1890mm)
• Wing Width by my calculation = 8.4cm(84mm)
• Wing Chord by my calculation - 17cm(170mm) ??

The Wing Chord seems to small. The equation is Circumference X .09 = Wing Chord. ie 1890 X .09 = 170.1mm.

Also, I was thinking of increasing the Wing width to 120mm to achieve better torque. Could this cause problems?

Posted: 08:38am 09 Nov 2005

Copy link to clipboard

Print this post

Well I've finally finished this little K220 shunt regulator and I was kinda hoping that one of you electro wiz guys could check my work - and tell me a few things about the board itself.

The image is a link to a 199kb 1400x1300 jpg file that is a closeup of the board assembled front and back. I even flipped the backside image so the components on the topside matched the solder points on the bottom.

I've made a few comments on the image which I hope someone can respond to - easier than asking a whole heap of questions here without a reference. Here's a link to the schematics.

The next question is, how do I know it works? I don't, and I have no idea how to check it - any help please

I actually found the soldering easy using my little gadget magifying glass, but I had a real problem identifying some of the diodes - colour variation was the main cause.

Greg

Posted: 09:38am 09 Nov 2005

Copy link to clipboard

Print this post

Hi Chris,

I've been following Ed's progress on his VAWT he calls "The Lenz Turbine". You can see his website here.

Glenn (Gizmo) is also working on a similar project.
