Hi all, I am looking for tips to fairly accurately measure amps, up to 100 amps @ 12v, without spending too much money. I only have a 10 amp multimetre

Anyone got any ideas?
clarence.

Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 1344

Posted: 08:54am 19 Nov 2006

Copy link to clipboard

Print this post

Hiya Clarence,
Take a look on ebay for newspower they are an irish mob the sell current and volt meters on ebay. I got myself a 200 amp current meter and shunt and it only cost about $45 for both the meter and 200 amp shunt. I reckon this would be a cheap option for you.

Cheers Bryan

Gizmo

Admin Group

Joined: 05/06/2004
Location: Australia
Posts: 5078

Posted: 08:57am 19 Nov 2006

Copy link to clipboard

Print this post

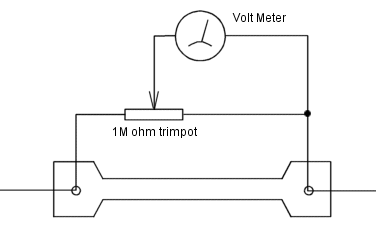

Need a shunt. On my big old amp meter I used a length of steel plate. Its about 100mm long, 10mm wide, and 1mm thick, with a bolt hole at each end. Add a voltmeter and a trim pot to calibrate the scale. Then you just need to adjust the trim pot with a known amp draw.

Glenn

The best time to plant a tree was twenty years ago, the second best time is right now.
JAQ

clarence
Regular Member

Joined: 27/10/2006
Location:
Posts: 63

Posted: 09:09am 19 Nov 2006

Copy link to clipboard

Print this post

thanks guys, I will look into those options.

Pt w/field Matt

Senior Member

Joined: 24/02/2006
Location: Australia
Posts: 105

Posted: 11:17am 19 Nov 2006

Copy link to clipboard

Print this post

hi glen just a thought could you put 60amp car guages in parallel and read off current flow off both?

matt down south

clarence
Regular Member

Joined: 27/10/2006
Location:
Posts: 63

Posted: 11:27am 19 Nov 2006

Copy link to clipboard

Print this post

I wonder how accurate those car metres are?

Pt w/field Matt

Senior Member

Joined: 24/02/2006
Location: Australia
Posts: 105

Posted: 11:30am 19 Nov 2006

Copy link to clipboard

Print this post

check them agaist your digital meter

matt down south

clarence
Regular Member

Joined: 27/10/2006
Location:
Posts: 63

Posted: 11:37am 19 Nov 2006

Copy link to clipboard

Print this post

good idea, now I just have to remember where I put those old amp metres.

dwyer
Guru

Joined: 19/09/2005
Location: Australia
Posts: 574

Posted: 11:54am 19 Nov 2006

Copy link to clipboard

Print this post

clarence said I wonder how accurate those car metres are?

Car metres are not always accurate is depend how much currect running though as heat build up and change the amp metre reading if is not important to you

dwyer

makourain

Senior Member

Joined: 19/04/2006
Location:
Posts: 111

Posted: 10:18pm 19 Nov 2006

Copy link to clipboard

Print this post

edit: i posted the car amp meter idea before reading the other peoples posts :SEdited by makourain 2006-11-21

KiwiJohn
Guru

Joined: 01/12/2005
Location: New Zealand
Posts: 691

Posted: 05:08am 20 Nov 2006

Copy link to clipboard

Print this post

Clarence, it is times like this one calls on Mr Ohm.

How long are your leads? The ones that will be carrying the current? What size is the wire?

Armed with this knowledge you can determine the resistance of the wire (all wire has resistance). If you know the resistance you can find the voltage drop for any current.

volts = current x resistance.

Suppose your wire has a 0.01 ohm resistance and you have 100 amps, thats 1 volts. I guess your multimeter can measure that?

So, do you know the size and length of those wires?

Pt w/field Matt

Senior Member

Joined: 24/02/2006
Location: Australia
Posts: 105

Posted: 05:26am 20 Nov 2006

Copy link to clipboard

Print this post

yeah but that can change with temp too just like car ampmeters,ive got 3 multimeters an they all read different readings on 12v,which one is correct,theres 1 volt between them

matt down south

KiwiJohn
Guru

Joined: 01/12/2005
Location: New Zealand
Posts: 691

Posted: 06:59am 20 Nov 2006

Copy link to clipboard

Print this post

I give up.

clarence
Regular Member

Joined: 27/10/2006
Location:
Posts: 63

Posted: 07:10am 20 Nov 2006

Copy link to clipboard

Print this post

when I get around to it my alternator will be driven by a large induction motor with a pulley geared to about 300 rpm, and the output leads will be very heavy gauge and less than a metre long. I dont know what the volts will be but I will calculate the amps depending on the voltage it is.
Does anyone have any idea what amps a standard f&p 1mm wire 3 phase, wired star produces at 300 rpm? ball park? I would love to know, to compare my neo monstrosity.
thanks.

Highlander

Senior Member

Joined: 03/10/2006
Location: Australia
Posts: 266

Posted: 08:09am 20 Nov 2006

Copy link to clipboard

Print this post

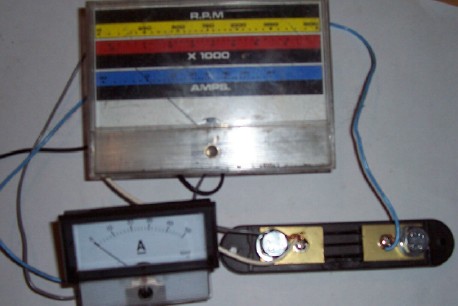

Hey Glenn, love your shunt/pot combo.
I just bought a 50 amp & shunt for $41
Then the very next day found the bigger meter in a garage sale for $2
Works fine but must have another internal shunt as 2A reads 1A 10A reads 5A etc.
It's always halve the real current draw.
I'll just change the graphics from -10A/+60A to
-20/+120A

If I want to re-calibrate a meter by looks of your diagram you can do it with a pot.
So a 10A meter could be turned into a 100A or 50A meter, am I presuming right?

Clarence don't know about 1mm wire but my .8 3phase with ferrite magnets produced 17.5A @ around 400-500 rpm
hope that helps a little.Edited by Highlander 2006-11-21

Central Victorian highlands

Gizmo

Admin Group

Joined: 05/06/2004
Location: Australia
Posts: 5078

Posted: 12:47am 22 Nov 2006

Copy link to clipboard

Print this post

Yeah thats right, but you need to watch the power dissipated by the shunt. A shunt designed for 10 amps would get very hot with 100 amps flowing through it. Thats why I used strips of steel plate. Any bit of steel will show a voltage across it when there is current flowing thought it, even a 4 inch nail will do. So I rig up the steel shunt, pull some current through it, like 5 amps, and adjust the meter using the trimpot to read the correct value. Thats it, calibrated.

Glenn

The best time to plant a tree was twenty years ago, the second best time is right now.
JAQ

clarence
Regular Member

Joined: 27/10/2006
Location:
Posts: 63

Posted: 04:07am 24 Nov 2006

Copy link to clipboard

Print this post

I will guess at this stage that a standard f&p 1mm wire 3 phase at 300 rpm wired star would be around 10-15 amps. but if anyone has some accurate data to share, it would be most helpful.

Pt w/field Matt

Senior Member

Joined: 24/02/2006
Location: Australia
Posts: 105

Posted: 06:59am 24 Nov 2006

Copy link to clipboard

Print this post

hi clarence go to the innovation site information/smart drive under heading getting smart with smart drive 135KB pdf and theres a grafth with all the outputs for all 3 different stators

matt down south

clarence
Regular Member

Joined: 27/10/2006
Location:
Posts: 63

Posted: 10:19am 24 Nov 2006

Copy link to clipboard

Print this post

thanks for that. I had a bit of a read and it says that its possible to get 1.4 kw at 16-1800 rpm. yegads, thats huge!
I am still a bit in the dark as to the power outputs at much lower rpm's, but I'll get there eventually.

Pt w/field Matt

Senior Member

Joined: 24/02/2006
Location: Australia
Posts: 105

Posted: 11:58am 24 Nov 2006

Copy link to clipboard

Print this post

hi clarence that would be called 100s and its o/put is 160watts at 24 v or 6.6666665 amps for 12v multiply by 2= 13.333333 amps,on the grafth its the yellow line,you dont get much top end but it starts producing at around 100 rpm
