Forum Index : Windmills : 3PH rectification? Delta or Star/Wye Configuration?

Author Message
Kamak
Senior Member

Joined: 13/04/2021
Location: Canada
Posts: 150
Posted: 06:12pm 20 Apr 2021
Copy link to clipboard
Print this post

The full-wave rectifiers, like the one I have coming (https://www.amazon.ca/gp/product/B07XCWCXL1?ref=ppx_pt2_dt_b_prod_image)
is for what type of connected source wiring? Delta or Star?
Does it matter?
It doesn't say in the description what type of required 3-Ph wiring.

There are 3-Ph half-wave rectifiers that have a 4th input connector for neutral.

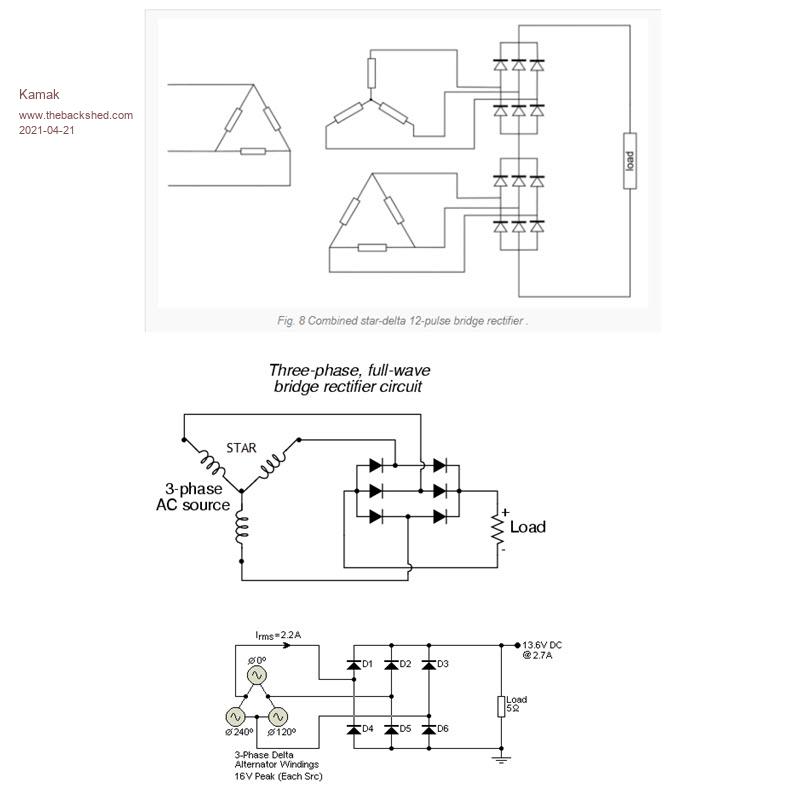

This tutorial (https://www.electronics-tutorials.ws/power/three-phase-rectification.html) mentions these two types of 3PH rectifiers and the use of them for Delta and Star, respectively.

So I assume I will need to rewire the rotor as a Delta config, as this full-wave rectifier only has the three input connections XYZ?

But then there's this tutorial
https://youtu.be/JB4Qer7e64Y

But, in fact, I don't even see many examples of Delta connected 3PH full-wave rectifiers on the net.

The odd one, so I will assume it doesn't matter, either way, they both work just fine.


Edited 2021-04-21 06:11 by Kamak
