Forum Index : Windmills : 36 pole delta wiring

Author

Message

bennyspoon
Newbie

Joined: 15/02/2014
Location: Australia
Posts: 5

Posted: 07:11am 20 May 2018

Copy link to clipboard

Print this post

Hi guys, I've read through the rewiring page and it appears that all of the wiring diagrams for the 36 pole stators are for star.

Has anyone done any diagrams for the various 36 pole stators in delta?

Am i correct in thinking that eg 2x6c i need to run another 3 wires and connect the 3 poles represented at the dot at the bottom to the 3 poles represented at the dot at the top, then combine these 3 wires with x,y,z?

Thanks,
Ben.Edited by bennyspoon 2018-05-21

DaveP68

Senior Member

Joined: 25/11/2014
Location: New Zealand
Posts: 292

Posted: 11:01am 21 May 2018

Copy link to clipboard

Print this post

Hi Ben

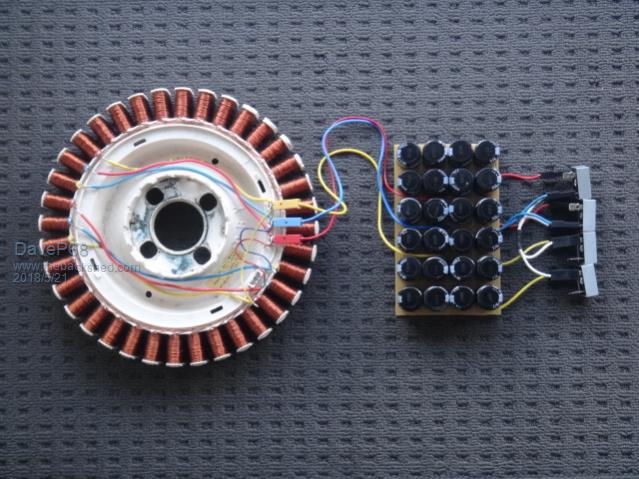

Here is a photo of a 2x6c wired in delta connected to a capacitor doubler.

Hope this is of help as I don't have any drawings to post.

David

There are realities if you do not accept, will lead to frustration because you will be spending time on wrong assumptions and the results cannot follow! The Dunning Kruger Effect :)

bennyspoon
Newbie

Joined: 15/02/2014
Location: Australia
Posts: 5

Posted: 09:09am 24 May 2018

Copy link to clipboard

Print this post

Thanks David,
that makes it a bit clearer.
