Forum Index : Windmills : newbie: rewiring a 60 series 42 poles

Author Message
Stephenj
Newbie

Joined: 05/07/2012
Location: New Zealand
Posts: 13
Posted: 11:04pm 04 Jul 2012
Copy link to clipboard
Print this post

Hi guys,

I'm new to the forum and pretty green with electronics in general but Ive been keen
to build a turbine for years and just managed to score what I'm pretty sure is a 60
series 42 poles smart drive (P/N:426454)

I wouldn't have been able to attempt this without the rewiring diagrams so thank you.

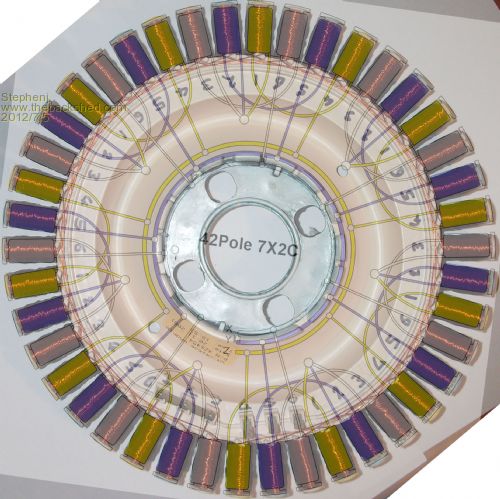

Id just like to be 100% sure though before I start cutting wires so I layered the 42
Pole 7x2C star diagram on my stator image.

would someone be so kind as to tell me if I've got things around the right way?

If so I think I might be able to give it a go







Stephenj
Newbie

Joined: 05/07/2012
Location: New Zealand
Posts: 13
Posted: 10:11pm 07 Jul 2012
Copy link to clipboard
Print this post

Yup, worked a treat, cheers...
