Energy Creator Newbie  Joined: 26/12/2011 Location: NetherlandsPosts: 11 |
Hello, its bin a long time.

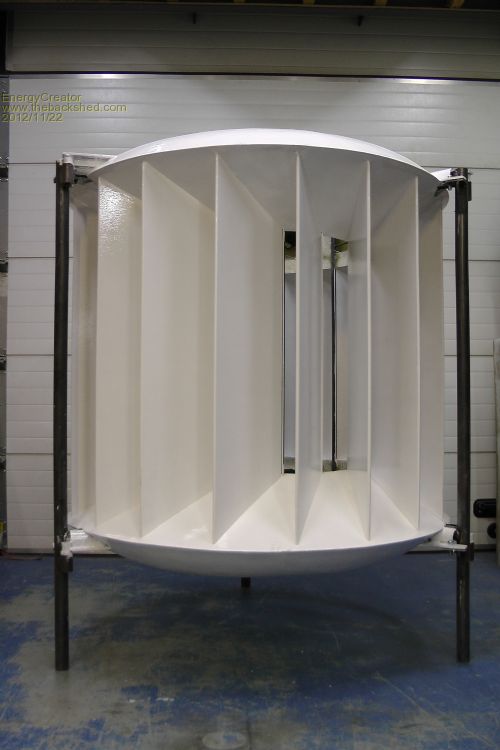

Finely the wind direction scoops are mounted on the V.A.W.T.
Now we have to make the rotor and a cool generator what fits perfectly by the V.A.W.T.
I was building on a new generator design whit the same winding principle. Only it will become a big ring.
A ring generator? I don’t know when this project will be finished? In 2 weeks I am going to Brazil for 6 months to create some energy systems in the middle of no ware on top of a mountain for generating energy for a few homes.
So, my next movies or updates will com from Brazil.
Brazil??.... Yeehaaa Party Time!!  |
||||
| electrondady1 Senior Member  Joined: 12/02/2009 Location: CanadaPosts: 208 |
great work ! are you going to spin the coils or the magnets? |
||||
| govertical Guru  Joined: 11/12/2008 Location: United StatesPosts: 383 |
Hi, congratulations and safe journey. What is the stator resistance? just because your a GURU or forum administer does not mean your always correct :) |
||||
| Energy Creator Newbie Joined: 26/12/2011 Location: NetherlandsPosts: 11 |
Hi, the coil ring stays stationary and the magnates are going to spin. The rotor will come on the inside. I don’t know the resistance, its already in the container for shipment….. forgot to measure??
But I have made a smaller one for testing!

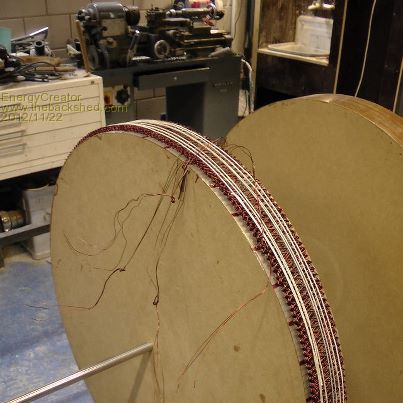

It’s a Ring generator, diameter 45 cm , 6 phases 2,2 ohms a phase But connected to 3 phases with 4,4 ohms a phase. Wire used 0,7mm

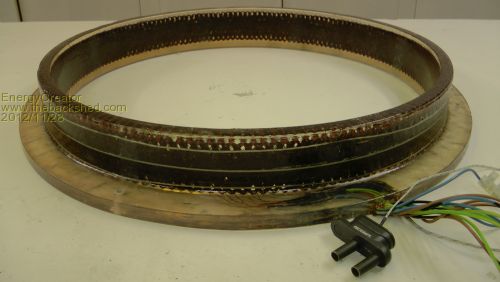

The coil is embedded in polyether. I also embedded a temperature sensor for further testing. I have made a quick test movie of the ring generator, its on YouTube. Ring generator I will try to make a descent test bench for descent testing before I’m of to Brazil.
Cheers to you all! Brian Energy Creator |
||||
| govertical Guru Joined: 11/12/2008 Location: United StatesPosts: 383 |

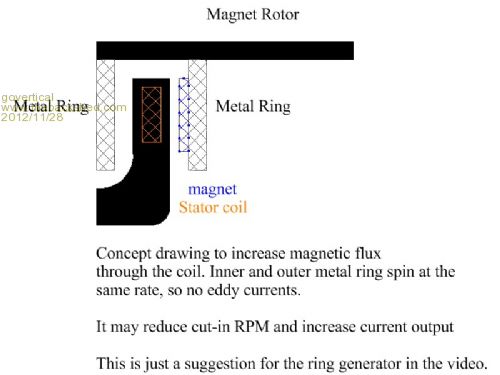

just because your a GURU or forum administer does not mean your always correct :) |
||||
| electrondady1 Senior Member Joined: 12/02/2009 Location: CanadaPosts: 208 |
your ring stator is beautiful work Brian. that's a very nice casting. i have been planing one for this winter . but it will be two phase with overlapping coils. and a mag rotor on both the outside and inside. consider winding a layer of silicone steel wire around the outside of your stator to give a flux return path it should pull the flux through the copper. |
||||
