Just a important point with "taper-lock" fittings ...


Make sure you use the correct bore size to your shaft..

Otherwise "BANG" you WILL break the cast-iron taper-lock fitting inside.

Been there done that

Bruce.
Bushboy

Warpspeed
Guru

Joined: 09/08/2007
Location: Australia
Posts: 4406
Posted: 09:26pm 26 Feb 2012
Copy link to clipboard
Print this post

  brucedownunder2 said


Just a important point with "taper-lock" fittings ...


Make sure you use the correct bore size to your shaft..

Otherwise "BANG" you WILL break the cast-iron taper-lock fitting inside.

Been there done that

Bruce.

Bruce is quite right, this is very important.
The taper lock bushings cannot be either opened up or closed down to fit anything other than the exact designed shaft size without breaking.
Cheers,  Tony.

bvan1941
Newbie

Joined: 06/05/2010
Location: United States
Posts: 24
Posted: 12:06am 27 Feb 2012
Copy link to clipboard
Print this post

Gents,
Got some pictures, but can't find instructions to upload them to my post.
help?
Bill
Bill

bvan1941
Newbie

Joined: 06/05/2010
Location: United States
Posts: 24
Posted: 12:23am 27 Feb 2012
Copy link to clipboard
Print this post


Gents, (Sorry for pixs being upside down ????)First pix posting-----
Found the "handle" to this --I think We'll see what happens.

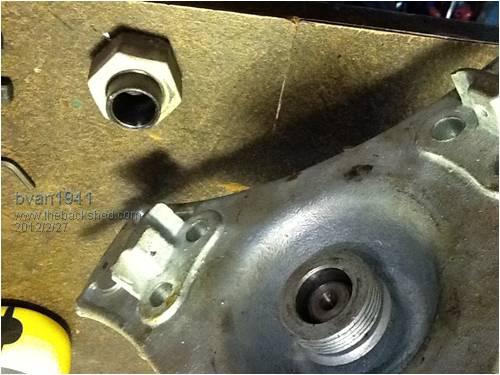

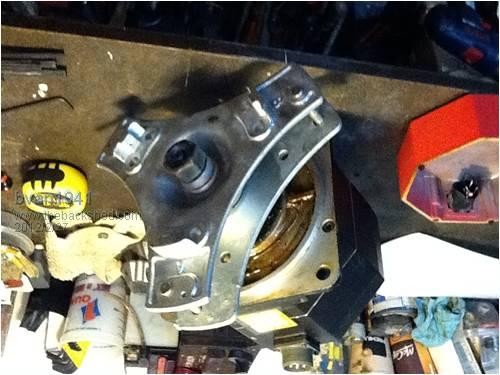

What I'm trying to show is the Hub and Servo mating. The Hub is the Powermax hub assy and shows the nut(on the table) that screws into the end of the shaft. The Machinist welded the nut to a female cylinder with thread matching the servo shaft.
Intentions are to drill the edge of the nut and "safety wire" the nut when tight to the hub at some point.





Bill
