Forum Index : Windmills : homemade wind turbine 2 KW

     Page 2 of 2
Author Message
SpitsFire

Newbie

Joined: 09/10/2010
Location: Italy
Posts: 11
Posted: 10:46am 24 Jul 2011
Copy link to clipboard
Print this post

  Khalid said   One of the best thread in this forum. Especially thanks for the AutoCad drawings. You have mentioned in another forum that you are using the magnet( neodimio 20x50 di grado 40 e 12 bobine).
energyalternative

whereas in this thread you wrote that you are using 30x50Grade 42 and.
As i am following your plans, i seek your help for clarification if possible. You also mentioned that you are using 48Volt system. May i consider your batteries are arranged in the manner storing 48 volts??.. Also please tell why you chose 48Volt system.
Regards

Hello Khalid, the thread that you mentioned refers to a previous implementation. While the current implementation is in this thread Energiaalternativa. . I chose a 48-volt system because I had the gift of a 48V battery pack and I economized on the size of electrical cables.
SpitsFire
IPSA SCIENTIA POTESTAS EST (bacone)

vawtwindy

Newbie

Joined: 23/10/2010
Location: India
Posts: 31
Posted: 05:54am 25 Jul 2011
Copy link to clipboard
Print this post

complimenti cara spitsfire

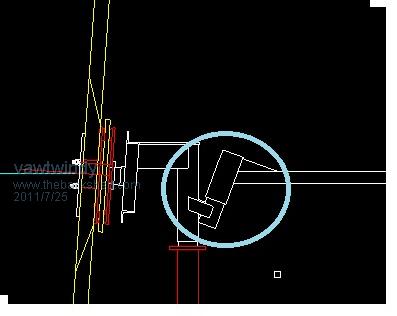

can you tell me how the furling works in it as attached in your .dwg extracted image?

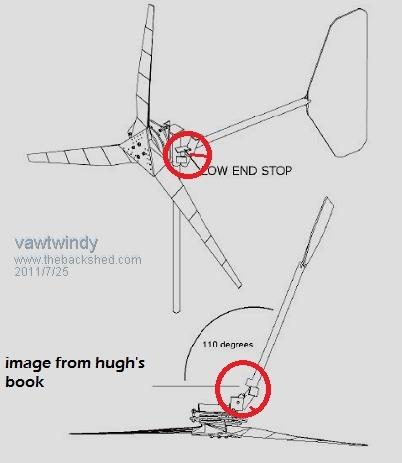

usually i keep a small piece to tab for low end stop as attached.



Edited by vawtwindy 2011-07-26

SpitsFire

Newbie

Joined: 09/10/2010
Location: Italy
Posts: 11
Posted: 07:13am 25 Jul 2011
Copy link to clipboard
Print this post

  vawtwindy said   complimenti cara spitsfire

can you tell me how the furling works in it as attached in your .dwg extracted image? ......


Hi vawtwind, here are the pictures of the stationary jib furling.





SpitsFire
IPSA SCIENTIA POTESTAS EST (bacone)

vawtwindy

Newbie

Joined: 23/10/2010
Location: India
Posts: 31
Posted: 10:24am 25 Jul 2011
Copy link to clipboard
Print this post

saluti , grazie per la condivisione delle informazioni

can you please share if you have more pictures.?

Rastus

Guru

Joined: 29/10/2010
Location: Australia
Posts: 301
Posted: 03:15pm 25 Jul 2011
Copy link to clipboard
Print this post

Hi Spitsfire,
Very creative.You have introduced yourself with great Fanfare,and well deserved!The attention to detail you have included in making your mill certainly will pay dividends in the end result (how it makes power)Wether a small or large amount,it will be the best it can do.CONGRATULATIONS Cheers Rastus
see Rastus graduate advise generously

SpitsFire

Newbie

Joined: 09/10/2010
Location: Italy
Posts: 11
Posted: 05:48pm 26 Jul 2011
Copy link to clipboard
Print this post

  vawtwindy said   saluti , grazie per la condivisione delle informazioni

can you please share if you have more pictures.?


I hope these pictures will have clarified the furling.



Good job.
SpitsFire
IPSA SCIENTIA POTESTAS EST (bacone)

SpitsFire

Newbie

Joined: 09/10/2010
Location: Italy
Posts: 11
Posted: 05:51pm 26 Jul 2011
Copy link to clipboard
Print this post

  Rastus said   Hi Spitsfire,
Very creative.You have introduced yourself with great Fanfare,and well deserved!The attention to detail you have included in making your mill certainly will pay dividends in the end result (how it makes power)Wether a small or large amount,it will be the best it can do.CONGRATULATIONS Cheers Rastus


Hi Rastus, thank you for the compliments. I'm very flattered.

SpitsFire
IPSA SCIENTIA POTESTAS EST (bacone)

vawtwindy

Newbie

Joined: 23/10/2010
Location: India
Posts: 31
Posted: 03:20am 27 Jul 2011
Copy link to clipboard
Print this post

its pretty clear spitsfire, i was worrying about that tab, coz, many of the documents doesnt show much importance on that part
