Forum Index : PCB Manufacturing : Part Builder - How to add PCB Guides?

Author

Message

MM_Wombat
Senior Member

Joined: 12/12/2011
Location: Australia
Posts: 139

Posted: 01:04pm 24 Aug 2016

Copy link to clipboard

Print this post

Hi All,

I have received my Headphone sockets form ebay, and have successfully added the part into DEX. Well, almost finished.

The part is a Surface Mount, with two small studs, that need to go into holes underneath the socket, for the PCB Guides.

How do I add these 0.8 mm Diameter holes(2), to the part?

Will keep trying myself, but thought I would ask here.

MMWombat

Keep plugging away, it is fun learning
But can be expensive (if you keep blowing things up).

Maximite, ColourMaximite, MM+

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6111

Posted: 04:29pm 24 Aug 2016

Copy link to clipboard

Print this post

I have managed to add PCB holes to my parts but they don't show up on the PCB view.
They are there because the design checker complains if I get my traces too close to them.

I forget the steps to add the holes and since the last W10 update, I am unable to use the part builder so I can't go back and check.

It makes life difficult!

Instead of PCB holes, can you add through hole pads to a surface mount part?

Jim

VK7JH
MMedit MMBasic Help

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6111

Posted: 03:57pm 26 Aug 2016

Copy link to clipboard

Print this post

This is a part I created with two mounting holes.
The holes are there in the footprint in the library viewer but do not show on the PCB.

2016-08-27_015615_RJ45.zip

Jim

VK7JH
MMedit MMBasic Help

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2916

Posted: 08:46pm 26 Aug 2016

Copy link to clipboard

Print this post

Hi All,

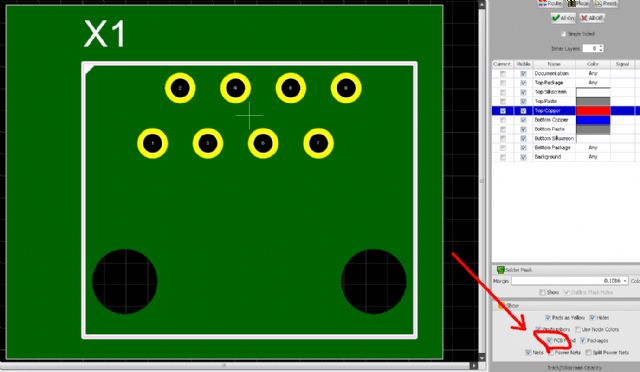

If you select PCB filled the holes will show.

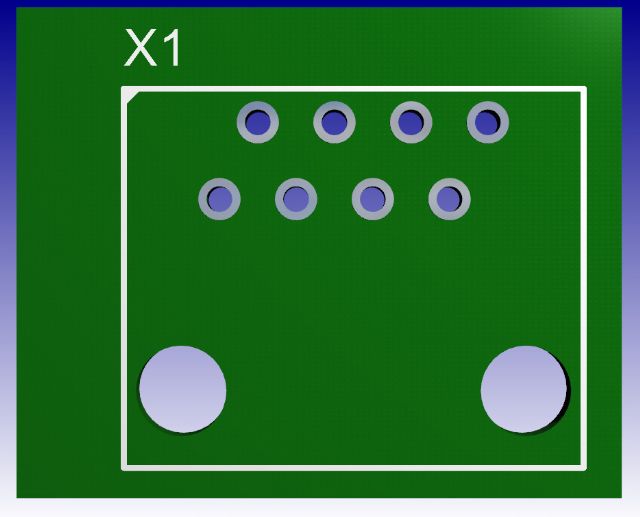

Also you can always check the 3D view

Kind Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

MM_Wombat
Senior Member

Joined: 12/12/2011
Location: Australia
Posts: 139

Posted: 09:24pm 26 Aug 2016

Copy link to clipboard

Print this post

@ TassyJim and Bigmik

Thanks for the tips. I just added them as holes, and ignored the warning about being smaller than 2.54mm. I'll just make a note of telling the PCB maker about it, or do you suggest plated through holes (TPH?) would be stronger, and a better solution?

MM_Wombat

Keep plugging away, it is fun learning
But can be expensive (if you keep blowing things up).

Maximite, ColourMaximite, MM+

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2916

Posted: 09:34pm 26 Aug 2016

Copy link to clipboard

Print this post

Hi Wombat,

Re THP holes.

I don't think they will be any stronger to get them plated as 0.8mm plastic spikes would be pretty weak... many times weaker than the PCB Substrate.

I think if the dia. is critical you are best of using holes as depending on what the PCB manufacturer's process is they might decrease the hole dia. or over drill to get the right dia. But with holes they should drill the size you ask.

Kind Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6111

Posted: 09:40pm 26 Aug 2016

Copy link to clipboard

Print this post

How come these holes need PCB turned on but the mounting holes in my board show up without PCB being on?

At least the layers panel is one that I can use without crashing.

It is b... difficult trying to learn the program when the properties panel and part builder are out of bounds.

Jim

VK7JH
MMedit MMBasic Help

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2916

Posted: 09:47pm 26 Aug 2016

Copy link to clipboard

Print this post

Hi Jim,

I don't know.. Possibly a bug..

Best to create a bug report in the bug reporter as it certainly looks like a minor bug.

Kind Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

yahoo2

Guru

Joined: 05/04/2011
Location: Australia
Posts: 1166

Posted: 11:57am 27 Aug 2016

Copy link to clipboard

Print this post

Hi Jim,
I was having trouble with crashes until version 8.41 (25th July) there was a parts builder fix in that update, its fine now (for me anyway).

I'm confused, no wait... maybe I'm not...

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6111

Posted: 01:17pm 27 Aug 2016

Copy link to clipboard

Print this post

yahoo2 said Hi Jim,
I was having trouble with crashes until version 8.41 (25th July) there was a parts builder fix in that update, its fine now (for me anyway).

I didn't have issues until the Windows10 Anniversary Update.
I partially resolved the problem by changing my video card drivers.
That worked for a week or so until another Windows 10 update.

I don't know if it was Windows or DEX that changed.

Since then, nothing I have tried has fixed the problem.

I have submitted a bug report and given Iliya the details. He can't reproduce the error so all I can do is hope that a future update to Windows or DEX will fix it.

I have taken a look at Eagle but I would rather have DEX working again.

Jim

VK7JH
MMedit MMBasic Help

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2916

Posted: 07:50pm 28 Aug 2016

Copy link to clipboard

Print this post

GDay Jim,

Have you tried uninstalling DEX completely including deleting all files in the directory:

C:\USERS\"JIM"\AppData\Roaming\AutoTRAX Software

and

C:\Program files\AutoTRAX Software

Make sure you backup your libraries first.

Then reinstall

Kind Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6111

Posted: 08:55pm 28 Aug 2016

Copy link to clipboard

Print this post

bigmik said GDay Jim,

Have you tried uninstalling DEX completely including deleting all files in the directory:

Kind Regards,

Mick

That was step number one.
Provided I don't try and click on one of the double chevrons to expand a panel, all is well.

I have put DEX on the PC attached to my CNC and if needed use it there.
The shed is too cold for sitting in and the network is over WIFI so remote access is a pain.

I have managed to create a 'backpack' for the explore64 and a 7in display without an accidental crash..

I understand if Iliya isn't too concerned for one user and it's difficult to fault find when you can't reproduce the error yourself so I have to be patient. It's just bad timing now that I have the CNC and are raring to go making boards.

Jim

VK7JH
MMedit MMBasic Help

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2916

Posted: 09:00pm 28 Aug 2016

Copy link to clipboard

Print this post

Jim,

Have you tried to run DEX as administrator?

Does `run in Compatibility Mode' still exist? I just checked and it appears microsoft may have killed that off.

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6111

Posted: 09:37pm 28 Aug 2016

Copy link to clipboard

Print this post

bigmik said Jim,

Have you tried to run DEX as administrator?

Does `run in Compatibility Mode' still exist? I just checked and it appears microsoft may have killed that off.

Mick

Been there, done all that.
Compatibility mode is still there but no use this time.

Jim

VK7JH
MMedit MMBasic Help

MM_Wombat
Senior Member

Joined: 12/12/2011
Location: Australia
Posts: 139

Posted: 10:47pm 28 Aug 2016

Copy link to clipboard

Print this post

Thanks All,

I managed to put holes for the pcb guide, in ok.

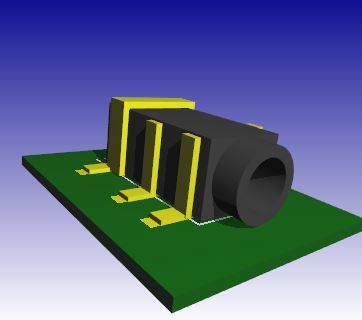

Quickly whipped up an stl model to add for the package. Scale was a bit off.
Had to import the stl at 0.0155 scale. Created the model using real world dimensions. Got it to fit eventually.

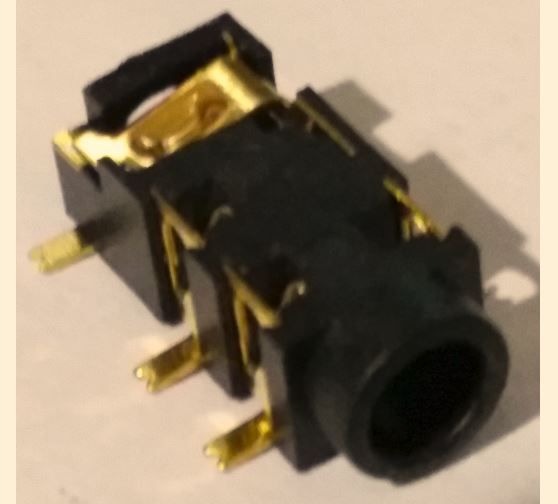

For Comparison. The Real One.

Thanks again for all of your help.

MMWombat
Edited by MM_Wombat 2016-08-30

Keep plugging away, it is fun learning
But can be expensive (if you keep blowing things up).

Maximite, ColourMaximite, MM+

disco4now

Guru

Joined: 18/12/2014
Location: Australia
Posts: 905

Posted: 04:13am 10 Sep 2016

Copy link to clipboard

Print this post

TassyJim said How come these holes need PCB turned on but the mounting holes in my board show up without PCB being on?

At least the layers panel is one that I can use without crashing.

It is b... difficult trying to learn the program when the properties panel and part builder are out of bounds.

Jim

Jim,
I have found part builder very slow, not responding. I have latest windows 10 and DEX.
I have just removed the catalog 1 directory from the library and on first impressions seems to have made it work like before.

catalog 1 is really big, I think is might be scanning the library when it does not need to. Do you have it installed? if so might be worth giving it a go with it removed.

Regards
Gerry

Latest F4 Latest H7

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6111

Posted: 11:09am 10 Sep 2016

Copy link to clipboard

Print this post

disco4now said
Jim,
I have found part builder very slow, not responding. I have latest windows 10 and DEX.
I have just removed the catalog 1 directory from the library and on first impressions seems to have made it work like before.

catalog 1 is really big, I think is might be scanning the library when it does not need to. Do you have it installed? if so might be worth giving it a go with it removed.

Regards
Gerry

I reported that 'solution' on the DEX forum a while ago.
I think the problem appeared when Iliya added the code to undelete parts.

It is one of a number of problems that are affecting me at the moment but I am sure that fixes will appear in time.

Jim

VK7JH
MMedit MMBasic Help
