Forum Index : PCB Manufacturing : Importing Macros into sprint layout
| Author | Message | ||||
| Glen0 Regular Member  Joined: 12/10/2014 Location: New ZealandPosts: 87 |
In Sprint Layout 6, How do I import macros that I download or get from other sources. And.., does anyone have a macro for an MSOP-8 or can you tell me how to find them in the Macro list in SL6. I should be receiving some HV7802MG-G High side current monitors soon and I want to incorporate them into a project I have started in SL6 Any help will be appreciated. Cheers |
||||
| Glen0 Regular Member Joined: 12/10/2014 Location: New ZealandPosts: 87 |
I've worked it out. Just drop them into C:/users/public/public documents/Layout60/Makros. |
||||
Grogster Admin Group  Joined: 31/12/2012 Location: New ZealandPosts: 9311 |

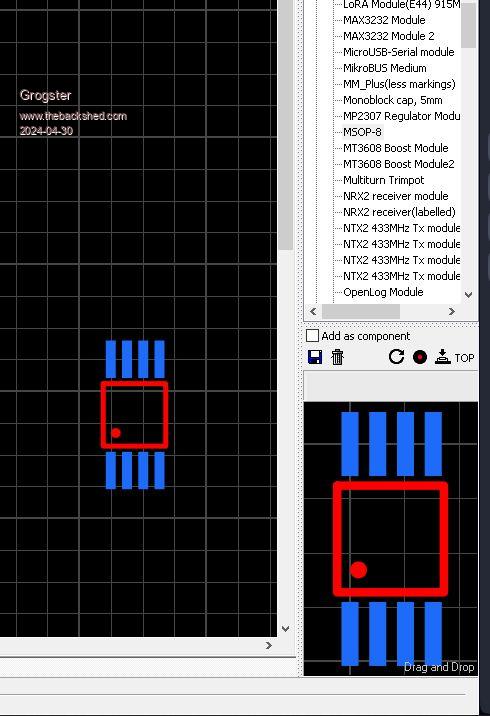

You beat me to it!  Exactly as you say.  Some footprints you just have to design yourself, and then save them as a makro - then you can use them later. I did quite a few of my own ones. If you want me to upload them as a ZIP file, let me know. It includes an MSOP-8 footprint.  Smoke makes things work. When the smoke gets out, it stops! |
||||
| Glen0 Regular Member Joined: 12/10/2014 Location: New ZealandPosts: 87 |
Thanks Graeme. I would appreciate your Makros. I already have some from way back but I suspect someone as industrious as yourself would have created a lot more by now. I have just finished designing my first (test) board and was about to order from JLPCB when I decided to add more functionality (stuff, junk whatever) . This will require me to turn it into a double sided board - just to add to the learning curve. Cheers |
||||
| Grogster Admin Group Joined: 31/12/2012 Location: New ZealandPosts: 9311 |
Here you go: MACROS(Graeme's).zip Create another folder under MAKROS, and extract all the LMK files into it. MSOP-8 footprint is included. Smoke makes things work. When the smoke gets out, it stops! |
||||
| Glen0 Regular Member Joined: 12/10/2014 Location: New ZealandPosts: 87 |
Got it thanks. Loaded in and working perfectly. Cheers once again |
||||
| Grogster Admin Group Joined: 31/12/2012 Location: New ZealandPosts: 9311 |
 Smoke makes things work. When the smoke gets out, it stops! |
||||
