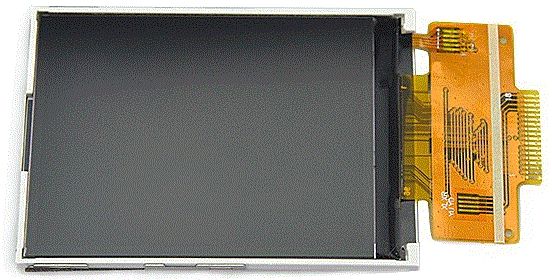

I have some of these "raw" displays and wanted to have a go at getting a PCB "engine" built around it... Just getting started... 2017-08-10_234810_2.4in_240x320_COLOR_LCD_DISPLAY_-_ILI9341_3.3v_18pin.zip The part sits on the top layer and the flex interface connections are wrapped to the back side... BTW: - this is a DEX part...  (part shown does not have the touch pad on it, but it is on the interface pads)  |
||||
bigmik Guru Joined: 20/06/2011 Location: AustraliaPosts: 2916 |
GDay Zonker, I am interested in what you can make of that... The thing I do not like about the backpack ideas is the thickness of the plug-on PCB board.. If you come up with a micromite board with this interface included.. Regards, Mick Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<< |
||||
Quazee137 Guru Joined: 07/08/2016 Location: United StatesPosts: 576 |
Zonker I was going to have a look but the file is bad. upzipped I get another zip that also gives another zip 2.4in 240x320 COLOR LCD DISPLAY - ILI9341 3.3v 18pin.part Looking forward to checking it out. Quazee137 |
||||
