Forum Index : Microcontroller and PC projects : pickit3 troubles

     Page 1 of 3
Author Message
Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 1345
Posted: 01:21pm 18 Mar 2014
Copy link to clipboard
Print this post

G'day Guy's,
Been trying to finally program the micromite and aint having much joy. I have now set up the breadboard twice and ensured all connections are true. Put a brandnew pic in and no problems with IPE seeing the chip so program the chip and works fine. Go to try and read and get an error, then when I tried to verify I got

Verifying
boot config memory
Address 1fc00000
Expected value f010d870
Received Value 4010a6000

I set the pic up run along with the RX/TX pins connected to my scanalogic analyzer and no activity when the pic is booted. So tried again with my fluke 865 on scopeview and the voltage on pin11 was 2.49 volts but no Hz. On the output window it does show hex code starting at 0x5000 too.

Why I'm getting that error has me stuffed and I did try that fidi based usb/serial dongle with 1k resistors and on 2 computers no output to teraterm.

Regards Bryan

Edited by Bryan1 2014-03-19

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9308
Posted: 01:27pm 18 Mar 2014
Copy link to clipboard
Print this post

So, you are saying that the VERIFY fails, but the device DOES program OK?

Forgetting the verify stage just for the moment, once programmed, can you use the chip as a MicroMite?

I sometimes got odd things with the verify too - I just ignored them, cos so long as the device programmed OK, it always seemed to work...

I'm not saying that you don't have an issue here, but provided it programs OK, then I tend to ignore the verify - but that's just me.
Smoke makes things work. When the smoke gets out, it stops!

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 01:32pm 18 Mar 2014
Copy link to clipboard
Print this post

Bryan,

Three initial questions:

1> Are you using a PIC32MX150… or PIC32MX250… ?

2> Do you have a 47uF (or similar) connected to Vcap? (Check polarity)

3> Do you have a USB-to-Uart Module at hand for further testing?

We should be able to sort you out if we step through things to check . . .
For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 01:57pm 18 Mar 2014
Copy link to clipboard
Print this post


Please confirm how you are powering the PIC. If its from a FTDI module then please measure voltage output (when connected to PIC).

Are you supplying ALL power inputs to the PIC? Pins 1, 13, 28 to +3v3. Pins 8, 19, 27 to 0v.

DO NOT connect Pin 20 (Vcap) to +3v3. This pin only goes to 47uF cap +ve.

Ensure Tx of FTDI module goes to PIC Rx (pin 12).
Ensure Rx of FTDI module goes to PIC Tx (pin 11).

Labelling on the FTDI module can sometimes be the FTDI Module's perspective, OR sometimes the connected device perspective. Get it wrong and nothing will appear to work!!

Can you take a photo of your set-up and post it (assuming none of the above fixes your issue.
For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9308
Posted: 02:13pm 18 Mar 2014
Copy link to clipboard
Print this post

...Gandalf(the WhiteWizard) makes some good points there, and worth checking before we get to carried away. I always prefer external power in the form of regulated power-packs. Although, the MicroMite chip should be perfectly happy on USB power with a LDO regulator in front of it...
Smoke makes things work. When the smoke gets out, it stops!

Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 1345
Posted: 02:21pm 18 Mar 2014
Copy link to clipboard
Print this post

  WhiteWizzard said   Bryan,

Three initial questions:

1> Are you using a PIC32MX150… or PIC32MX250… ?

2> Do you have a 47uF (or similar) connected to Vcap? (Check polarity)

3> Do you have a USB-to-Uart Module at hand for further testing?

We should be able to sort you out if we step through things to check . . .


The pic's I used are the pic32mx150F128B-50 and the -1 chips.

Yes I have a 47uf tantalum cap fitted

Ok connected that US232B to the rx/tx pins along with 1K resistors in series and the prompt just moved on one space. Did several re-connects and got the same thing. So took the 1K resistors off and did a direct connection.

This was the output with 3 re-connects

1st. /ýc~ô)*ïy÷y_r

2nd. /­¯ý;ÚCHÔíi¿Þ*ïy÷y_r

3rd. /­¯=:9÷ïõ+*ïy÷y_r/­¯=:9÷ïõ+*ïy÷y_r

So it does look like that US232B serial dongle may be the trouble and I do have one coming I got off fleabay. I have used Kalex before and the shipping is great so hopefully it may be at the P.O. today.

Regards Bryan

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 02:23pm 18 Mar 2014
Copy link to clipboard
Print this post


Ensure Baud rate of TeraTerm is 38400 and NOT 9600 which it defaults to!

That may be your issue from what you describe.



For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 1345
Posted: 02:39pm 18 Mar 2014
Copy link to clipboard
Print this post

Hi WW,
Yea I did have the baud rate set to 9600 so changed it to 38400 and got this

ÿµÿþ¿ÿãúÿüÿþÿóþ=ýïÿÿýö

This is with 1K resistors in place.

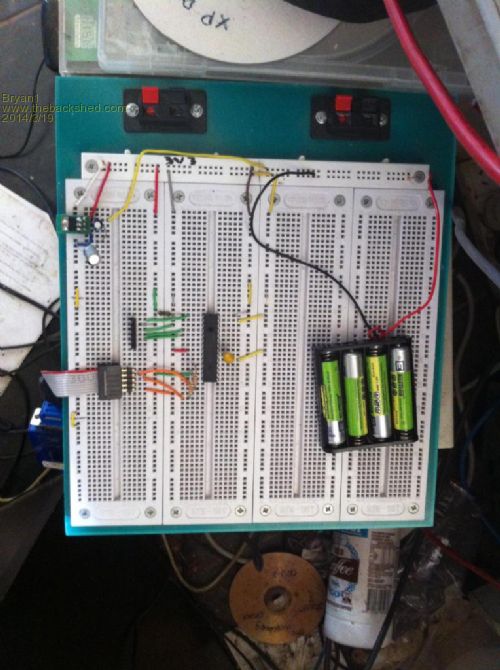

Now as you asked a pic of the Breadboard




At the top left is the 3V3 power supply comprising of a TLV11173v3 reg with caps which go to the left top rail. The right top rail is for the 4 AAA's I use as the power supply.
I have checked every power and gnd connection and everything is true.

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 02:47pm 18 Mar 2014
Copy link to clipboard
Print this post

Ok lets test the FTDI module next.

Disconnect the PIC from the FTDI module.
Connect Tx and Rx together on the FTDI module.
Fire up TeraTerm at 38400 and start typing.

Do the characters you type appear on the screen?


For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 1345
Posted: 03:03pm 18 Mar 2014
Copy link to clipboard
Print this post

Hi WW,
Connected rx/tx together and yep what I typed showed up in teraterm.

Now off to the PO to send a letter and see if that kalex dongle has arrived.

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9308
Posted: 03:43pm 18 Mar 2014
Copy link to clipboard
Print this post

Do you have 10k resistor on pin1 for programming/verify?

Check manual, page 4...

Once programmed, pin1 then is connected to pin28.(bypassing 10k resistor)

  Bryan1 said  ÿµÿþ¿ÿãúÿüÿþÿóþ=ýïÿÿýö


That looks to me like classic baud-rate settings wrong or inverted data.
One assumes that the USB serial port thing will take care of inverting the data for you, so you need to make sure port is 38400, 8N1 in TT.

QUESTION: Have you used the same USB serial adaptor on anything else to verify that it is OK and not crook?

Edited by Grogster 2014-03-20
Smoke makes things work. When the smoke gets out, it stops!

Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 1345
Posted: 04:03pm 18 Mar 2014
Copy link to clipboard
Print this post

Hi Guy's,
Well no new dongle at the PO and as Grogster has said it does look like the data isn't being inverted. Now for the first time I got the pic connected to MMChat and below is the output.





So now off to the shed to hook up an inverter chip and see if that makes a difference.

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9308
Posted: 04:10pm 18 Mar 2014
Copy link to clipboard
Print this post

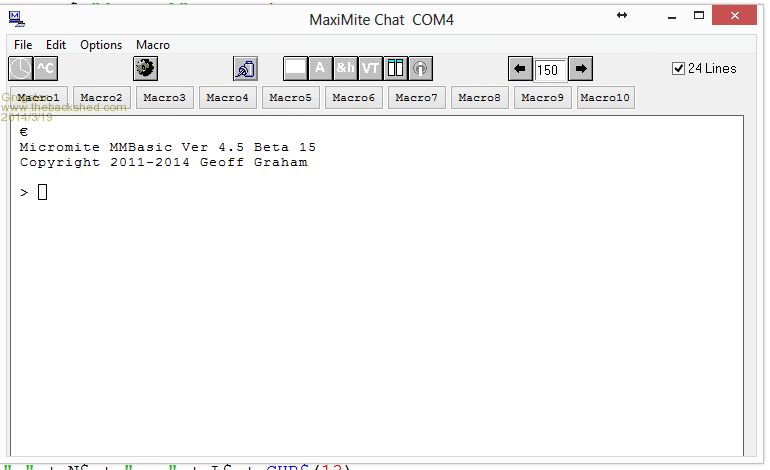

MMChat works fine for my MicroMites, provided you set the port up correct.



At this point, I have to agree with the Wizzard, and be very suspicious of the USB serial lead.

My example photo above, is using one of his 44-pin boards, but he has intergrated the USB serial port on the PCB, but this is still my results via USB.
Smoke makes things work. When the smoke gets out, it stops!

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 04:24pm 18 Mar 2014
Copy link to clipboard
Print this post

Bryan,

In my last test I asked you to do (shorting Tx & Rx) you said you got the characters typed appearing on screen.

Please can you confirm this again AND then remove the short. Do the characters stop appearing now (i.e. confirming no local echo switched on).

Please update with outcome . . .
For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 04:32pm 18 Mar 2014
Copy link to clipboard
Print this post

If the characters stop appearing in my previous test, then this proves FTDI module ok and that the chances are (assuming no missing ground connections) that the output is inverted.

You can use a simple transistor inverter if you don't have any inverter chips.

One last thing to try would be to reprogram the PIC again I had some strange behaviour once on a 28pin PIC which resolved itself once I re-programmed it).

Keep us updated!


For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 04:49pm 18 Mar 2014
Copy link to clipboard
Print this post


Another quick question - do you have any more PICs there to try? Maybe a 'damaged' pin on PIC Tx so another PIC could help eliminate this potential cause.

For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 1345
Posted: 05:21pm 18 Mar 2014
Copy link to clipboard
Print this post

Hi WW,

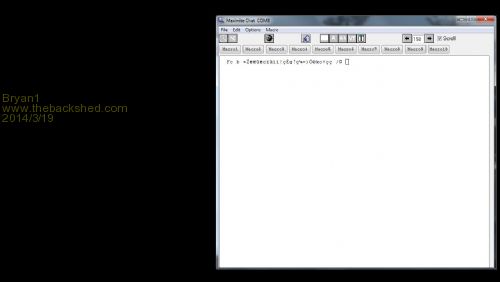

Ok got a 74ls04 chip hooked up and now no output to teraterm or MMChat. I tried in my shed with the fluke and the inverter is working too. I tried on this computer too and programmed a new pic with the same result. So it does look like I'll have to wait for that new one to turnup. The pic's I'm using are pic32MX150F128B-50 too.

When I shorted out the usb output I did get characters echoed and when I did a reboot I got that garbled text in MMChat. This was before I put the inverter chip in.

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 05:39pm 18 Mar 2014
Copy link to clipboard
Print this post


One last thing worth trying:

In TeraTerm, select 'Setup' tab, then 'Terminal'. Can you please grab a screen shot of those settings and post it?

Thanks . . .


For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

Bryan1

Guru

Joined: 22/02/2006
Location: Australia
Posts: 1345
Posted: 06:00pm 18 Mar 2014
Copy link to clipboard
Print this post

Hi WW,

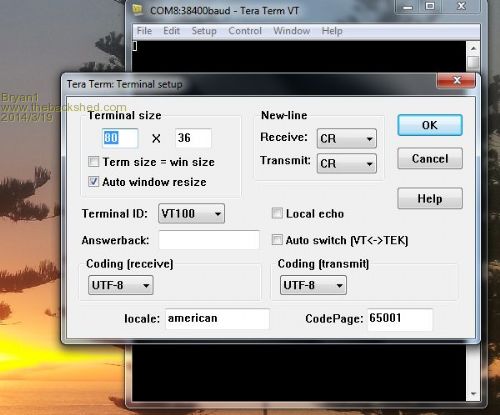

As requested here's that screenshot






Now I put another inverter in this time a 74HC04 and on doing voltage checks found the output from the serial dongle on pin3 was -2.49 volts. I am running the inverter off the 3v3 rail too as I found when setting it up on the Vin rail the output was 5 volts.

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6102
Posted: 06:06pm 18 Mar 2014
Copy link to clipboard
Print this post

Bryan,
In your photo, it looks like you are using a USB to serial converter, not a USB to TTL.
The blue thing-a-me-jig almost hidden with an IDC cable coming of it.

If your converter has a moulded plug with a DB9 connector on it, it is RS232 serial and not TTL so inverters are needed.

A photo of your adapter will confirm this.

Jim

VK7JH
MMedit   MMBasic Help
