Forum Index : Microcontroller and PC projects : Laser engraving anodized aluminum

Author Message
MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209
Posted: 06:29am 08 Feb 2014
Copy link to clipboard
Print this post

Just wanted to share my first try (and successful :) ) engraving.

Today i did a test engraving our Bangkok MakerSpace logo on a piece of anodized aluminum.
I first wanted to use my phone but my better judgement told me to use something else.

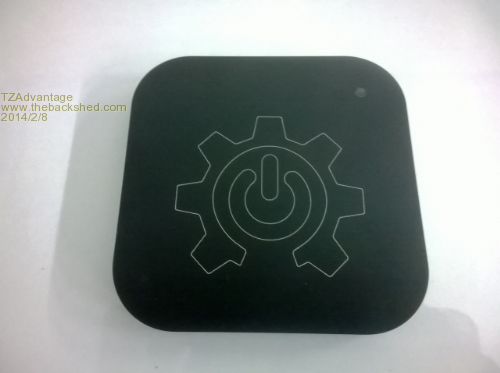

So looking around i found my Salea logic analyzer and the result is pretty good, the size of the logo is 5x5cm:



For me this opens up a way to make nice front plates and other stuff.

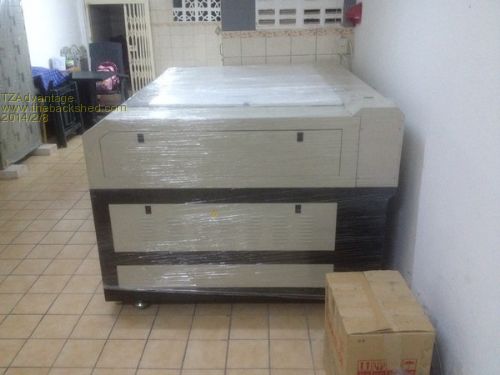

The tiny thing was engraved by this:


(It can cut bigger things too)

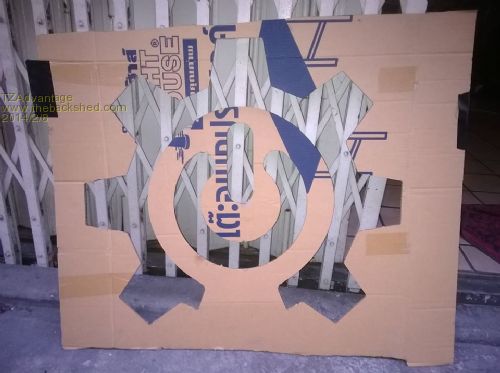

Like a cardboard template:

To trace it and paint it on the wall:


Sorry if this was off topic, just got excited by getting it to work)


Edited by TZAdvantage 2014-02-09
Microblocks. Build with logic.

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 06:35am 08 Feb 2014
Copy link to clipboard
Print this post

Looks very good.

What is the model of the engraver used?

Also what kind of resolution does it claim?

For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209
Posted: 06:40am 08 Feb 2014
Copy link to clipboard
Print this post

Hi WW,
It is an imported chinese made one. I bought it locally as i like to have people available for repairs and spare parts.
I paid a premium for that but i think it is worth.
This is where i bought it.
It claims 0.025mm resolution.

I am still new to this so i will have to find a way to actually be able to measure that.

Edited by TZAdvantage 2014-02-09
Microblocks. Build with logic.

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817
Posted: 07:18am 08 Feb 2014
Copy link to clipboard
Print this post

Just out of interest, how long did the engraving take on the Logic Analyser?
For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209
Posted: 08:18am 08 Feb 2014
Copy link to clipboard
Print this post

Did not time it but somewhere between 15-20 seconds.
Microblocks. Build with logic.

Grogster

Admin Group

Joined: 31/12/2012
Location: New Zealand
Posts: 9308
Posted: 02:00pm 08 Feb 2014
Copy link to clipboard
Print this post

Sweet.
Smoke makes things work. When the smoke gets out, it stops!
