Forum Index : Microcontroller and PC projects : What is this connector called?

Author Message
Nick

Guru

Joined: 09/06/2011
Location: Australia
Posts: 512
Posted: 11:28am 12 May 2013
Copy link to clipboard
Print this post

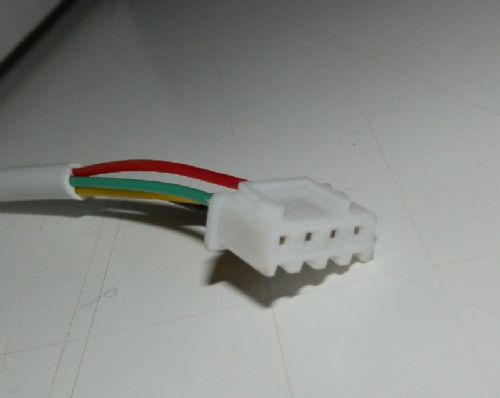

I need to locate 2 of these types of 4 pin connectors for a project but I don't know what they are formally called.

Can anyone tell me? They're similar to the connectors found on 3.5" floppy drives for power but smaller.

I went to Jaycar and they didn't have any nor could the guy behind the counter tell me what they're called.

They're not uncommon, coming in different sizes.

I need to 2 pin types.

Nick




BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935
Posted: 11:32am 12 May 2013
Copy link to clipboard
Print this post

Nick, a photo with a ruler would be a good thing or just tell us the measurements. That one looks huge.
Bob

EDIT: pin to pin distance would also be goodEdited by BobD 2013-05-13

BobDevries

Senior Member

Joined: 08/06/2011
Location: Australia
Posts: 266
Posted: 11:37am 12 May 2013
Copy link to clipboard
Print this post

Nick, could this be similar to the Oupiin connectors sold by Altronics?

Oupiin connectors from Altronics

Regards,
Bob Devries
Dalby, QLD, Australia

Nick

Guru

Joined: 09/06/2011
Location: Australia
Posts: 512
Posted: 11:57am 12 May 2013
Copy link to clipboard
Print this post

No Bob. They're about the same size but this is whatJaycaralso sell.

Pin spacing appears about 2mm apart.

Width of plug is 11mm

depth is 7mm

BobDevries

Senior Member

Joined: 08/06/2011
Location: Australia
Posts: 266
Posted: 12:09pm 12 May 2013
Copy link to clipboard
Print this post

Hi Nick,

Have a look at the molex range sold by Element14:

molex @ Element14

Regards,
Bob Devries
Dalby, QLD, Australia

Nick

Guru

Joined: 09/06/2011
Location: Australia
Posts: 512
Posted: 01:14pm 12 May 2013
Copy link to clipboard
Print this post

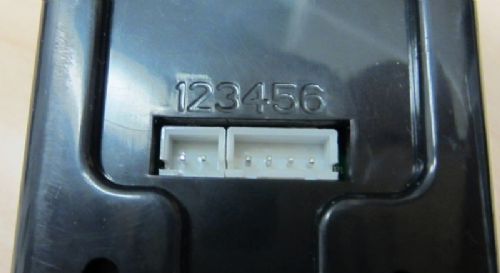

And here is a photo of the connector it goes into...




aargee
Senior Member

Joined: 21/08/2008
Location: Australia
Posts: 255
Posted: 01:36pm 12 May 2013
Copy link to clipboard
Print this post

It looks like a JST connector, I've got them on LiPo batteries as balance connectors here's an example. , again using a ruler in your images would help to show the scale.

- Rob.
For crying out loud, all I wanted to do was flash this blasted LED.

Nick

Guru

Joined: 09/06/2011
Location: Australia
Posts: 512
Posted: 02:15pm 12 May 2013
Copy link to clipboard
Print this post

By golly you got it!

That's it! A JST connector.

Thanks!
