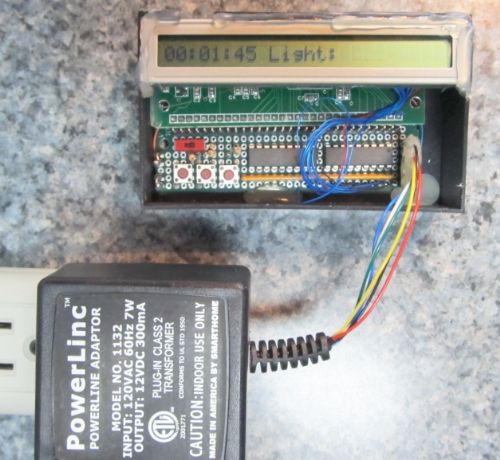

Here is something I made a while back. This is a light controller made using Maximite technology. This is definitely a one-time project kludged together until it works and then forgotten. This has been running for months. Here is a picture:



I'm presenting it here to show that the Maximite can be the brains of a project that just sits there all day working. Doing its job.

The kludge in the picture:

PowerLinc serial x10 interface. They don't make these anymore. It provides 12V for the project.

1 1x24 LCD

A bit of protoboard with three buttons and a switch.

An ALMOST-CGMMSTICK. This one was a prototype. May as well use it.

Interface chips to go from 3V to 5V for the LCD.


I wrote code to get it to work, but no refinement for elegance.



' I/O init
SETPIN 1, 8
PIN(1) = 1
SETPIN 2, 8
PIN(2) = 1
SETPIN 3, 8
PIN(3) = 1
SETPIN 4, 8
PIN(4) = 1
SETPIN 5, 8
PIN(5) = 1
SETPIN 6, 8
PIN(6) = 1
SETPIN 7, 8
PIN(7) = 1
SETPIN 8, 8
PIN(8) = 1
SETPIN 9, 8
PIN(9) = 1
SETPIN 10, 8
PIN(10) = 1
SETPIN 11, 2
SETPIN 12, 2
SETPIN 13, 2
SETPIN 17, 2
SETPIN 20, 8
PIN(20) = 1
Open "com1: 9600, OC" As #1

' Reset and init LCD
LCDRESET
LCDCOMMAND &h1C
LCDCOMMAND &h14
LCDCOMMAND &h28
LCDCOMMAND &h4F
LCDCOMMAND &hE0
LCDCOMMAND &h01

TSTR$ = TIME$
Light5 = 0
Light6 = 0
Light7 = 0

loopy:
ProgRun = Pin(17)
if ProgRun = 0 then GOTO PROG

TSTR$ = TIME$

LCDCOMMAND &h01
LCDDATA ASC(MID$(TSTR$, 1, 1))
LCDDATA ASC(MID$(TSTR$, 2, 1))
LCDDATA ASC(MID$(TSTR$, 3, 1))
LCDDATA ASC(MID$(TSTR$, 4, 1))
LCDDATA ASC(MID$(TSTR$, 5, 1))
LCDDATA ASC(MID$(TSTR$, 6, 1))
LCDDATA ASC(MID$(TSTR$, 7, 1))
LCDDATA ASC(MID$(TSTR$, 8, 1))
LCDDATA ASC(" ")
LCDDATA ASC("L")
LCDDATA ASC("i")
LCDDATA ASC("g")
LCDDATA ASC("h")
LCDDATA ASC("t")
LCDDATA ASC(":")
LCDDATA ASC(" ")
IF Light5 = 0 THEN
LCDDATA ASC(" ")
ELSE
LCDDATA ASC("5")
ENDIF
LCDDATA ASC(" ")
IF Light6 = 0 THEN
LCDDATA ASC(" ")
ELSE
LCDDATA ASC("6")
ENDIF
LCDDATA ASC(" ")
IF Light7 = 0 THEN
LCDDATA ASC(" ")
ELSE
LCDDATA ASC("7")
ENDIF

' Morning on
IF TIME$ = "06:30:00" then Light5On
IF TIME$ = "06:31:00" then Light5On
IF TIME$ = "06:32:00" then Light5On
IF TIME$ = "07:00:00" then Light7On
IF TIME$ = "07:01:00" then Light7On
IF TIME$ = "07:02:00" then Light7On

' Morning off
IF TIME$ = "07:30:00" then Light5Off
IF TIME$ = "07:31:00" then Light5Off
IF TIME$ = "07:32:00" then Light5Off
IF TIME$ = "07:33:00" then Light7Off
IF TIME$ = "07:34:00" then Light7Off
IF TIME$ = "07:35:00" then Light7Off

' Evening on
IF TIME$ = "21:00:00" then Light5On
IF TIME$ = "21:02:00" then Light5On
IF TIME$ = "21:04:00" then Light5On
IF TIME$ = "21:01:00" then Light7On
IF TIME$ = "21:03:00" then Light7On
IF TIME$ = "21:05:00" then Light7On

' Evening off
IF TIME$ = "23:30:00" then Light5Off
IF TIME$ = "23:31:00" then Light5Off
IF TIME$ = "23:32:00" then Light5Off
IF TIME$ = "23:33:00" then Light7Off
IF TIME$ = "23:34:00" then Light7Off
IF TIME$ = "23:35:00" then Light7Off

pause 300

GOTO loopy


PROG:
TSTR$ = TIME$

LCDCOMMAND &h01
LCDDATA ASC("S")
LCDDATA ASC("e")
LCDDATA ASC("t")
LCDDATA ASC(" ")
LCDDATA ASC("t")
LCDDATA ASC("i")
LCDDATA ASC("m")
LCDDATA ASC("e")
LCDDATA ASC(":")
LCDDATA ASC(" ")

LCDDATA ASC(MID$(TSTR$, 1, 1))
LCDDATA ASC(MID$(TSTR$, 2, 1))
LCDDATA ASC(MID$(TSTR$, 3, 1))
LCDDATA ASC(MID$(TSTR$, 4, 1))
LCDDATA ASC(MID$(TSTR$, 5, 1))

Hpin = Pin(13)
IF Hpin = 0 THEN
SetHour = VAL(MID$(TSTR$, 1, 1)) * 10
SetHour = Sethour + VAL(MID$(TSTR$, 2, 1))
SetHour = SetHour + 1
If SetHour = 25 THEN
SetHour = 0
ENDIF
TIME$ = Str$(SetHour) + MID$(TSTR$, 3, 1) + MID$(TSTR$, 4, 1) + MID$(TSTR$, 5, 1)
ENDIF

Mpin = Pin(12)
IF Mpin = 0 THEN
SetMin = VAL(MID$(TSTR$, 4, 1)) * 10
SetMin = SetMin + VAL(MID$(TSTR$, 5, 1))
SetMin = SetMin + 1
If SetMin = 60 THEN
SetMin = 0
ENDIF
TIME$ = MID$(TSTR$, 1, 1) + MID$(TSTR$, 2, 1) + MID$(TSTR$, 3, 1) + Str$(SetMin)
ENDIF

pause 150
GOTO loopy

END


Sub LCDRESET
PIN(20) = 0
PAUSE 100
PIN(20) = 1
PAUSE 100
PIN(20) = 0
PAUSE 100
End Sub


Sub LCDDATA (valu)
PIN(9) = 0
valu = (valu XOR &hFF)
PIN(1) = valu AND &B00000001
PIN(2) = valu AND &B00000010
PIN(3) = valu AND &B00000100
PIN(4) = valu AND &B00001000
PIN(5) = valu AND &B00010000
PIN(6) = valu AND &B00100000
PIN(7) = valu AND &B01000000
PIN(8) = valu AND &B10000000
PIN(10) = 1
PAUSE 1
PIN(10) = 0
PAUSE 1
PIN(10) = 1
PAUSE 1
End Sub


Sub LCDCOMMAND (valu)
PIN(9) = 1
valu = (valu XOR &hFF)
PIN(8) = valu AND &B10000000
PIN(7) = valu AND &B01000000
PIN(6) = valu AND &B00100000
PIN(5) = valu AND &B00010000
PIN(4) = valu AND &B00001000
PIN(3) = valu AND &B00000100
PIN(2) = valu AND &B00000010
PIN(1) = valu AND &B00000001
PIN(10) = 1
PAUSE 10
PIN(10) = 0
PAUSE 10
PIN(10) = 1
PAUSE 10
End Sub

Sub Light5On
Light5 = 1
Print #1, Chr$(&h02);
Pause 5
Print #1, Chr$(&h63);
Print #1, Chr$(&h4B);
Print #1, Chr$(&h42);
Print #1, Chr$(&h45);
Print #1, Chr$(&h41);
Pause 1000
End Sub

Sub Light5Off
Light5 = 0
Print #1, Chr$(&h02);
Pause 5
Print #1, Chr$(&h63);
Print #1, Chr$(&h4B);
Print #1, Chr$(&h42);
Print #1, Chr$(&h47);
Print #1, Chr$(&h41);
Pause 1000
End Sub

Sub Light6On
Light6 = 1
Print #1, Chr$(&h02);
Pause 5
Print #1, Chr$(&h63);
Print #1, Chr$(&h4B);
Print #1, Chr$(&h52);
Print #1, Chr$(&h45);
Print #1, Chr$(&h41);
Pause 1000
End Sub

Sub Light6Off
Light6 = 0
Print #1, Chr$(&h02);
Pause 5
Print #1, Chr$(&h63);
Print #1, Chr$(&h4B);
Print #1, Chr$(&h52);
Print #1, Chr$(&h47);
Print #1, Chr$(&h41);
Pause 1000
End Sub

Sub Light7On
Light7 = 1
Print #1, Chr$(&h02);
Pause 5
Print #1, Chr$(&h63);
Print #1, Chr$(&h4B);
Print #1, Chr$(&h4A);
Print #1, Chr$(&h45);
Print #1, Chr$(&h41);
Pause 1000
End Sub

Sub Light7Off
Light7 = 0
Print #1, Chr$(&h02);
Pause 5
Print #1, Chr$(&h63);
Print #1, Chr$(&h4B);
Print #1, Chr$(&h4A);
Print #1, Chr$(&h47);
Print #1, Chr$(&h41);
Pause 1000
End Sub



The code goes onto drive A: (internal) as autorun.bas

I change the on/off times during the year as I see fit.

The switch is for set time in one position and run in the other. Buttons are for setting time.

X10 adapter accepts odd serial commands. They are repeated to make sure the signalling happens.

Not posting a schematic or any detailed info - this is more or less not a reproducible kludge. But I'm open to answering questions if that helps anyone's projects.
