Freescale has introduced the Kinetis KL02, World’s Smallest ARM Powered® Microcontroller

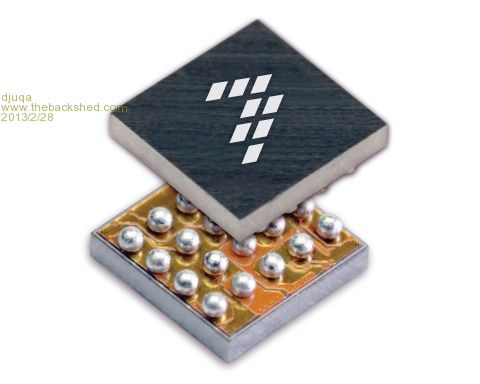

Only 1.9 x 2.0 mm, the Kinetis KL02 MCU features include:

[quote=Freescale]48 MHz ARM Cortex-M0+ core, 1.71-3.6V operation
Bit manipulation engine for faster, more code-efficient handling of peripheral registers
32 KB flash memory, 4 KB RAM
High-speed 12-bit analog-to-digital converter
High-speed analog comparator
Low-power UART, SPI, 2x IICI2C
75cents Cost (in 100k Qty)[/quote]
Link to release page

Can't wait for an ultra compact evaluation board

Edited by djuqa 2013-03-01

VK4MU MicroController Units

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 10:07pm 27 Feb 2013

Copy link to clipboard

Print this post

A bit like a small PIC32 but fewer peripherals. Not sure why either is interesting LOL

John

djuqa

Guru

Joined: 23/11/2011
Location: Australia
Posts: 447

Posted: 10:40pm 27 Feb 2013

Copy link to clipboard

Print this post

Because it is small and cheap enough to replace most 8, 12, and 16bit processors.
Edited by djuqa 2013-03-01

VK4MU MicroController Units

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 01:25am 28 Feb 2013

Copy link to clipboard

Print this post

Does that not also apply to the cheap PIC32 chips?

Also, does it have 5V-tolerant I/Os?

Other snag I see is that it's Freescale. Reckon they'll be more open? Follow JTAG properly? Provide (free) support? Stick to standards?

Not for me, thanks.

John

pito
Newbie

Joined: 09/06/2011
Location:
Posts: 25

Posted: 10:17am 28 Feb 2013

Copy link to clipboard

Print this post

Similar one (8kB RAM), from NXP:

http://www.nxp.com/news/press-releases/2010/04/nxp-shows-wor ld-s-smallest-32-bit-arm-microcontroller.html

LPC1102/1104
2.17x2.32x0.6 mm
Edited by pito 2013-03-01

djuqa

Guru

Joined: 23/11/2011
Location: Australia
Posts: 447

Posted: 12:06pm 28 Feb 2013

Copy link to clipboard

Print this post

pito said Similar one (8kB RAM), from NXP:

LPC1102/1104
2.17x2.32x0.6 mm

Clickable link

Thanks

Don't get me wrong, I love the PIC32, but these ARM chips are in a whole different league. Edited by djuqa 2013-03-01

VK4MU MicroController Units

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 10:40pm 28 Feb 2013

Copy link to clipboard

Print this post

In what ways?

So far none at all have been mentioned and questions remain unanswered...

John

djuqa

Guru

Joined: 23/11/2011
Location: Australia
Posts: 447

Posted: 10:45pm 28 Feb 2013

Copy link to clipboard

Print this post

For some embedded applications that amount of grunt in such a small package is impressive. When PIC32 is released in a 3mm Square package, I will be the first to embrace it as well.

VK4MU MicroController Units

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914

Posted: 02:44pm 01 Mar 2013

Copy link to clipboard

Print this post

djuqa said For some embedded applications that amount of grunt in such a small package is impressive. When PIC32 is released in a 3mm Square package, I will be the first to embrace it as well.

David,

As impressive as these ARM devices are, I cannot see myself using any unless they are attached to a header PCB.. 2mm x 1.9mm is smaller than the 10uf cap that most people are struggling with on the CMM. and it has 20 pins (by looking at the picture) or should I say `BALLS' within that confine.

Is the 1.9x2.0mm size accurate or another example of "the US" not converting imperial to metric correctly?
I cannot say I have ever seen a ruler that split mm any more than into 1/2mm steps and they are hard to distinguish at that.

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

MOBI
Guru

Joined: 02/12/2012
Location: Australia
Posts: 819

Posted: 03:05pm 01 Mar 2013

Copy link to clipboard

Print this post

Mick said Is the 1.9x2.0mm size accurate or another example of "the US" not converting imperial to metric correctly?

I suspect the size is correct as it is referred to as a "wafer level" chip so I guess that mean "un-packaged".

I imagine it is a bit like those "black epoxy blob" chips you see inside digital watches and calculators etc.

Either way, I don't think I'd be having a go at mounting one unless someone came up with a header board and in any case, the 100 pin TQFP is enough for me at the moment.

David M.

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914

Posted: 07:38pm 01 Mar 2013

Copy link to clipboard

Print this post

In any case it IS exciting... I can see these appearing in eBay and other places mounted on small PCBs with 4 legs as dedicated `do-it thing-a-me-jiggies' to add to your design easily... Say mini maths co-pro with or whatever they are programmed for.

And selling for a couple of shekels including postage.

Regards,

Mick

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3802

Posted: 12:37am 02 Mar 2013

Copy link to clipboard

Print this post

Bear in mind it's not very fast and has only small RAM plus very few I/Os. Don't get too excited.

John

djuqa

Guru

Joined: 23/11/2011
Location: Australia
Posts: 447

Posted: 03:36am 02 Mar 2013

Copy link to clipboard

Print this post

I have just worked on an ULTRA-Small design using an 8051 Core, the ARM would have been same size but have a lot more grunt.
The PCB for the entire controller had to be less than 6mm x 8mm due to the nature of the module.

JohnS, I provided the info as this is the MicroController section, I thoguht some of the BackShed brigade MAY be interested especially as ARM processors are the most widely used 32Bit MCUEdited by djuqa 2013-03-03

VK4MU MicroController Units
