jman Guru  Joined: 12/06/2011 Location: New ZealandPosts: 711 |

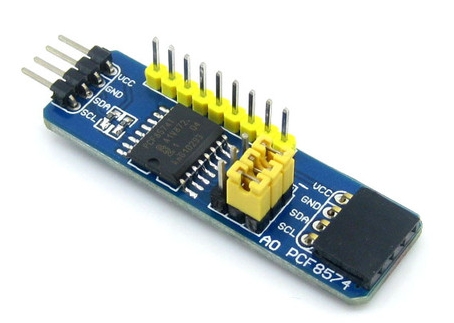

Hi So in the current trend of I/O saving I decided to buy one of these PCF8574 8 bit I2C I/O boards from Ebay Ebay PCF8574
This simple code flash's a LED connected to any of the I/O pins I2caddr = &h20 ' PCF8574 I2C address

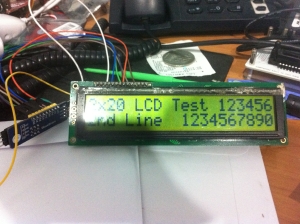

I2CEN 100,100 ' Enable I2C Test: I2CSEND i2caddr, 0, 1, &B00000000 Pause 500 I2CSEND i2caddr, 0, 1, &B11111111 pause 500 GoTo Test A real good use for this device is to drive a Character LCD like this
Many thanks to http://letsmakerobots.com/node/4240 for the PixAxe code Code attached 2012-03-28_161915_I2CLCD.zip |
||||
