Forum Index : Microcontroller and PC projects : WIB revised PCB

Author Message
jebz

Regular Member

Joined: 13/06/2011
Location: Australia
Posts: 79
Posted: 09:49am 07 Nov 2011
Copy link to clipboard
Print this post

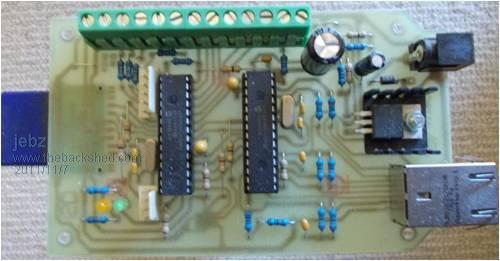

Last year I made some changes to the design of the WIB PCB to incorporate an ICSP connection and add power to the serial connector. These were integrated into the artwork by Bob Barnes of RCS Radio. RCS has this version of the board as 3178C. I also found a cheaper ethernet socket part stocked by Farnell RJMG163217101NR was suitable. Another worthwhile change is to the CPU, a dsPIC33FJ128MC802-I/SP allowing expansion of the code.
..



..

VK6MRG

Guru

Joined: 08/06/2011
Location: Australia
Posts: 347
Posted: 10:20am 07 Nov 2011
Copy link to clipboard
Print this post

I have a WIB and the biggest thing that I miss is digital in. Could the PIC32 be used in the WIB? using the same web interface, but with more I/O's!
Its easier to ask forgiveness than to seek permission!

............VK6MRG.............VK3MGR............

VK6MRG

Guru

Joined: 08/06/2011
Location: Australia
Posts: 347
Posted: 10:21am 07 Nov 2011
Copy link to clipboard
Print this post

Or maybe the PIC 24f?
Its easier to ask forgiveness than to seek permission!

............VK6MRG.............VK3MGR............

jebz

Regular Member

Joined: 13/06/2011
Location: Australia
Posts: 79
Posted: 11:47am 17 Dec 2011
Copy link to clipboard
Print this post

  VK6MRG said   I have a WIB and the biggest thing that I miss is digital in. Could the PIC32 be used in the WIB? using the same web interface, but with more I/O's!


I'm sure a DuinoMite with a UEXT MOD-ENC28J60 could be compiled to be a super WIB.

If the ethernet web server could run in the background with the basic program running to provide the processed data this would be ideal. The possibilities would be very good for logging and monitoring.
