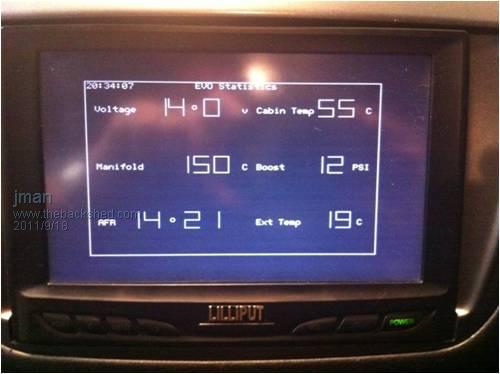

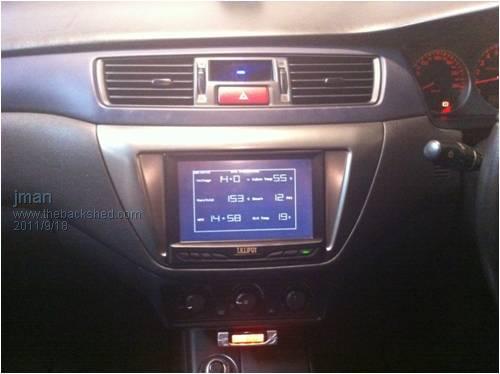

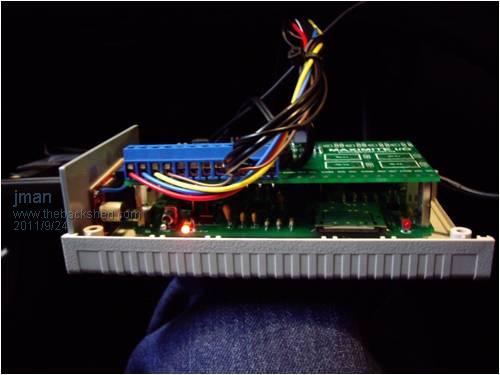

So the I/O PCB I made was primary for this project

I fiited a car PC a while back so the screen was allready there.
As this screen has the VGA connected to the car PC I have set the Maximite
to composite video and with a quick button press I now have a display of the
vitals courtesy of the Maximite

Regards

John

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914

Posted: 09:03am 18 Sep 2011

Copy link to clipboard

Print this post

jman said So the I/O PCB I made was primary for this project

I fiited a car PC a while back so the screen was allready there.
As this screen has the VGA connected to the car PC I have set the Maximite
to composite video and with a quick button press I now have a display of the
vitals courtesy of the Maximite

Fantastic, Congrats...

but 55deg Celcius for cabin temp is COOKING...

MickEdited by bigmik 2011-09-19

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

jman

Guru

Joined: 12/06/2011
Location: New Zealand
Posts: 711

Posted: 09:04am 18 Sep 2011

Copy link to clipboard

Print this post

Yip that one is still has no sensor on back order :(

John

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3194

Posted: 10:24am 18 Sep 2011

Copy link to clipboard

Print this post

John,

That is absolutely fantastic. A great example of what you can do with the gadget and a big incentive for me to add some more fonts - nice big ones.

If it is OK with you, could you send me the original high res jpegs (email address is below). I would like to include them in an upcoming SC article.

Geoff

Geoff Graham - http://geoffg.net

jman

Guru

Joined: 12/06/2011
Location: New Zealand
Posts: 711

Posted: 10:29am 18 Sep 2011

Copy link to clipboard

Print this post

Sure Geoff

I will take some nice high res photos tomorrow in the day light
and send them off to your email address

John

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3194

Posted: 10:35am 18 Sep 2011

Copy link to clipboard

Print this post

Thanks, much appreciated.

Geoff

Geoff Graham - http://geoffg.net

Greg Fordyce
Senior Member

Joined: 16/09/2011
Location: United Kingdom
Posts: 153

Posted: 02:11pm 18 Sep 2011

Copy link to clipboard

Print this post

Geoffg said A great example of what you can do with the gadget and a big incentive for me to add some more fonts - nice big ones.

I will look forward to the larger fonts.

I have ordered a MM from Dontronics and plan on using it as a replacement master controller/display for my electric vehicle battery management system. At the moment the system uses picBasic Pro on a pic 16F886 and a serial to video chip at 16x9 characters driving a 3.5inch lcd monitor. The MM will enable better graphics and also allow anyone to contribute/modify the software without having to buy the pbp complier. Along with the larger fonts, how about the ability to invert fonts or the display? We use that at the moment to highlight errors such as a cell voltage to high or low. Or how about the ability to blink characters?

Thanks Geoff for the MM.

Greg

P.S. The bms project is here.

elproducts

Senior Member

Joined: 19/06/2011
Location: United States
Posts: 282

Posted: 01:05am 19 Sep 2011

Copy link to clipboard

Print this post

I love it. Nice work John.
What a great example of Maximite/MMBASIC in action.
All soon to be open sourced so this could easily be reproduced.

This type of sharing is how Arduino grew so big and it couldn't do something like this as easy as Maximite does.

Now we need to find a source for low cost small VGA monitors.
Anybody have one?

www.elproducts.com

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697

Posted: 06:52am 19 Sep 2011

Copy link to clipboard

Print this post

And this one can be another incentive for a more I/O pins?

Vasi

Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang

Greg Fordyce
Senior Member

Joined: 16/09/2011
Location: United Kingdom
Posts: 153

Posted: 12:02pm 19 Sep 2011

Copy link to clipboard

Print this post

vasi said And this one can be another incentive for a more I/O pins?

Vasi

Hey that's me. Actually more i/o pins is quite low on my wish list for the MM. Higher priority for me would be some large fonts and 1-wire support. I have been following the MM since I heard about it on the Amp Hour. With the introduction of 2 COM ports capable of 19200 baud, that ticked all the boxes for me.

I am looking forward to my MM arriving.

Greg

James_From_Canb

Senior Member

Joined: 19/06/2011
Location: Australia
Posts: 265

Posted: 05:40pm 19 Sep 2011

Copy link to clipboard

Print this post

Very nice. Are you considering transferring the boost control function to the Maximite?

James

My mind is aglow with whirling, transient nodes of thought careening through a cosmic vapor of invention.

Hedley Lamarr, Blazing Saddles (1974)

jman

Guru

Joined: 12/06/2011
Location: New Zealand
Posts: 711

Posted: 07:18pm 19 Sep 2011

Copy link to clipboard

Print this post

James_From_Canb said Very nice. Are you considering transferring the boost control function to the Maximite?

James

Hi James

Yip i was thinking about that as the car still has the stock ECU but a much
improved BOV.
I have seen many aftermarket boost controllers and I am pretty sure
this can be done with a maximite. Just need to work out how and what they do.
(Any ideas). Check this link http://gizzmousa.com/IBCR.html

Regards
John

jman

Guru

Joined: 12/06/2011
Location: New Zealand
Posts: 711

Posted: 07:35pm 19 Sep 2011

Copy link to clipboard

Print this post

elproducts said I love it. Nice work John.
What a great example of Maximite/MMBASIC in action.
All soon to be open sourced so this could easily be reproduced.

This type of sharing is how Arduino grew so big and it couldn't do something like this as easy as Maximite does.

Now we need to find a source for low cost small VGA monitors.
Anybody have one?

Code is posted here http://www.thebackshed.com/forum/forum_posts.asp?TID=3889&PN =1&TPN=3

John

James_From_Canb

Senior Member

Joined: 19/06/2011
Location: Australia
Posts: 265

Posted: 09:21pm 19 Sep 2011

Copy link to clipboard

Print this post

jman said

Hi James

I have seen many aftermarket boost controllers and I am pretty sure
this can be done with a maximite. Just need to work out how and what they do.
(Any ideas).
Regards
John

There are some good threads on the Skyline Australia forum about using the ECU diagnostic port.
I bought a PC interface kit through dealextreme.com but never got to use it before a friend wrote off my GT/R. I think it was only around $50 including postage. I'd try that first to get an idea of the control signals and the range of available data.
There's a Silicon Chip publication on performance enhancements that is a good reference. It describes an SC boost controller kit but I don't think it included the source code.

My mind is aglow with whirling, transient nodes of thought careening through a cosmic vapor of invention.

Hedley Lamarr, Blazing Saddles (1974)

jman

Guru

Joined: 12/06/2011
Location: New Zealand
Posts: 711

Posted: 06:15am 24 Sep 2011

Copy link to clipboard

Print this post

Hi

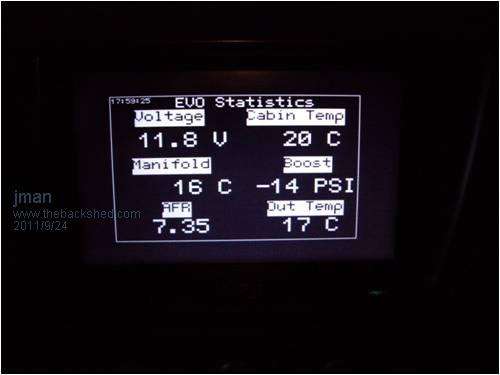

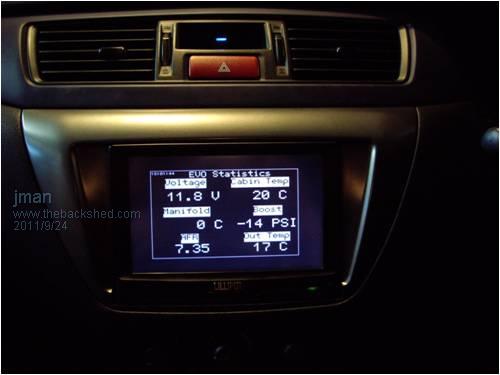

Some updated Pics using the new Font command

Regards

John
