sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 01:30am 25 Aug 2011

Copy link to clipboard

Print this post

i have never really done any smd soldering .. well a little but with a iron tip that is lucky to be about 2mm ..its very difficult so i just brought a solder station with "point two MM tip"... question is will this be fine enough.....
i hope so when it comes to soldering new chips onto maxi boards...

:i worked for errisson i was charge hand of 441 radio base broadmeadows
so it`s not a matter if i can solder i can solder standard components from the top of the board with multi layer pcb`s just after some reasonable opinions of this iron its an altronics iron station... dont know the part number off hand but will post it shortly ...regards sparkey///model T-2416......Edited by sparkey 2011-08-26

technicians do it with least resistance

seco61
Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 205

Posted: 04:18am 25 Aug 2011

Copy link to clipboard

Print this post

Hi Brian.

That soldering iron will be fine (though I would prefer the 80W model - the extra heating capability is useful when soldering to large round planes etc). For SMD work the 45W model will be fine. And I see they have concave tips available - which are great for soldering a number of pins without having to keep adding solder for each pin.

As always, with SMD soldering FLUX is your friend!!

And any bridges can be cleaned up easily with solderwick.

Welcome to the world of SMD - once you get used to it you will find that leaded components are a pain - all those leads you have to chop off!

Thye soldering iron I use most often at home (I seem to have quite a few of them...) heats up in less than 6 seconds - which I have grown to love and now hate waiting for slower irons....

Regards

Gerard (vk3cg/vk3grs)

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 04:36am 25 Aug 2011

Copy link to clipboard

Print this post

thanks gerard well looks like you people r going to have to wait another fortnite for pics i just been all over this side of town and one bloke stiffed me cause he said he had the cable wrong...i will get an orig from wes next order they do have after market but out of stock normally i would have just orderd as per usual r well next fort i should have quite a few pics ready to up load i dont have a web server or a site but i already got about 10 pics of some of the stuff i have how do i actully load a pic is it just cut and paste ive never done much anything like this oh yes ..gerard that will be iron number five...regards sparkey....

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 04:49am 25 Aug 2011

Copy link to clipboard

Print this post

this will get peops laughing i got this mb ph off my mum i actully just looked in the box guess what i found "good old murphy" un real here come some pics of my inverter//....regards sparkey...

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 06:16am 25 Aug 2011

Copy link to clipboard

Print this post

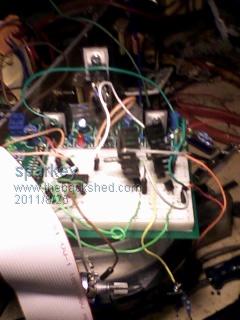

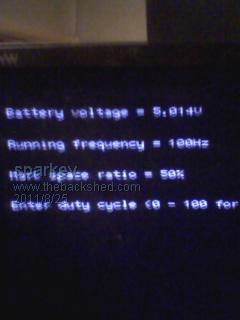

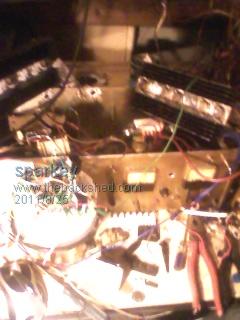

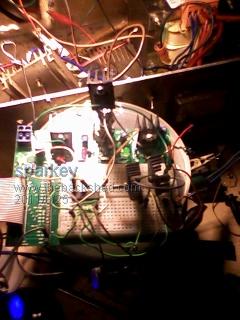

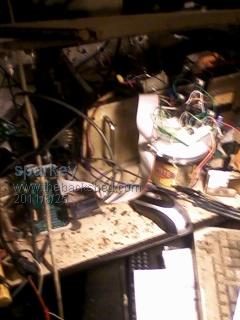

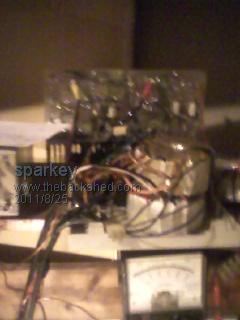

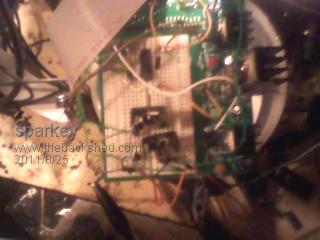

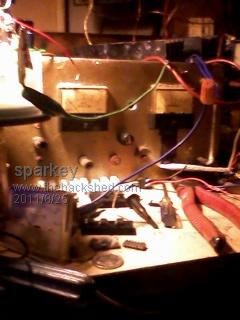

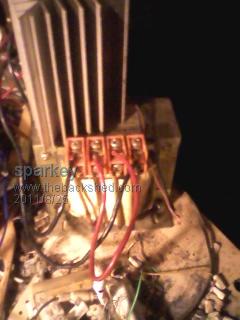

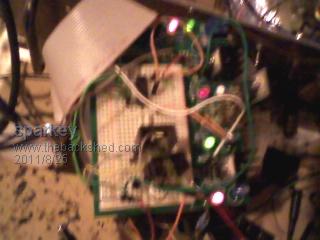

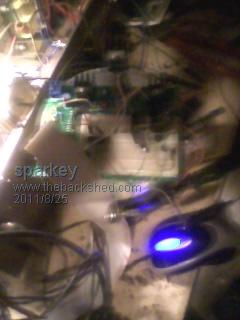

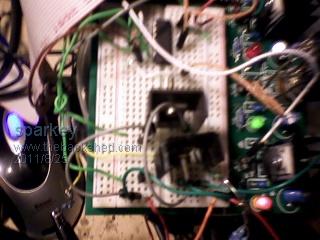

these are the first ever time i have attempted this done under duress conditions my inverter spread all over the bench hope this satisfies till i can get a hang of this
regards sparkey
hope this one is a bit betterEdited by sparkey 2011-08-26

technicians do it with least resistance

Gizmo

Admin Group

Joined: 05/06/2004
Location: Australia
Posts: 5078

Posted: 06:36am 25 Aug 2011

Copy link to clipboard

Print this post

Hi Sparky

I have to say its good to see some projects starting to show up based on the Maximite.

Well done, though you may need to clean the lense of the camera, its a bit blury.

Glenn

The best time to plant a tree was twenty years ago, the second best time is right now.
JAQ

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 06:40am 25 Aug 2011

Copy link to clipboard

Print this post

thank you appreciated

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 06:50am 25 Aug 2011

Copy link to clipboard

Print this post

Edited by sparkey 2011-08-26

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 08:59am 25 Aug 2011

Copy link to clipboard

Print this post

and for those wondering yes in this state it works fine as i am running it at present ...regards sparkey and yes when more parts arive i wil have it all neatly put together and take it out side in the light and take some completed picks for ya ....Edited by sparkey 2011-08-26

technicians do it with least resistance

Ray B
Senior Member

Joined: 16/02/2007
Location: Australia
Posts: 219

Posted: 02:03pm 25 Aug 2011

Copy link to clipboard

Print this post

Does Sparkey get the award for the most posts ?????????????
Yes it is good to see actual projects rolling off the bench.
Now if we could just build a spell checker into the Forum ...

RayB from Perth WA

VK6MRG

Guru

Joined: 08/06/2011
Location: Australia
Posts: 347

Posted: 04:14pm 25 Aug 2011

Copy link to clipboard

Print this post

Ray B said Does Sparkey get the award for the most posts ?????????????

Maybe the Maximite Spell checker program.

Its easier to ask forgiveness than to seek permission!

............VK6MRG.............VK3MGR............

VK6MRG

Guru

Joined: 08/06/2011
Location: Australia
Posts: 347

Posted: 04:35pm 25 Aug 2011

Copy link to clipboard

Print this post

What about a prize for the most topics started?

Its easier to ask forgiveness than to seek permission!

............VK6MRG.............VK3MGR............

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 07:29pm 25 Aug 2011

Copy link to clipboard

Print this post

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 07:46pm 25 Aug 2011

Copy link to clipboard

Print this post

technicians do it with least resistance

aargee
Senior Member

Joined: 21/08/2008
Location: Australia
Posts: 255

Posted: 08:44pm 25 Aug 2011

Copy link to clipboard

Print this post

I've got no idea what you're showing here but if it's your inverter design it does look like the basis for a good pyrotechnics display - be careful with the bench clutter when working with lethal voltages.

Stay safe.

- Rob

For crying out loud, all I wanted to do was flash this blasted LED.

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 09:19pm 25 Aug 2011

Copy link to clipboard

Print this post

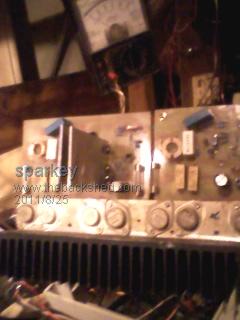

peop`s who know me always expet my work`s looking like this in prototype state

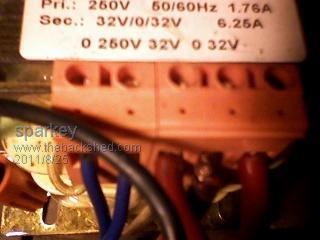

the low voltage is 36 volt per winding so yes the main buss flots around 40

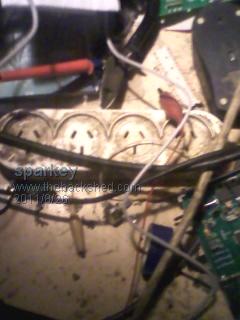

volts and the 240 is directly connected to a four way gpo.... and yes 40 volts does have a bit of a tingle...wait till u cop a belt of the back of a picture tube
crt .... much the same as chewing on a spark plug lead....

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 09:30pm 25 Aug 2011

Copy link to clipboard

Print this post

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 10:07pm 25 Aug 2011

Copy link to clipboard

Print this post

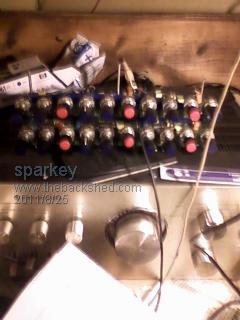

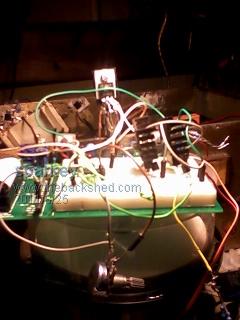

this is an ev board connected to a once preamp now my camera switching relay board set to autorun and of it goes switching between five inputs can also be used for different opp`s regards sparkey sorry about the focus but its there ....they are miniture 5 volt relays powerd staight from the ev 5 volt rail.. so there only good for low voltage app`s so dont think your going to be able to put hv/high current throgh them then you will have pyrotechnics....Edited by sparkey 2011-08-27

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 11:10pm 25 Aug 2011

Copy link to clipboard

Print this post

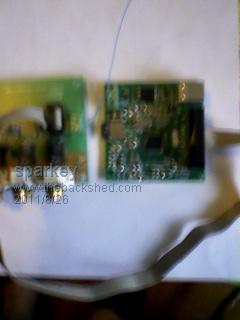

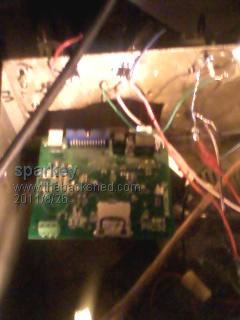

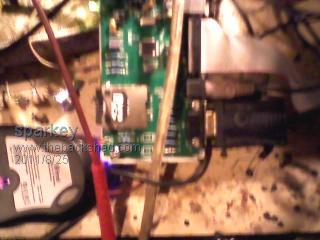

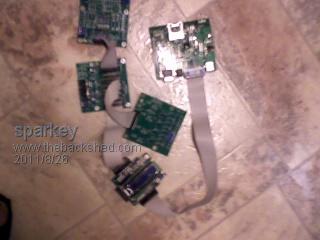

::: here is something i put together mixing parts from don and rohan its a sm1 joined to dons cross and shield connecting to rohans hub joined with a four channel input board and a four chanell output board...regards.....
Edited by sparkey 2011-08-27

technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819

Posted: 06:01am 26 Aug 2011

Copy link to clipboard

Print this post

more pic`s and more to come
