Forum Index : Microcontroller and PC projects : WebMite connection problems

Author

Message

ville56
Guru

Joined: 08/06/2022
Location: Austria
Posts: 471

Posted: 09:20am 10 May 2026

Copy link to clipboard

Print this post

Hi all,

I do constantly get WebMites into a strange disconnected state:

- From the router POV the WebMite is disconnected
- the WebMite still has its IP adress
- when issuing WEB NTP 1 it gives "WIFI not connected"

this happens from time to time with no clear pattern. My WLAN network is stable so far. Interestingly, there is an old WebMite running V6.00.00.RC9 in the same network which does not have that issue, it just keeps connected.

My network uses a Fritz!Box 7590 as router and also Fritz!Repeater 1200AX with the latest firmware. It makes no difference where the WebMites do connect (Box or Repeater) as far as I found out yet.

The WebMites that do disconnect are currently running
WebMite MMBasic RP2350A Edition V6.03.00RC2
WebMite MMBasic RP2040 Edition V6.01.00EXP2
but I also had some release versions in between with the same effect.

My basic question is for a way to discover the connection state from within MMBasic so I can force a CPU RESTART to rectify the situation. Is using the WEB NTP command the only one as I do not have any TCP or UDP connections open.

Gerald

73 de OE1HGA, Gerald

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6519

Posted: 10:01am 10 May 2026

Copy link to clipboard

Print this post

The FritzBox has always had problems with the webmite.
I have used a few different models and firmware versions and it happens with all.
As far as I know, it is the only make of router that has problems.

I spent a lot of time trying to find a solution but no joy.
I currently have other brand access points in my network as well as Fritzboxes and my webmites are configured to avoid the Fritz.

Sorry I can't offer a solution.

Jim

VK7JH
MMedit

dddns
Guru

Joined: 20/09/2024
Location: Germany
Posts: 825

Posted: 10:50am 10 May 2026

Copy link to clipboard

Print this post

ville56 said
My basic question is for a way to discover the connection state from within MMBasic so I can force a CPU RESTART to rectify the situation. Is using the WEB NTP command the only one as I do not have any TCP or UDP connections open.
Gerald

I'm having these problems with a 7520. After a CPU Restart it won't reconnect and only a power cycle helps.

Briano
Newbie

Joined: 20/01/2026
Location: Canada
Posts: 13

Posted: 04:38pm 10 May 2026

Copy link to clipboard

Print this post

ville56 said Hi all,

- From the router POV the WebMite is disconnected
- the WebMite still has its IP adress
- when issuing WEB NTP 1 it gives "WIFI not connected"

Gerald

I have had this problem occasionally too, when booting up my Pico.
CPU Restart usually fixes it.

My router is the one provided by our ISP; Calix 844G-1
....Brian

ville56
Guru

Joined: 08/06/2022
Location: Austria
Posts: 471

Posted: 05:01pm 10 May 2026

Copy link to clipboard

Print this post

Seems to be an issue with the IP stack used for MMBasic. My ESP32s do not show this problem.

73 de OE1HGA, Gerald

matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 11311

Posted: 05:54pm 10 May 2026

Copy link to clipboard

Print this post

ville56
Please try this RP2350 version

PicoMite.zip

Note and use the additional option on the OPTION WIFI (AT for Austria)

Quote OPTION WIFI ssid$, passwd$ [,name$] [, country$]
OPTION WIFI ssid$, passwd$ [, name$] [, ipaddress$, mask$, gateway$] [, country$]
Configures the firmware to automatically connect to a WiFi network on
restart.
'ssid$' is the name of the network and 'password$' is the access
password. Both are strings and if string constants are used they should
be quoted.
Optionally a name for the device can be specified 'name$', otherwise a
name is created from the unique device ID.
Optionally, a static IP address, IP mask, and gateway address can be
specified as 'ipaddress$', 'mask$', 'gateway$'.
Optionally a 2-letter ISO country code 'country$' can be specified to
set the WiFi regulatory domain. The default is "XX" (worldwide), which
restricts the device to the most conservative subset of channels and
transmit power. Setting the local country code is recommended and is
often required to associate with EU routers (for example AVM Fritzbox)
which may use channels 12 or 13. If 'country$' is omitted the
previously stored value is preserved; "" or "WW" both select
worldwide. The country code is a regulatory setting and must match
the country in which the device is operated.

Supported country codes:
AU AT BE BR CA CH CL CN CO CZ DE DK EE ES FI FR GB GR HK HU IL IN
IS IT JP KE KR LI LT LU LV MT MX MY NG NL NO NZ PE PH PL PT SE SG
SI SK TH TR TW US ZA
XX or WW (worldwide, default)

eg. OPTION WIFI "mysid","mypassword","myPico","DE"

eg. OPTION WIFI "mysid","mypassword","myPico",
"192.168.1.111","255.255.255.0","192.168.1.1","DE"

Edited 2026-05-11 04:03 by matherp

ville56
Guru

Joined: 08/06/2022
Location: Austria
Posts: 471

Posted: 07:15pm 10 May 2026

Copy link to clipboard

Print this post

Peter,

thanks for the new version.

I flashed the attached RC6 and it runs so far without a hitch. Had to reload the program though and did set "AT" as country.

Btw, by chance I did switch off the usage of channel 12 and 13 yesterday but the behavior of the WebMites did not change. Reason was the strange connection behavior of my oldest Fritz Repeater 1160 (the 1160 always connected via an 1200AX but never directly to the router). But I still have internal topology changes without any obvious reason in my network, at least from what the router information says. OTOH some router info is contraditionary, so I'm not sure the changes really happen in the internal network connections or it is just a display problem. Anyway, this should not make any difference for the network nodes connected, not even in the transition phase, if any.

So lets see if the new RC6 changes anything.

Gerald

NB: I've also enabled the settings for
"Optimize the security settings for Wi-Fi access for increased compatibility with older wireless devices".
That imposes some restrictions on newer features for connections but I do not use them atm.
Edited 2026-05-11 05:38 by ville56

73 de OE1HGA, Gerald

Supertech

Regular Member

Joined: 13/11/2016
Location: Australia
Posts: 64

Posted: 07:41pm 10 May 2026

Copy link to clipboard

Print this post

First I dont have any Fritz!boxes. I have had very good success in stability of reliable connection 'irrispective of what Webmite is WiFi connected to', or via. Yes it is your equipment at fault, not so much webmite itself, as I have proven on multiple tests of both stock standard W and W2 Pi-Pico's. In fact, 4 at a time, rock steady proven written my own Uptime out at 3 months stable success, no rebooting.

Thus I pose this in your setup:-

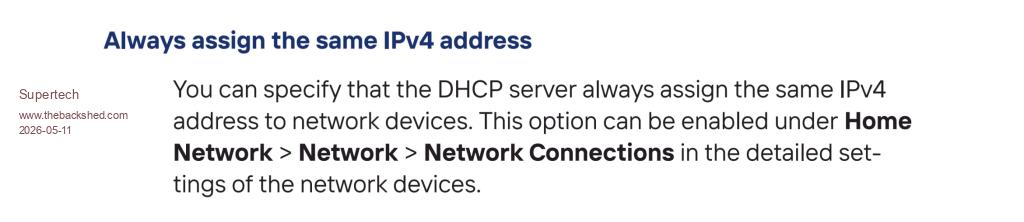

Crucial is 'static' IP at your WiFi router!

Try these steps for your Fritz setup.

1. Get manual,
https://fritz.com/en/pages/service-fritz-box-7590-ax#multicolumn
2. Page 129, manually assign your set IPADDRESS$ into your Fritz!box main router irrespective of extenders on system. If asks reboot, do so.

As stated, this is just suggestion.
Regards to All. Supertech

ville56
Guru

Joined: 08/06/2022
Location: Austria
Posts: 471

Posted: 04:13am 11 May 2026

Copy link to clipboard

Print this post

Supertech,

thank you for your input, but I'm running that kind of MAC-based "static IP" since long time. What I will try out later is setting an IP address in the Pico itself and assigning that to an "non-DHCP" IP range in the router, so avoiding DHCP at all for the Pico. Will see if that changes anything.

73 de OE1HGA, Gerald
