Forum Index : Microcontroller and PC projects : Level shifter

Author Message
Plasmamac

Guru

Joined: 31/01/2019
Location: Germany
Posts: 554
Posted: 10:07am 22 Oct 2024
Copy link to clipboard
Print this post

What level shifter is the best for using on the Picomite?
Plasma

Marcel27

Regular Member

Joined: 13/08/2024
Location: Netherlands
Posts: 53
Posted: 10:42am 22 Oct 2024
Copy link to clipboard
Print this post

Hi Plasmamac,

Sparkfun breakout board TXS0108e or a simple BS170 mosfet.
If you use AI, you lose your mind.

Canada_Cold
Newbie

Joined: 11/01/2020
Location: Canada
Posts: 37
Posted: 11:32am 22 Oct 2024
Copy link to clipboard
Print this post

Hi Plasmamac,

I use the 4 ch level shifter and the 8 ch in my designs.

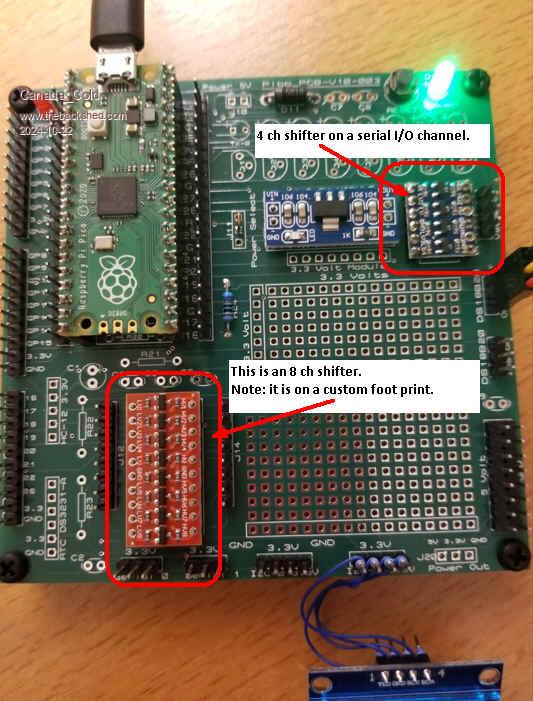

Note: The 8 ch is not a standard footprint.   The distance between the input and output is 435th.   Therefore a custom footprint is necessary.  But if you need lots of I/O, this does save some board space over using 2 of the 4 ch units.  The 8 ch units are available on eBay.

Don
