Forum Index : Microcontroller and PC projects : Level shifter

Author Message
Plasmamac

Guru

Joined: 31/01/2019
Location: Germany
Posts: 554
Posted: 07:36am 22 Oct 2024
Copy link to clipboard
Print this post

What level shifter is the best for using on the Picomite?
Plasma

PhenixRising
Guru

Joined: 07/11/2023
Location: United Kingdom
Posts: 857
Posted: 08:03am 22 Oct 2024
Copy link to clipboard
Print this post

  Plasmamac said  What level shifter is the best for using on the Picomite?


If uni-direction, I like the 74HC4050


74HC4050.pdf

Volhout
Guru

Joined: 05/03/2018
Location: Netherlands
Posts: 4223
Posted: 08:10am 22 Oct 2024
Copy link to clipboard
Print this post

This works as well for I2C and signals up to few hundred kHz.



Volhout
PicomiteVGA PETSCII ROBOTS

Marcel27

Regular Member

Joined: 13/08/2024
Location: Netherlands
Posts: 53
Posted: 11:18am 22 Oct 2024
Copy link to clipboard
Print this post

Double entry ..... link
Edited 2024-10-22 21:19 by Marcel27
If you use AI, you lose your mind.

Mixtel90

Guru

Joined: 05/10/2019
Location: United Kingdom
Posts: 6783
Posted: 12:40pm 22 Oct 2024
Copy link to clipboard
Print this post

If you only need two channels then I've found that 2 mosfets and four resistors can often be squeezed into spaces that you wouldn't expect them to fit. Mind you, I've put one of those suggested by Volhout between the legs of a Pico. :)

For shifting downwards only, a simple potential divider often works.
Edited 2024-10-22 22:42 by Mixtel90
Mick

Zilog Inside! nascom.info for Nascom & Gemini
Preliminary MMBasic docs & my PCB designs

Martin H.

Guru

Joined: 04/06/2022
Location: Germany
Posts: 1113
Posted: 03:15pm 22 Oct 2024
Copy link to clipboard
Print this post

I have successfully used ZVNL110A for PS2 Level shift so far
'no comment

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2127
Posted: 05:19pm 22 Oct 2024
Copy link to clipboard
Print this post

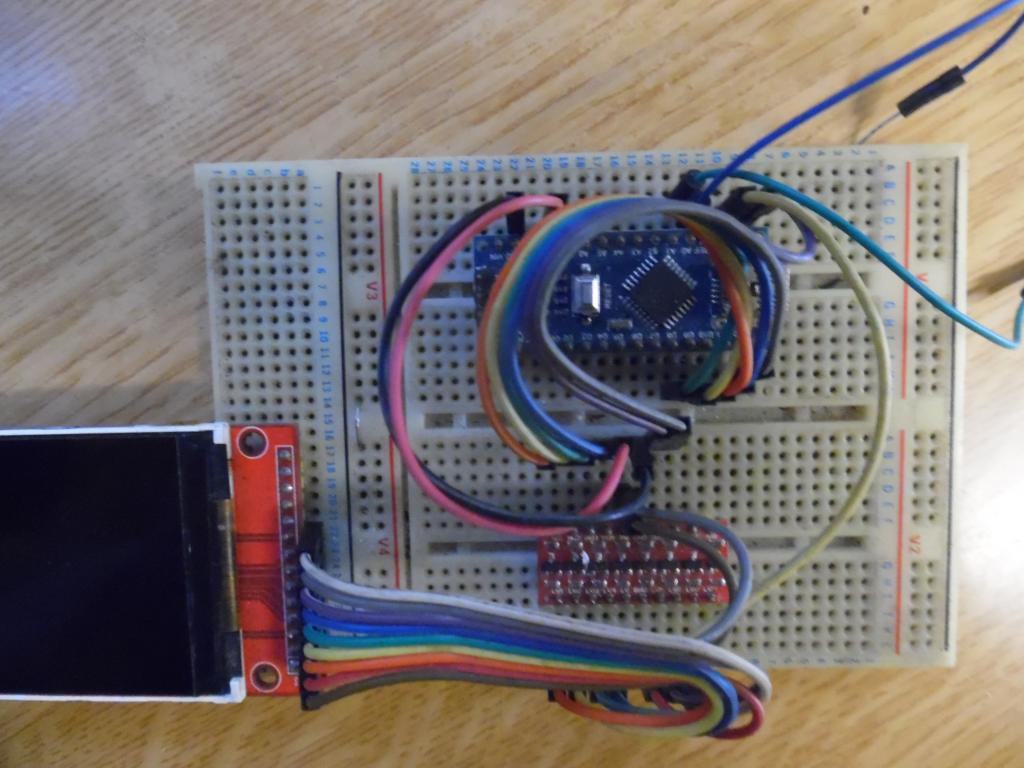

I used 8 channel bi-direction level inverter with arduino and ili9341 as arduino 5v logic and ili 3.3v
their cheap and should be ok to raise 3.3v logic to 5v

Plasmamac

Guru

Joined: 31/01/2019
Location: Germany
Posts: 554
Posted: 11:23am 23 Oct 2024
Copy link to clipboard
Print this post

Thx for all ,

@stanleyella link please
Plasma

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2127
Posted: 02:55pm 23 Oct 2024
Copy link to clipboard
Print this post

  Plasmamac said  Thx for all ,

@stanleyella link please

bought years ago, something like this. 8 fets, marked LV and HV, LV is 3.3 device, HV is 5V device
https://www.ebay.co.uk/itm/192441573509

stanleyella

Guru

Joined: 25/06/2022
Location: United Kingdom
Posts: 2127
Posted: 06:40pm 23 Oct 2024
Copy link to clipboard
Print this post

what's it for?

Marcel27

Regular Member

Joined: 13/08/2024
Location: Netherlands
Posts: 53
Posted: 05:23am 24 Oct 2024
Copy link to clipboard
Print this post

I use most of the time a voltage devider for low speed or BS170 for 2-way or an optocoupler for 1-way communication. I've a lot of optocouplers lying around and work fine.
If you use AI, you lose your mind.
