BobD said

I use Foxit Reader. Looks like the picture above.

Micromites and Maximites! - Beginning Maximite

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3196

Posted: 01:46pm 16 Apr 2014

Copy link to clipboard

Print this post

Thanks for picking that up.

I use Visio diagrams embedded in Word documents and novaPDF to "print" the Word document. Somewhere something is loosing part of the diagram (I suspect novaPDF).

I will investigate and endeavour to fix it in the final version of the manual.

Geoff

Geoff Graham - http://geoffg.net

WhiteWizzard
Guru

Joined: 05/04/2013
Location: United Kingdom
Posts: 2817

Posted: 02:17pm 16 Apr 2014

Copy link to clipboard

Print this post

Geoff,

Visio Embedded in Word losing details when converting to PDF:

Is this link any use to resolving the issue? If you read the comments by people then in particular look at Betty's answer as several people said it fixed their Visio embedded in Word issue of dropping labels/characters . . .

WW

For everything Micromite visit micromite.org

Direct Email: whitewizzard@micromite.o

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6102

Posted: 03:11pm 16 Apr 2014

Copy link to clipboard

Print this post

The 'pF' is inserted as an image.
If you copy the image and paste it into paint, it appears as black and white text.

I use PDF995 for my PDF printer. You can download a demo version which prints a watermark or, provided my ancient Word 2003 can read you version, I am happy to test it here.

PDF995 is about $20US for a suite of related apps.

http://www.pdf995.com/

Jim

VK7JH
MMedit MMBasic Help

bigmik

Guru

Joined: 20/06/2011
Location: Australia
Posts: 2914

Posted: 03:41pm 16 Apr 2014

Copy link to clipboard

Print this post

Lads,

I use DoPDF it works extremely well, fast and has high quality/large size or low quality/small size options and best of all its free.

Even at low quality It generally creates excellent PDF files.

Also I use Nuance PDF reader and those visio glitches Rob mentioned show up as a barely readable smear.. I would not have seen them if I didnt know they were there

Regards,

MickEdited by bigmik 2014-04-18

Mick's uMite Stuff can be found >>> HERE (Kindly hosted by Dontronics) <<<

BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935

Posted: 03:58pm 16 Apr 2014

Copy link to clipboard

Print this post

I use PrimoPDF for my virtual PDF printer/creator or use Word 2013 PDF output if working in Word. I use PDF-XChange Viewer (free) as a replacement for Adobe Reader. They also have a free PDF editor which I am investigating.

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3196

Posted: 05:23pm 16 Apr 2014

Copy link to clipboard

Print this post

Try this version: http://geoffg.net/temp/Micromite%20Manual.pdf
It seems to work OK in my PDF reader (Foxit) but I am interested if it is also OK in other PDF readers.

The clue was from Phil and the forum that he referenced. By fiddling with the scaling of images in novaPDF I was able to get all the text to display.

Geoff

Geoff Graham - http://geoffg.net

SteveP
Newbie

Joined: 21/03/2013
Location: United States
Posts: 19

Posted: 05:55pm 16 Apr 2014

Copy link to clipboard

Print this post

Nitro PDF Creator (free) has printed files to a PDF for me that other converters would not. Lots of features and customization.

CutePDF is another free PDF printer

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 926

Posted: 06:07pm 16 Apr 2014

Copy link to clipboard

Print this post

Geoffg said Try this version: http://geoffg.net/temp/Micromite%20Manual.pdf
It seems to work OK in my PDF reader (Foxit) but I am interested if it is also OK in other PDF readers.

The clue was from Phil and the forum that he referenced. By fiddling with the scaling of images in novaPDF I was able to get all the text to display.

Geoff

Opened with IE and Adobe Reader X. The suspect "pF" shows clearly in black.

James_From_Canb

Senior Member

Joined: 19/06/2011
Location: Australia
Posts: 265

Posted: 06:47pm 16 Apr 2014

Copy link to clipboard

Print this post

All the ones on the previous page are displayed clearly in Safari on an ipad.

James

My mind is aglow with whirling, transient nodes of thought careening through a cosmic vapor of invention.

Hedley Lamarr, Blazing Saddles (1974)

MicroBlocks

Guru

Joined: 12/05/2012
Location: Thailand
Posts: 2209

Posted: 08:01pm 16 Apr 2014

Copy link to clipboard

Print this post

It is now good in Adobe Reader and in Chrome browser.

Microblocks. Build with logic.

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3816

Posted: 11:08pm 16 Apr 2014

Copy link to clipboard

Print this post

Looks good in xpdf on Linux.

Errata suggestions:

p5 "loose access" -> "lose access"
p10 "as useful" -> "useful"
p10 "re apply it again" -> either "re-apply it" or "apply it again"
p12 I suspect the function should consistently be FORMAT() or else FORMAT$()
p13 "WAKEUP pin a" -> "WAKEUP pin as a"
p14 "control prompt" -> "command prompt"
p21 drop the final "s" in "connected to a SERVO I/O pins."
p24 "loose its position" -> "lose its position"
p27 "Long pauses" -> "Long pulses"
p32 "may terminated" -> "may be terminated"
p32 it would be helpful to say how to get a double quote into a string constant
p61 "another to reading" -> "another for reading"

It would be worth sticking either to Schmidt or to Schmitt.

(I decided not to mention usage of less / fewer.)

John

robert.rozee
Guru

Joined: 31/12/2012
Location: New Zealand
Posts: 2350

Posted: 12:42am 17 Apr 2014

Copy link to clipboard

Print this post

now readable in acrobat reader, although the text on the diagrams is pretty chewed-up looking in places. geoff: you might like to try saving your graphics as "windows metafile (.wmf)" objects, and using these in your word document. i've a feeling i've done this before to get around some rendering issues. visio should be able to either save as a .wmf file, or if not then export to .wmf. it has been a couple of years sincle i last used visio.

also, all you want to do can be accomplished using open office: OO Writer instead of MSword, OO Draw instead of visio. and OO Writer can then export as a .PDF file. not suggesting you change over at this stage, but worth thinking about in future.

and another little bug: do a search for I2C and you will find a couple or three places where the "2" should be a superscript but is not. the first is in the labelling of pin 1 of the 44-pin 32MX on page 7.

rob :-)

Geoffg

Guru

Joined: 06/06/2011
Location: Australia
Posts: 3196

Posted: 12:20pm 17 Apr 2014

Copy link to clipboard

Print this post

Thanks John and Rob. I especially liked "loose" vs "lose" - my spelling is terrible and I depend on the spelling check in Word which can give you a false sense of security.

This little ditty (which is circulating on the Internet) will pass a spelling checker:

Eye halve a spelling chequer
It came with my pea sea
It plainly marques four my revue
Miss steaks eye kin knot sea.

Eye strike a quay and type a word
And weight four it two say
Weather eye am wrong oar write
It shows me strait a weigh.

As soon as a mist ache is maid
It nose bee fore two long
And eye can put the error rite
It's rare lea ever wrong.

Eye have run this poem threw it
I am shore your pleased two no
It's letter perfect awl the weigh
My chequer tolled me sew.

Geoff

Geoff Graham - http://geoffg.net

TassyJim

Guru

Joined: 07/08/2011
Location: Australia
Posts: 6102

Posted: 12:48pm 17 Apr 2014

Copy link to clipboard

Print this post

One seemingly little issue that often causes grief when users copy and paste code from the manual is the smart quotes which MS Word loves to use.

This from page 25

IF PIN(23) = 1 THEN PRINT �High�

will print 0

I have added the option to replace smart quotes in MMedit2 and I think I will add it to the current MMedit as well.

Jim

VK7JH
MMedit MMBasic Help

BobD

Guru

Joined: 07/12/2011
Location: Australia
Posts: 935

Posted: 01:30pm 17 Apr 2014

Copy link to clipboard

Print this post

If users wish to turn off Word's Smart Quotes here is how in the later versions.

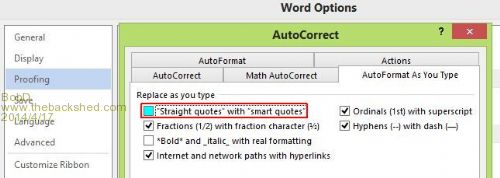

In your version, get to Options then select Proofing ==> Auto Correct Options ==> AutoFormat as you type and in the section Replace as you type, un-tick the box as shown in the image.

Edited by BobD 2014-04-18

JohnS
Guru

Joined: 18/11/2011
Location: United Kingdom
Posts: 3816

Posted: 08:57pm 17 Apr 2014

Copy link to clipboard

Print this post

Geoff - v funny, hadn't seen that before!

You don't have bad spelling at all. It's tough to write good doc, concentrating on the content and yet get every other pesky language detail right. It's also hard to proof read one's own work, even if time allows which I doubt it has in the umite case.

JohnEdited by JohnS 2014-04-19

robert.rozee
Guru

Joined: 31/12/2012
Location: New Zealand
Posts: 2350

Posted: 11:20pm 17 Apr 2014

Copy link to clipboard

Print this post

an invaluable tool i use all the time, and recommend to others, is a little popup dictionary called WordWeb. when you strike a word you're not sure of, highlight it and press the hotkey sequence (i use ctrl-f10) and it pops up a definition, or if misspelt a list of alternatives.

it has a free version, that can be found here:

http://wordweb.info/free/

hint: when asked about your air travel, the answer to the question is always "NO". it asks the question again once a year.

enjoy,
rob :-)
