Forum Index : Microcontroller and PC projects : CGCMM3? - Sea-of-holes?

Author Message
panky

Guru

Joined: 02/10/2012
Location: Australia
Posts: 1101
Posted: 05:11pm 05 May 2013
Copy link to clipboard
Print this post

Hi CG,

As a topic of discussion, how many people are making use of the sea-of-holes?

In my own case, I use and re-use the CGCMM2 for different projects as fancy takes me thus I don't really want to screw up the motherboard with soldered and re-soldered test circuitry.

Instead, I use Android shields atA$4.95 each from Jaycar or even some home grown veroboard ones for testing stuff.

To that end, would you consider an additional Android style header in the sea-of-holes area that brings out the original MM pins, even an option via jumper to bring out rs-232, Can, etc?

This then retains the integrity of the original MM ( and the CMM) but allows unlimited extensibility for customisation - joys sticks, etc, etc.

Just some ideas for discussion.

Regards, Doug.
... almost all of the Maximites, the MicromMites, the MM Extremes, the ArmMites, the PicoMite and loving it!

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 06:47am 06 May 2013
Copy link to clipboard
Print this post

"Android shield?" What is that?

Micromites and Maximites! - Beginning Maximite

Bill.b

Senior Member

Joined: 25/06/2011
Location: Australia
Posts: 226
Posted: 11:14am 06 May 2013
Copy link to clipboard
Print this post

I think he ment Ardunio Here

Bill
In the interests of the environment, this post has been constructed entirely from recycled electrons.

panky

Guru

Joined: 02/10/2012
Location: Australia
Posts: 1101
Posted: 01:18pm 06 May 2013
Copy link to clipboard
Print this post

Yes, sorry 'bout that - Arduino shields. ( blush from silly old begger ).

Doug.
... almost all of the Maximites, the MicromMites, the MM Extremes, the ArmMites, the PicoMite and loving it!

CircuitGizmos

Guru

Joined: 08/09/2011
Location: United States
Posts: 1425
Posted: 03:15pm 06 May 2013
Copy link to clipboard
Print this post

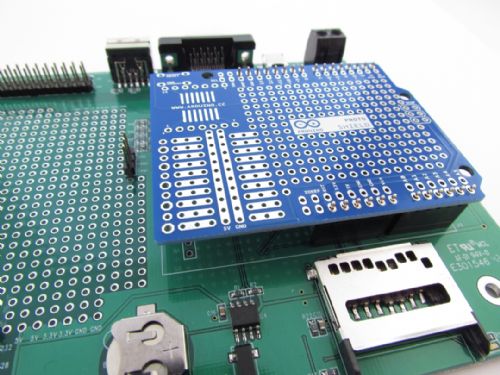

So more than just the Arduino header that is already there?



Adding another would reduce the size of the sea-of-holes considerably.

Micromites and Maximites! - Beginning Maximite

panky

Guru

Joined: 02/10/2012
Location: Australia
Posts: 1101
Posted: 08:43pm 06 May 2013
Copy link to clipboard
Print this post

Yep,

I was thinking about a second arduino format shield footprint in place of the sea of holes except that it could have the original MM pins available to it.

Just an idea and it could well be that it may not suit others but I was interested to hear if anyone else thought it could be usefull?

Cheers, Doug.


... almost all of the Maximites, the MicromMites, the MM Extremes, the ArmMites, the PicoMite and loving it!

OA47

Guru

Joined: 11/04/2012
Location: Australia
Posts: 926
Posted: 08:48pm 06 May 2013
Copy link to clipboard
Print this post

To keep flexibility Panky why not look at a side by side arduino board that would duplicate the existing arduino sockets and provide another set above the SOH?
