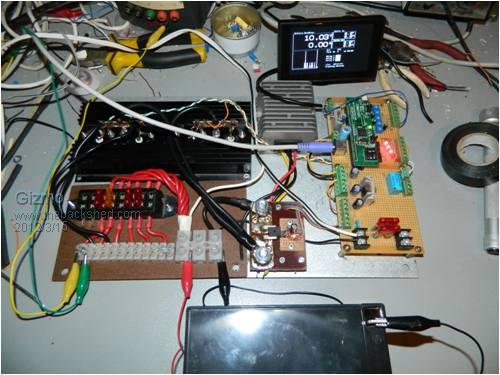

Making progress. I'm using power mosfets to switch the solar panels into circuit as they are needed.



Glenn
The best time to plant a tree was twenty years ago, the second best time is right now.
JAQ

Gizmo

Admin Group

Joined: 05/06/2004
Location: Australia
Posts: 5078
Posted: 05:51am 09 Apr 2012
Copy link to clipboard
Print this post

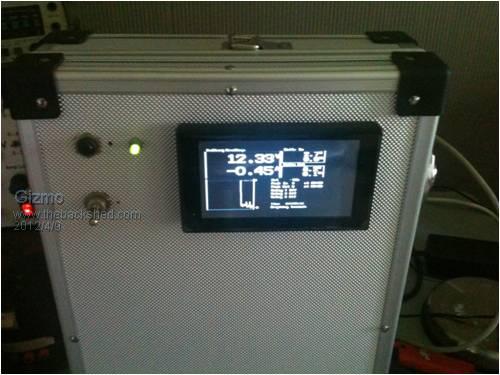

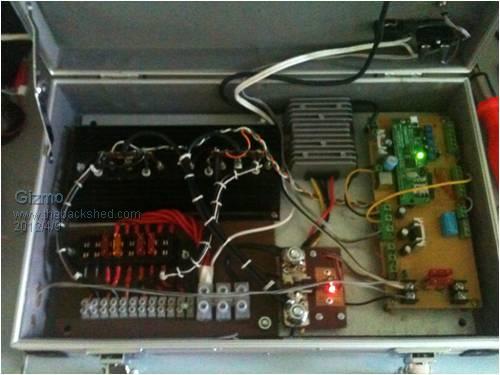

Well its finished. I mounted the whole thing into a small aluminium lined tool box, it gives easy access to the internals and was dirt cheap compared to other project cases. The LCD screen, power switch, plower LED and circuit breaker are mounted on the front. Eventually I'll mount a numeric keypad there to, but for now I use a conventional keyboard.

Sorry about the quality of these photo's, taken with phone. Later this week I take some good pictures and write it all up as article for the main web site. I'm pretty happy with the way the software is running now. It's compatible with 2.7, so will work on all maximite devices. I need to do a renumber and add some comments.





Glenn
The best time to plant a tree was twenty years ago, the second best time is right now.
JAQ

djuqa

Guru

Joined: 23/11/2011
Location: Australia
Posts: 447
Posted: 05:54am 09 Apr 2012
Copy link to clipboard
Print this post

  Gadget said

green ones are for mouse only they are wired to different pins on the PS2 side, the purple ones are for keyboards.

coded this way to match the sockets on the computer motherboards.

Mine were coloured black when they arrived Edited by djuqa 2012-04-10
VK4MU MicroController Units

vasi

Guru

Joined: 23/03/2007
Location: Romania
Posts: 1697
Posted: 09:35pm 09 Apr 2012
Copy link to clipboard
Print this post

It looks great, can't wait to see the main article!
Hobbit name: Togo Toadfoot of Frogmorton
Elvish name: Mablung Miriel
Beyound Arduino Lang

paceman
Guru

Joined: 07/10/2011
Location: Australia
Posts: 1329
Posted: 01:59pm 10 Apr 2012
Copy link to clipboard
Print this post

Hi Glenn,
Looks great - and looks like you decided not to go with your "duck's nuts" HTFS200P current sensor (from the "Electronics" forum).

Greg
