sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 08:38pm 16 Nov 2011
Copy link to clipboard
Print this post

and for those interested i found the rtc..sda and scl on pins 4 and9 on the uext on the rear of the board "mega"....
technicians do it with least resistance

ksdesigns

Senior Member

Joined: 25/06/2011
Location: United States
Posts: 143
Posted: 08:52pm 16 Nov 2011
Copy link to clipboard
Print this post

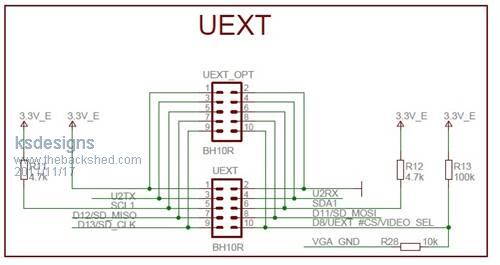

Actually Sparkey that would be SCL-pin5 SDA-pin6
plus pins 3&4 are the pic32 UART2 or in MMBasic is COM3
ken


sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 06:46am 17 Nov 2011
Copy link to clipboard
Print this post

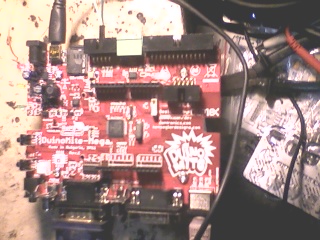

ok guys here`a look at the dynamyte with rtc....

















Edited by sparkey 2011-11-18
technicians do it with least resistance

crackerjack

Senior Member

Joined: 11/07/2011
Location: Australia
Posts: 164
Posted: 08:53am 17 Nov 2011
Copy link to clipboard
Print this post

Sparkey, this is unbelievable!

Cheers, CrackerJack.

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 10:08am 17 Nov 2011
Copy link to clipboard
Print this post

ok cool all in a dys work rest and play...
technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 11:49am 17 Nov 2011
Copy link to clipboard
Print this post

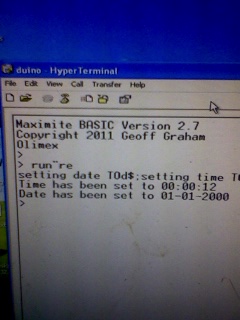

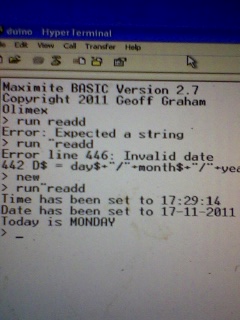

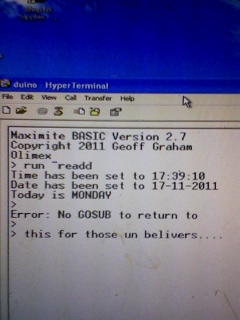

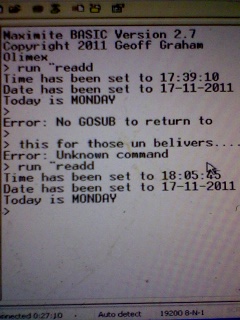

and an update of the "rtc`s " progress....

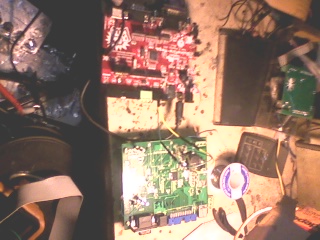

ok for those who wernt here when i first connected the rtc i..i have isolated the rtc cctry on the blown up SM1 board and connected it to the dynamite..using the "U-ext" connection ...and yes I`m the bloke standing around waiting to be told "how" its pretty straight foward ..the software is very particular but its really not that diffuicult ..///...///

Edited by sparkey 2011-11-18
technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 12:11pm 17 Nov 2011
Copy link to clipboard
Print this post

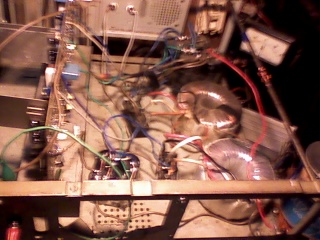

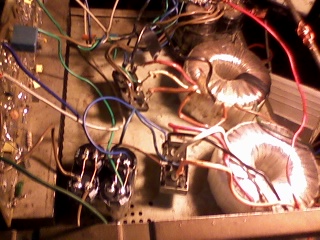

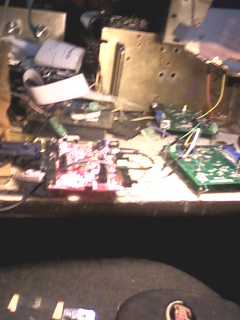

its late and im tired but for some of those guys here is what i use in conjunction with the maxi mite running my power converter ..this is my amplifier`s power supply and yes its dual 100 Hz power supply`s one per amp module......thats quad 50 volt rails dual and 80000 MFD of caps hows that for ripple regulation.....

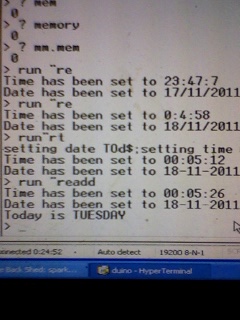

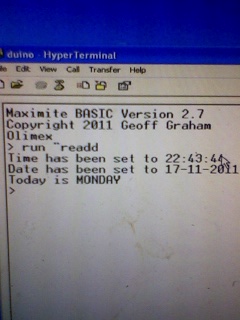

and here`s the "rtc " turning over the 24:00 hour mark





Edited by sparkey 2011-11-18
technicians do it with least resistance

Vikingboy
Regular Member

Joined: 23/09/2011
Location: Australia
Posts: 82
Posted: 02:09pm 17 Nov 2011
Copy link to clipboard
Print this post

Sparkey,

You realize its not Tuesday right ?? ;)

Andrew

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 02:21pm 17 Nov 2011
Copy link to clipboard
Print this post

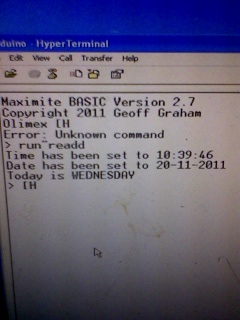

yes i do realise that i do have some sense of reality ...the main thing i was trying to do is get an external "RTC" running and yes it does state that but if u look earlier when it clocked over the "24:00 " hour mark well this is profe that ..the "RTC" is functioning correctly its just that the "write to RTC" is not set correctly in the soft ware ...belive me when you have downloaded as many files that you cannot rember after a while which ones you have modded to fix these errors...its a bit much after a while but i see you are in aussie land r you on the west coast or east...///...///
technicians do it with least resistance

Vikingboy
Regular Member

Joined: 23/09/2011
Location: Australia
Posts: 82
Posted: 02:39pm 17 Nov 2011
Copy link to clipboard
Print this post


east coast, Sydney.

I know what u mean re the rtc code, I have so many versions I just went back to the basic original Versions till I decide on what I really will need for my application.

Andrew

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 02:45pm 17 Nov 2011
Copy link to clipboard
Print this post

yes i know what u mean its pretty "how" do i say variable in its applications ...i`ve been seeing so much stuff about it it just gets confusing after a while and it can be a real pain to actully get functioning the way u want it ...///..//
technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 02:58pm 17 Nov 2011
Copy link to clipboard
Print this post

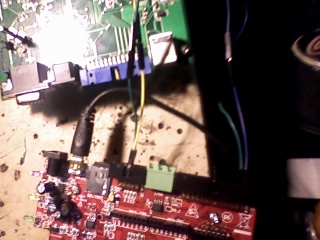

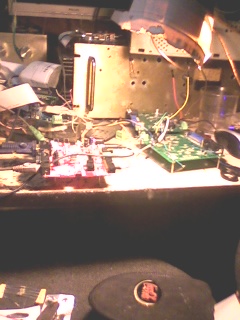

here is the "duinomite" with the blown up board SM1 and have mounted the board with the "RTC" parts and run jump wires to the "DUINOMITE " which i have one of the first revision c boards ..also you will need to connect pins 24 positive five volts and pin 26 zero volts or ground as u percieve it.....enjoy



Edited by sparkey 2011-11-19
technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 08:41am 18 Nov 2011
Copy link to clipboard
Print this post

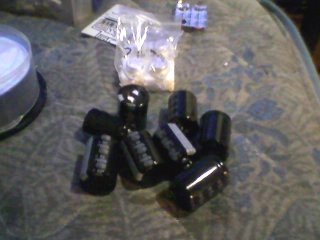

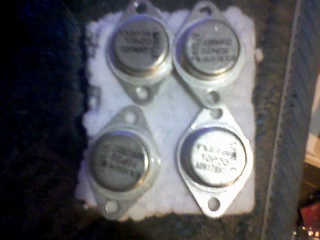

sparkey is on line and i am about to fit my series 5000 rebuild with 160000 mfd of caps and quad 16 amp devices and that they are rated at 200 volts lets hear the music that my maximite can switch at 100 Hz...///...//

added an extra 80000 mfd and 4 more fets....





well even though in all my ability`s i cannot refurbish my amp at the same time as it is running so i will have to stop the tunes whitch by the way have been running for a few hours now even though i could mount the second amplifier fets with it running it would not be a good idea... houston we are shutting down ..//..//
Edited by sparkey 2011-11-19
technicians do it with least resistance

sparkey

Senior Member

Joined: 15/06/2011
Location: Australia
Posts: 819
Posted: 04:56pm 19 Nov 2011
Copy link to clipboard
Print this post

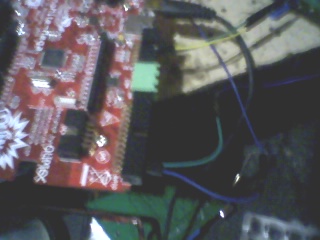

adding the "rtc "to the duino mite mega

:use the "U-ext"on the rear panel or use the one on the inside of the board either one will work as they are wired in paralell

:: pins 5 and 6 are the clock lines if you look at the schem u will see ,,,

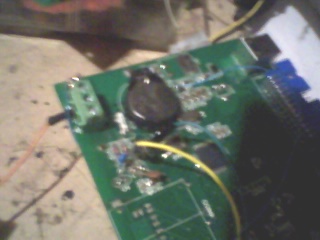

:and you will need plus 5 volts which i have taken from the 26 way hedder pin 25 is gnd and pin 23 is 5 volts so there you have the connections easily accessable for the "rtc".....just for ref heres a pic...






Edited by sparkey 2011-11-21
technicians do it with least resistance
